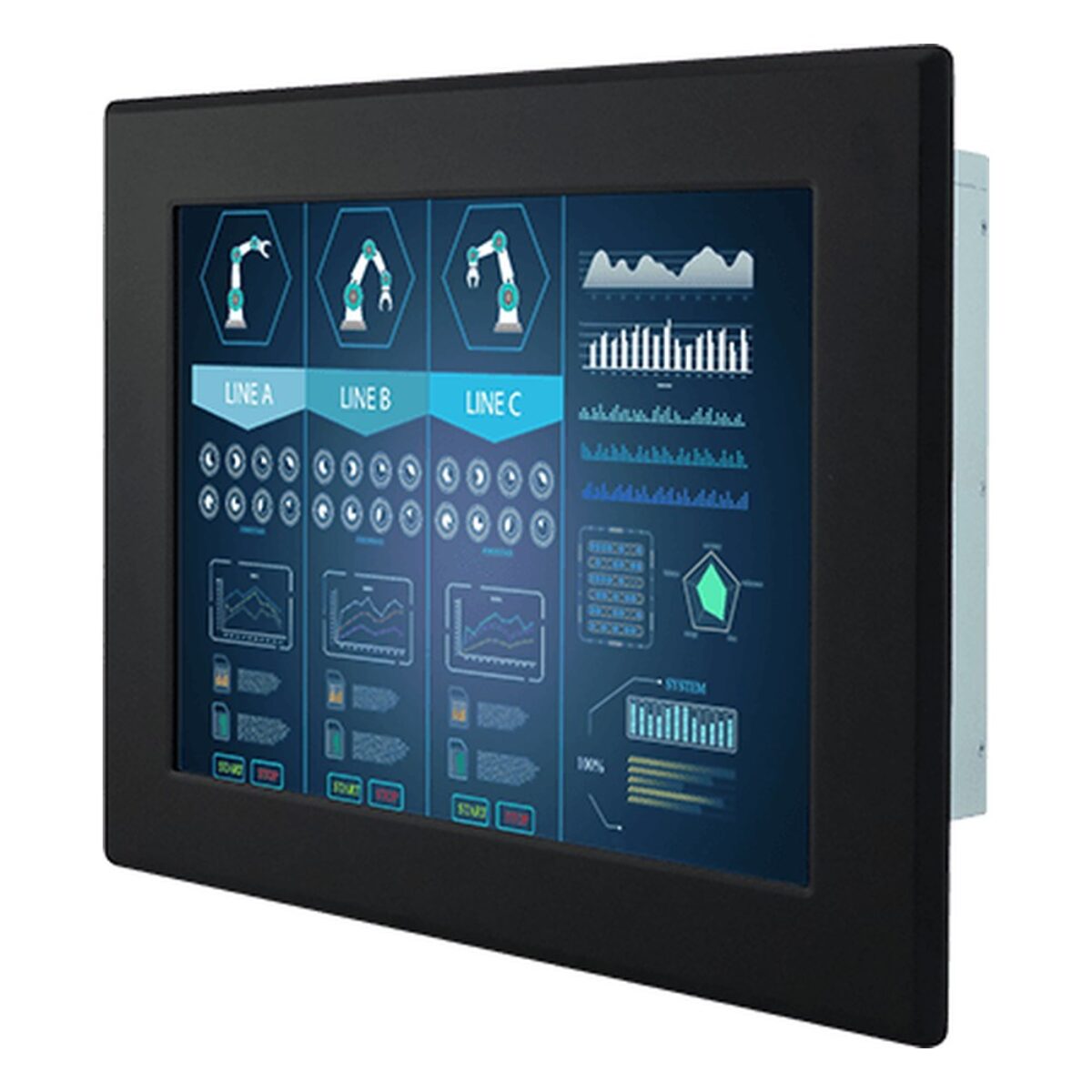

Winmate R15L100-PMA1 15″ Panel Mount Monitor with Resistive Touch and XGA LCD

Factory automation panels, kiosks and control rooms often need a display fitted into a cabinet door or console, driven by a computer that sits elsewhere. The R15L100-PMA1 is Winmate’s 15 inch panel mount monitor for that kind of install, with a 15″ XGA panel at 350 nits and resistive touch with SAW as an option. It connects to the host computer over VGA, with HDMI or DVI as options.

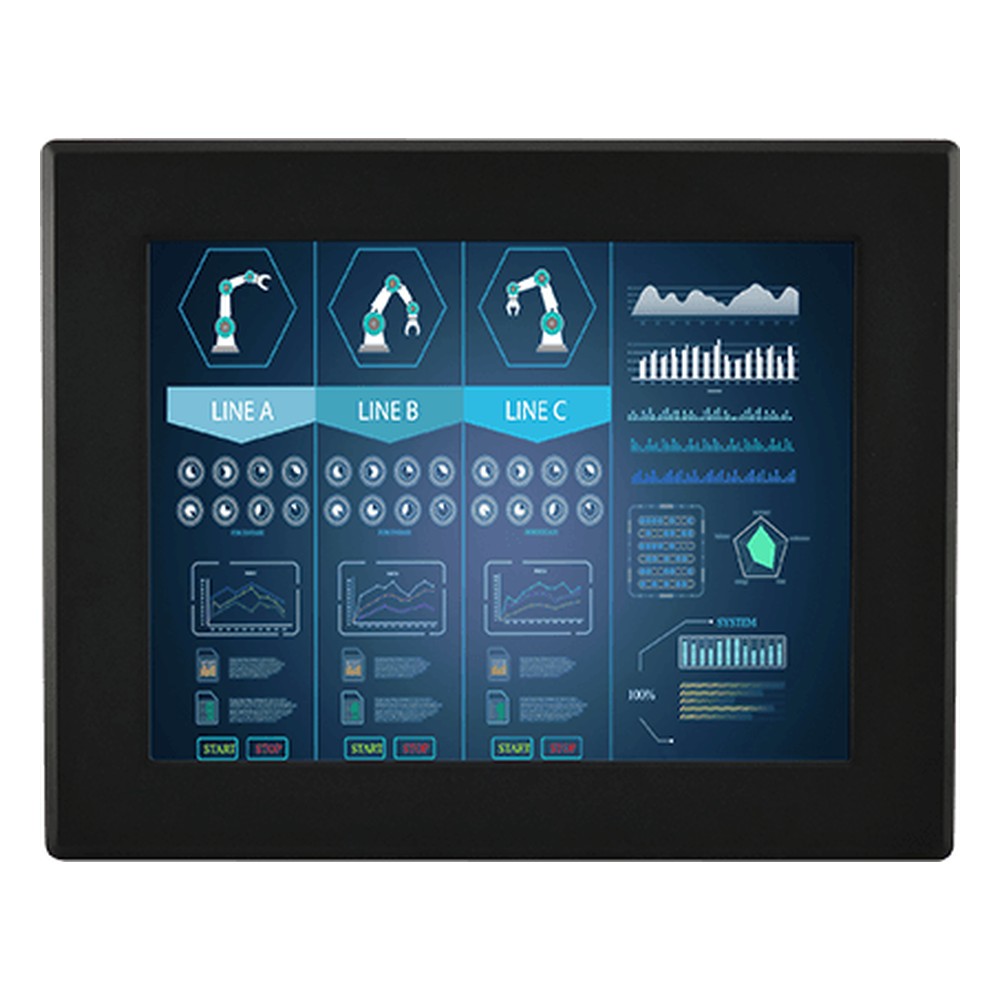

The 15″ XGA panel runs at 350 nits with 800:1 contrast, 16.2 million colors and 160 degree horizontal and 150 degree vertical viewing angles, which suits indoor lighting in control rooms and enclosures. Resistive touch is standard over one USB port, with SAW touch or protection glass without touch as options.

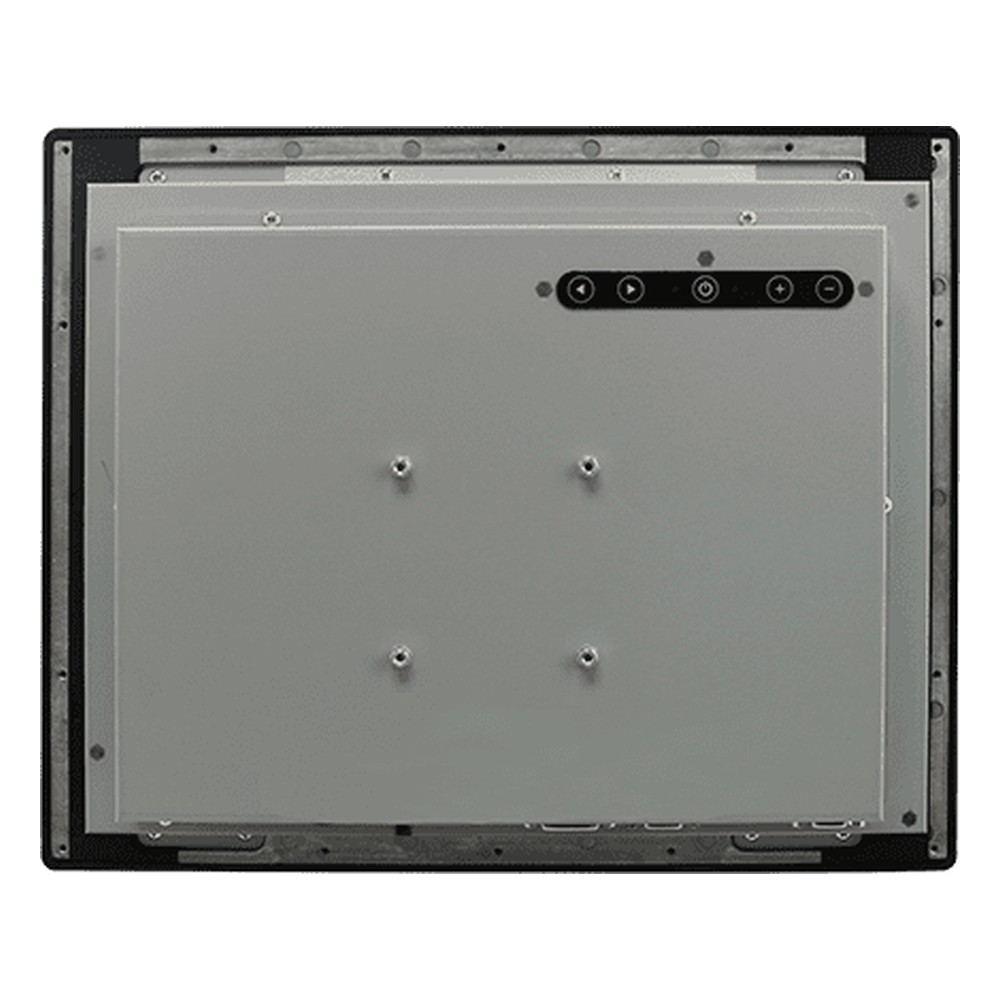

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R15L100-PMA1 pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R15L100-PMA1HB is the high brightness version at 1000 nits, and the R15L100-PMC3HB is the 1000 nit model with 2000:1 contrast.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. VESA mounting is standard and panel mounting is an option, and it carries CE and FCC marks. We supply the R15L100-PMA1 configured and tested before dispatch.
