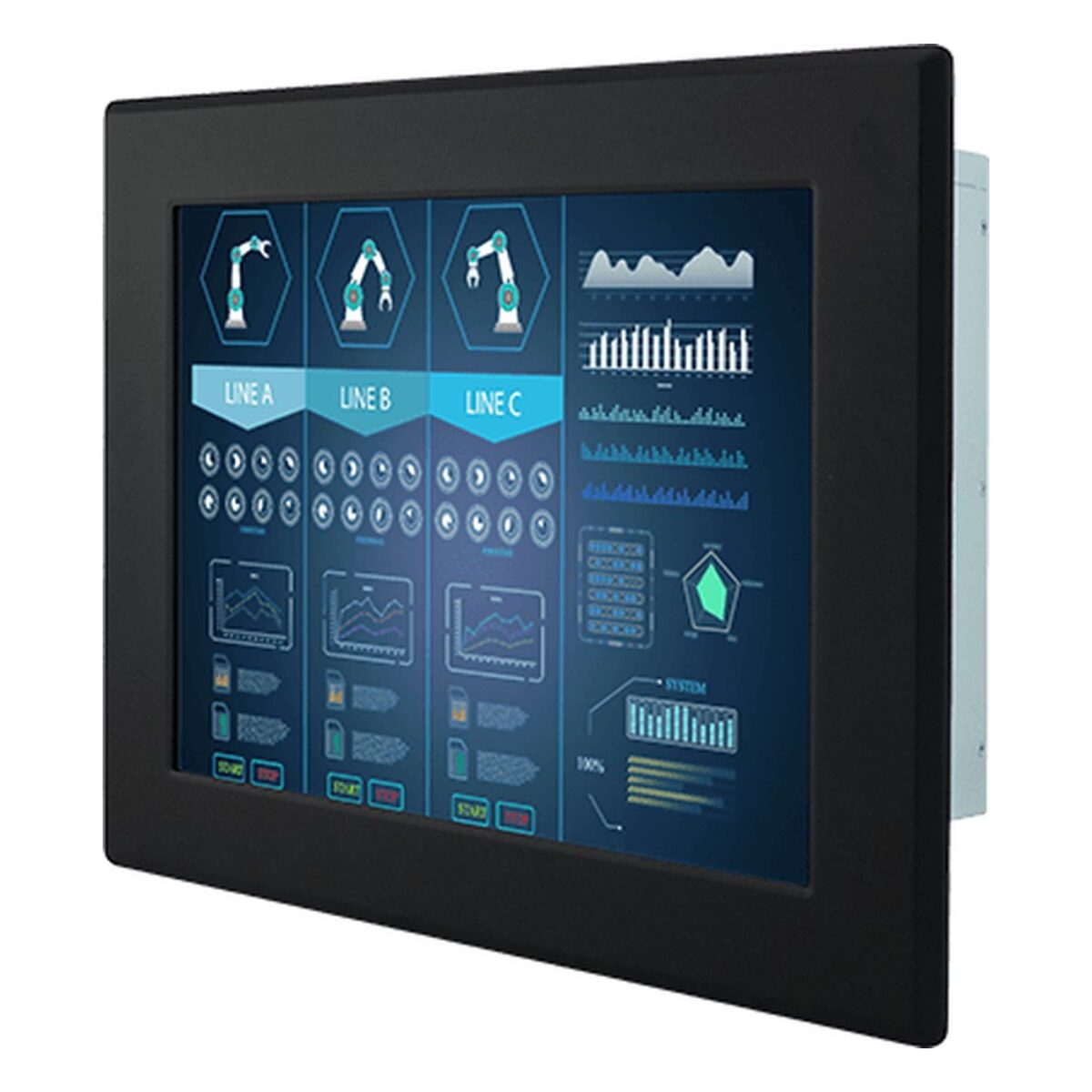

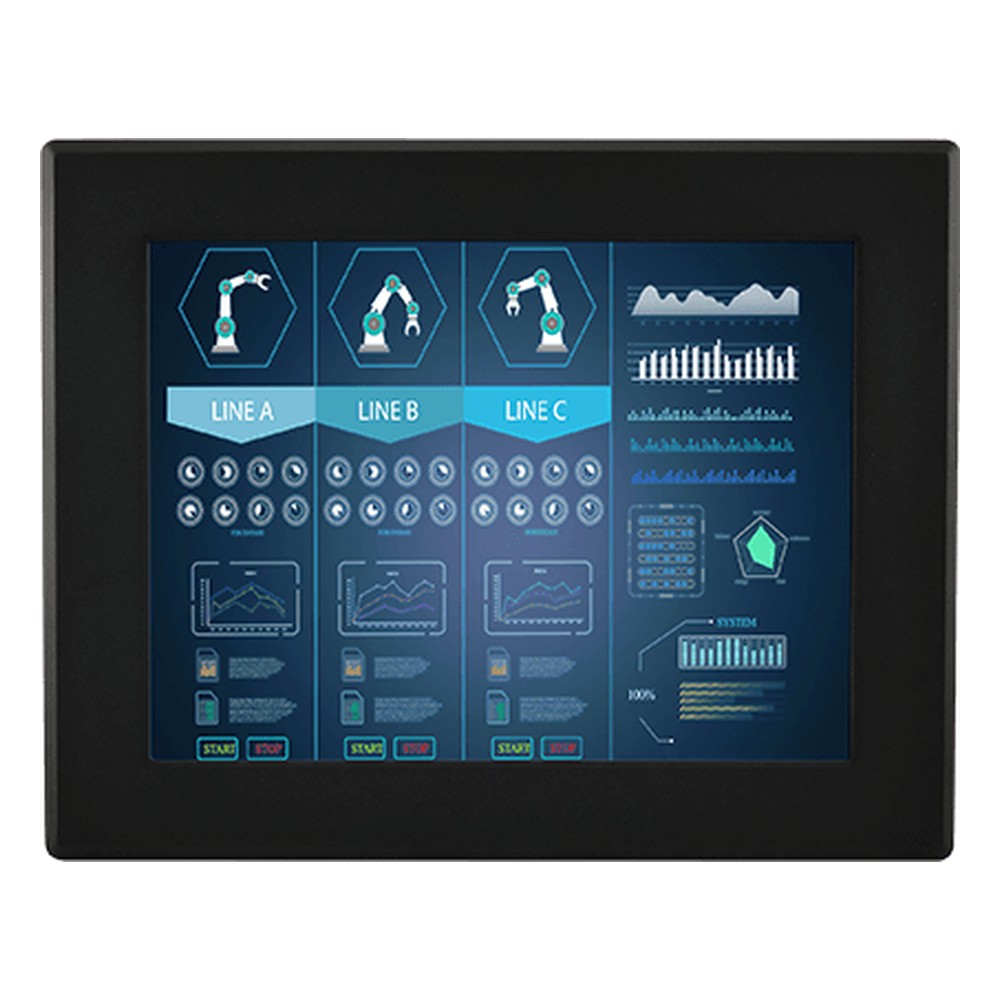

Winmate R15L100-PMA1HB 15″ Panel Mount Monitor with 1000 Nit XGA Display and Resistive Touch

An operator screen near windows, skylights or bright overhead lighting can wash out on a standard panel, even indoors. The R15L100-PMA1HB is Winmate’s 15 inch high brightness panel mount monitor for those stations, with a 15″ XGA panel at 1000 nits, which is sunlight readable, and optional resistive touch. It connects to the host computer over VGA, with HDMI or DVI as options.

The 15″ XGA panel runs at 1000 nits with 700:1 contrast, 16.7 million colors and 140 degree horizontal and 120 degree vertical viewing angles, so the picture typically stays readable in direct light. Resistive touch is optional, as is protection glass without touch, and one USB port carries the touch signal where touch is fitted.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R15L100-PMA1HB pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R15L100-PMA1 is the 350 nit version with resistive touch as standard, and the R15L100-PMC3HB is the 1000 nit model with 2000:1 contrast and wider viewing angles.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. VESA mounting is standard and panel mounting is an option, and it carries CE and FCC marks. We supply the R15L100-PMA1HB configured and tested before dispatch.
