Winmate R15L100-STC3 15″ Stainless Panel Mount Resistive Touch Monitor with Front IP65 and XGA Panel
PCAP
Fanless
Front IP65
CE
FCCR15L100-STC3 Overview

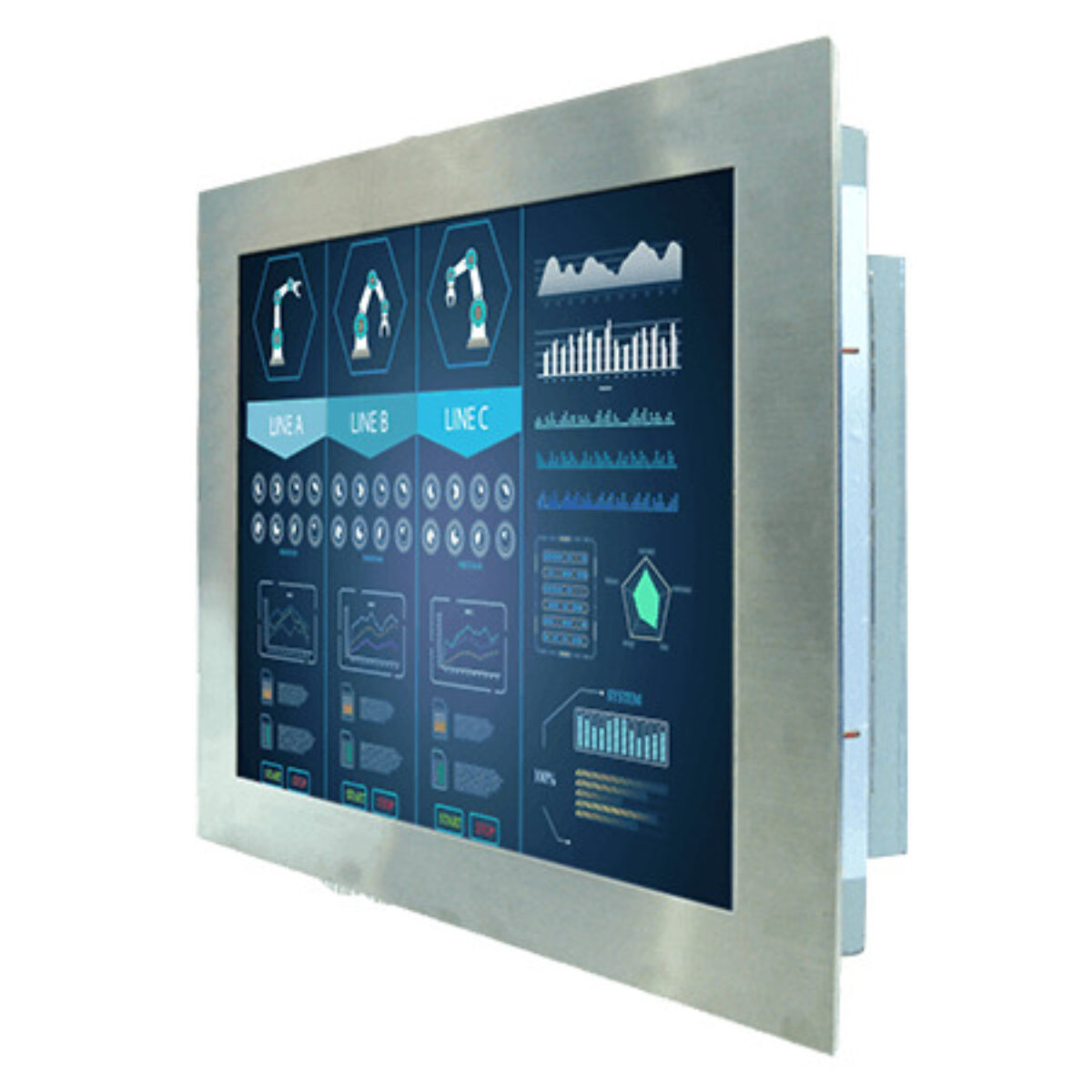

A display set into a machine door has one face in the plant and the rest safe in the cabinet, so only the front needs sealing. The R15L100-STC3 is Winmate’s 15 inch stainless panel mount monitor, with a stainless steel front bezel rated front IP65 and resistive touch on a 1024 x 768 panel.
The 4:3 XGA panel runs at 300 nits with a 2000:1 contrast ratio, 16.2 million colors and 88 degree viewing angles in each direction. Resistive touch responds to gloved fingers and styluses, which suits operators on a production floor, and Winmate offers protection glass without touch for display-only fronts. The active area measures 304.1 x 228.1 mm.
VGA is the standard input, with HDMI or DVI as options, and the touch screen connects over an optional USB type-A port or an optional RS-232 D-sub9 port, which suits controllers with a serial touch driver. Power and status LEDs are fitted. Where the whole housing has to be sealed, the R15L100-SPC3 is a fully IP65 stainless chassis with PCAP touch, and the R17L100-67M1ST goes to IP67 on a 17 inch panel.
The monitor measures 396 x 316 x 56.8 mm and mounts through a panel cut-out or on 75 x 75 mm VESA. It runs from 12 V DC on a 2.5 mm DC jack, with a 100 to 240 V AC adapter supplied, is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -20 to 60 °C. It carries CE and FCC marks, and Winmate names industrial visualization and equipment monitoring as typical uses.
R15L100-STC3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-STC3 |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 396mm x 316mm x 57mm (15.59" x 12.44" x 2.24") |
- R15L100-STC3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-STC3 configured for USA machine builder and process projects. Within the Winmate range the R15L100-SPC3 seals the whole housing to IP65 with PCAP touch, and the R17L100-67M1ST goes to full IP67 on a 17 inch stainless chassis.
With its stainless front the R15L100-STC3 sits among our front IP65 monitors, our panel mount monitors and our 15 inch touch screen monitors. Where a gloved operator uses a sealed cabinet door, this is the model to specify.
