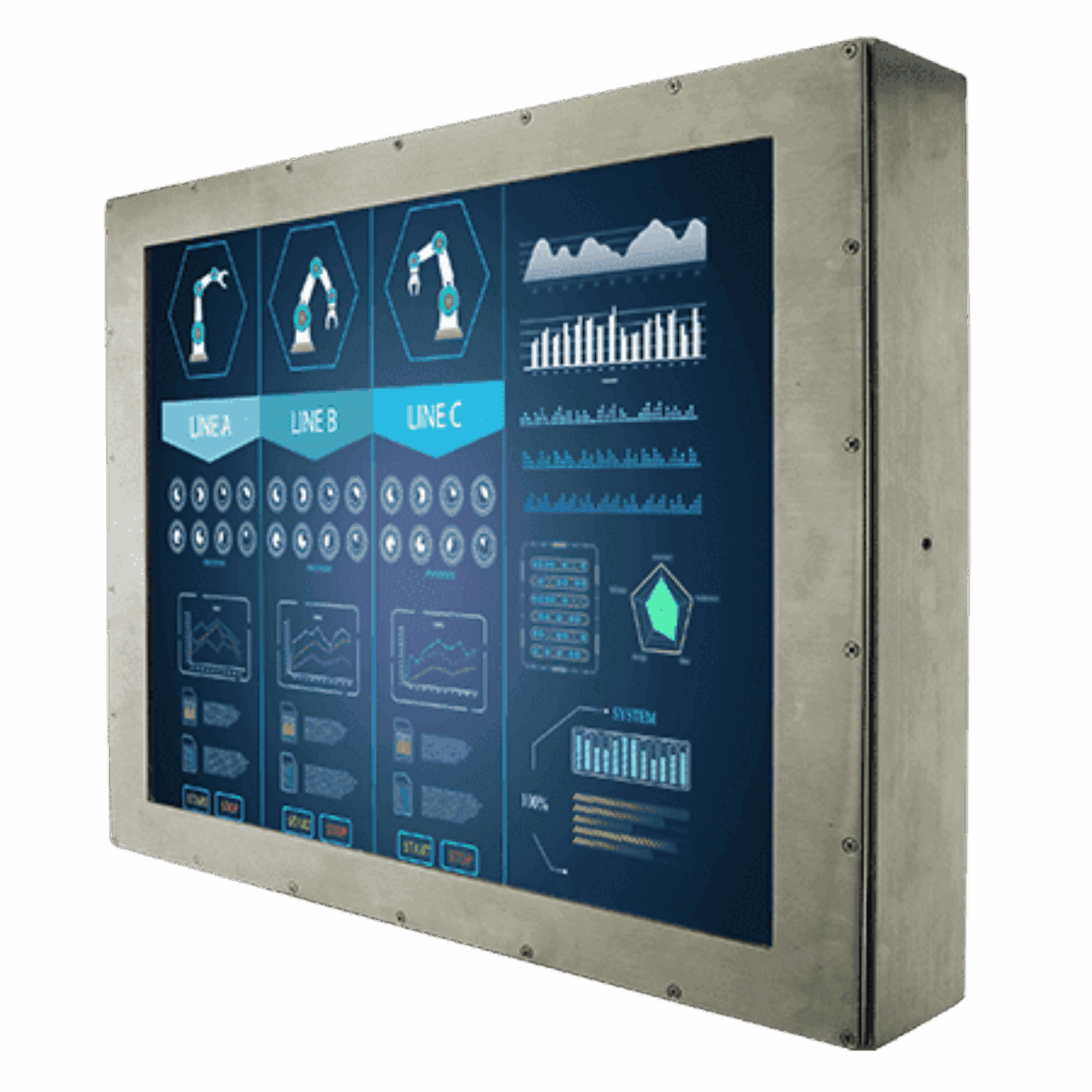

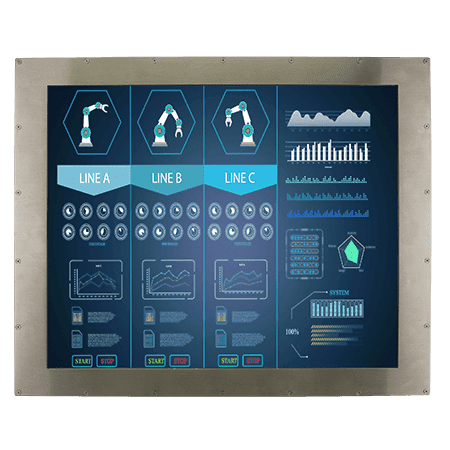

Winmate R15L600-67C3ST 15″ IP67 Stainless Steel Resistive Touch Monitor with M12 Connectors

Where a screen sits beside a filler, a mixer or a wash station, spray reaches the back and sides as well as the front. The R15L600-67C3ST is Winmate’s 15 inch stainless steel monitor for those positions: a 1024 x 768 XGA display in a SUS 316 housing with full IP67 waterproof and dustproof sealing, bonded resistive touch and M12 connectors.

The resistive touch screen is bonded to the panel and responds to gloved fingers, which suits operators in food and pharmaceutical hygiene wear; plain protection glass can be specified instead. The panel delivers 300 nits with a 2000:1 contrast ratio, 16.2 million colors and 176° viewing angles in both planes. Five buttons and LED indicators handle power and settings.

The VGA input and 12 V DC supply use M12 waterproof connectors, with waterproof DVI and HDMI inputs as options. Touch connects over USB or RS-232 on M12 connectors, each available as an option. The R15L600-65A1FTP is the IP65 stainless steel version with flat PCAP touch, and the R15L100-67C3(HB) is a 15 inch IP67 G-WIN display with optical bonding.

Power is 12 V DC on an M12 waterproof connector, with a 100 to 240 V AC adapter supplied. The R15L600-67C3ST is fanless, operates from 0 to 45 °C at 10 to 90% non-condensing humidity and stores from -20 to 60 °C. It measures 383 x 310 x 57 mm and mounts on 100 x 100 mm VESA or an optional yoke stand. Winmate names the food, beverage and pharmaceutical industries, along with industrial visualization, control rooms and equipment monitoring.
