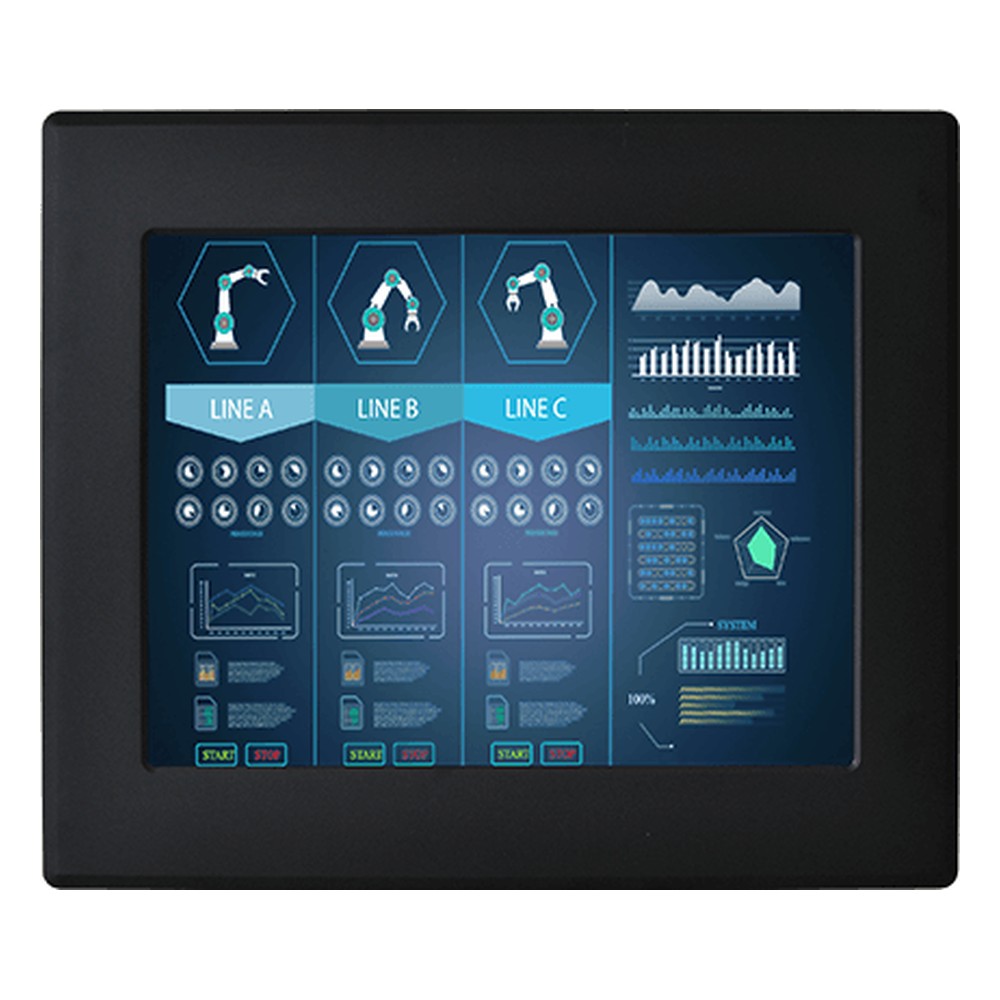

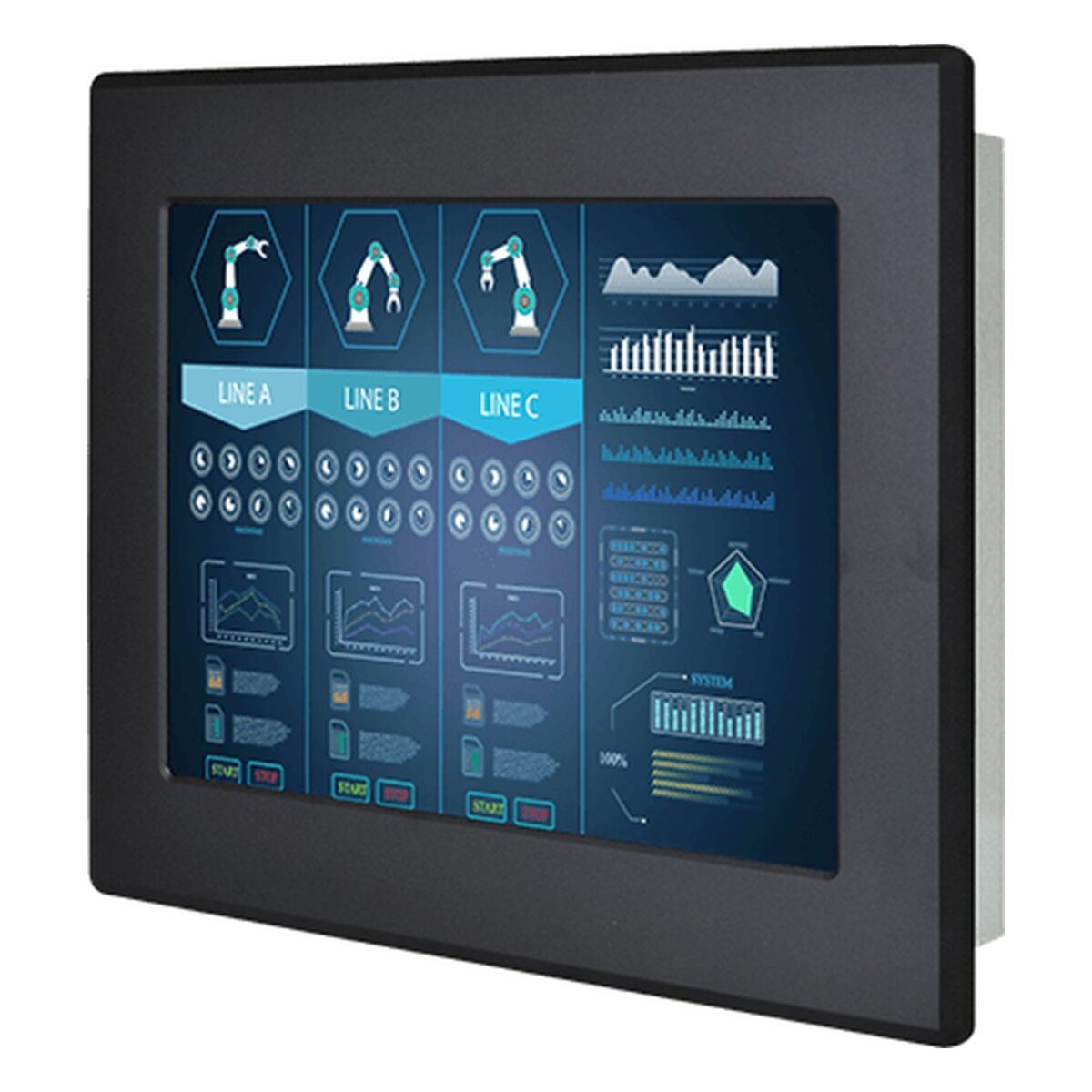

Winmate R15L600-IPC3 15″ Front IP65 Monitor with Resistive Touch and 300 Nits

Winmate aims this monitor at industrial visualization, control rooms and equipment monitoring, where a 4:3 screen has to sit in a panel and seal at the front. The R15L600-IPC3 is Winmate’s 15 inch industrial monitor for that job: an XGA panel, with front IP65 protection against dust and low-pressure water jets in a fanless metal housing with an aluminum bezel. It connects to a separate industrial computer or controller and fits into cabinets, racks and fixtures.

The 15″ 1024 x 768 panel runs at 300 nits with 2000:1 contrast and 176 degree viewing angles, which suits indoor control panels and machine fronts. The 4:3 format matches many existing HMI and SCADA screen layouts. Resistive touch is fitted as standard, and it works with gloved fingers or a stylus. SAW touch or a plain protection glass without touch can be specified instead.

Video comes in over VGA as standard, with HDMI or DVI inputs as options. Touch connects over a USB port, which is optional on this model. Set-up is through a five-key OSD. An audio line-in and two speakers are optional, as is a remote controller. The R15IAD3S-IPC3 is the panel PC on the same front, with a 12th Gen Intel Core i5 built in, and the R15L100-IPC3HB is a 15 inch front IP65 monitor with a 1000 nit panel.

The 15 inch monitor is rated IP65 at the front and mounts on VESA as standard, with panel mounting as an option. It runs from 12 V DC, with a 24 V DC input as an option, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables are supplied. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C, and it carries CE and FCC marks. We supply the R15L600-IPC3 configured and tested before dispatch, ready to pair with the computer that drives it.
