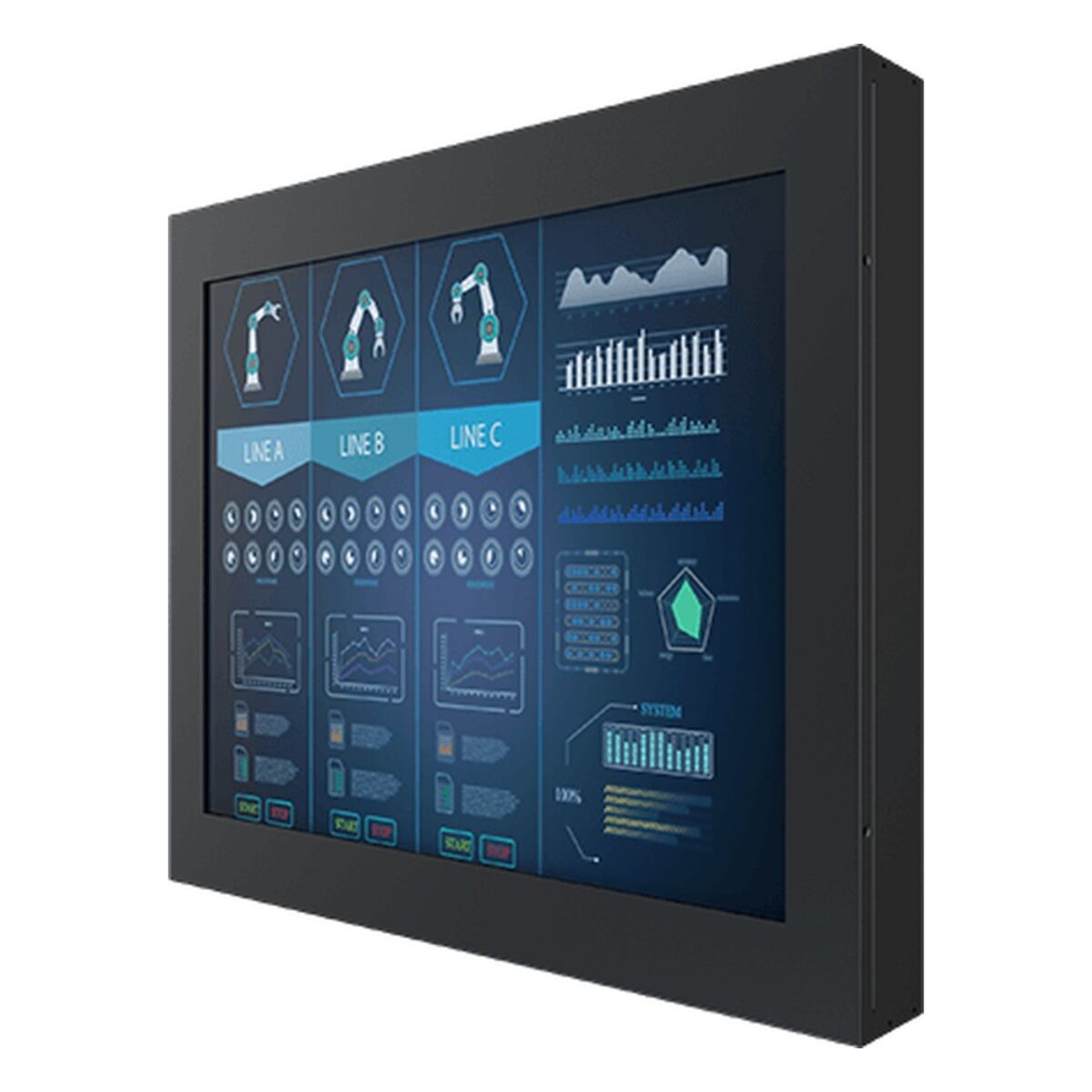

Winmate R17L100-CHA1OD 17″ Sunlight Readable Chassis Monitor with 1000 Nit SXGA Display and Wide Temperature

Control systems, kiosks and equipment screens in bright or exposed places need a display that stays readable and keeps working as the temperature swings. The R17L100-CHA1OD is Winmate’s 17 inch sunlight readable chassis monitor for that job, with a 17″ SXGA panel at 1000 nits, resistive touch as standard and a -10 °C to 60 °C operating range. It connects to a separate computer over VGA, with HDMI or DVI as options.

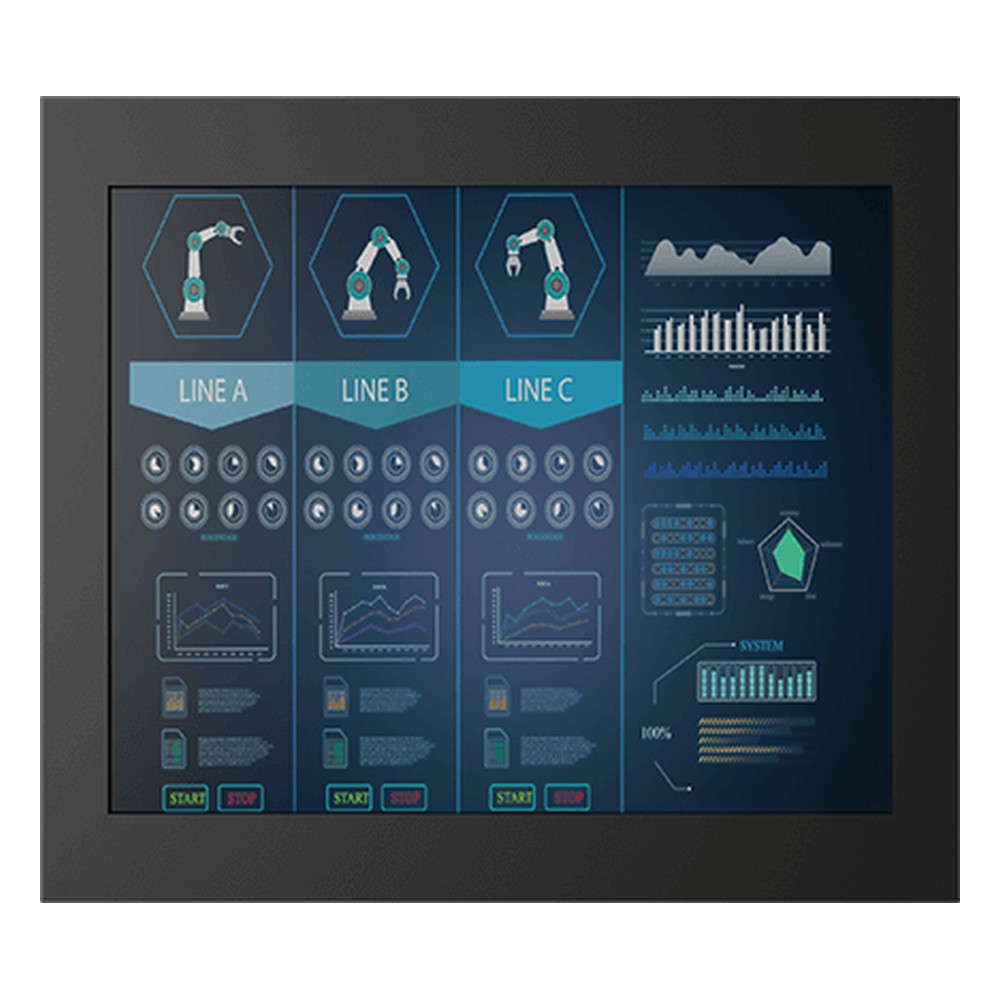

The 17″ SXGA panel runs at 1000 nits with 1000:1 contrast, 16.7 million colors and 170 degree horizontal and 160 degree vertical viewing angles, so the picture typically stays readable in direct light. Resistive touch is standard, connected over one USB port, and protection glass without touch is available as an option.

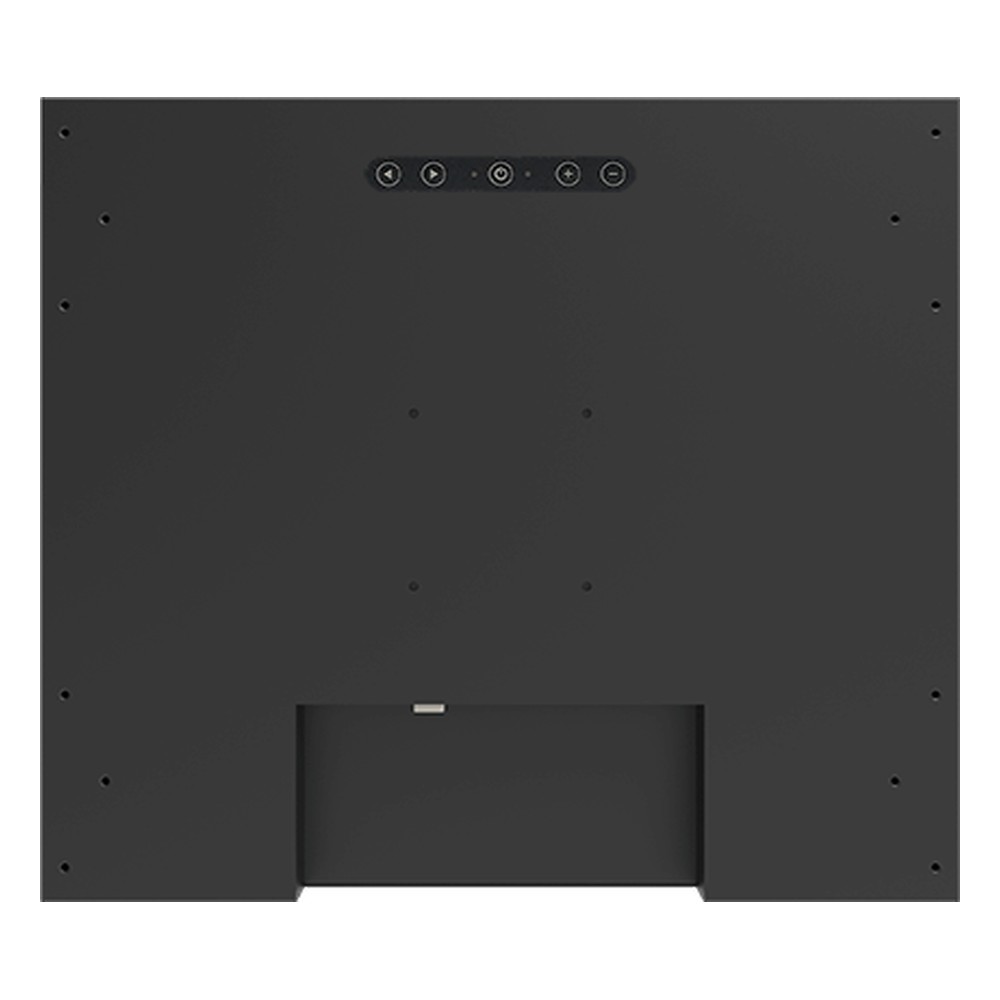

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R17L100-CHA1OD pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R17L100-PPM1 is the 17 inch PCAP panel mount monitor with a 350 nit SXGA LCD, and the R17L100-67M1ST is the IP67 stainless steel resistive touch model in a 316 housing.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from -10 °C to 60 °C and stores from -20 °C to 70 °C, at 10 to 90% humidity, non-condensing. It mounts on VESA arms, brackets or stands, and it carries CE and FCC marks. We supply the R17L100-CHA1OD configured and tested before dispatch.
