Winmate R17L100-SPM1 17″ IP65 Stainless Steel PCAP Touch Monitor with 316 Housing and SXGA Panel
PCAP
CE
FCCR17L100-SPM1 Overview

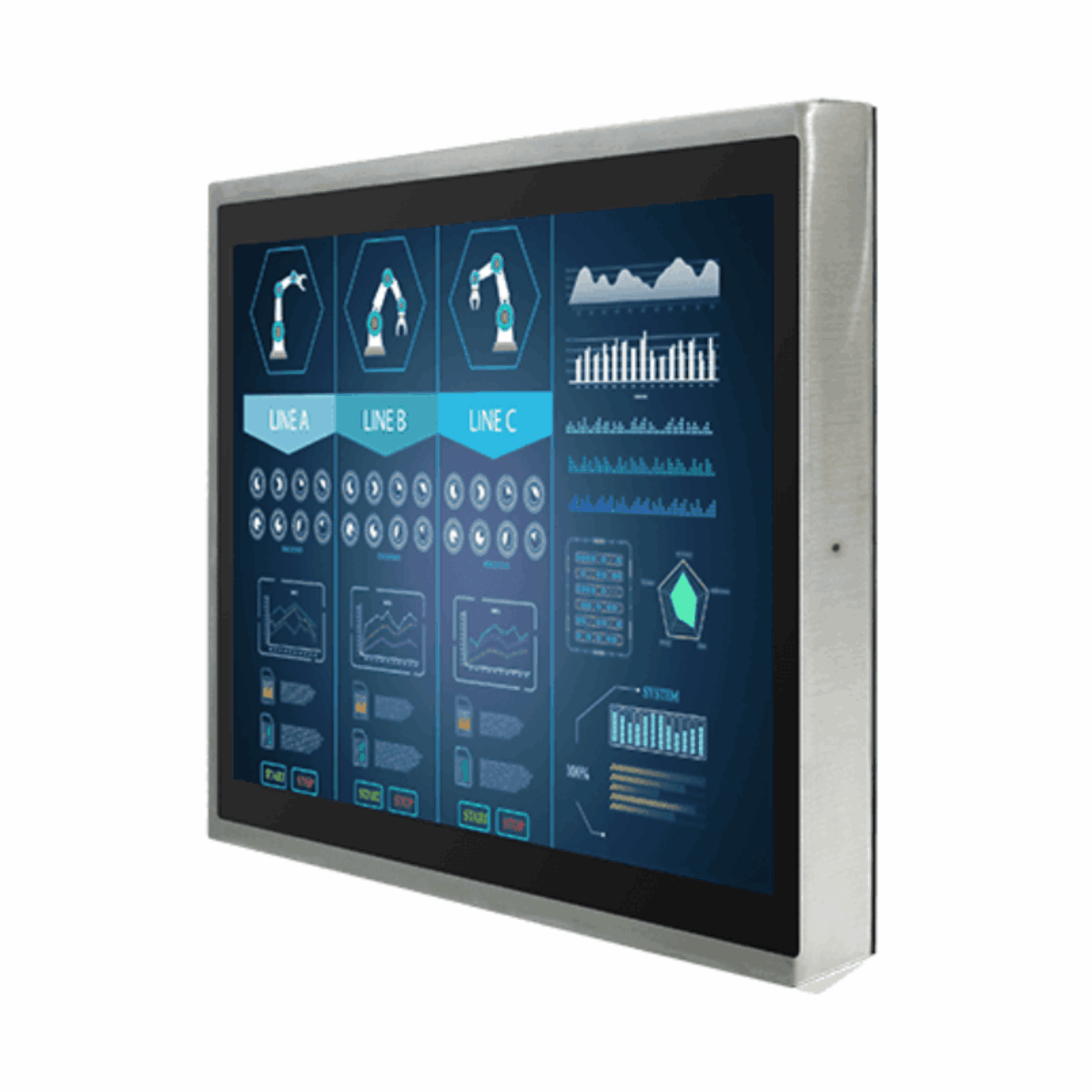

Hygiene areas need a screen large enough for batch and SCADA views that still survives daily cleaning. The R17L100-SPM1 is Winmate’s 17 inch stainless steel monitor, sealed to IP65 all round in a SUS 316 / AISI 316 housing, with PCAP touch on a 1280 x 1024 panel.

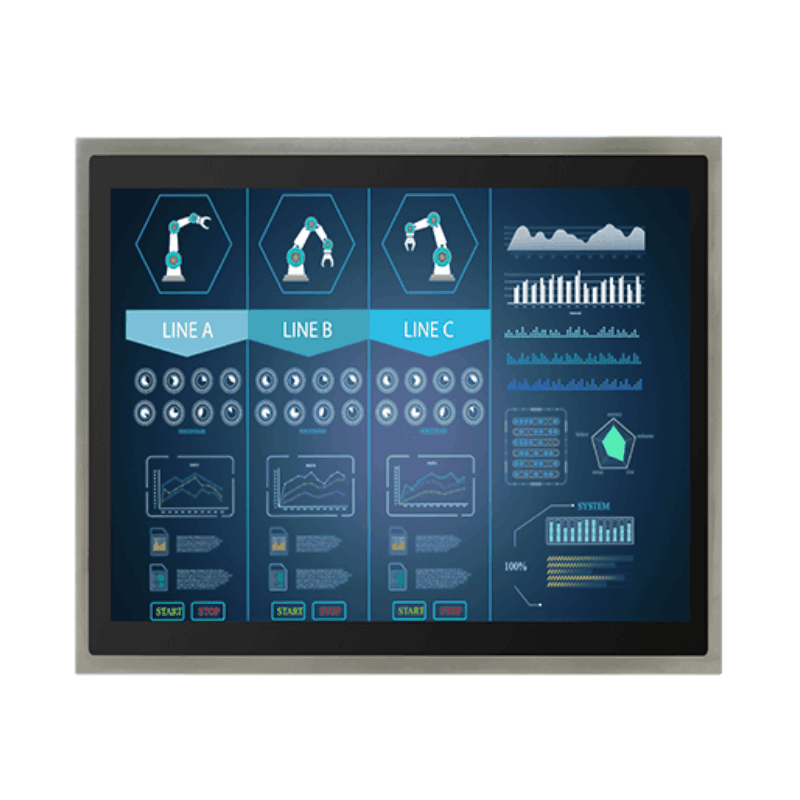

The 5:4 SXGA panel delivers 350 nits with a 1000:1 contrast ratio and 170 degree horizontal and 160 degree vertical viewing angles, and optical bonding is an option to cut reflections. Projected capacitive multi-touch sits behind a flat front, which is quicker to wipe clean than a raised bezel and gives the operator more vertical space than a 4:3 panel. The active area measures 337.9 x 270.3 mm and the panel shows 16.2 million colors.
VGA, USB touch and 12 V DC power each connect on M12 connectors, with waterproof HDMI or DVI as options, and power and status LEDs sit beside a five-button OSD on the rear. For a smaller line position the R15L100-SPC3 is the 15 inch IP65 model, and the R19L100-SPM1 extends the same design to 19 inches.
The chassis measures 412 x 344 x 61.3 mm and mounts on 100 x 100 mm VESA, with a yoke mount as an option. A 100 to 240 V AC adapter with a waterproof connector, sealed cables and waterproof caps are supplied. It is fanless, operates from 0 to 45 °C at 10 to 90% RH non-condensing, stores from -20 to 60 °C and carries CE and FCC marks. Winmate names food and beverage, pharmaceutical and chemical plants as target industries.
R17L100-SPM1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R17L100-SPM1 |
| Features | Fanless Industrial M12 Connectors Waterproof |
| Display | |
| Display | 17"[5:4, 1280 x 1024, SXGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC [M12] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 45°C [32°F to 113°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 412mm x 344mm x 61mm (16.22" x 13.54" x 2.4") |
- R17L100-SPM1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R17L100-SPM1 configured for USA food, beverage and pharmaceutical projects. Within the Winmate range the R15L100-SPC3 is the 15 inch build of this IP65 design, and the R17L100-67M1ST goes to full IP67 with bonded resistive touch at 17 inches.
With full IP65 sealing the R17L100-SPM1 sits among our IP65 rated monitors, our stainless steel monitors and our 17 inch touch monitors. Where a larger touch screen is hosed down with the line every shift, this is the model to specify.
