Winmate R19IAD3S-MLA3-89 19″ Defense Panel PC with 12th Gen Intel Core i7-1265UE, MIL-STD-810H and MIL-STD-461
Resistive
Intel
Linux
Windows
Fanless
Extended Temp
CE
FCCR19IAD3S-MLA3-89 Overview

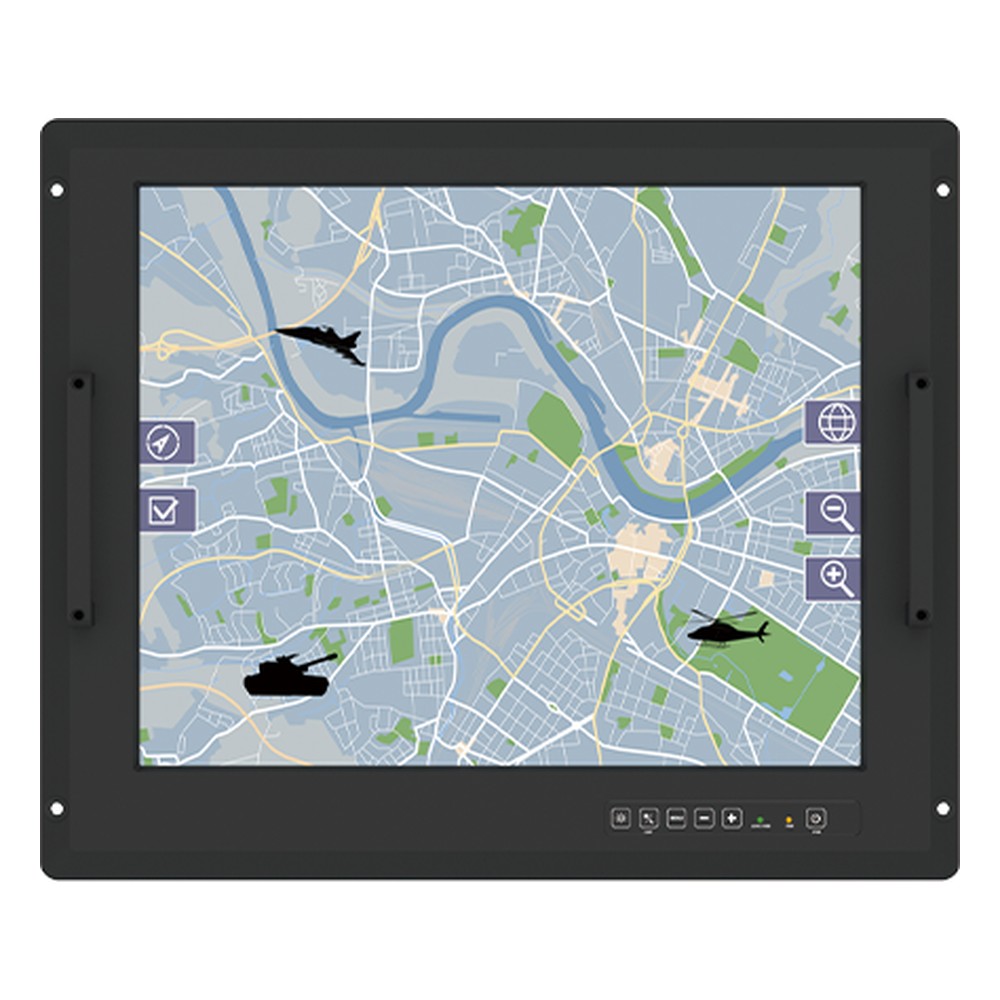

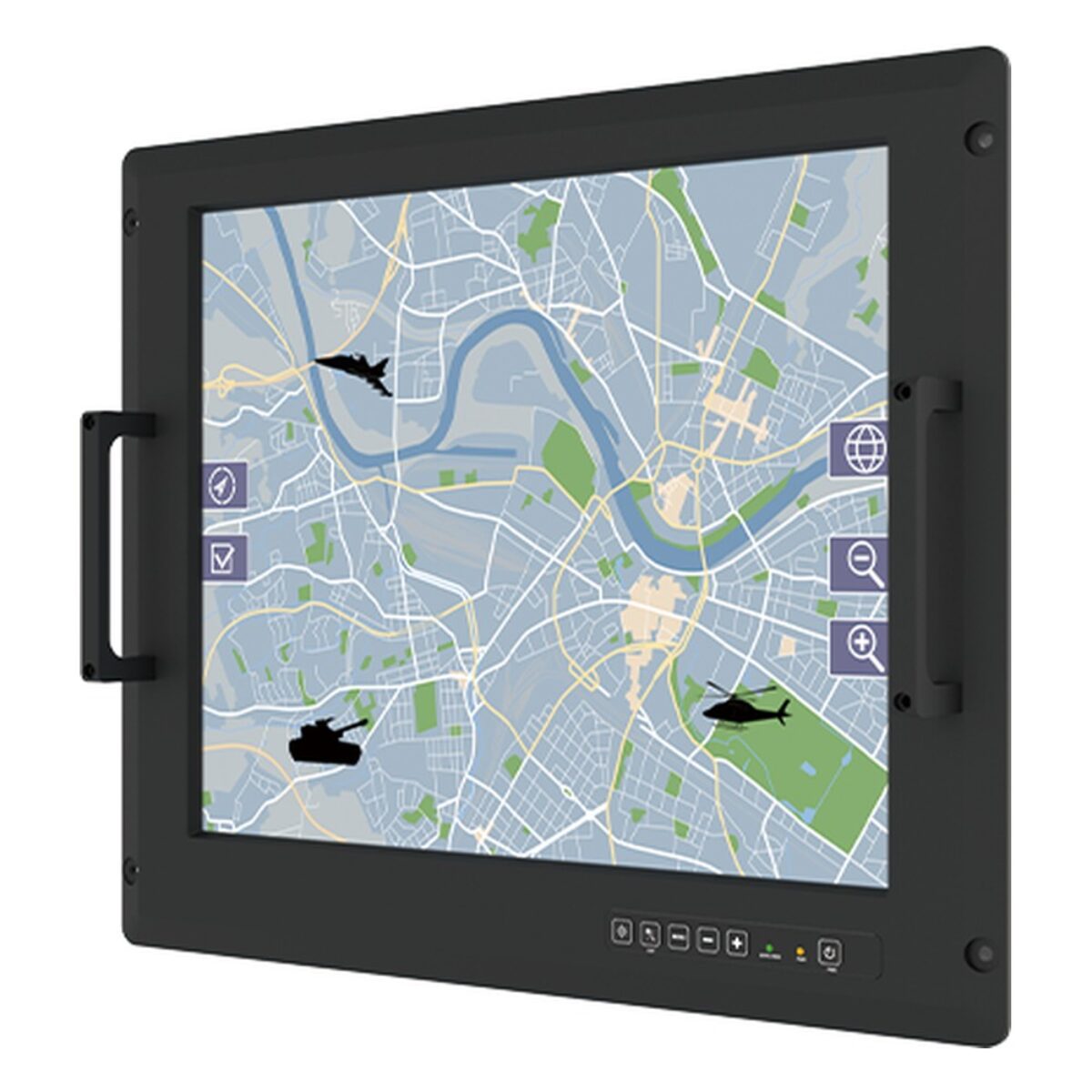

Consoles that are moved, refitted or shaken in service tend to lose connections at standard USB and RJ45 plugs before anything else fails. The R19IAD3S-MLA3-89 is Winmate’s 19 inch defense panel PC with MIL-DTL-38999 I/O for that job: a fanless 19″ unit with a 1280 x 1024 display, compliant with MIL-STD-810H and MIL-STD-461G.
The Intel Core i7-1265UE has 10 cores and 12 threads at up to 4.7 GHz with Intel Iris Xe graphics, for console software and operator displays without a fan. Memory is 8 GB of DDR5 with 16 GB and 32 GB options, storage is 256 GB with options up to 2 TB, TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed. The 1280 x 1024 panel gives 350 nits with 1000:1 contrast, with AR protection glass as standard and 5-wire resistive touch, an EMI mesh filter or EMI glass as options. A six-key OSD pad covers power, brightness and day or night modes, and a light sensor can set brightness automatically.
The I/O is built for secure cabling: one LAN port, one USB 2.0 Type-A port and two RS-232 ports, all on MIL-DTL-38999/3 circular connectors, so every cable locks in place. The R19IAD3S-RKA3ML is the 19 inch rack mount defense panel PC with a Core i5-1235U and standard USB 3.2, Ethernet and serial ports, and the R19IAD3S-MLA3FP is the 19 inch defense model with PCAP touch.
Power is 100 to 240 V AC on a MIL-DTL-38999/1 connector, with an optional isolated 9 to 36 V DC input. The R19IAD3S-MLA3-89 runs from -20 to 60 °C and stores from -30 to 70 °C at 10 to 95% humidity. Winmate lists compliance with MIL-STD-810H for vibration, humidity and transit drop, and MIL-STD-461G for CE101, CE102, RE101, RE102 and CS118, with TEMPEST and NATO STANAG options and CE and FCC marks. The anti-corrosion metal housing with an aluminum bezel mounts on VESA as standard, with rack mounting as an option. We supply it configured, with the OS installed, and tested before dispatch.
R19IAD3S-MLA3-89 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19IAD3S-MLA3-89 |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Anti-reflective glass EMI Mesh Filter |
| Touch Controller | Optional 5-Wire Resistive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Performance | |
| Processor Series | Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i7-1265UE: 1.7~4.7GHz, 10 Cores, 12 Threads, 12MB Cache, 15W |
| Performance Cores | 10 Cores |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel Iris Xe Series |
| I/O | |
| USB | 1x USB Ports |
| 1x USB 2.0 [MIL-STD] | |
| Serial | 2x Serial Ports |
| 2x RS232 [MIL-STD] | |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD |
| Power | |
| Power Input | 100-240V AC 9-36V DC Input [MIL-STD] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| Certification | CE FCC MIL-STD-461 MIL-STD-810 |
| Mechanical Properties | |
| Dimensions | 483mm x 399mm x 81mm (19.00" x 15.72" x 3.20") |
- R19IAD3S-MLA3-89 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19IAD3S-MLA3-89 configured for USA defense, command centre and control room projects. Within the Winmate range the R19IAD3S-RKA3ML is the 19 inch rack mount model with a Core i5-1235U and standard rear I/O, and the R19IAD3S-MLA3FP is the 19 inch defense panel PC with PCAP touch.
With locking defense connectors, the R19IAD3S-MLA3-89 sits among our rugged panel PCs, our rack mount panel PCs and our chassis and VESA mount panel PCs. Where a 19 inch console needs Core i7 processing and circular connectors on every port, this is the model to specify.
