Winmate R19IAD3S-RKA3ML 19″ Rack Mount Defense Panel PC with Intel Alder Lake Core i5-1235U, MIL-STD-810H and MIL-STD-461
Resistive
Intel
Linux
Windows
USB3
Fanless
Extended Temp
CE
FCCR19IAD3S-RKA3ML Overview

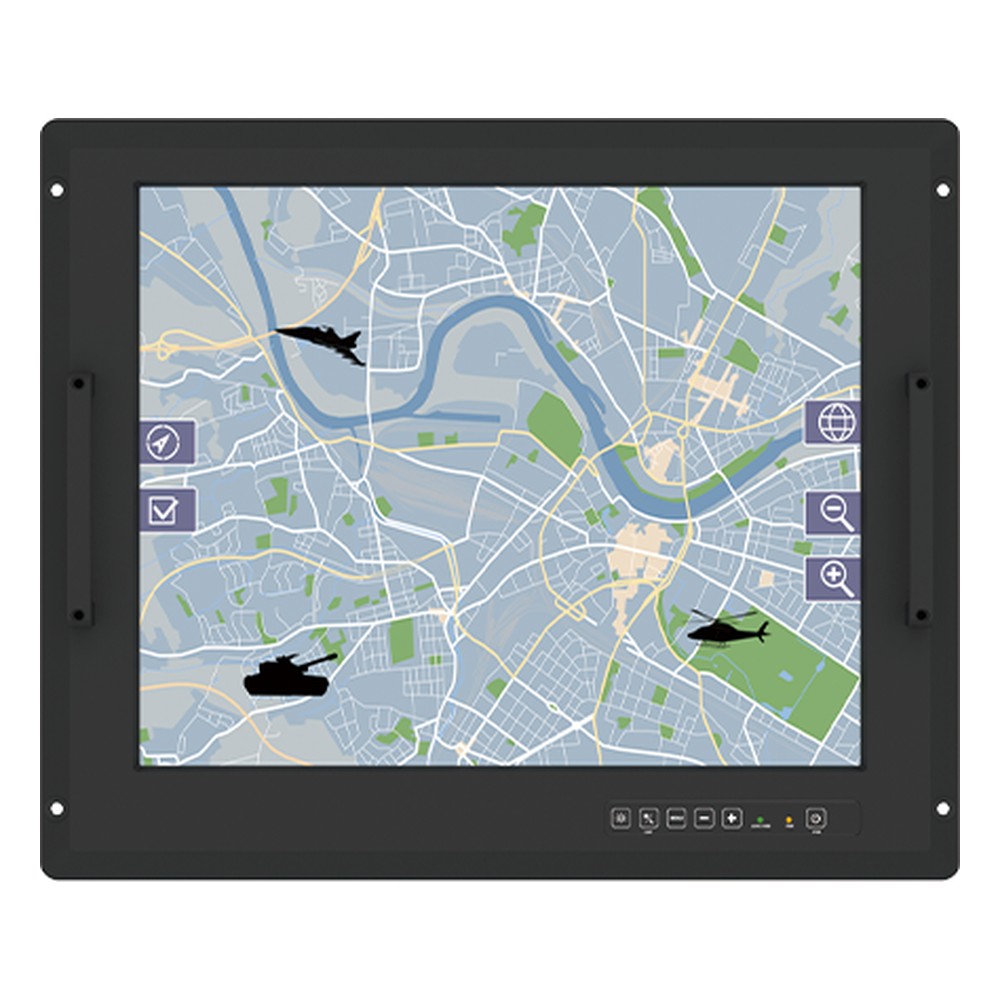

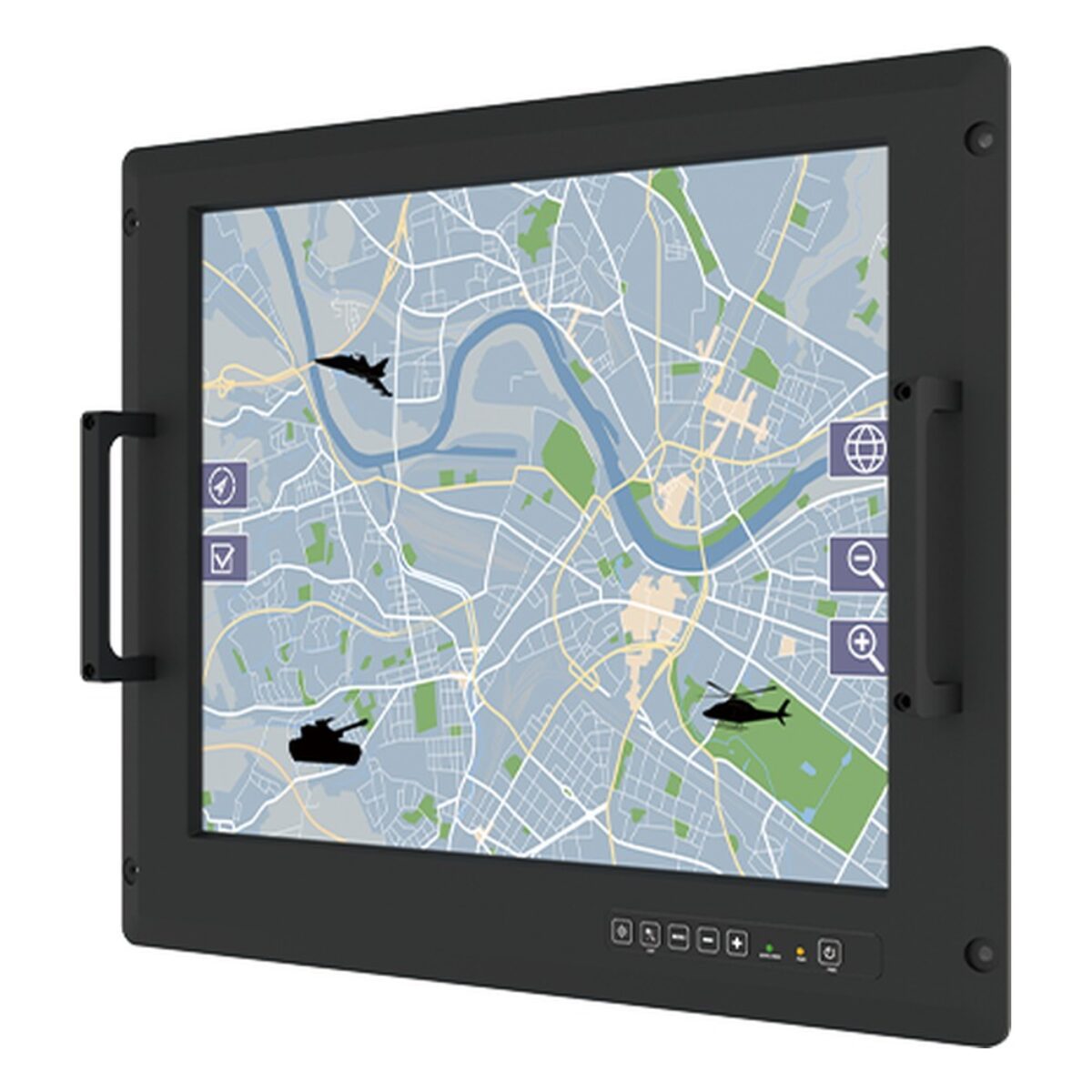

Rack consoles driven by keyboard and trackball need a hard-wearing screen face and EMC options first, with touch as an add-on where the role calls for it. The R19IAD3S-RKA3ML is Winmate’s 19 inch rack mount defense panel PC for that job: a fanless 19″ unit with a 1280 x 1024 display, compliant with MIL-STD-810H and MIL-STD-461G.
The Intel Core i5-1235U has 10 cores and 12 threads at up to 4.4 GHz with Intel Iris Xe graphics, for console software and operator displays without a fan. Memory is 8 GB of DDR5 with 16 GB and 32 GB options, storage is 256 GB with options up to 2 TB, TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed. The 1280 x 1024 panel gives 350 nits with 1000:1 contrast, with AR protection glass as standard and EMI ITO glass or 5-wire resistive touch as options. A six-key OSD pad covers power, brightness and day or night modes, and a light sensor can set brightness automatically.
Rear I/O covers two Ethernet ports on Intel controllers, two USB 3.2 Gen 2×1 Type-A ports, one RS-232/422/485 port set to RS-232 by default, an optional second RS-232 port and an optional HDMI output. The R19L100-RKA3ML is the 19 inch defense monitor in this style for racks where the computer sits elsewhere, and the R19IAD3S-MLA3-89 is the 19 inch model with a Core i7-1265UE and its I/O on MIL-DTL-38999/3 connectors.
Power is 100 to 240 V AC on a MIL-DTL-38999/1 connector, with an optional isolated 9 to 36 V DC input. The R19IAD3S-RKA3ML runs from -20 to 60 °C and stores from -30 to 70 °C at 10 to 95% humidity. Winmate lists compliance with MIL-STD-810H for vibration, humidity and transit drop, and MIL-STD-461G for CE101, CE102, RE101, RE102 and CS118, with TEMPEST and NATO STANAG options and CE and FCC marks. The anti-corrosion metal housing with an aluminum bezel is rack mounted as standard, with panel or VESA mounting as options. We supply it configured, with the OS installed, and tested before dispatch.
R19IAD3S-RKA3ML Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19IAD3S-RKA3ML |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Anti-reflective glass EMI Mesh Filter |
| Touch Controller | Optional 5-Wire Resistive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Performance | |
| Processor Series | Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i5-1235U: 1.3~4.4GHz, 10 Cores, 12 Threads, 12MB Cache, 15W |
| Performance Cores | 10 Cores |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel Iris Xe Series |
| I/O | |
| USB | 2x USB Ports |
| 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD |
| Power | |
| Power Input | 100-240V AC 9-36V DC Input [MIL-STD] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| Certification | CE FCC MIL-STD-461 MIL-STD-810 |
| Mechanical Properties | |
| Dimensions | 483mm x 399mm x 71mm (19.00" x 15.72" x 2.81") |
- R19IAD3S-RKA3ML Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19IAD3S-RKA3ML configured for USA defense, command centre and control room projects. Within the Winmate range the R19L100-RKA3ML is the 19 inch defense monitor for consoles that already have a computer, and the R19IAD3S-MLA3-89 is the 19 inch model with a Core i7-1265UE and MIL-DTL-38999/3 I/O.
Rack mounted as standard, the R19IAD3S-RKA3ML sits among our rack mount panel PCs, our rugged panel PCs and our resistive touch panel PCs. Where a 19 inch rack console needs protection glass, EMC options and a computer in one unit, this is the model to specify.
