Winmate R19IE3S-GCM1 19″ G-WIN Front IP65 Panel PC with Intel Elkhart Lake Celeron N6211 and MIL-STD-810G

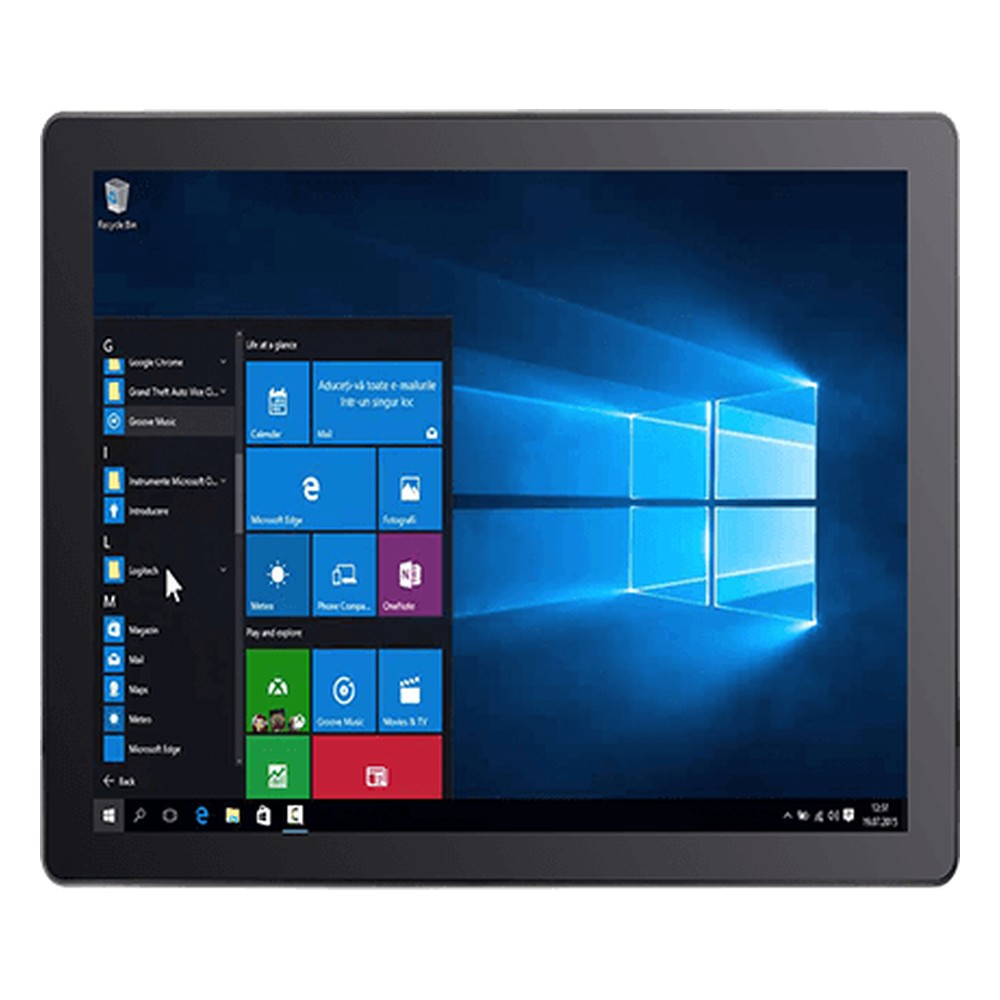

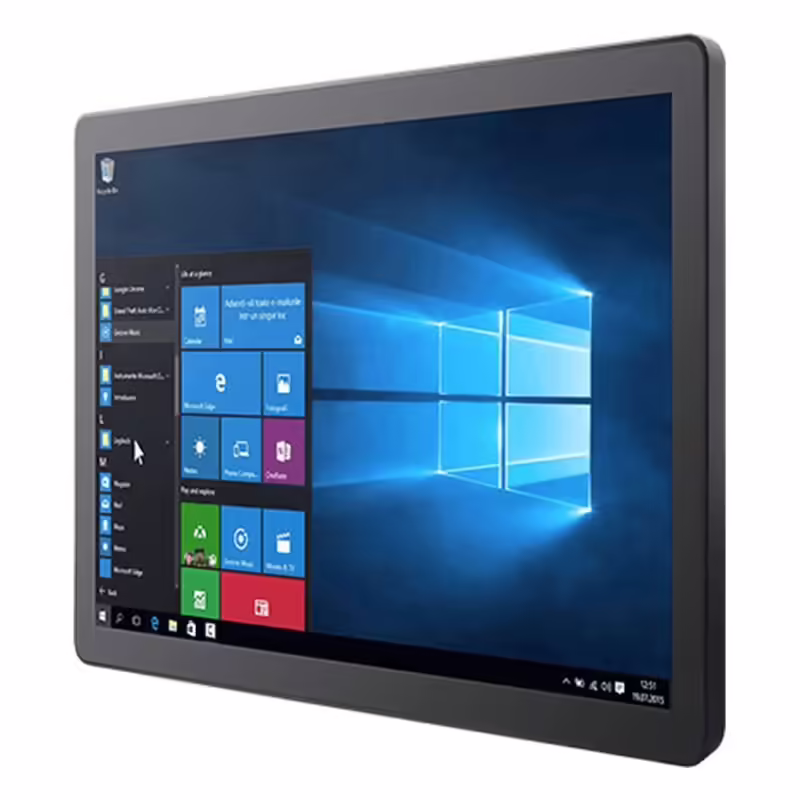

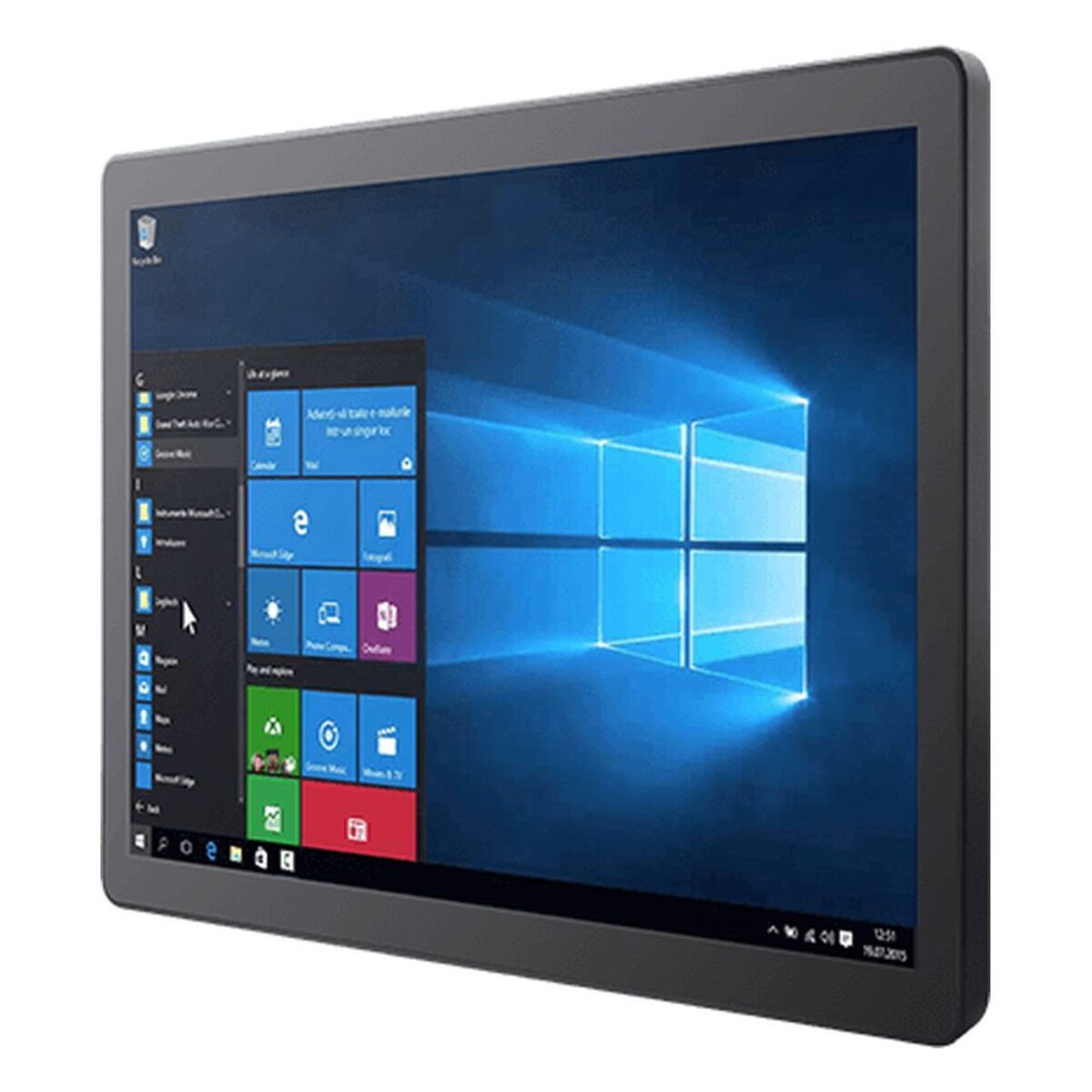

Control stations that replace an older 19 inch 5:4 screen and PC often want the same screen shape with less to maintain. The R19IE3S-GCM1 is Winmate’s 19″ G-WIN GC panel PC with an Intel Celeron N6211 behind an edge-to-edge PCAP touchscreen, a true-flat front sealed to IP65 for easy cleaning and a fanless metal housing with a plastic bezel.

The Celeron N6211 is a dual-core Elkhart Lake processor running at up to 3.0 GHz with a 6.5 W TDP, typically enough for HMI runtimes, web dashboards and operator forms without a fan. Memory is 4 GB of DDR4 as standard with 8 GB or 16 GB options, storage is a 128 GB SSD with options up to 2 TB, and TPM 2.0 is on board. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed. The 19 inch display is a 5:4 1280 x 1024 SXGA panel at 250 nits with 1000:1 contrast and viewing angles of 170 degrees horizontally and 160 degrees vertically.

I/O includes two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2 Type-A ports, one RS-232/422/485 port and an optional HDMI 2.0 output. The R19IAN3S-GCM1 is the same 19 inch GC design with a newer quad-core Intel N150, and the R19IF7T-GCM1 is the version with a 9th Gen Intel Core i3, i5 or i7 for heavier workloads.

Power is 12 V DC as standard, with a 9 to 36 V DC input as an option, and an AC adapter comes in the box. The R19IE3S-GCM1 operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -30 °C to 70 °C, and is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration. It mounts on VESA and carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
