Winmate R19IT3S-65M1 19″ Full IP65 Stainless Panel PC with Intel Core i5-1135G7 and M12 Connectors

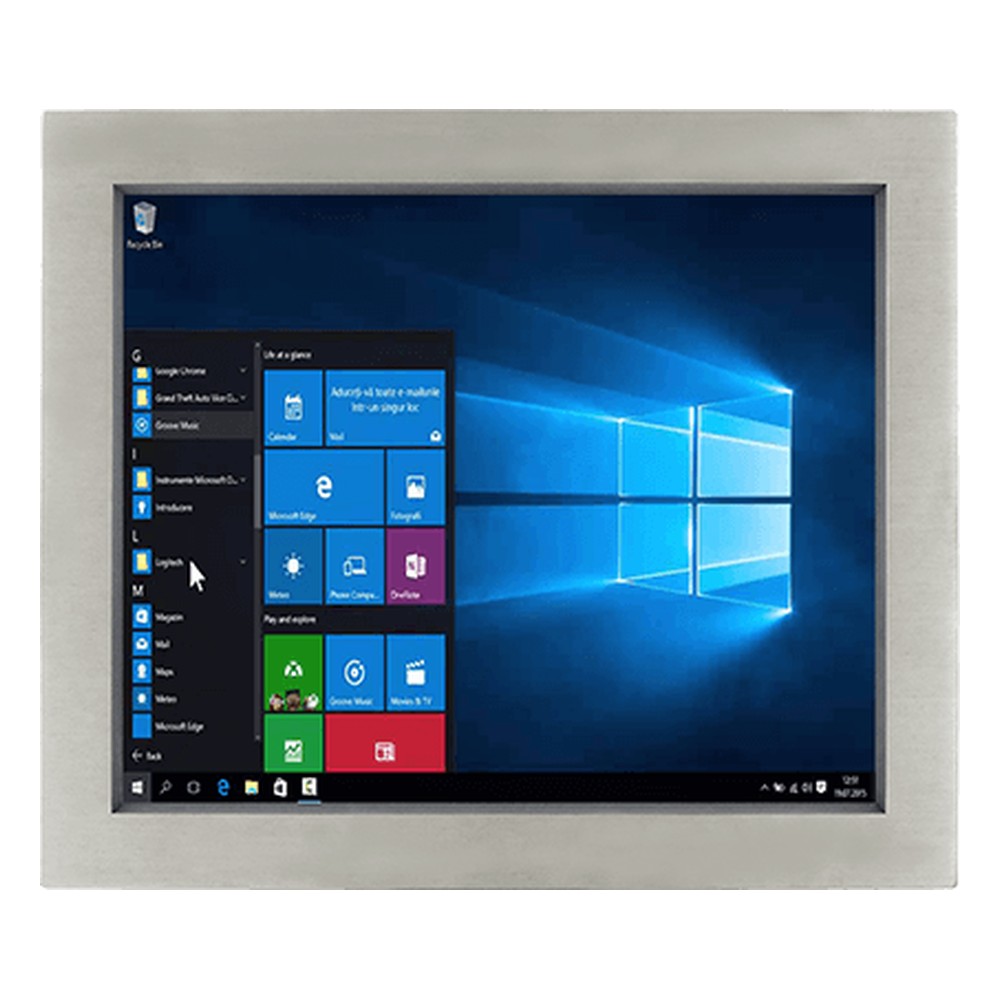

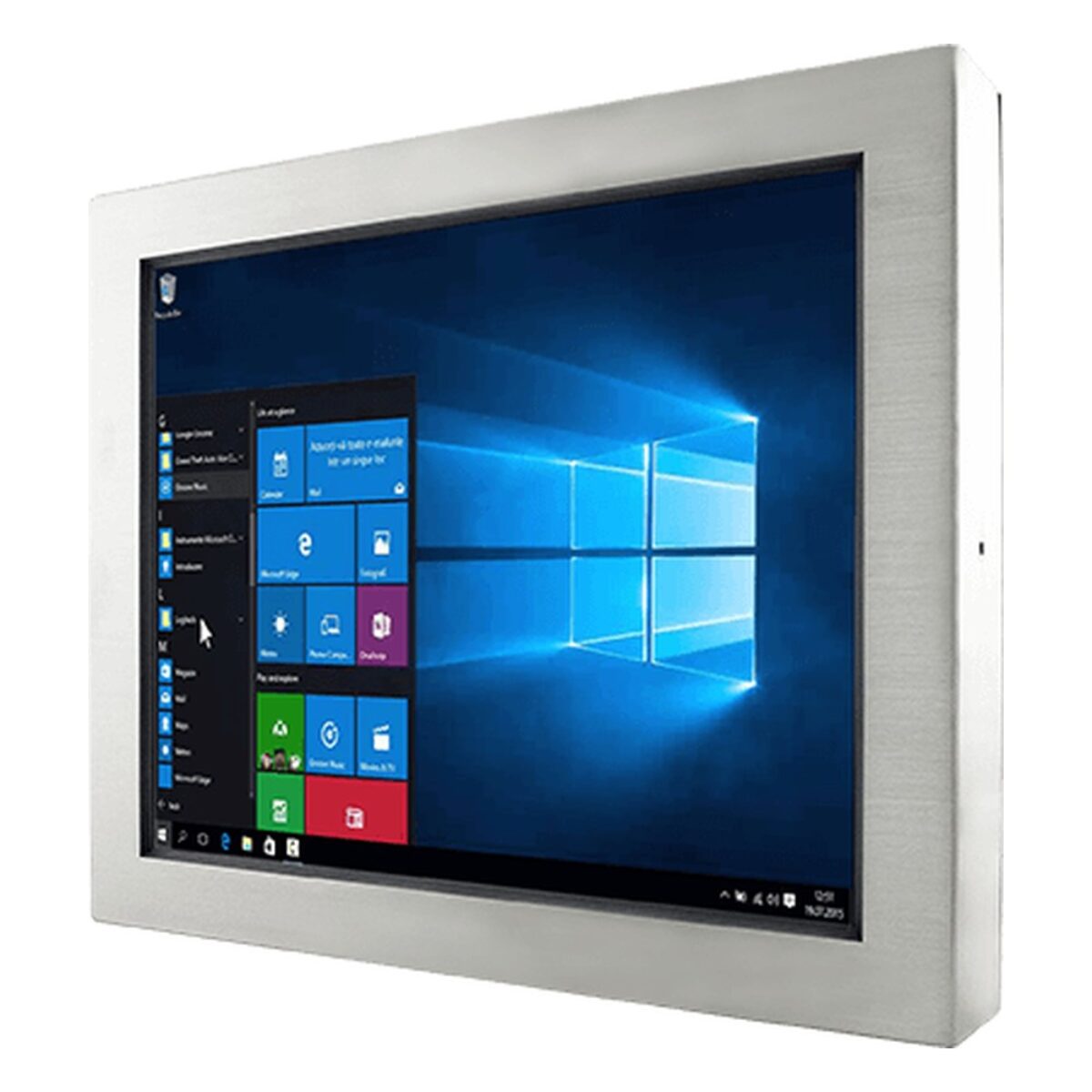

Food processing and chemical plants clean their equipment with water jets and detergents, so a panel PC there needs sealing on every side. The R19IT3S-65M1 is Winmate’s 19 inch full IP65 stainless steel panel PC for those sites: a fanless stainless housing with anti-corrosion treatment and a 19″ 1280 x 1024 SXGA display at 250 nits with 1000:1 contrast. Resistive touch or anti-reflection protection glass are options, and optical bonding with anti-moisture treatment is also optional.

Inside is an Intel Core i5-1135G7, a quad-core, eight-thread Tiger Lake processor at 2.4 GHz with turbo to 4.2 GHz and Intel Iris Xe graphics, which typically handles HMI and line data screens without a fan. One DDR4 SO-DIMM holds 4 GB as standard, with options of 8, 16 or 32 GB. A 128 GB SSD is standard with options to 4 TB, plus an optional 2.5″ SATA III drive up to 2 TB. TPM 2.0 is on board and Wi-Fi with Bluetooth is optional, running Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.

The connections are sealed for wash-down: one M12 connector carries two USB 2.0 ports, a second M12 connector carries RS-232, and Gigabit LAN uses a waterproof RJ45 connector on an Intel controller. Waterproof external cables and caps are supplied. The R19IT3S-SPM1 is the 19 inch stainless model with projected capacitive touch and a SUS 316 housing, and the R17IT3S-65M1 is the 17 inch full IP65 stainless version with a 350 nit screen.

The housing is sealed to IP65 against dust and water jets from any direction. It mounts on VESA as standard, with a yoke mount as an option. Power is 12 V DC on an M12 connector, and a 100 to 240 V AC adapter with a waterproof connector is supplied. It operates from 0 °C to 45 °C, stores from -20 °C to 60 °C and works at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the R19IT3S-65M1 configured, with the OS installed, and tested before dispatch.
