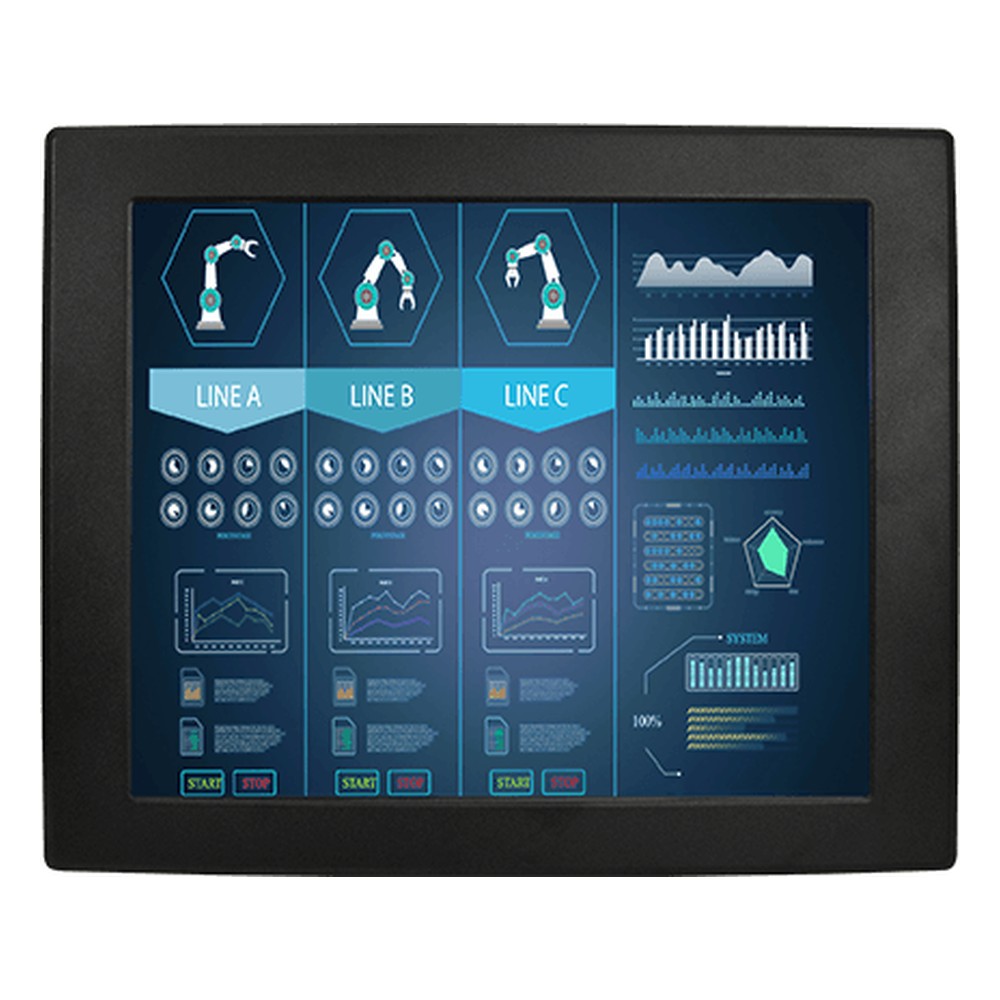

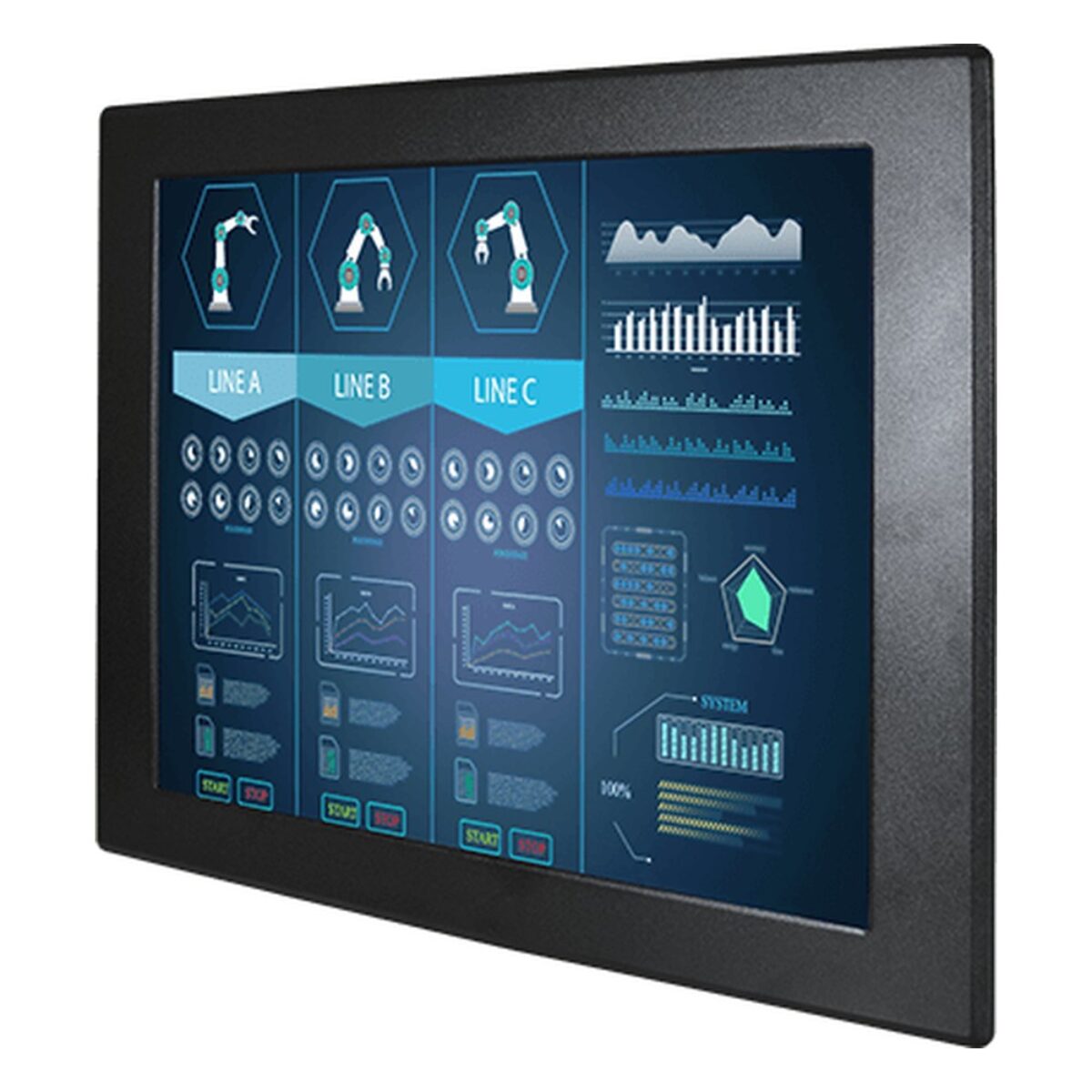

Winmate R19L300-IPM2TR 19″ Front IP65 Monitor with Transflective LCD and Resistive Touch

Operator stations by loading doors, in glazed booths or under skylights face daylight on the screen for much of the day. The R19L300-IPM2TR is Winmate’s 19 inch transflective industrial monitor for that job: an SXGA panel, with front IP65 protection against dust and low-pressure water jets in a fanless metal housing with an aluminum bezel. It connects to a separate industrial computer or controller and fits into cabinets, racks and fixtures.

The 19″ 1280 x 1024 transflective panel runs at 350 nits with 2000:1 contrast and 178 degree viewing angles, and a transflective panel uses ambient light as well as its backlight, which helps where daylight reaches the screen. The 5:4 format matches many existing HMI and SCADA screen layouts. Resistive touch is fitted as standard, and it works with gloved fingers or a stylus. SAW touch or a plain protection glass without touch can be specified instead.

Video comes in over VGA as standard, with HDMI or DVI inputs as options. Touch connects over a single USB port. Set-up is through a five-key OSD. An audio line-in and two speakers are optional, as is a remote controller. The R19L300-IPM2 is the standard transmissive version at 300 nits, and the R19L300-OFM2TR is the 19 inch open frame transflective monitor for builders who fit their own bezel.

The 19 inch monitor is rated IP65 at the front and mounts into a panel cut-out or on VESA. It runs from 12 V DC, with a 24 V DC input as an option, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables are supplied. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C, and it carries CE and FCC marks. We supply the R19L300-IPM2TR configured and tested before dispatch, ready to pair with the computer that drives it.
