Winmate R19L300-OFA1HB 19″ High Brightness Open Frame Monitor with 1000 Nit SXGA LCD
Resistive
High Bright
Fanless
CE
FCCR19L300-OFA1HB Overview

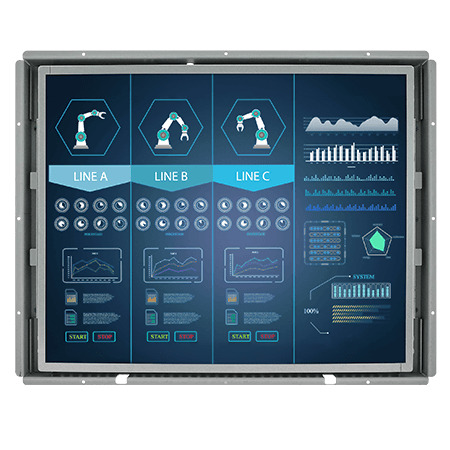

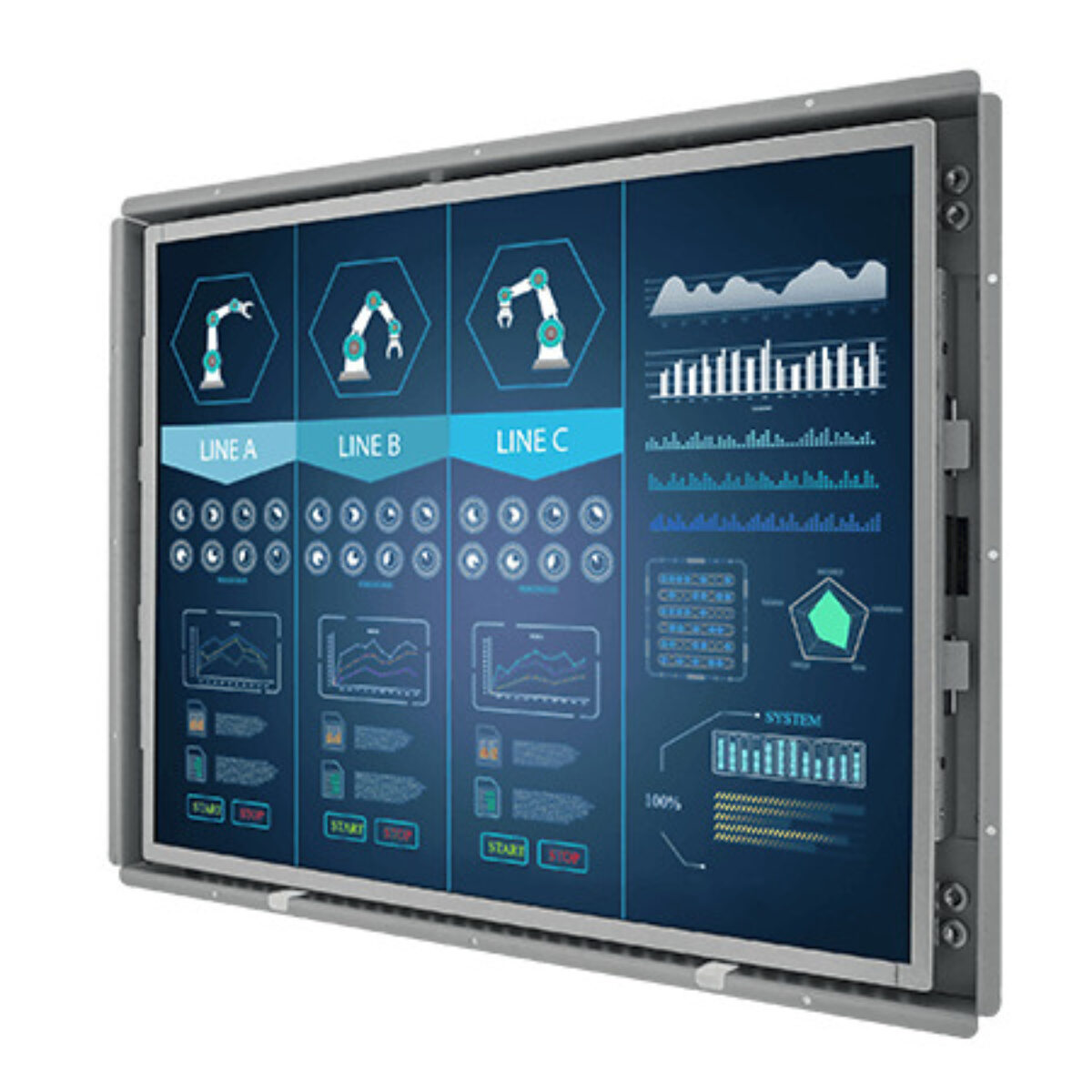

A kiosk or information screen near a window has to compete with daylight, and a standard office-level backlight soon looks washed out. The R19L300-OFA1HB is Winmate’s 19 inch high brightness open frame monitor: a 1280 x 1024 SXGA LCD at 1000 nits with 1000:1 contrast, in a metal frame ready to build into your own enclosure.
The panel shows 16.7 million colors across an active area of 376.32 x 301.06 mm, with viewing angles of 170° horizontally and 160° vertically. The 5:4 format suits HMI software and kiosk layouts written for SXGA. Touch is chosen to suit the installation: resistive touch for gloves and styluses, SAW touch for a clear glass surface, or protection glass without touch where the screen only displays information.
VGA is the default video input, with HDMI or DVI available as options, and a USB connection for the touch screen is optional. An optional 3.5 mm audio line-in and twin speakers add sound for kiosk prompts. For indoor installations the R19L300-OFM1 offers the same 19 inch frame at 250 nits, and the S17L500-OFA1HB delivers 1000 nits on a 17 inch screen.
The R19L300-OFA1HB runs from 12 V DC, with 24 V DC available as an option, and is fanless. It operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal frame measures 445 x 355 x 55 mm and mounts by VESA or rear fixing. It carries CE and FCC marks. Winmate lists industrial visualization, control rooms and equipment monitoring as typical uses for its open frame range, along with ATMs, vending machines, airport information displays and mall kiosks.
R19L300-OFA1HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L300-OFA1HB |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 445mm x 355mm x 55mm (17.52" x 13.98" x 2.17") |
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19L300-OFA1HB for USA kiosk and retail projects. Within the Winmate range the R19L300-OFM1 offers the same 19 inch format at 250 nits for indoor use, and the S17L500-OFA1HB brings 1000 nits to a 17 inch screen.
With its 1000 nit panel the R19L300-OFA1HB sits among our high brightness monitors, our open frame displays and our 5:4 monitors. Where a 19 inch embedded screen faces daylight or bright lighting, this is the Winmate model to specify.
