Winmate R19L300-PPA1HB 19″ PCAP Panel Mount Monitor with 1000 Nit SXGA Display and 1000:1 Contrast

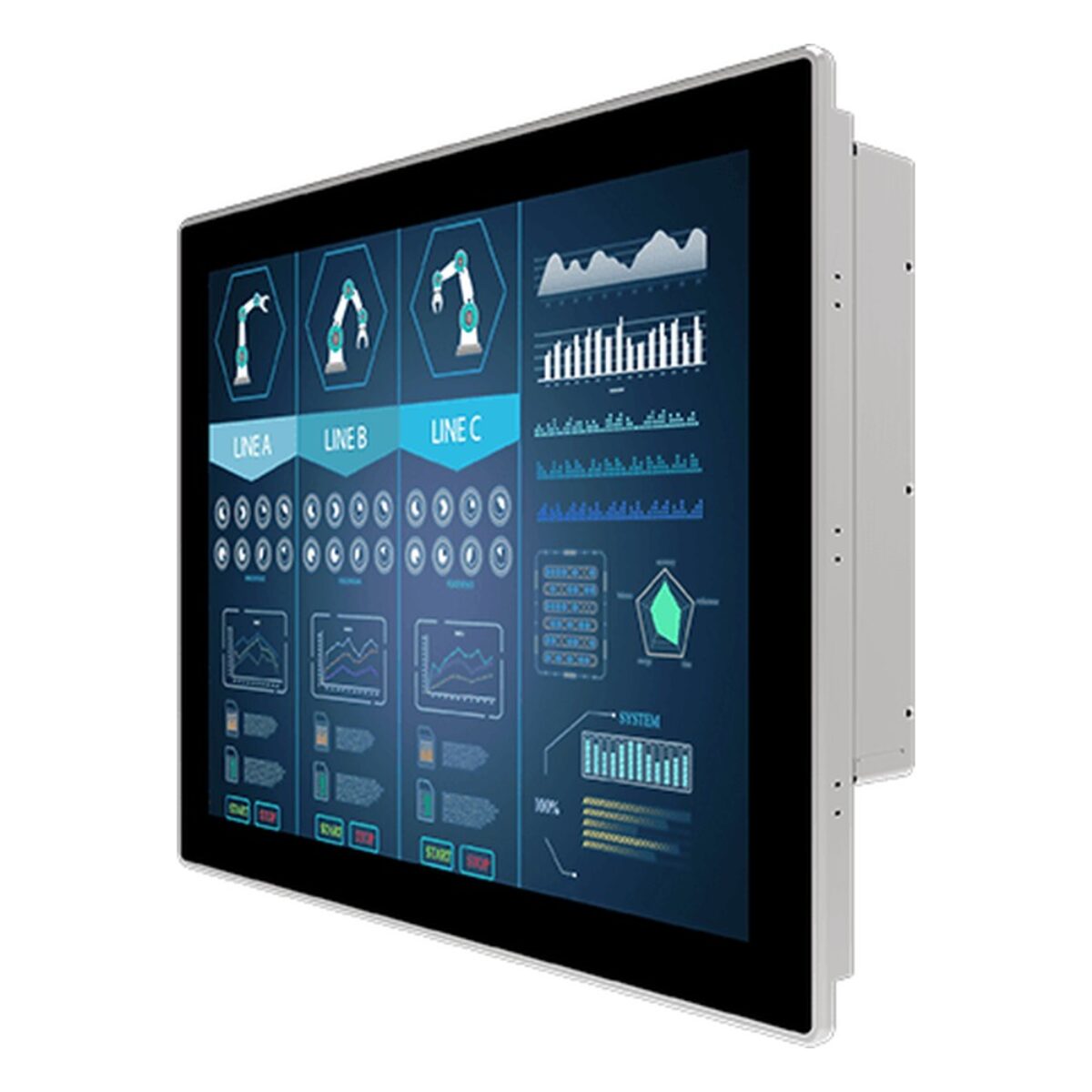

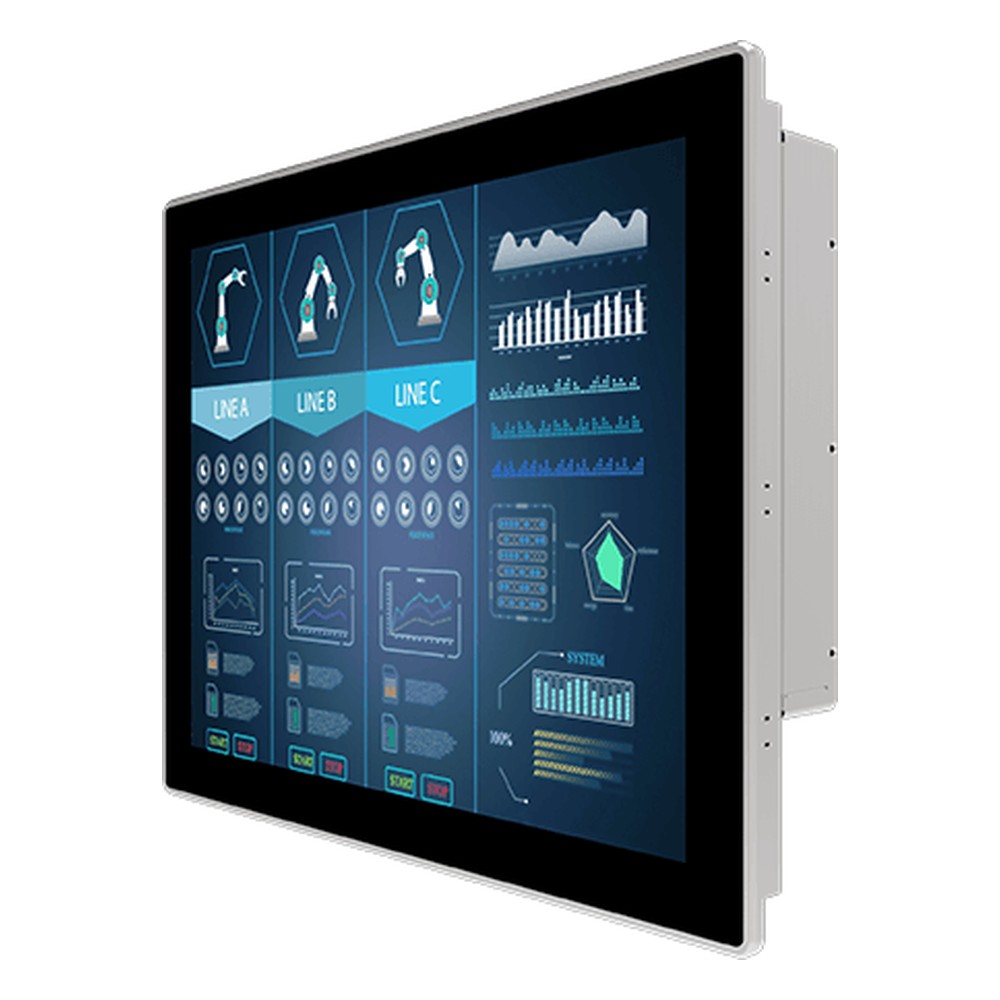

On an automation panel or a kiosk front, the display usually has to fit a cut-out, cope with splashes at the front and connect to a separate industrial PC or controller. The R19L300-PPA1HB is Winmate’s 19 inch panel mount touch monitor for that installation: a 19″ 1280 x 1024 SXGA projected capacitive touchscreen, sealed to IP65 at the front.

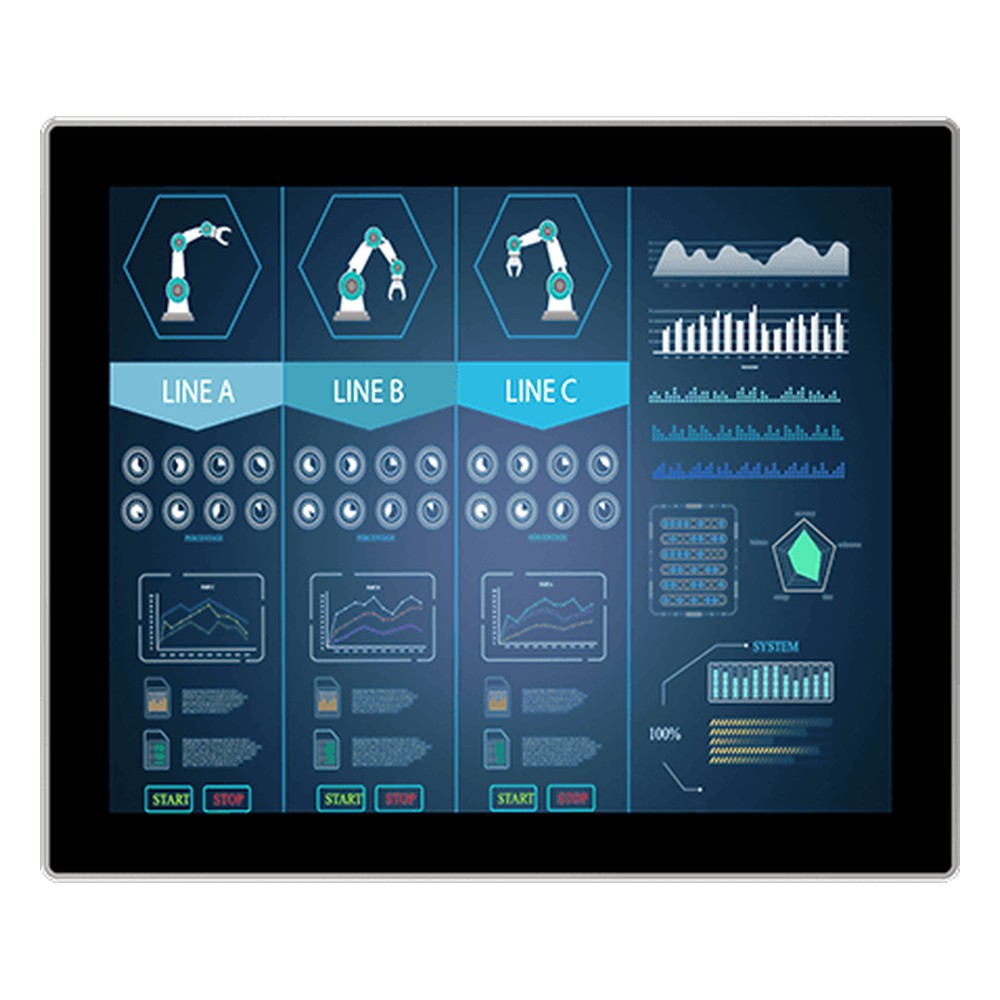

The 1280 x 1024 panel runs at 1000 nits with 1000:1 contrast and 170 degree horizontal and 160 degree vertical viewing angles. At 1000 nits the panel is sunlight readable, so it typically stays legible near windows and under strong lighting. The 5:4 format suits existing HMI layouts drawn for SXGA screens, so older projects can move across without redrawing. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the R19L300-PPM1 is the 250 nit version of this panel mount design, and the R19L300-CHA1HB is the 1000 nit chassis monitor with resistive touch.

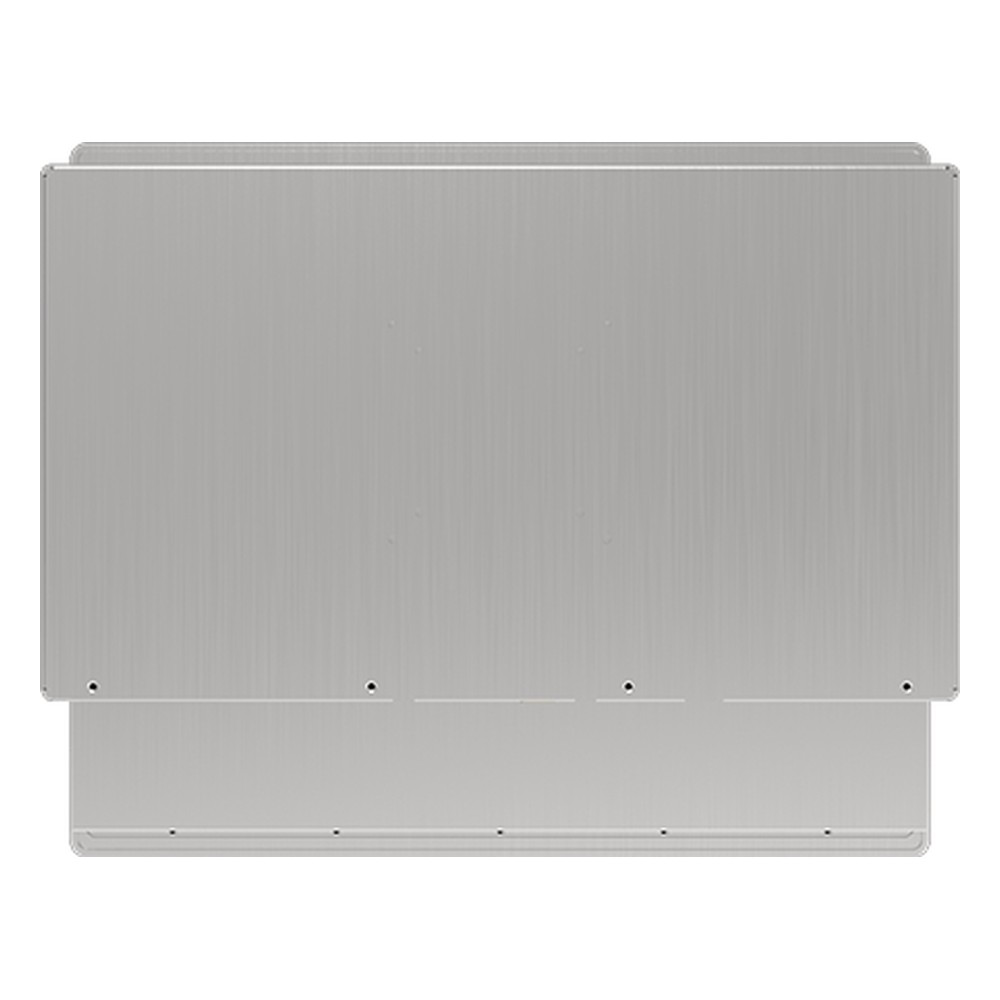

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 19 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a panel cut-out or a VESA mount. We supply the R19L300-PPA1HB configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
