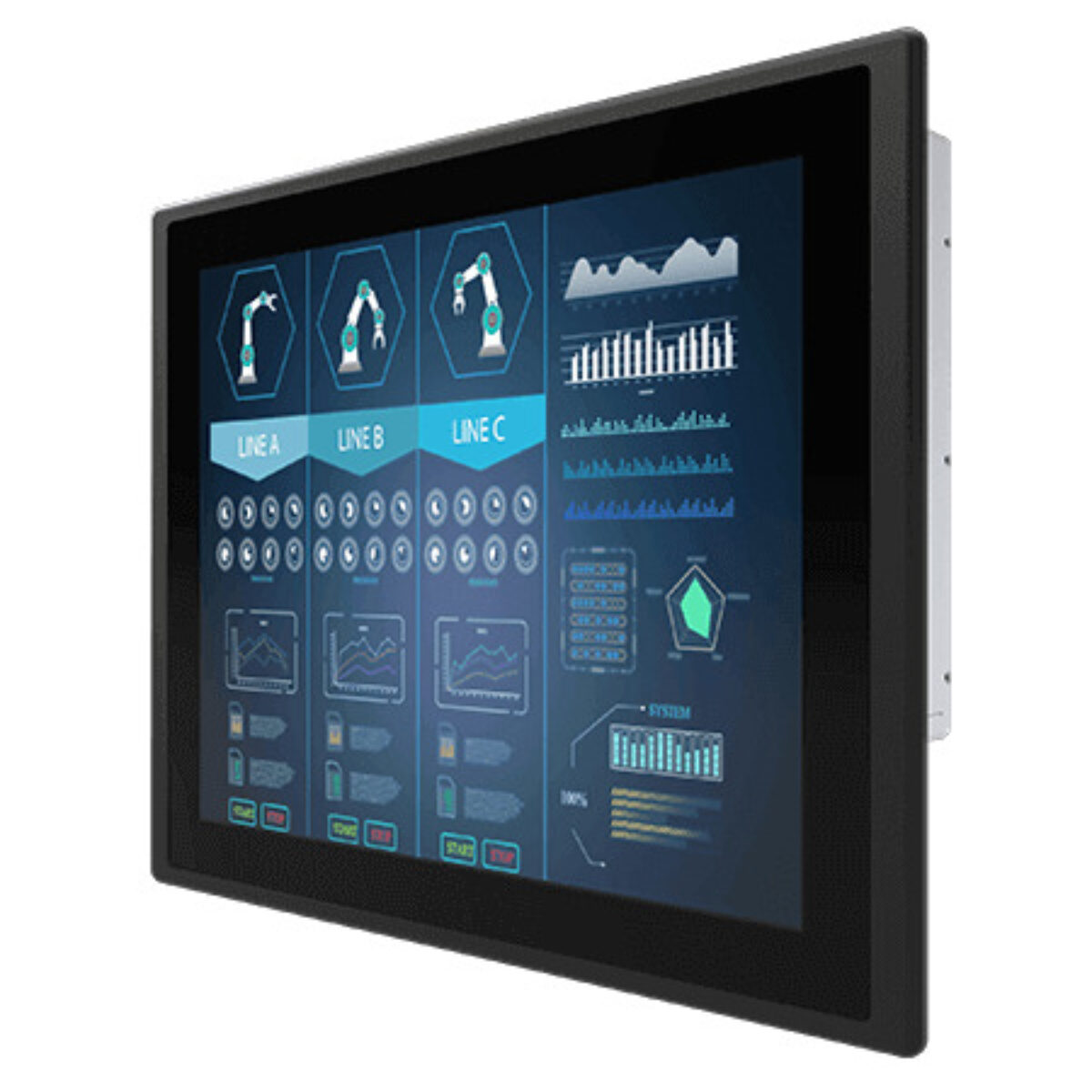

Winmate R19L300-PPA3OD 19″ Sunlight Readable Panel Mount Monitor with PCAP Touch, 1000 Nits and Front IP65

Outdoor and semi-outdoor terminals have two problems at once: daylight washes out an ordinary screen, and rain and dust reach the front of the unit. The R19L300-PPA3OD is Winmate’s 19 inch sunlight readable panel mount monitor for those sites: a 1280 x 1024 SXGA LCD at 1000 nits with PCAP multi-touch, behind a front IP65 bezel.

The panel has a 1000:1 contrast ratio and shows 16.7 million colors across an active area of 376.32 x 301.06 mm, with viewing angles of 170° horizontally and 160° vertically. The projected capacitive multi-touch screen responds to a light touch and supports gestures, which suits public-facing kiosks and ticketing screens. Winmate offers an optional UV film for solar radiation protection where the screen faces direct sunlight.

VGA is the standard video input, with HDMI and DVI available as options, and a USB port carries the touch signal to the host. An optional audio line-in and twin speakers add sound for user prompts, and a five-key OSD panel sets brightness and picture. The R15L600-PPC3OD offers the same outdoor panel mount approach at 15 inch, and the R19L100-GCA3OD is another 19 inch outdoor PCAP display in the Winmate range.

The R19L300-PPA3OD runs from 12 V DC and ships with a 100 to 240 V AC to DC adapter and VGA and HDMI cables. It is fanless, operates at 10 to 90% non-condensing humidity and stores from -10 °C to 60 °C; confirm the operating temperature range for your site with us, as Winmate quotes different figures in its documents. The metal housing with aluminum bezel measures 474 x 384 x 76.5 mm and weighs 6.6 kg, and mounts in a panel or on 75 x 75 and 100 x 100 mm VESA holes. It carries CE and FCC marks.
