Winmate R19L300-RKM1 19″ Rack Mount Monitor with Resistive Touch and 250 Nit SXGA LCD

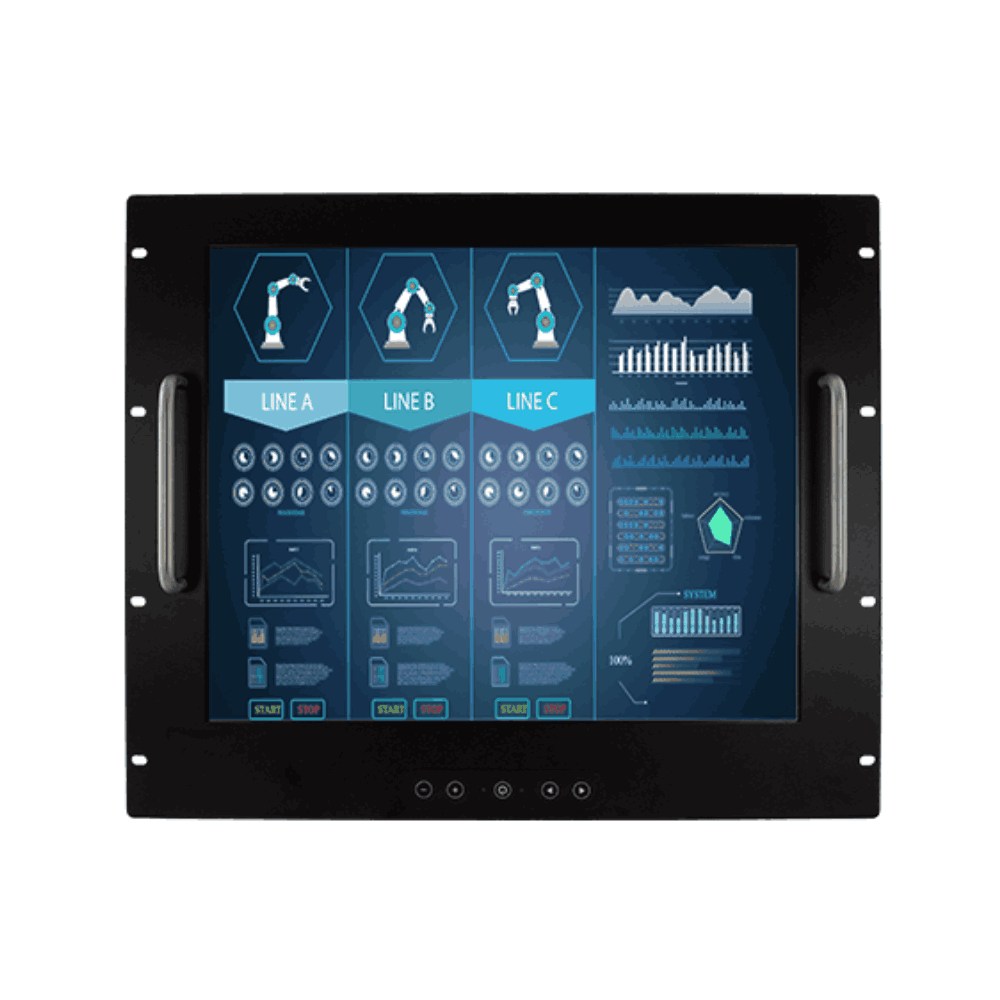

A rack of servers, test gear or control equipment often needs a local screen, and fitting one on a pull-out shelf or a nearby desk takes up space and invites cable damage. The R19L300-RKM1 is Winmate’s 19 inch rack mount monitor: a 1280 x 1024 SXGA LCD at 250 nits with resistive touch, built into a 482.6 mm wide panel that bolts into a standard 19 inch rack. Winmate describes it as a rack console with a 19 inch LCD.

The panel has a 1000:1 contrast ratio and shows 16.7 million colors across an active area of 376.32 x 301.06 mm, with viewing angles of 170° horizontally and 160° vertically. Resistive touch is fitted as standard for direct, glove-friendly operation, with SAW touch or protection glass without touch available as alternatives.

VGA is the standard video input, with HDMI and DVI available as options, and a USB port carries the touch signal to the host. An optional audio line-in and twin speakers add sound for alerts, and a five-key OSD panel on the front sets brightness and picture. The R19L300-RKM2 uses a 2000:1 contrast panel with 89° viewing angles in the same rack format, and the R17L500-RKM1 is the 17 inch version.

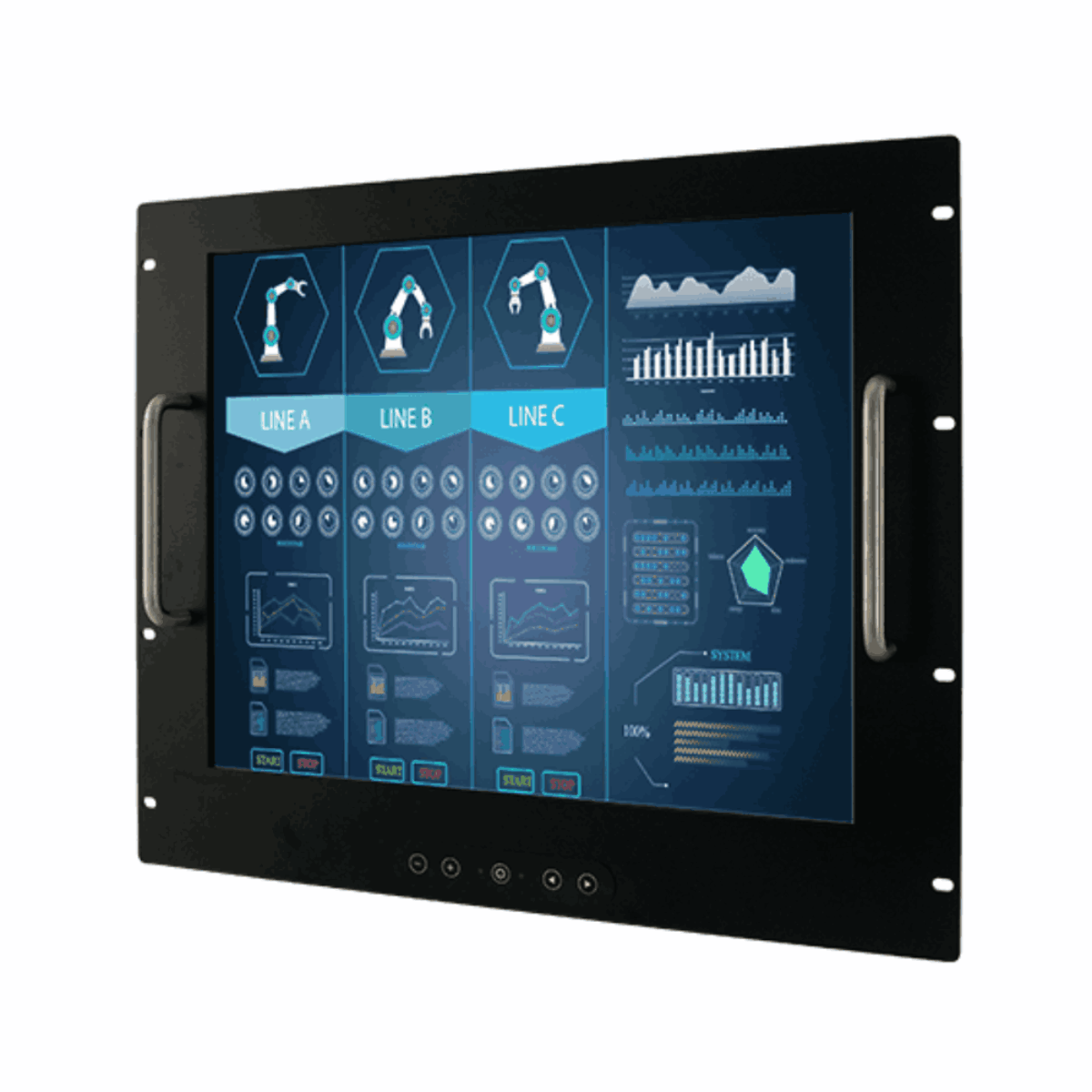

The R19L300-RKM1 runs from 12 V DC, with 24 V DC as an option, and ships with a 100 to 240 V AC to DC adapter. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal housing with aluminum bezel measures 482.6 x 399 x 61 mm, with front handles and 75 x 75 or 100 x 100 mm VESA holes as an alternative mount. It carries CE and FCC marks. Winmate lists industrial visualization, control rooms and equipment monitoring as typical uses.
