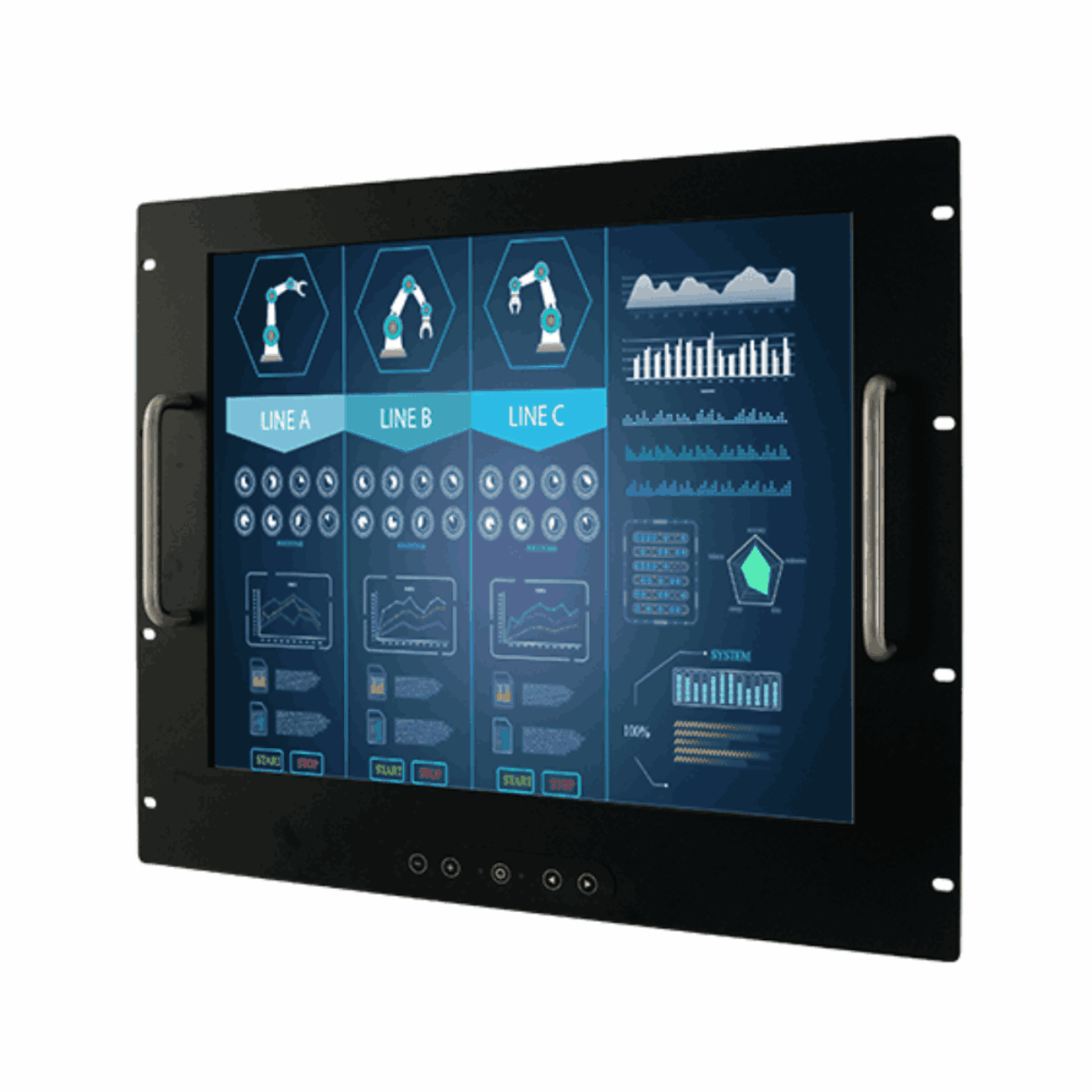

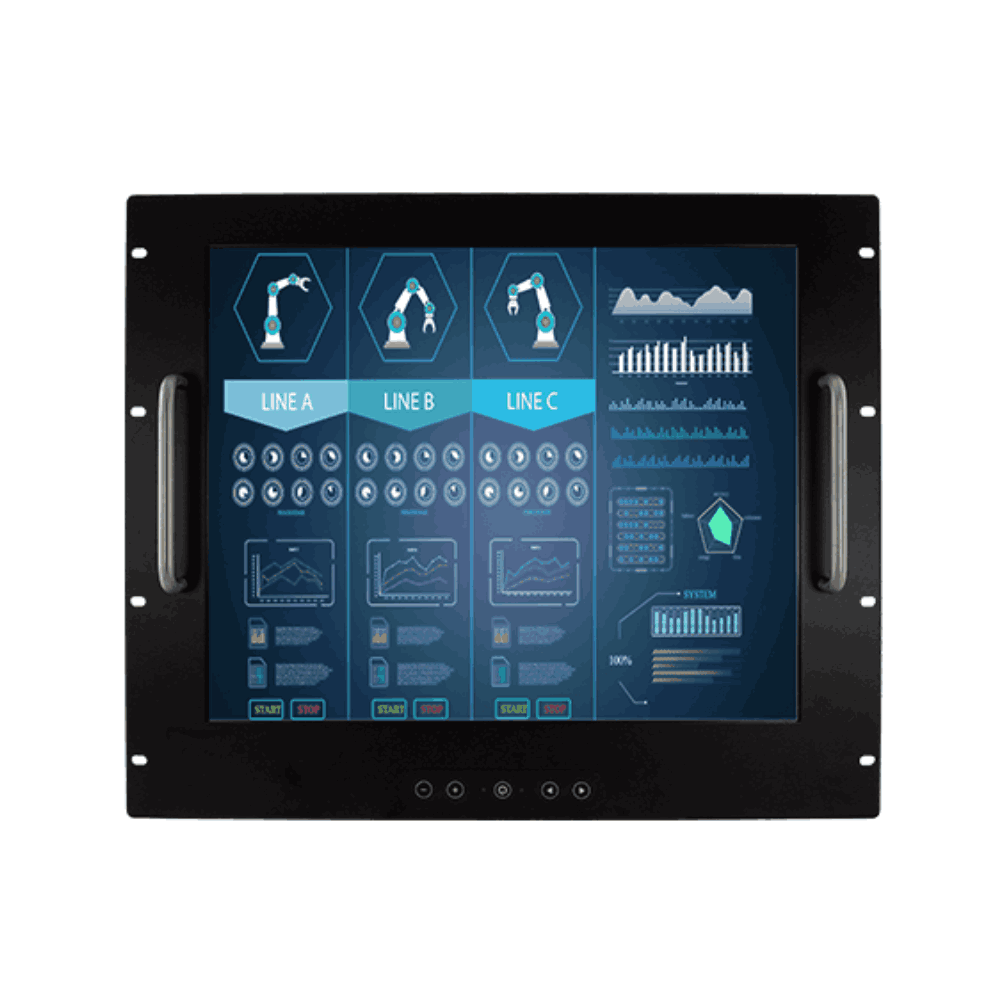

Winmate R19L300-RKM2 19″ Rack Mount Monitor with Resistive Touch and 2000:1 Contrast SXGA LCD

In a control room or equipment bay, the person reading a rack screen is often standing to one side of it rather than square on. The R19L300-RKM2 is Winmate’s 19 inch rack mount monitor built for that: a 1280 x 1024 SXGA LCD at 300 nits with 2000:1 contrast and 89° viewing angles in every direction, fitted with resistive touch in a 482 mm wide panel for a standard 19 inch rack.

The panel shows 16.7 million colors across an active area of 376.32 x 301.06 mm, and the higher contrast ratio keeps dark dashboards and fine trend lines distinct. Resistive touch is fitted as standard for direct operation with gloves or a stylus, and SAW touch or protection glass without touch are available as alternatives.

VGA is the standard video input, with HDMI and DVI available as options, and a USB port carries the touch signal to the host. An optional audio line-in and twin speakers add sound for alerts, and a five-key OSD panel on the front sets brightness and picture. The R19L300-RKM1 is the 1000:1 contrast version at 250 nits, and the R17L500-RKM1 is the 17 inch rack option.

The R19L300-RKM2 runs from 12 V DC, with 24 V DC as an option, and ships with a 100 to 240 V AC to DC adapter. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal housing with aluminum bezel measures 482 x 399 x 65 mm, with front handles and 75 x 75 or 100 x 100 mm VESA holes. It carries CE and FCC marks. Winmate lists industrial visualization, control rooms and equipment monitoring as typical uses, along with factory automation, HMI, access control, room management, warehouse and supply chain.
