Winmate R19L300-SDA1 19″ SDI Chassis Monitor with PCAP Touch, SDI In and Out, VGA and CVBS
Legacy model. See current SDI Monitors.
PCAP
CE
FCCR19L300-SDA1 Overview

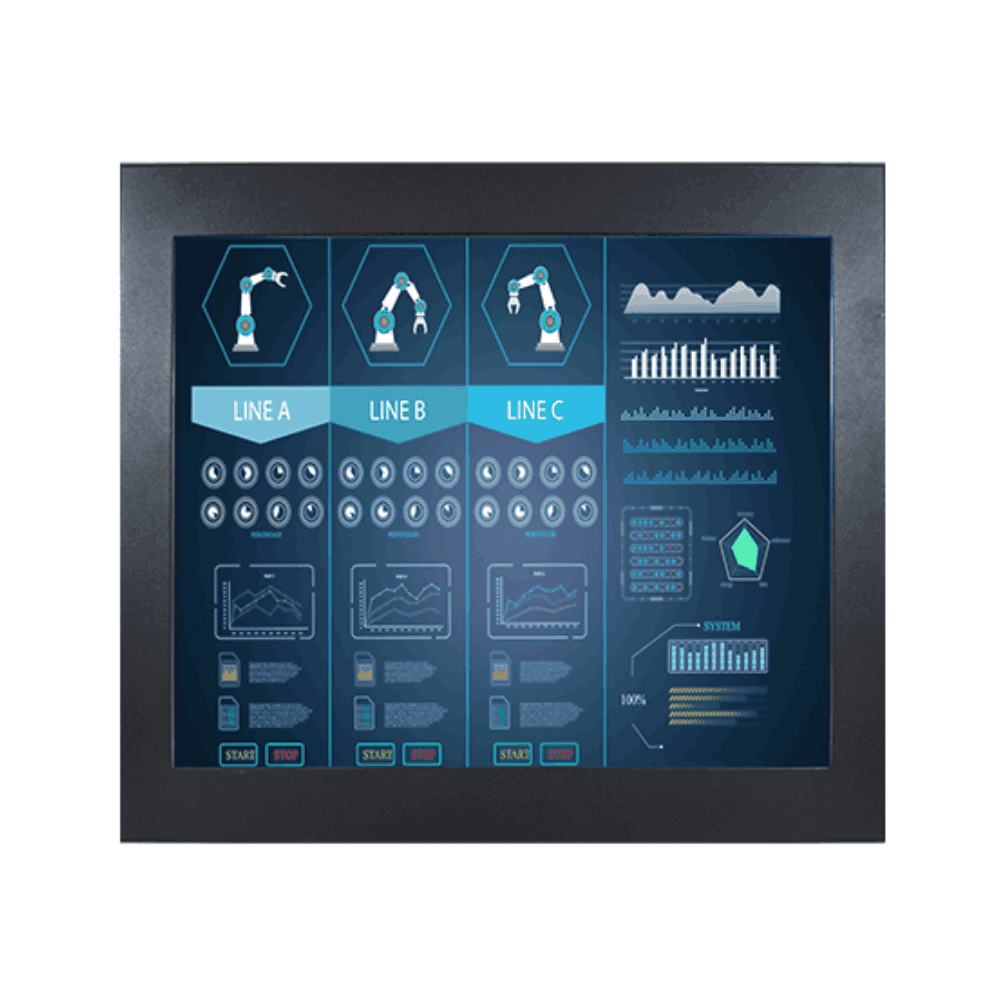

Camera and inspection systems often mix signal types, with SDI from professional cameras alongside analog CVBS and a PC on VGA. The R19L300-SDA1 is Winmate’s 19 inch SDI chassis monitor for those stations: a 1280 x 1024 SXGA LCD at 400 nits with PCAP multi-touch, taking SDI, VGA and two CVBS inputs in a slim metal chassis.
The panel has a 1000:1 contrast ratio and shows 16.7 million colors across an active area of 376.32 x 301.06 mm, with viewing angles of 170° horizontally and 160° vertically. The projected capacitive multi-touch screen connects to the host over USB, so operators can work control software on the same screen that shows the video.
On the input side there is one SDI input, one VGA input and two CVBS inputs, with HDMI available as an option. An SDI output passes the signal on to a recorder, switcher or second monitor. Optional twin speakers add audio, and an eight-key OSD panel (Power, Up, Down, Menu/Enter, Left, Right, Exit and Auto) handles source selection and picture settings. For a larger SDI screen, the W32L100-SDA3 offers 32 inch FHD in the Winmate range.

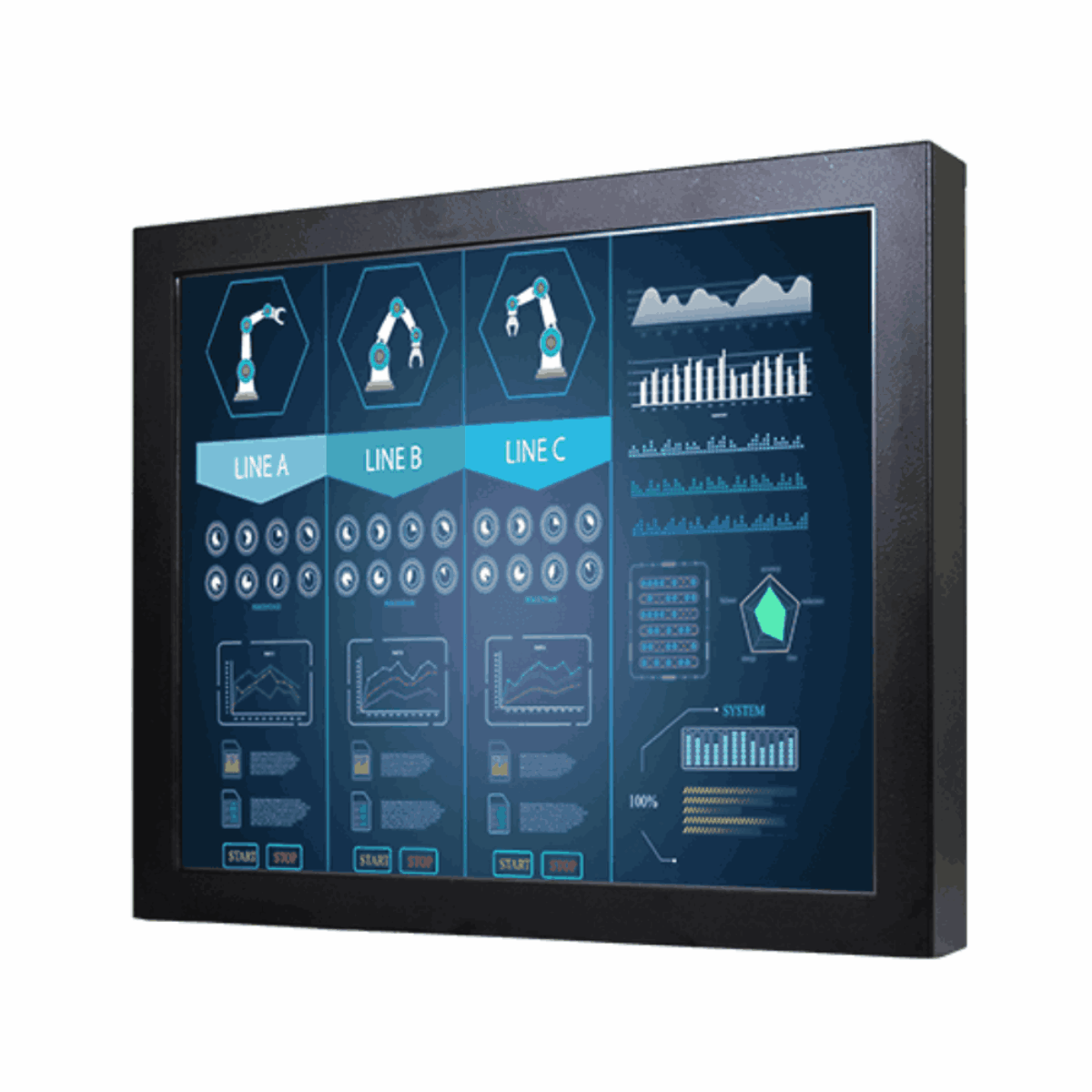

The R19L300-SDA1 runs from 12 V DC, with 24 V DC as an option, and ships with a 110 to 240 V AC power adapter and VGA, HDMI, SDI and CVBS cables. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -10 °C to 60 °C. The metal chassis measures 438.7 x 363.5 x 38.5 mm and mounts on 100 x 100 mm VESA holes, which suits desk arms, wall brackets and console mounts. It carries CE and FCC marks.
R19L300-SDA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L300-SDA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1 x SDI Input 1x VGA Input 2x CVBS [BNC] |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 439mm x 363mm x 39mm (17.28" x 14.29" x 1.54") |
- R19L300-SDA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19L300-SDA1 for USA broadcast, security and inspection projects. Within the Winmate range the W32L100-SDA3 is a larger 32 inch FHD SDI display, where the image needs to be seen across a room rather than at a desk.
With SDI in and out the R19L300-SDA1 sits among our SDI monitors, our chassis monitors and our PCAP touch monitors. Where a camera station needs SDI and analog video on one 19 inch touch screen, this is the Winmate model to specify.
