Winmate W32L100-SDA3 32″ SDI PCAP Touch Monitor with 1920 x 1080, 3G-SDI Loop and CVBS Inputs
Legacy model. See current SDI Monitors.
PCAP
CE
FCCW32L100-SDA3 Overview

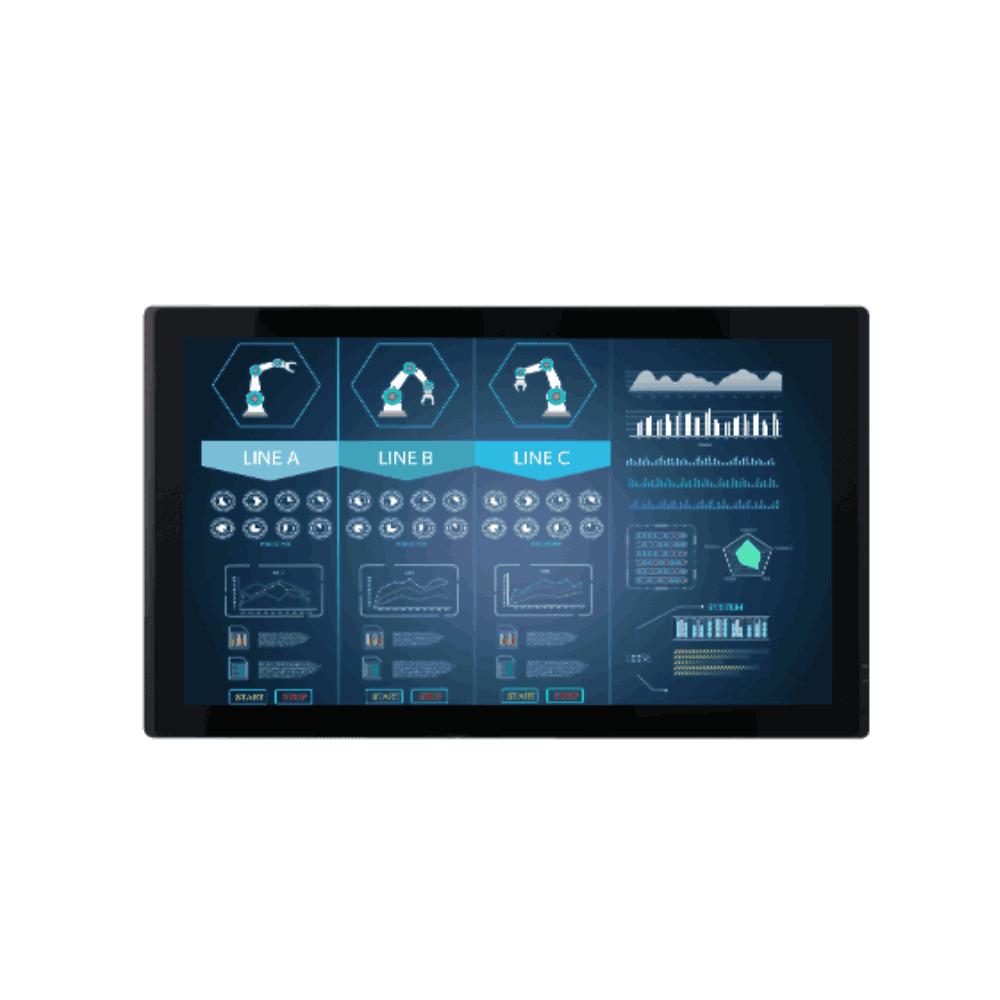

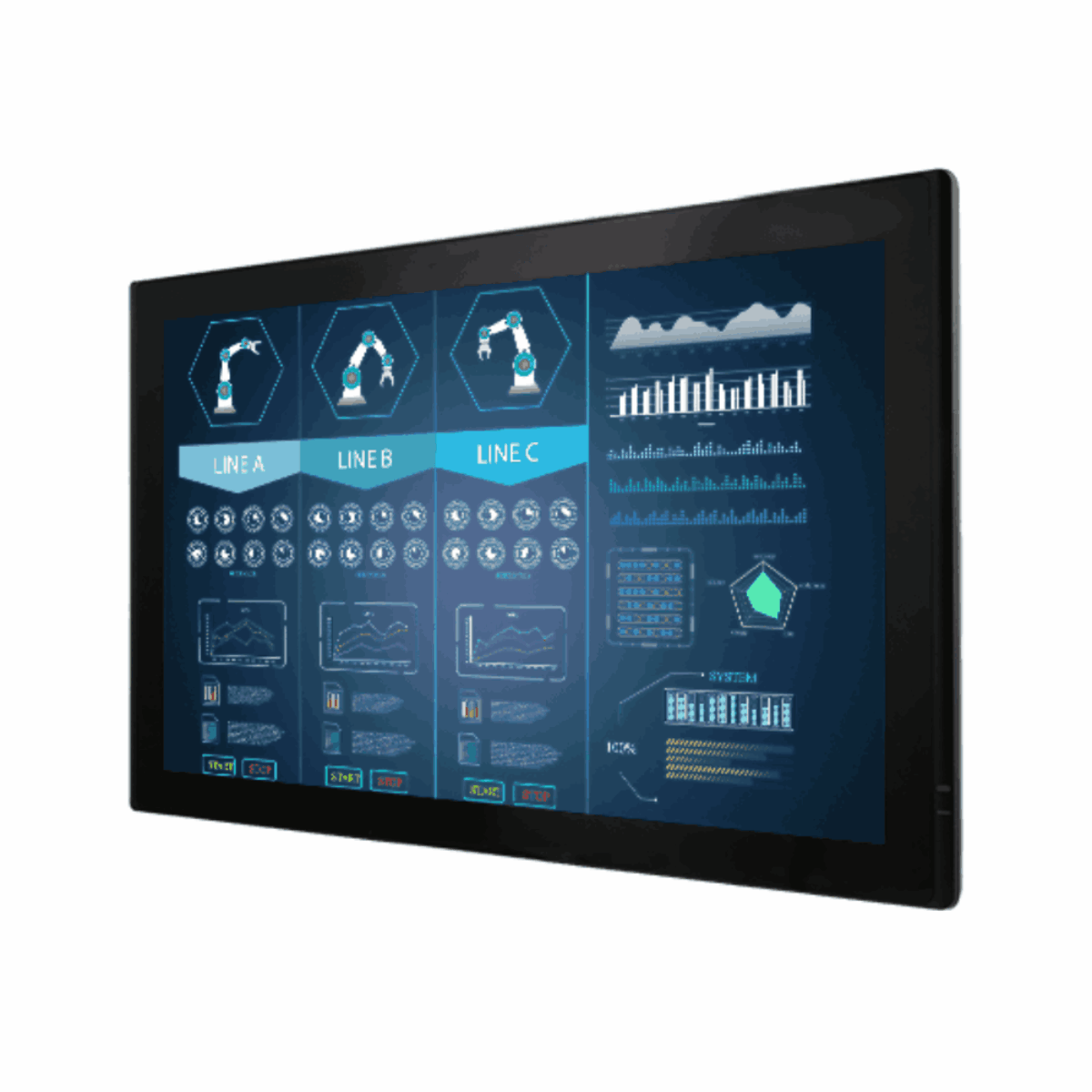

Camera systems in control rooms and on equipment often deliver video over SDI or composite coaxial cable, and converting every feed to HDMI adds boxes and failure points. The W32L100-SDA3 is Winmate’s 32 inch SDI touch monitor: a fanless 1920 x 1080 PCAP chassis display with 3G-SDI in and out, two CVBS inputs and VGA.
The 16:9 panel runs at 1920 x 1080 with 400 nits brightness, a 4000:1 contrast ratio and 178° viewing angles, showing 16.7 million colors. Projected capacitive multi-touch connects over USB, which suits camera switching and monitoring software. At 32 inches the panel suits a single camera view or a multi-camera layout from the host software. A five-key OSD panel handles brightness, menu and power.
Video inputs are 3G-SDI, two CVBS on BNC and VGA, with HDMI as an option, and an SDI output passes the camera signal on to a recorder or second screen. Two speakers are optional. The W32L100-PTA1-SDI moves to 3840 x 2160 with 12G-SDI in a medical housing, and the W32L100-POA3 gives a 32 inch PCAP open frame for building into an enclosure.

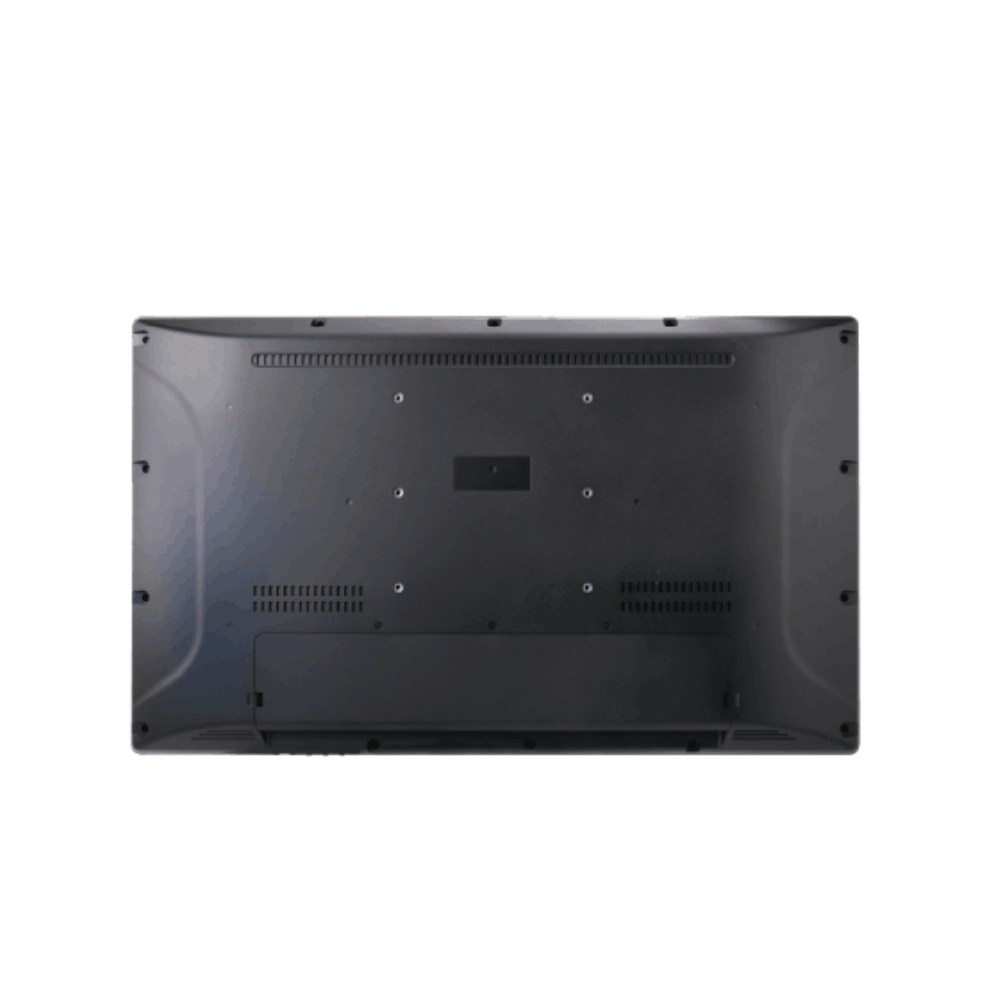

Power is 12 V DC, with 24 V DC as an option, and a 110 to 240 V AC adapter comes with VGA, HDMI, SDI and CVBS cables. The monitor measures 798.94 x 477.94 x 64.7 mm and mounts on VESA 200 x 200 or 200 x 100 holes. It runs fanless from 0 to 50 °C at 10 to 90% humidity and carries CE and FCC marks. Winmate names control rooms and equipment monitoring for this display.
W32L100-SDA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L100-SDA3 |
| Features | Fanless Industrial |
| Display | |
| Display | 32"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1 x SDI Input 1x VGA Input 2x CVBS [BNC] |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 799mm x 478mm x 65mm (31.46" x 18.82" x 2.56") |
- W32L100-SDA3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L100-SDA3 configured for USA control room and camera projects. Within the Winmate range the W32L100-PTA1-SDI gives 3840 x 2160 with 12G-SDI in a medical housing, and the W32L100-PTA1 adds dual-link DVI, DisplayPort and 3G-SDI in and out.
With 3G-SDI and CVBS inputs, the W32L100-SDA3 sits among our SDI monitors, our chassis monitors and our PCAP touch monitors. Where cameras reach the screen over coaxial cable and operators need touch, this is the model to specify.
