Winmate W32L100-POA3 32″ Open Frame PCAP Touch Monitor with 1920 x 1080 and 400 Nit Panel
PCAP
CE
FCCW32L100-POA3 Overview

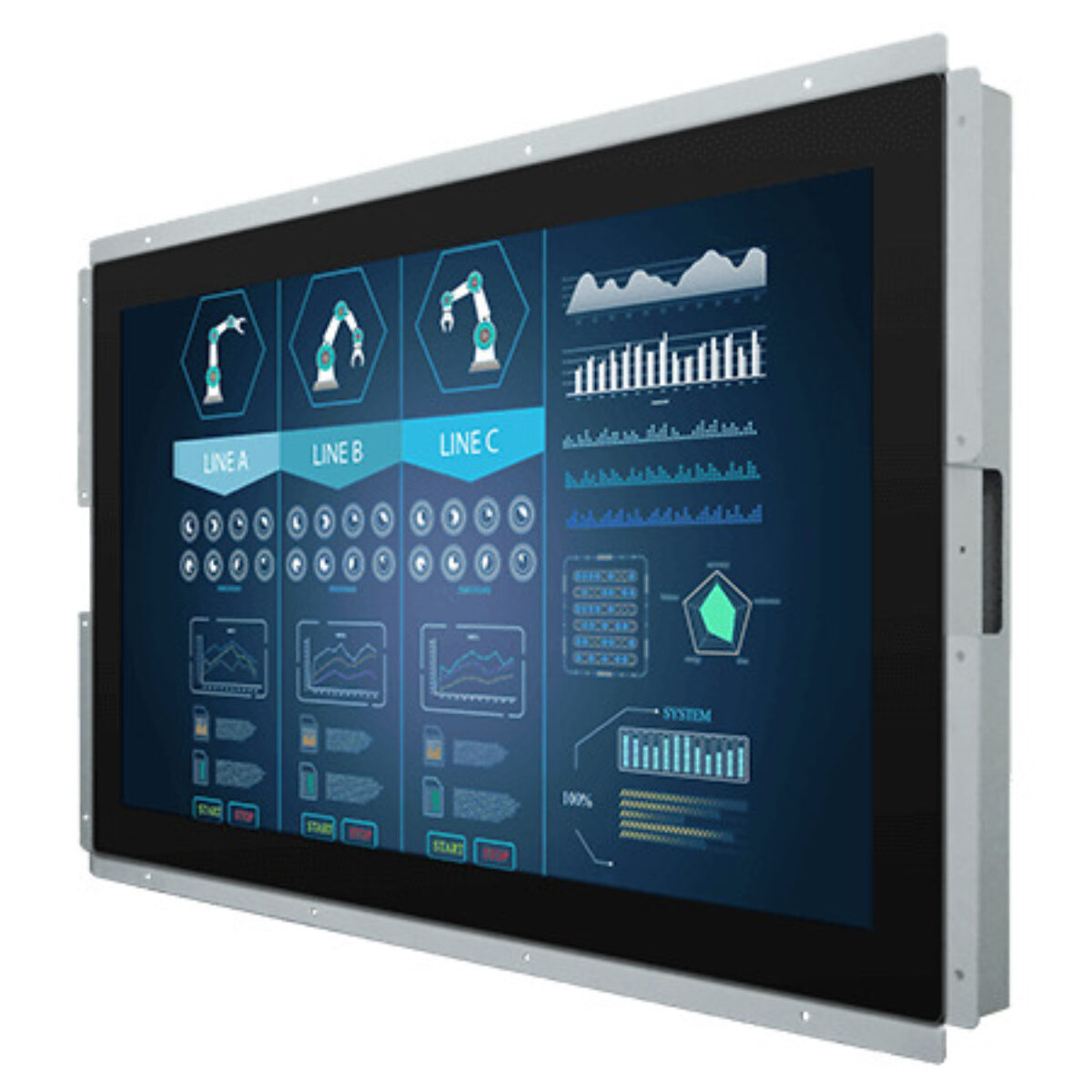

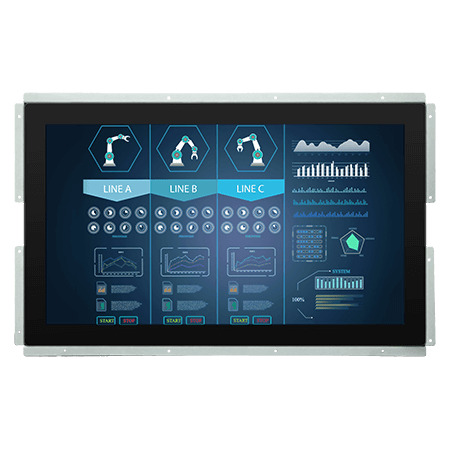

A self-service kiosk or production dashboard is built around its own enclosure, so the display needs to arrive as a frame with fixing points rather than a finished monitor. The W32L100-POA3 is Winmate’s 32 inch open frame touch monitor: a fanless 1920 x 1080 PCAP display in a metal frame, ready to mount behind a kiosk or machine bezel.
The 16:9 LCD runs at 1920 x 1080 with 400 nits brightness, a 4000:1 contrast ratio and 178° viewing angles, showing 16.7 million colors. Projected capacitive multi-touch connects over USB and handles the gestures kiosk and HMI software expects. At 32 inches the 16:9 format gives room for several trend charts or a full kiosk menu at once. A five-key OSD panel on the rear keeps settings away from the public.
Video comes in on VGA as standard, with HDMI and DVI inputs as options, and audio is optional through a 3.5 mm line in and two speakers. The W27L100-OFA1 is a 27 inch open frame for smaller enclosures, and the W32L100-SDA3 gives a 32 inch PCAP chassis display with SDI and CVBS inputs.
Power is 24 V DC, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables come in the box. The frame measures 815 x 515 x 53 mm and takes VESA or panel mounting through its side flanges, which carry 16 fixing holes of 4.5 mm on Winmate’s drawing. It runs fanless from 0 to 50 °C at 10 to 90% humidity and carries CE and FCC marks. Winmate names interactive kiosks, smart factory dashboards and equipment operation consoles.
W32L100-POA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L100-POA3 |
| Features | Fanless Industrial |
| Display | |
| Display | 32"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 815mm x 515mm x 53mm (32.09" x 20.28" x 2.09") |
- W32L100-POA3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L100-POA3 configured for USA kiosk and machine builders. Within the Winmate range the W27L100-OFA1 gives a 27 inch open frame for smaller enclosures, and the W32L100-PCA4OD puts PCAP touch behind a 1500 nit panel with an IP65 front.
As a PCAP open frame the W32L100-POA3 sits among our open frame displays, our PCAP touch screens and our 32 inch industrial monitors. Where a kiosk or dashboard enclosure needs a 32 inch touch panel inside it, this is the model to specify.
