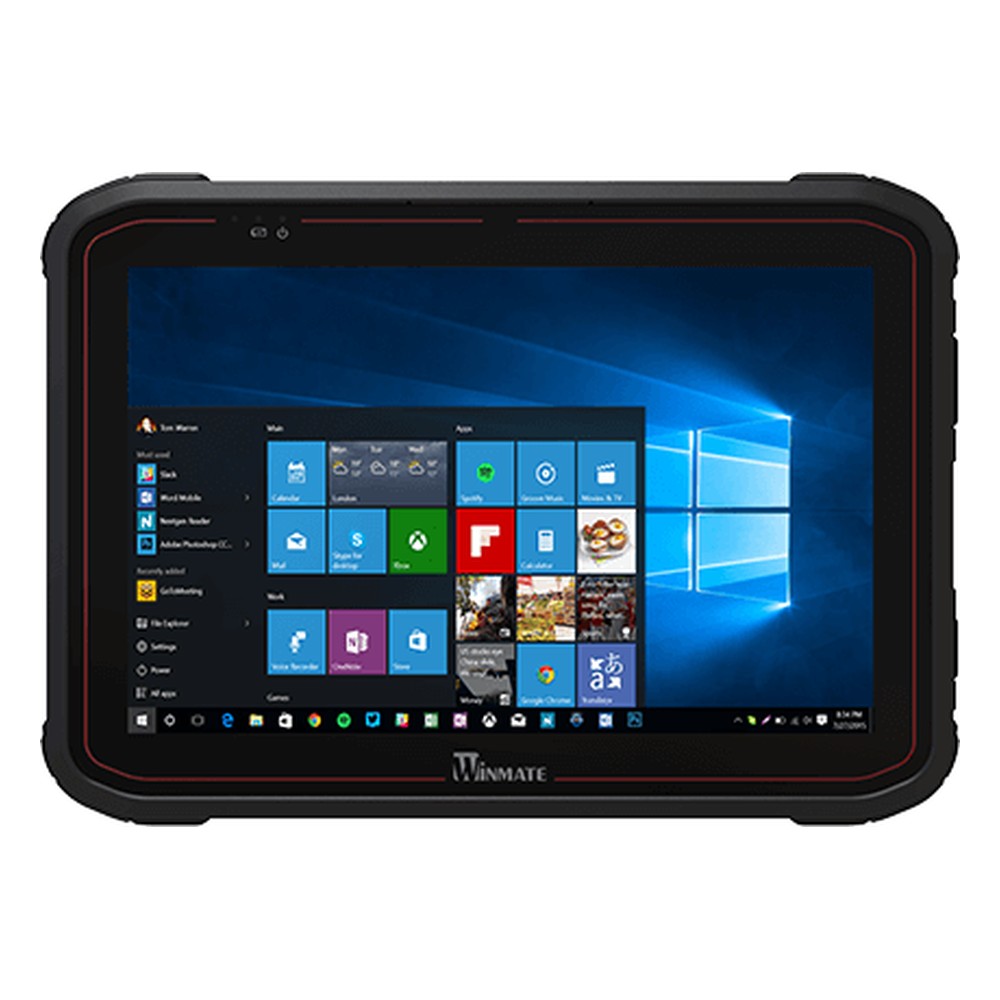

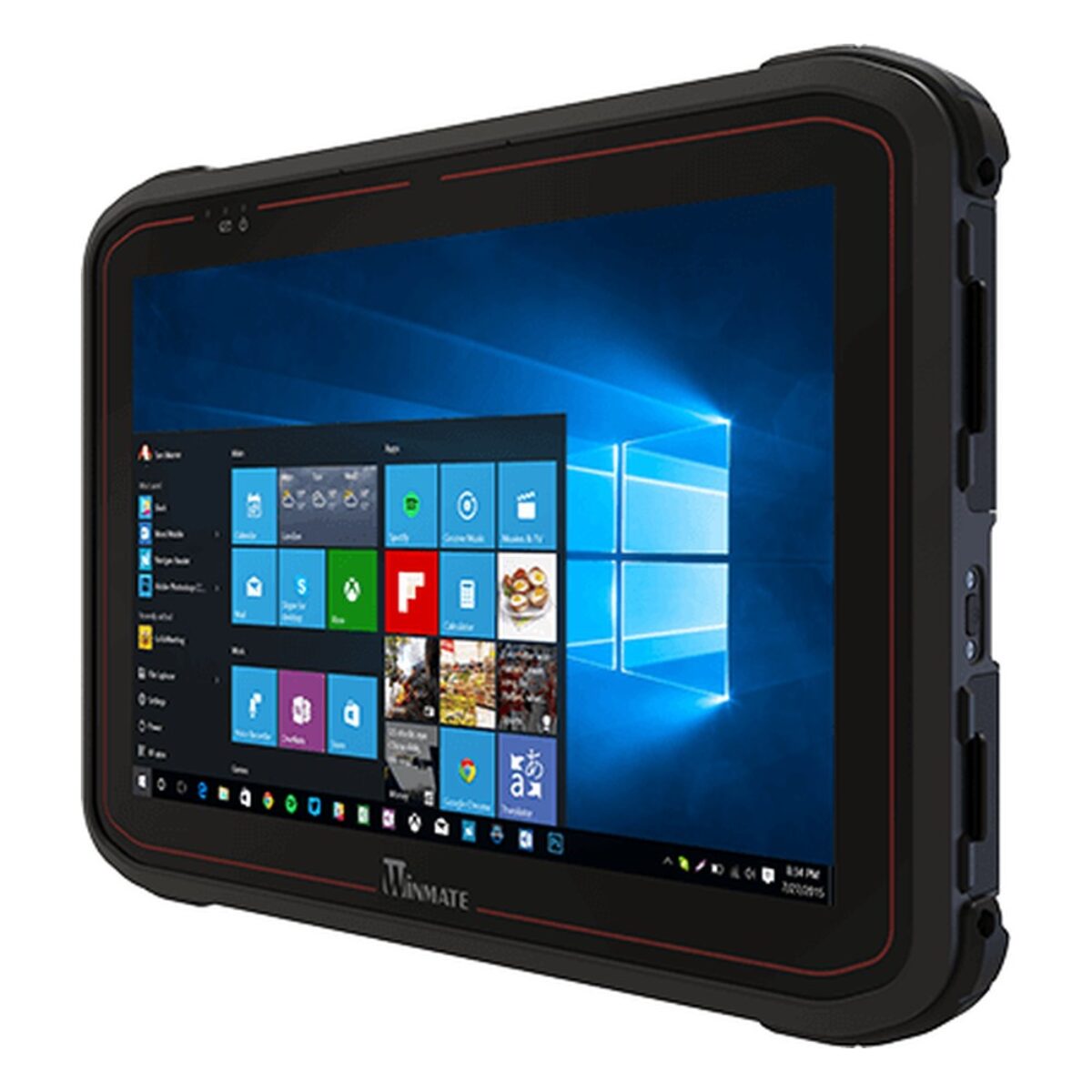

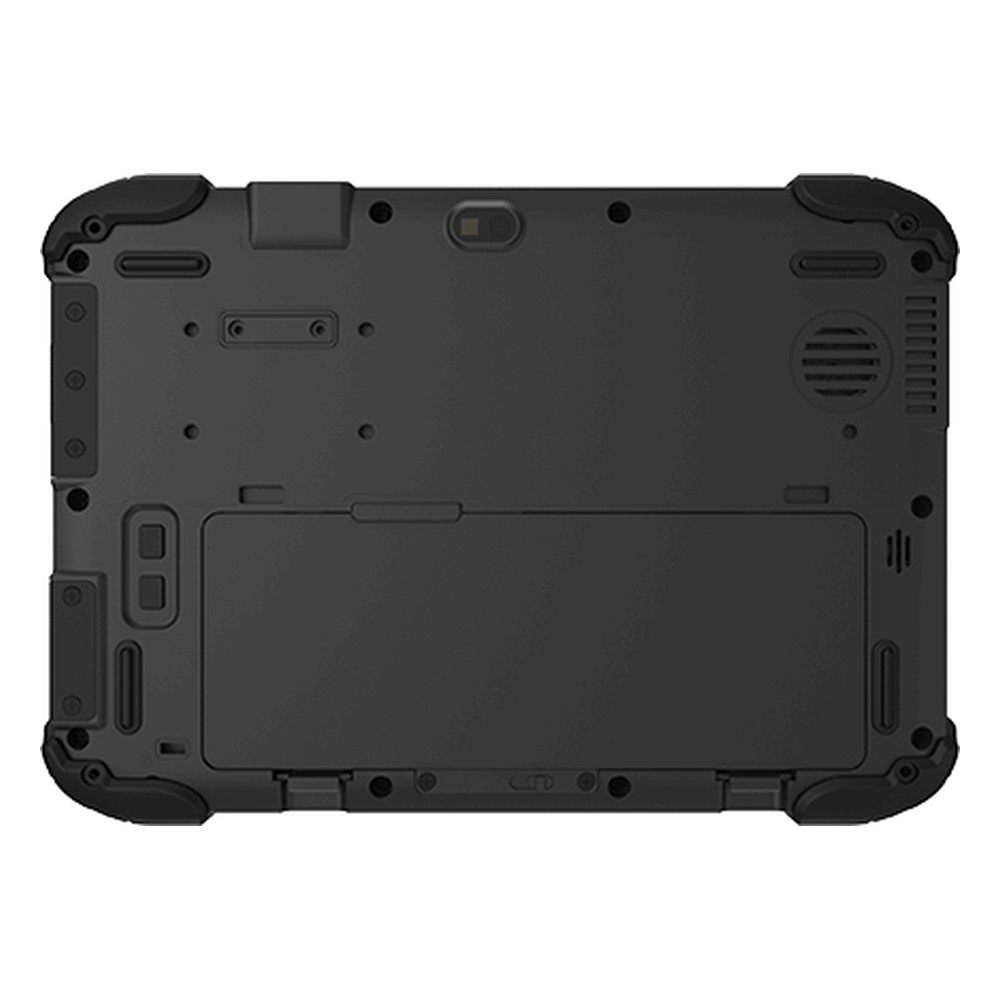

Winmate S101TG 10.1″ Windows Rugged Tablet with Intel Core i5-1135G7, IP65 and Optional Barcode Reader

Logistics and field service teams scan and record as they go, so the tablet needs a barcode option and a wired link for the depot. The S101TG is Winmate’s 10.1 inch Windows rugged tablet for that, with an Intel Core i5-1135G7, a 10.1″ optically bonded display, Gigabit LAN, IP65 sealing and an optional 1D/2D barcode reader. Winmate names field service, logistics and industrial applications as its uses.

The Core i5-1135G7 is an 11th Gen Tiger Lake processor running at 2.4 GHz with turbo to 4.2 GHz and Intel Iris Xe graphics. Memory is 8 GB as standard with 16 GB or 32 GB optional, and storage is a 128 GB SSD with options to 2 TB, plus a micro SDXC slot. TPM 2.0 is fitted, SOTI MobiControl is supported and the tablet runs Windows 11 IoT Enterprise LTSC. The screen shows 1920 x 1200 at 800 nits with optical bonding and anti-glare treatment, and its touch modes cover bare hands, gloves, a stylus and rain.

A Gigabit LAN port, one USB 3.0 Type-A port and a USB-C port with 20 V power delivery in sit on the tablet, with an optional micro HDMI output, a 19-pin docking connector and an optional expansion connector for USB 3.0 or UART. Wi-Fi, Bluetooth, GPS and GLONASS are built in; 4G LTE and 5G are optional. Front and rear cameras are fitted. The S101MT is the 10.1 inch S101 model with an Intel Core Ultra 5 125U and integrated NPU, and the S101EK is the model with an Intel Celeron N6211.

The S101TG is sealed to IP65 and tested to MIL-STD-810H Methods 516.8 and 514.8 for shock, vibration and a 4 ft drop. A fan cools it from -20 °C to 60 °C. The 3500 mAh battery gives around six hours, or around 7.5 hours with the optional 4750 mAh pack, and hot-swap is optional. Power comes from a 19 V adapter or USB-C, and a vehicle dock or desk dock is optional. We supply it configured, with Windows installed, and tested, ready to deploy.
