Winmate S17L500-STM1 17″ Stainless Steel Panel Mount Monitor with Resistive Touch and Front IP65
Resistive
Fanless
Front IP65
CE
FCCS17L500-STM1 Overview

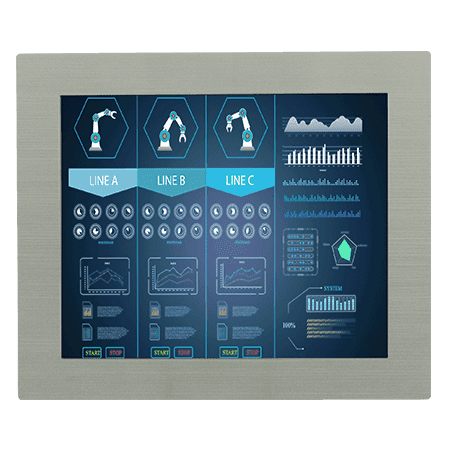

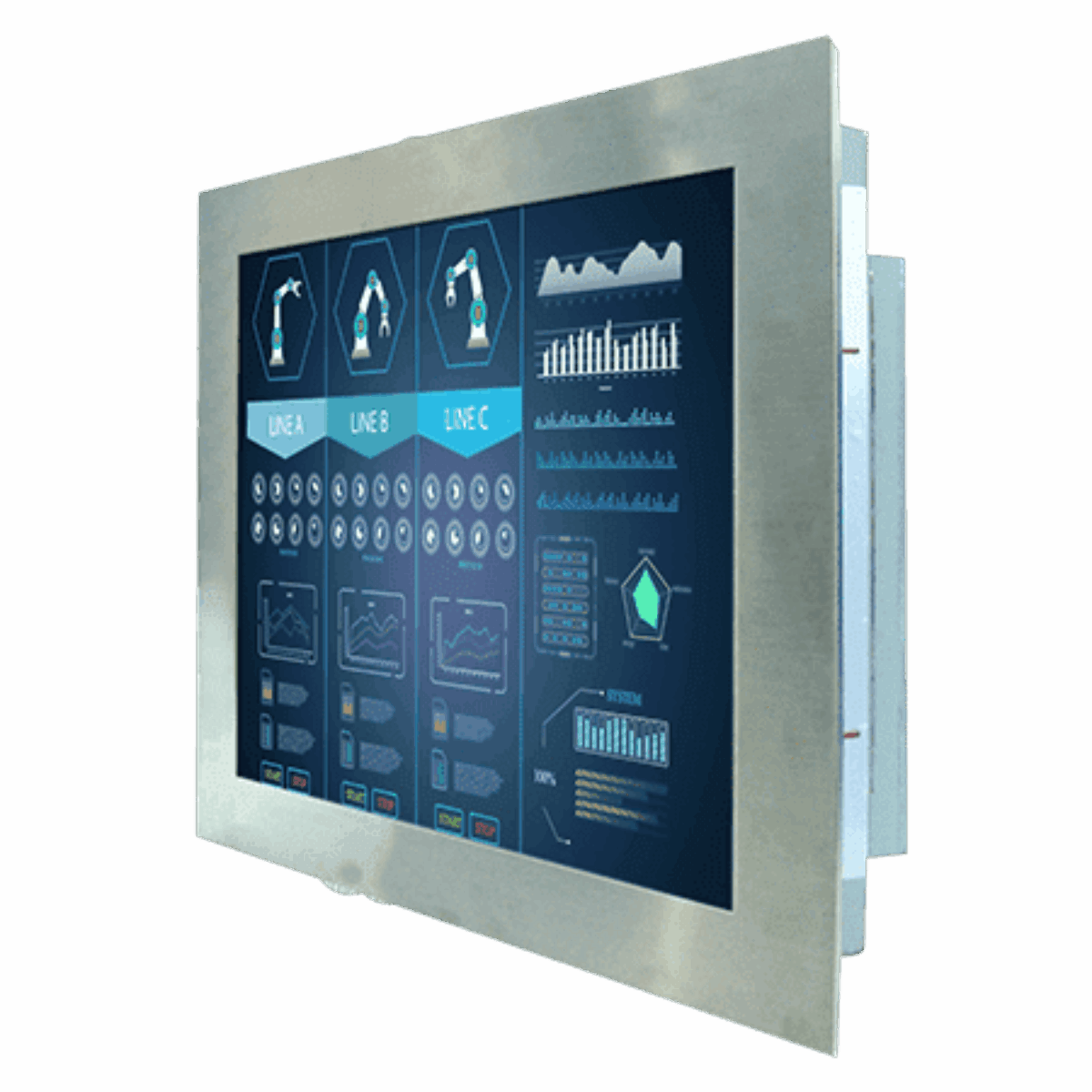

On a production line that is cleaned down every shift, the screen bezel needs to stand up to the same routine as the machine around it. The S17L500-STM1 is Winmate’s 17 inch stainless steel panel mount monitor: a 1280 x 1024 SXGA LCD at 350 nits with resistive touch, set behind a stainless front bezel rated front IP65.
The panel has a 1000:1 contrast ratio and shows 16.2 million colors across an active area of 337.92 x 270.336 mm, with viewing angles of 170° horizontally and 160° vertically. Resistive touch responds to gloved fingers, which suits operators in food and pharmaceutical areas, and protection glass without touch is available for display-only screens.
VGA is the standard video input, with HDMI and DVI available as options. The touch screen connects over USB Type-A or RS-232 D-sub 9, each listed as an option, which covers both PC hosts and older controllers. Power and status LEDs and five buttons handle on-screen settings. The R19L300-STM1 is the 19 inch version of this stainless monitor, and the R17L100-SPM1 pairs a stainless IP65 housing with PCAP touch at 17 inch.
The S17L500-STM1 runs from 12 V DC on a 2.5 mm DC jack and ships with a 100 to 240 V AC to DC adapter and USB, VGA and HDMI cables. It is fanless, operates from 0 °C to 50 °C and 10 to 90% non-condensing humidity, and stores from -20 °C to 60 °C. The unit measures 440 x 360 x 67 mm and fits a 414 x 334 mm panel cut-out, with 75 x 75 mm VESA holes as an alternative. It carries CE and FCC marks. Winmate names the food, beverage and pharmaceutical industries as target applications.
S17L500-STM1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate S17L500-STM1 |
| Features | Fanless Industrial |
| Display | |
| Display | 17"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 440mm x 360mm x 67mm (17.32" x 14.17" x 2.64") |
- S17L500-STM1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the S17L500-STM1 for USA food, beverage and pharmaceutical projects. Within the Winmate range the R19L300-STM1 is the 19 inch version of this stainless monitor, and the R17L100-SPM1 pairs a stainless housing with PCAP touch.
With its stainless front bezel the S17L500-STM1 sits among our front IP65 displays, our panel mount monitors and our 17 inch industrial monitors. Where a 17 inch machine screen is cleaned down each shift, this is the Winmate model to specify.
