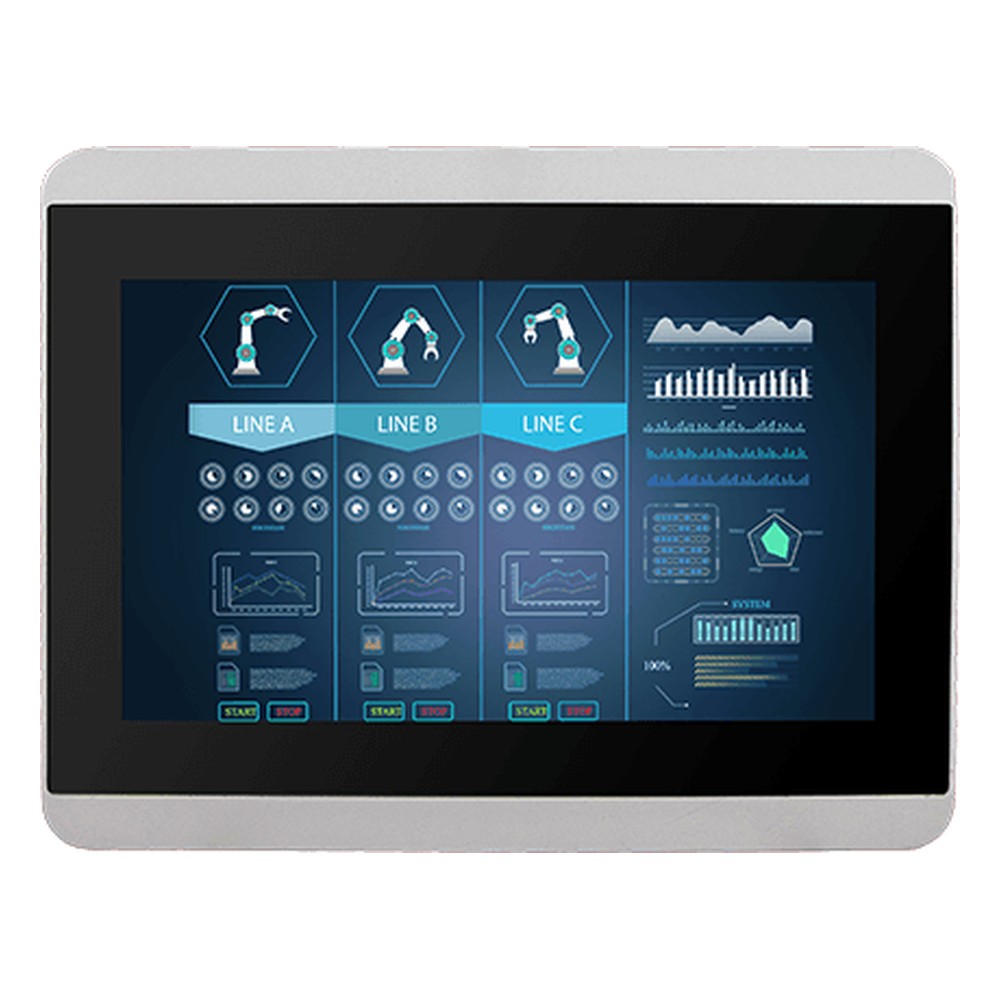

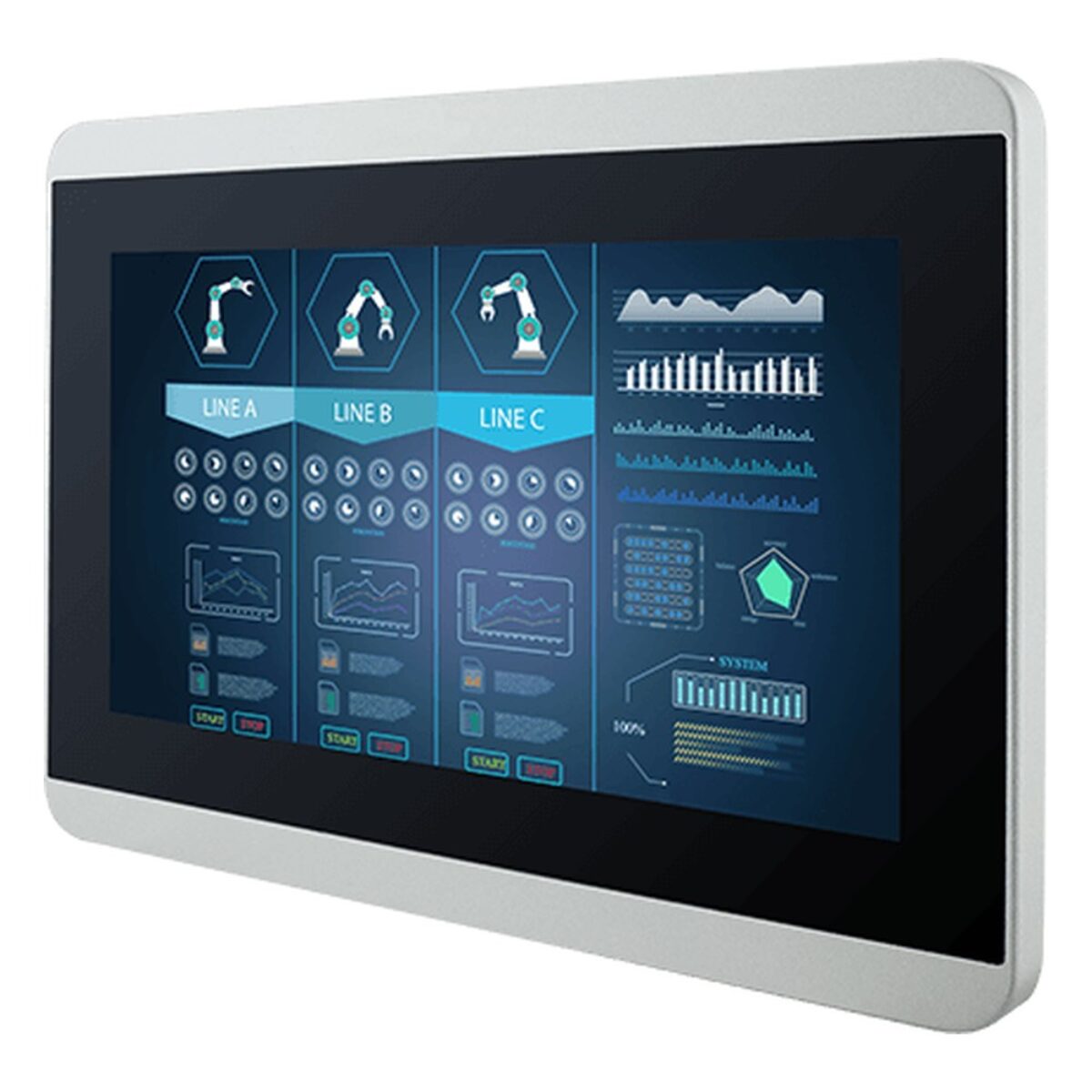

Winmate W07L100-PCO1HB 7″ PCAP Touch Monitor with 1000 Nit WSVGA Display and 800:1 Contrast

Not every touchscreen needs a computer built in. Where the PC already sits in a cabinet, under a counter or in a control room, a standalone display keeps screen and computer on separate replacement cycles. The W07L100-PCO1HB is Winmate’s 7 inch chassis touch monitor for that set-up: a 7″ 1024 x 600 WSVGA projected capacitive display in a metal housing, sealed to IP65 at the front.

The 1024 x 600 panel runs at 1000 nits with 800:1 contrast and 170 degree viewing angles. At 1000 nits the panel is sunlight readable, so it typically stays legible near windows and under strong lighting. The small widescreen format suits button-led operator screens on tight panels. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. A speaker is optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W07L100-PCT1 is the 7 inch chassis monitor with a 320 nit panel, and the W07L100-EHT1 is the slim panel mount 7 inch monitor.

Power is 12 V DC, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 7 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a VESA mount as standard, with panel mounting as an option. We supply the W07L100-PCO1HB configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
