Winmate W07T700-OFA4 7″ Open Frame Monitor with 800 x 480 Widescreen LCD and Optional Resistive Touch
Resistive
CE
FCCW07T700-OFA4 Overview

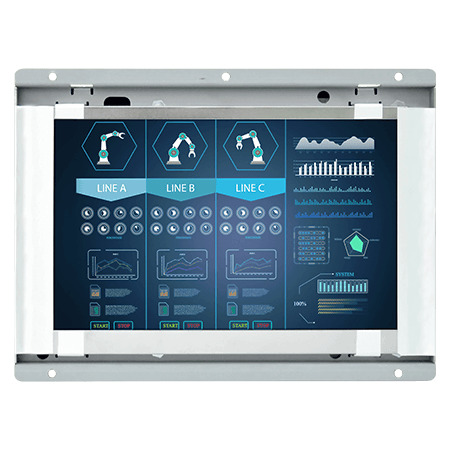

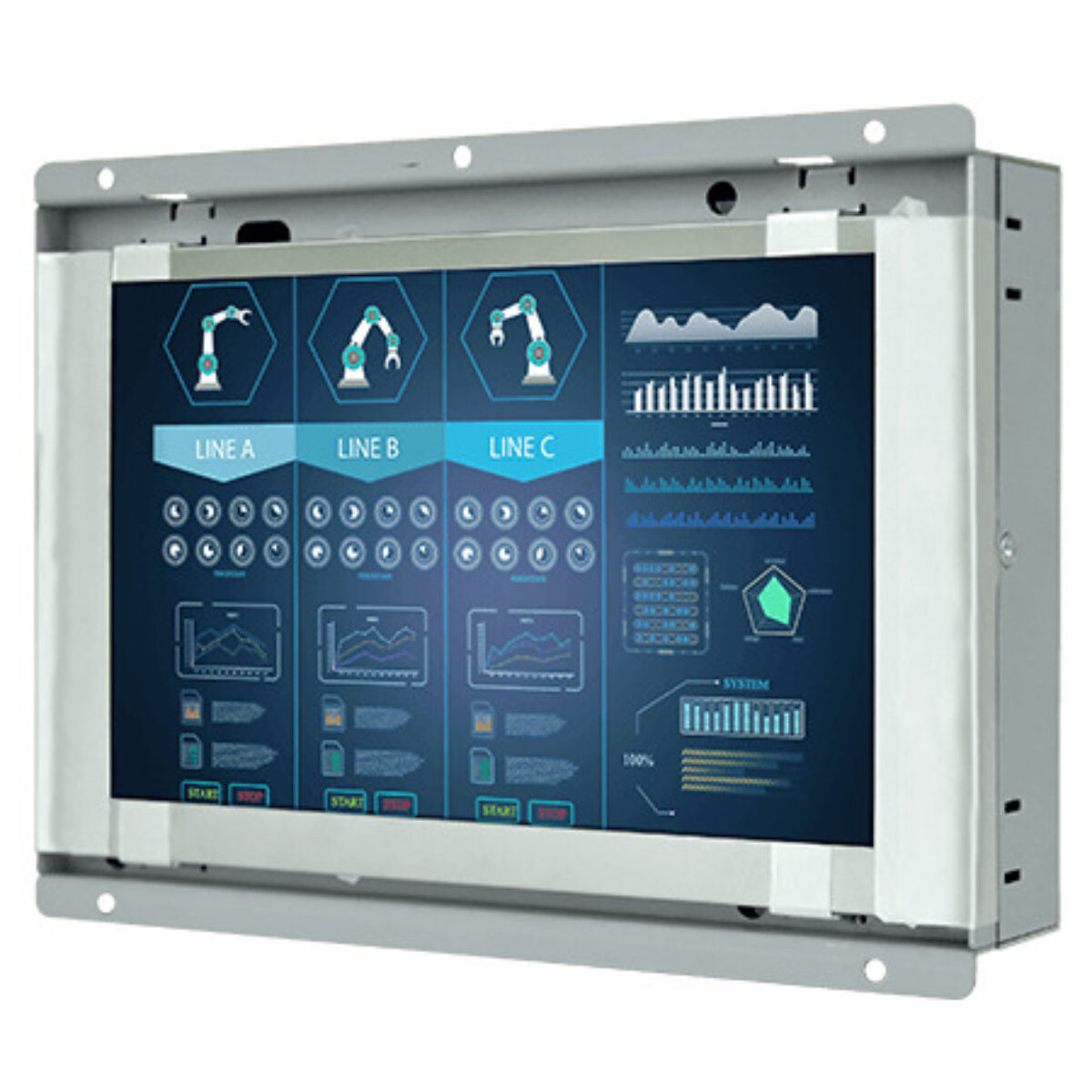

Compact machines, lockers and small kiosks often have a narrow opening for a screen, and a wide 7 inch panel fits button rows and status bars better than a squarer one. The W07T700-OFA4 is Winmate’s 7 inch open frame monitor for that space: an 800 x 480 widescreen display at 400 nits in a small metal enclosure, fitted from behind with rear or VESA mounting.
The panel shows 16.2 million colors with a 1000:1 contrast ratio and viewing angles of 160° horizontally and vertically, so the picture stays clear for users approaching from the side. Touch is an option: specify resistive touch for gloved or stylus input, or protection glass alone where the screen only displays information.
Video comes in over one VGA input, with HDMI and DVI inputs as options, so the monitor pairs with controllers and small embedded PCs. One USB port serves the touch screen, a five-key OSD panel handles settings, and an optional 3.5 mm audio line-in drives two optional speakers. For brighter sites the W07T700-OFO1HB offers a 7 inch 1000 nit panel, and the R08T100-OFA1 gives an 8 inch 4:3 screen.
Power is 12 V DC, with a 100 to 240 V AC adapter and power cord supplied. The W07T700-OFA4 is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -10 to 60 °C. It measures 190 x 138 x 34.3 mm and takes 75 x 75 mm VESA or rear mounting. Winmate names industrial visualization, control rooms and equipment monitoring as target applications.
W07T700-OFA4 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W07T700-OFA4 |
| Features | Fanless Industrial |
| Display | |
| Display | 7"[5:3, 800 x 480, WVGA] |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 190mm x 138mm x 34mm (7.48" x 5.43" x 1.34") |
- W07T700-OFA4 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W07T700-OFA4 configured for USA machine builders and kiosk integrators. Within the Winmate range the W07T700-OFO1HB is the 7 inch high brightness model at 1000 nits, and the R08T100-OFA1 offers an 8 inch 4:3 open frame screen.
As a compact built-in screen the W07T700-OFA4 sits among our 7 inch industrial monitors, our open frame displays and our resistive touch monitors. Where a small enclosure needs a 7 inch widescreen fitted from behind, this is the model to specify.
