Winmate W10IAN3S-POA1 10.1″ Open Frame HMI Panel PC with Quad-Core Intel N150 and PCAP Touch

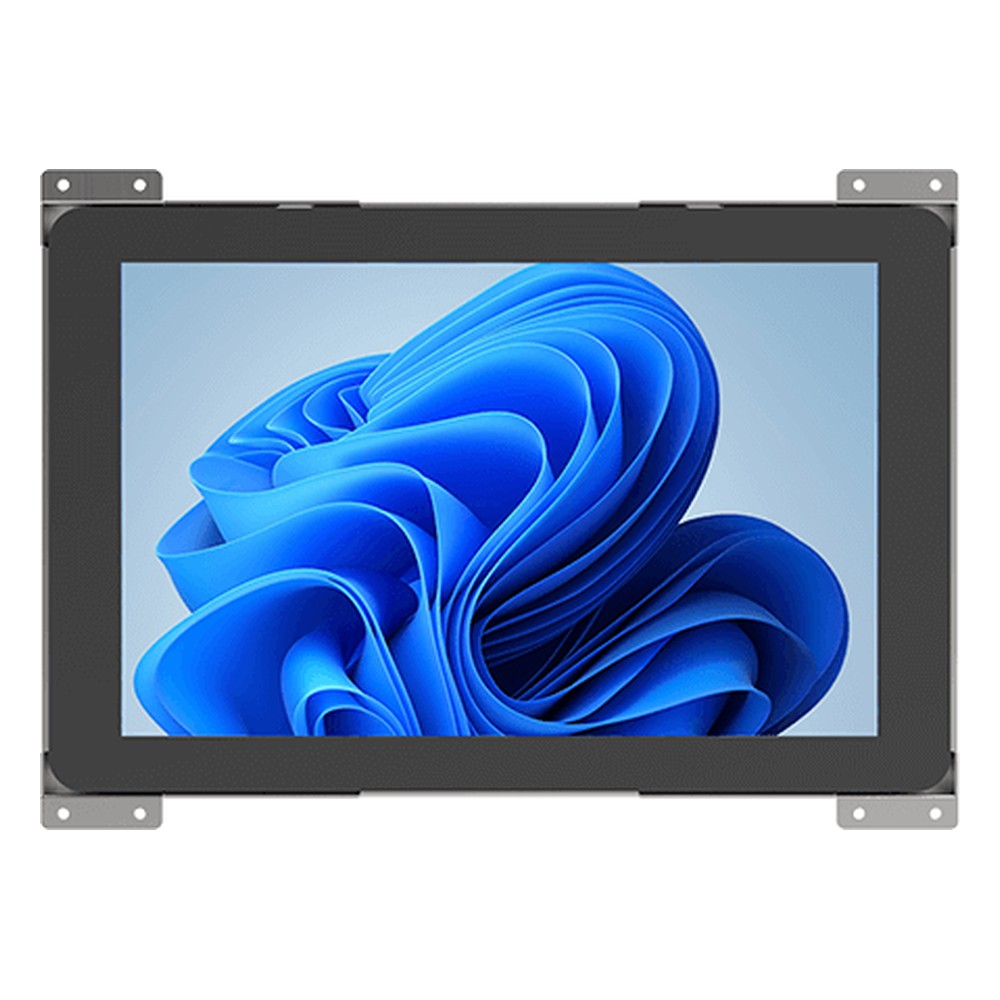

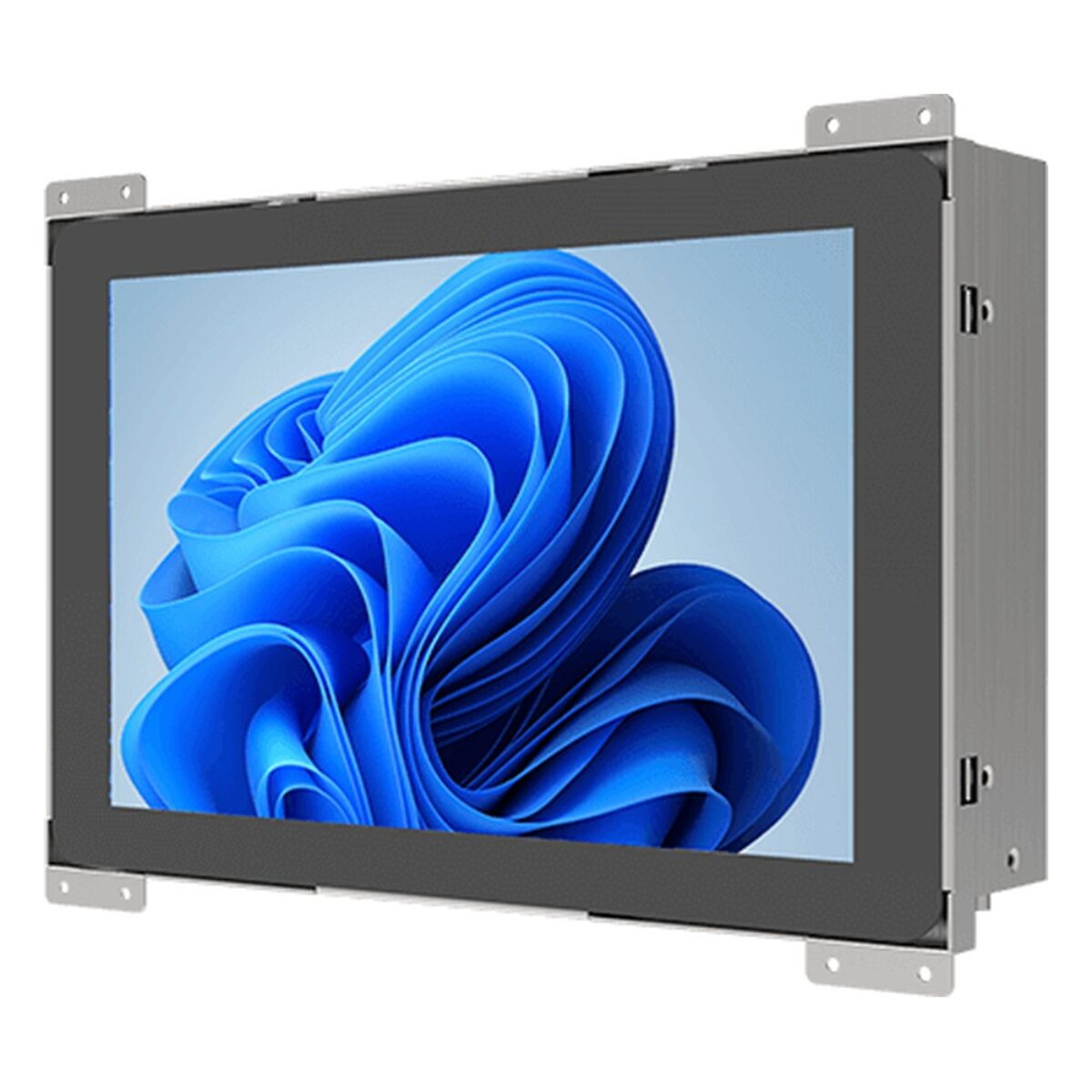

Self-service kiosks and machine fronts often sit under bright lighting, where a dim built-in screen is hard to read. The W10IAN3S-POA1 is Winmate’s 10.1 inch PO Series HMI panel PC: a 10.1″ 1920 x 1200 projected capacitive multi-touch screen, a quad-core Intel Processor N150 and two 2.5GbE ports in a fanless metal housing. Winmate aims it at machine control, factory automation and operator HMI.

The Intel Processor N150 has four cores running at up to 3.6 GHz, with Intel Graphics and TPM 2.0 on board, enough for HMI runtimes and kiosk software without a fan. One DDR5-4800 SO-DIMM socket takes up to 16 GB. Storage is a 128 GB SSD as standard, and a SATA III 2.5″ drive can be fitted as an option where no NVMe SSD is present. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be supplied.

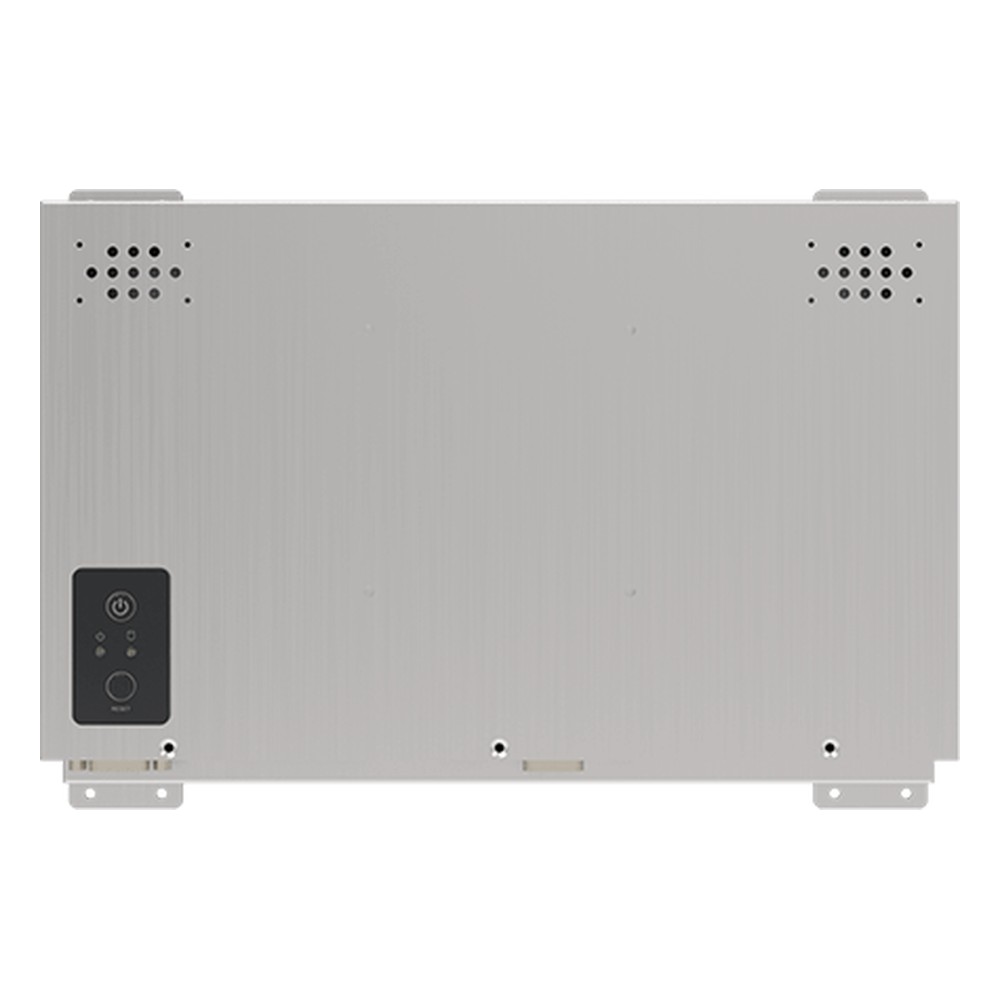

Two 2.5GbE RJ45 ports sit on Intel controllers. USB covers two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode, and an HDMI 2.0b output is optional. One RS-232/422/485 port and one RS-232 port link PLCs, barcode scanners and serial instruments, two speakers handle alerts, and an M.2 2230 E-key slot takes an optional Wi-Fi and Bluetooth module. LED indicators show power and storage activity.

Power is 12 V DC on a DC jack, and a 12 V 50 W AC adapter is supplied. It mounts as an open frame inside your own enclosure by default, with panel mounting and VESA mounting as options, and VESA screws are supplied. The unit runs from 0 °C to 50 °C and carries CE and FCC marks. Within the Winmate range, the W10IE3S-POA1 is the earlier open frame model with an Intel Celeron N6210, and the W10IAN3S-PPH2 is the 10.1 inch N150 panel mount model with a front IP65 rating. We supply the W10IAN3S-POA1 configured, with the OS installed, and tested before dispatch.
