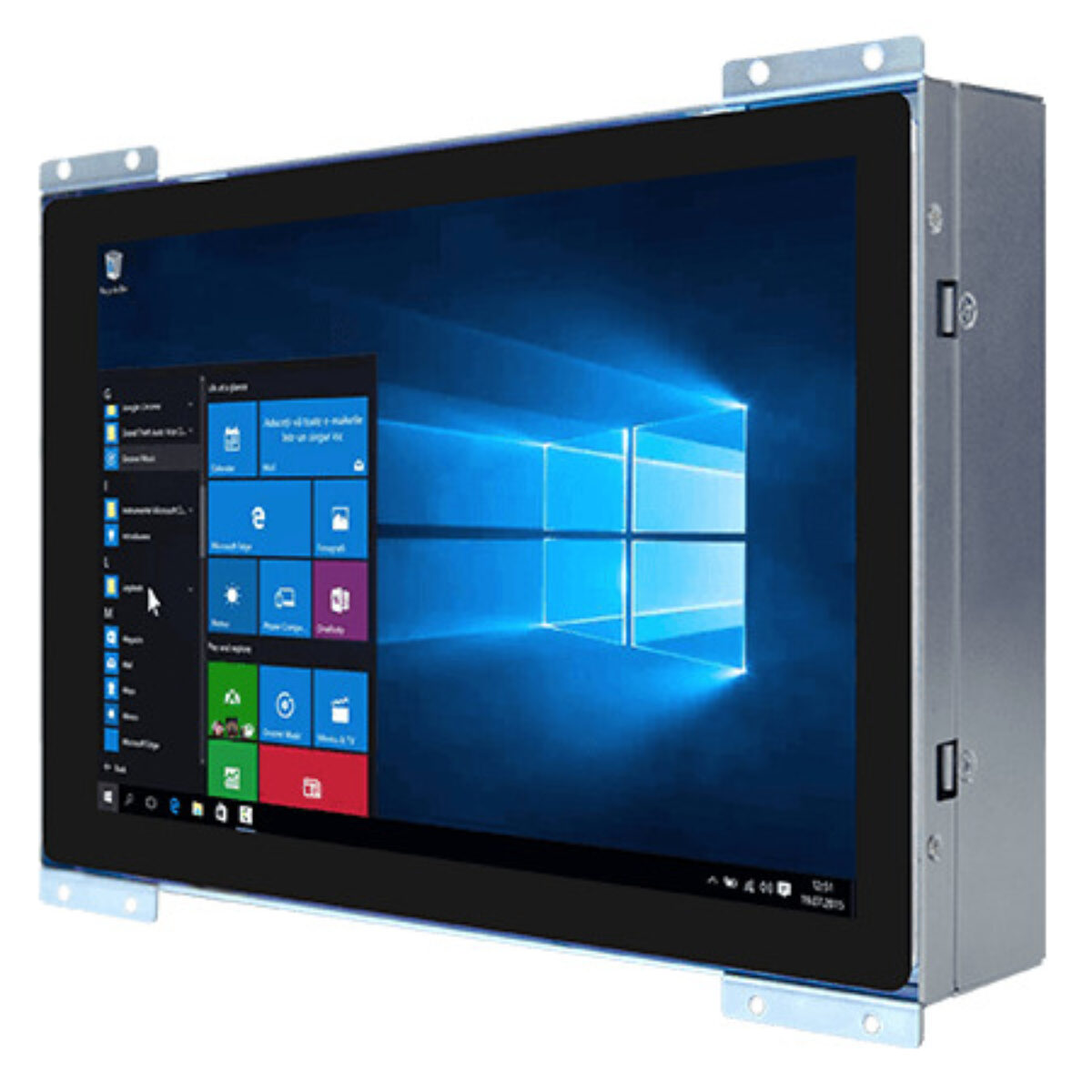

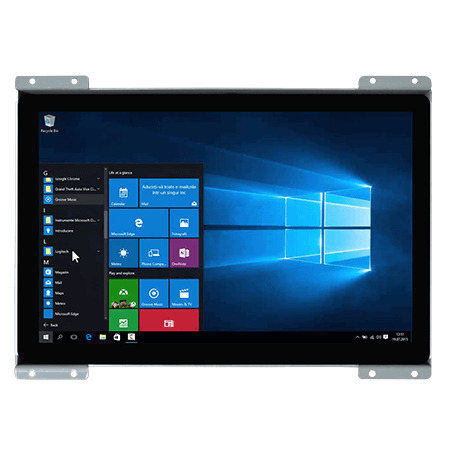

Winmate W10IE3S-POA1 10.1″ Open Frame PCAP Panel PC with Intel Celeron N6210 and 700 Nit WUXGA

The W10IE3S-POA1 is Winmate's 10.1 inch open-frame panel PC, with a 700 nit 1920 x 1200 PCAP screen and a fanless Intel Celeron N6210 in a slim metal frame. It suits kiosks and machine builds under bright lighting where the module sits behind the builder's own front panel.

  • 700 Nit WUXGA Screen: 10.1 inch 1920 x 1200 panel at 700 nits with 178° viewing, readable under bright lighting.
  • Multi-Touch PCAP: Flat multi-touch PCAP design that responds to a light touch, for kiosk and HMI screens.
  • Intel Celeron N6210: Fanless processor at up to 2.6 GHz with DDR4-3200 up to 16 GB, M.2 storage and TPM 2.0.
  • Dual GbE and Serial: Two Gigabit LAN, two USB 3.2 Gen 2, one RS-232/422/485 and one RS-232, plus optional HDMI and DP.
  • Slim Open Frame: 12 V DC input, 0 to 50 °C operation and 264 x 190 x 48 mm, open-frame or VESA mounted.
Touch Technology: PCAPPCAP
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
USB Generation: USB3USB3
M.2: 11x M.2
Ingress Protection: Front IP65Front IP65
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

W10IE3S-POA1 Overview

A kiosk near a window or a machine under strong factory lighting washes out an ordinary screen, and small text on a 10 inch panel needs pixels to stay sharp. The W10IE3S-POA1 answers both, as Winmate’s 10.1 inch open-frame panel PC with a 700 nit 1920 x 1200 PCAP screen and a fanless Intel Celeron N6210 in a slim metal frame, offered as a standalone model.

The panel runs at 1920 x 1200 with 700 nits, an 800:1 contrast ratio and 178° viewing angles in both directions, and flat multi-touch PCAP responds to a light touch. Winmate names kiosk applications for this model. The Intel Celeron N6210 runs at up to 2.6 GHz, with one DDR4-3200 SO-DIMM with 4 GB as standard and 8 GB or 16 GB as options, a 128 GB M.2 2242 SSD that can go to 512 GB and an optional 2.5 inch SATA bay for up to 1 TB. That suits HMI, kiosk and data collection software, with TPM 2.0 on board and Windows 11 IoT Enterprise, Windows 10 IoT Enterprise or Ubuntu 20.04 as options.

Two Gigabit LAN ports on Intel controllers, two USB 3.2 Gen 2 ports and two serial ports (one RS-232/422/485 and one RS-232) connect to PLCs, readers and the network, with optional HDMI 2.0 and DisplayPort 1.3 outputs, two speakers and a brightness adjustment knob. The W10IE3S-PPH2 is the 10.1 inch PCAP panel mount build with a front IP65 bezel, and the W07IE3S-POT1 is the 7 inch open-frame version.

Power is 12 V DC on a 2.5 mm DC jack, with a 12 V 50 W adapter supplied. The W10IE3S-POA1 is fanless, operates from 0 to 50 °C at 10 to 90% humidity and carries CE and FCC marks. It measures 264 x 190 x 48 mm and mounts through its open-frame brackets or on 75 x 75 mm VESA.

W10IE3S-POA1 Specifications

Overview
Brand & ModelWinmate W10IE3S-POA1
FeaturesFanless
Industrial
Display
Display10.1"[8:5, 1920 x 1200, WUXGA]
Touch ControllerMulti Touch PCAP
Brightness700 Nits
Viewing AngleWide Viewing Angle
178° Horizontal, 178° Vertical
Aspect Ratio8:5
FormatWidescreen
Contrast800:1
Performance
Processor SeriesIntel Celeron N Series Elkhart Lake
Processor ModelsIntel Celeron N6210: 1.2~2.6GHz, 2 Cores, 2 Threads, 1.5MB Cache, 6.5W
Performance Cores2 Cores
Memory1x DDR4 3200MHz SO-DIMM Slot, 16GB
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux Ubuntu 20.04
Windows 10
Windows 11
I/O
Ethernet2x Ethernet Ports
2x GbE LAN [RJ45]
USB2x USB Ports
2x USB 3.2 Gen 2 [Type A]
Serial2x Serial Ports
1x RS232 [DB9]
1x RS232/422/485 [DB9]
Expansion
M.21x M.2 Expansion Slots
1x M.2 B-Key [PCIe/USB/SATA] [2242]
Storage
Storage1x 2.5" HDD/SSD
1x M.2 SSD
Power
Power Input12V DC
Environmental Conditions
Operating Temperature0°C to 50°C [32°F to 122°F]
Storage Temperature-10°C to 60°C [14°F to 140°F]
Humidity10-90% (Non-condensing)
Ingress ProtectionFront IP65
Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side]
CertificationCE
FCC
Mechanical Properties
Dimensions264mm x 190mm x 48mm (10.39" x 7.48" x 1.89")

Official Winmate USA Distributor

Things Embedded is an official Winmate USA distributor, supplying the W10IE3S-POA1 configured for USA kiosk and machine building projects. Within the Winmate range the W10IE3S-PPH2 is the 10.1 inch PCAP build with its own front IP65 bezel, and the W07IE3S-POT1 is the smaller 7 inch open-frame module.

It sits among our open frame panel PCs, our 10 inch industrial panel PCs and our PCAP touch HMIs. Where a kiosk or machine builder needs a bright, sharp 10.1 inch PCAP module for their own enclosure, this is the model to specify.
