Winmate W10IE3S-EHH2 10.1″ PCAP Touch HMI with Intel Celeron N6211 and WXGA Display

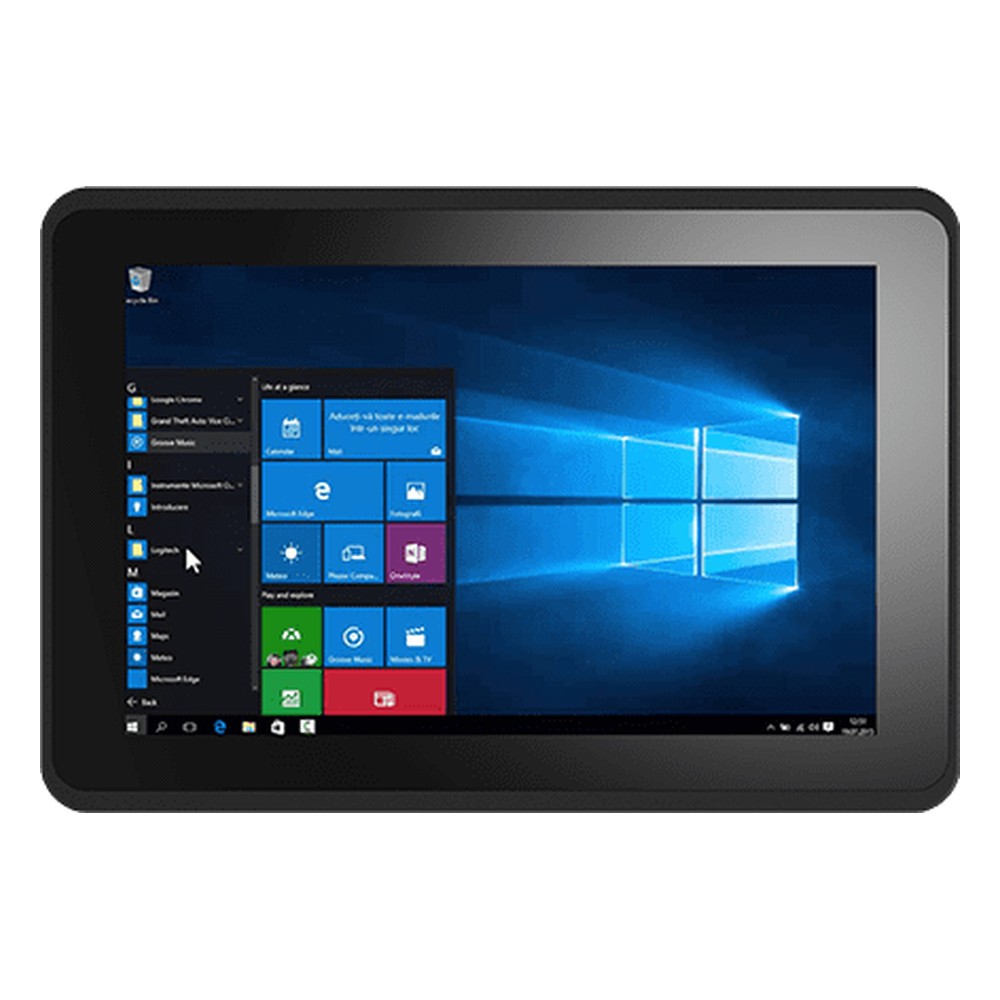

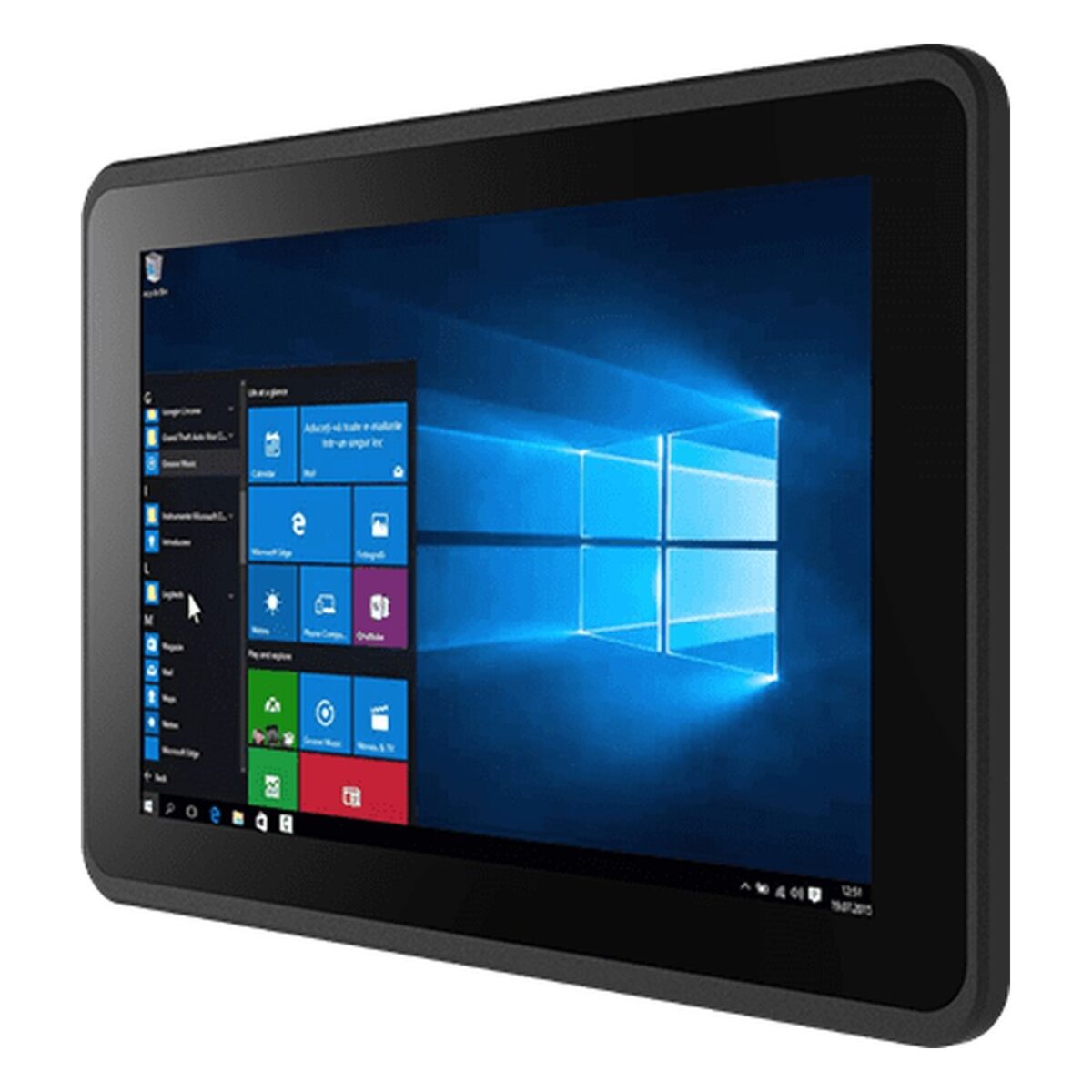

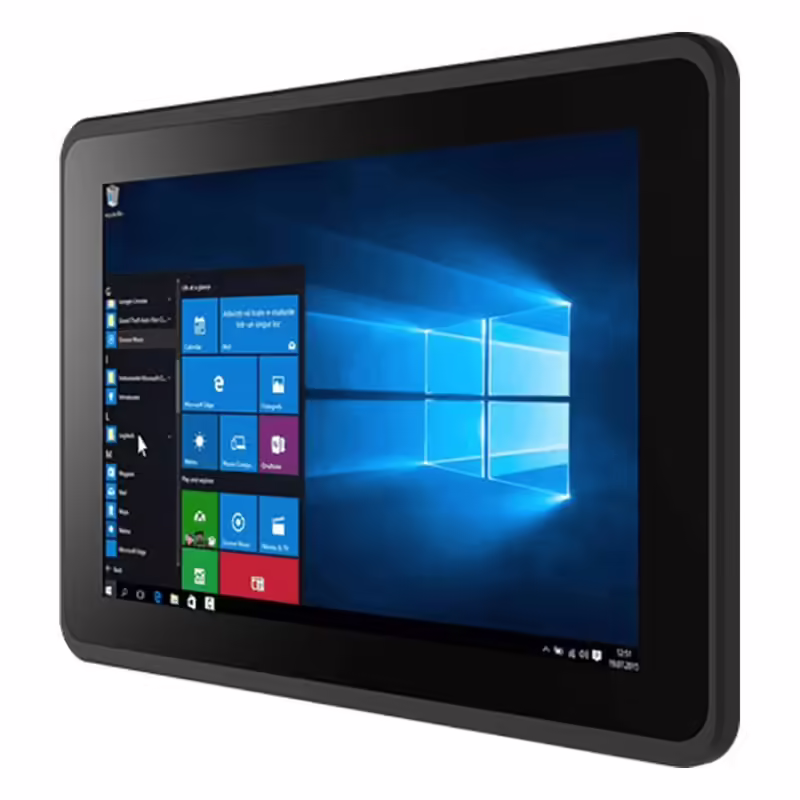

Operator panels in manufacturing cells, logistics hubs and smart factories usually sit in a cabinet door or machine guard, where the front gets splashed and wiped down. The W10IE3S-EHH2 is Winmate’s 10.1 inch E Series HMI panel PC for those positions, with an Intel Celeron N6211 and a 10.1″ 1280 x 800 projected capacitive multi-touch display at 350 nits with 800:1 contrast.

The Celeron N6211 runs at up to 3.0 GHz with 4 GB of memory as standard and 8 or 16 GB as options, which typically suits HMI software, a SCADA client or a warehouse terminal application. Storage is a 128 GB SSD as standard, with options up to 2 TB, and TPM 2.0 is on board. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed, and an M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth.

Connections include two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2 Type-A ports and one RS-232/422/485 port, set to RS-232 by default, for PLCs, scanners and serial instruments. HDMI 2.0 is optional for a second screen. Within the Winmate range the W10IAN3S-EHH2 keeps this housing with a quad-core Intel N150, and the W10MG3S-EHH2 is the Arm-based MediaTek Genio 510 build.

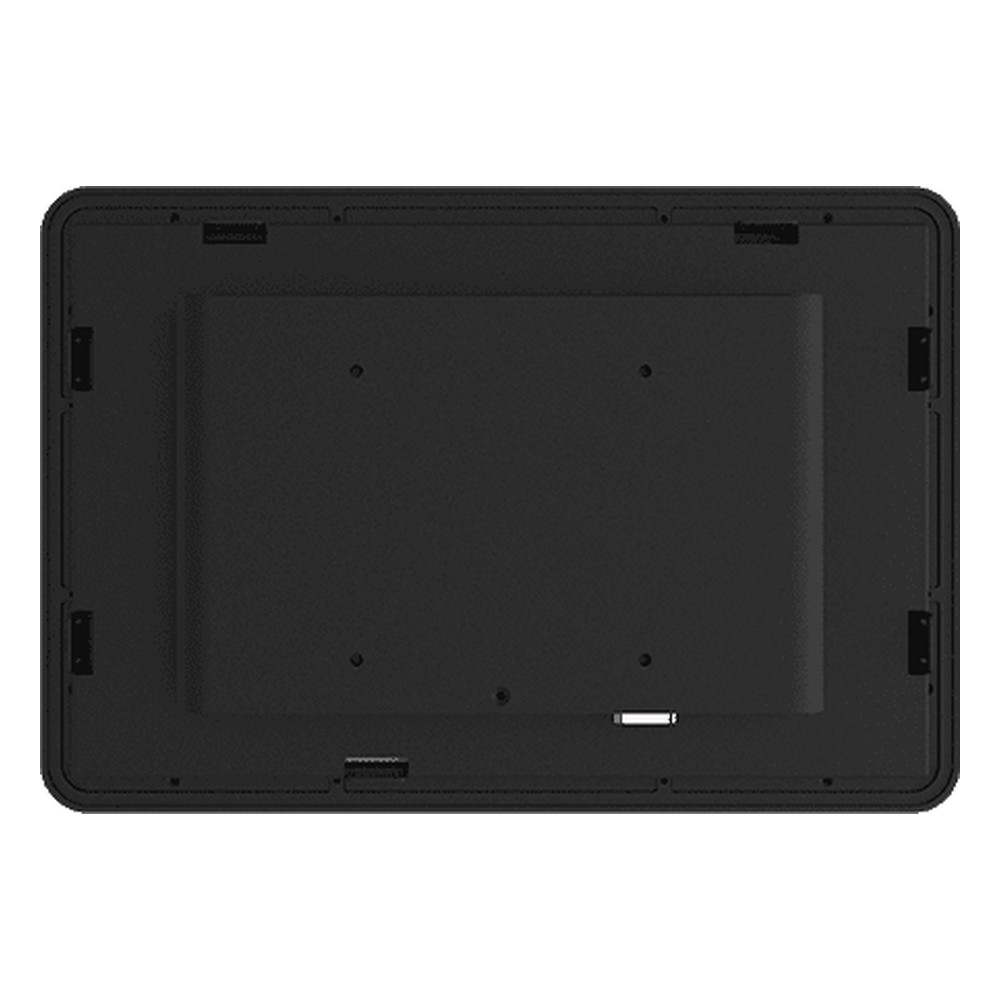

Power is 12 V DC on a DC jack, with a 100 to 240 V AC adapter supplied. The fanless metal and ABS+PC housing has a front IP65 rating and runs from 0 to 50 °C in non-condensing humidity. Panel mounting is standard with mounting clips supplied, and VESA mounting is optional with VESA screws in the box. It carries CE and FCC marks. We supply the W10IE3S-EHH2 configured, with the OS installed, and tested before dispatch.
