Winmate W10L100-PCH2LB 10.1″ PCAP Touch Monitor with WXGA LCD and 800:1 Contrast

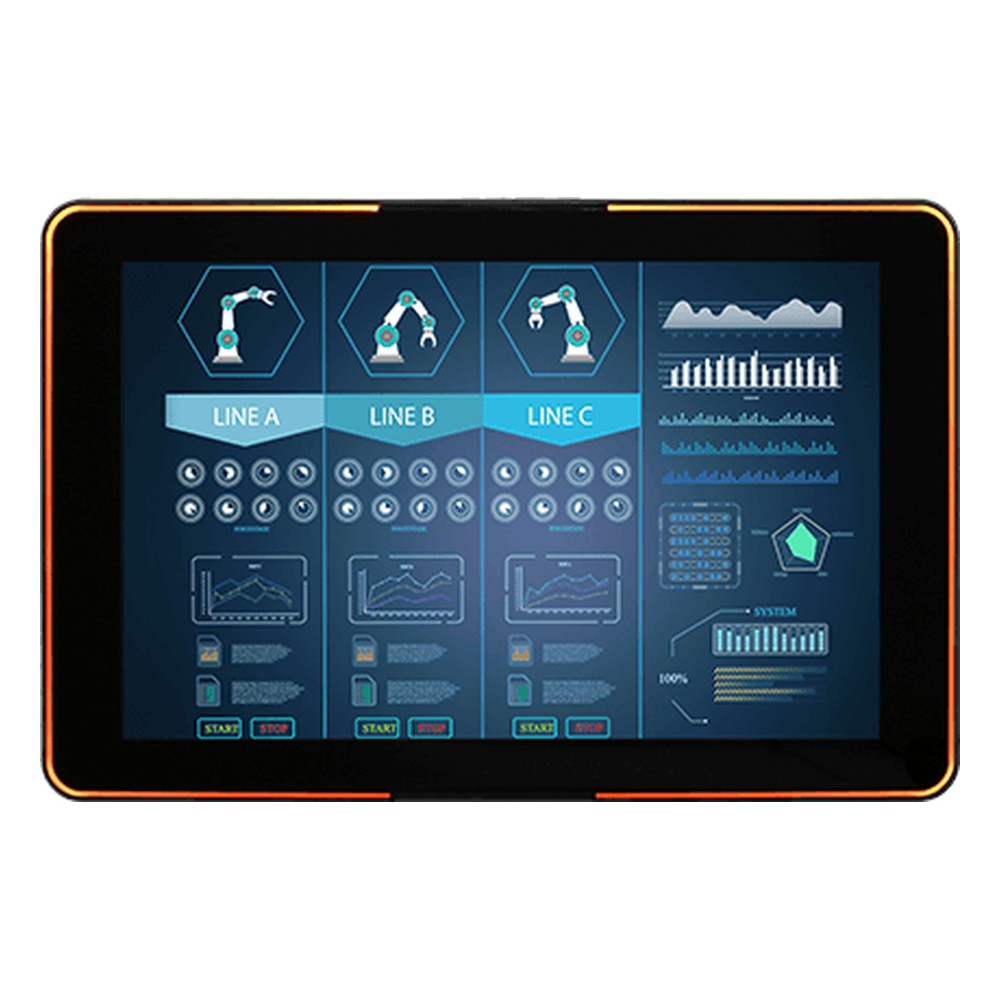

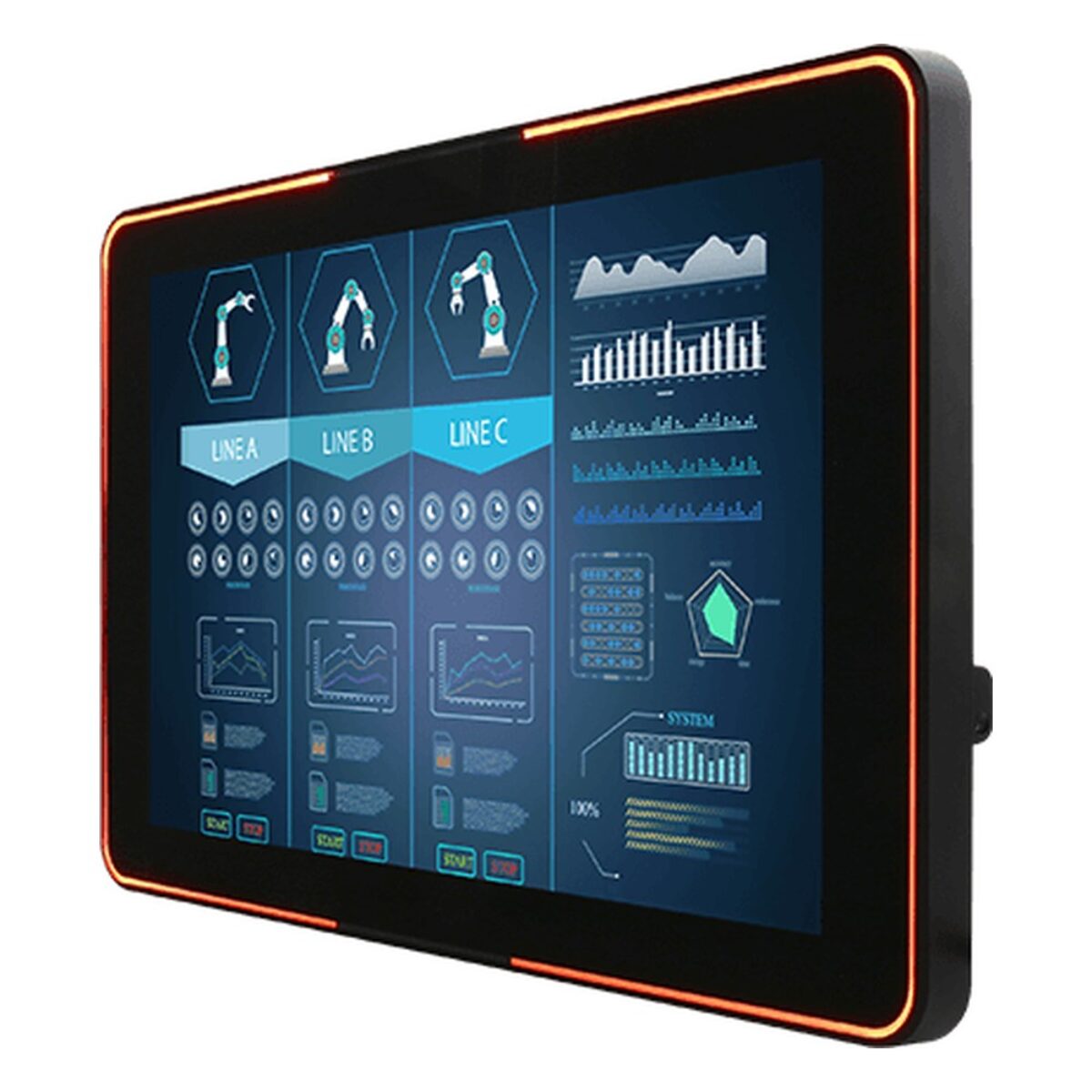

Meeting rooms, reception desks and secure doors need a small touchscreen that people can read at a glance, often driven by a booking or access control PC elsewhere. The W10L100-PCH2LB is Winmate’s 10.1 inch chassis touch monitor with a status light bar for that set-up: a 10.1″ 1280 x 800 WXGA projected capacitive display in an aluminum housing, sealed to IP65 at the front.

The 1280 x 800 panel runs at 350 nits with 800:1 contrast and 170 degree viewing angles. The widescreen 1280 x 800 format suits operator screens and booking or information panels. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass, and an anti-glare coating is optional.

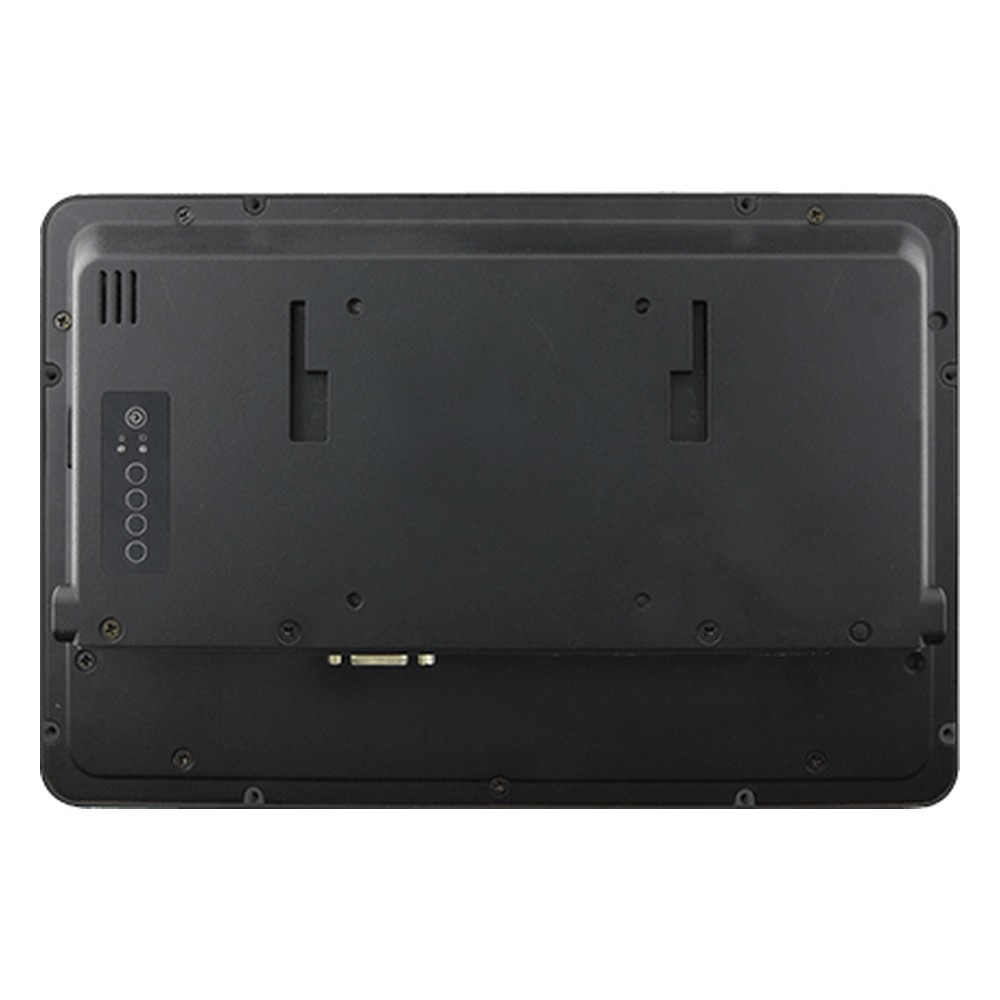

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An all-round RGB LED status light bar, controlled over RS-232, shows room or door status at a glance. A speaker is optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W10IE3S-PCH2LB is the panel PC version of this housing with an Intel Celeron N6211, and the W10L100-PCH2 is the same 10.1 inch chassis monitor without the light bar.

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 10.1 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a standard VESA mount. We supply the W10L100-PCH2LB configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
