Winmate W10L100-PCH2 10.1″ PCAP Touch Monitor with WXGA LCD and 350 Nits

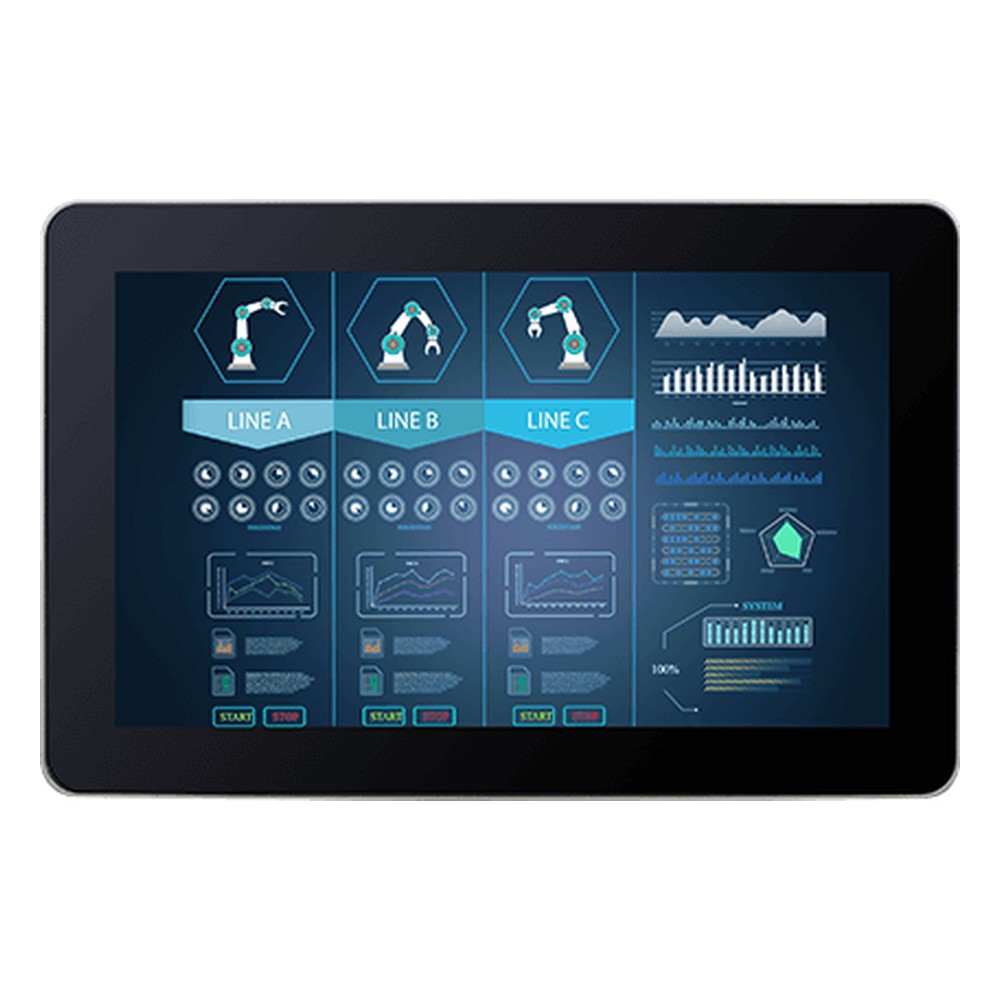

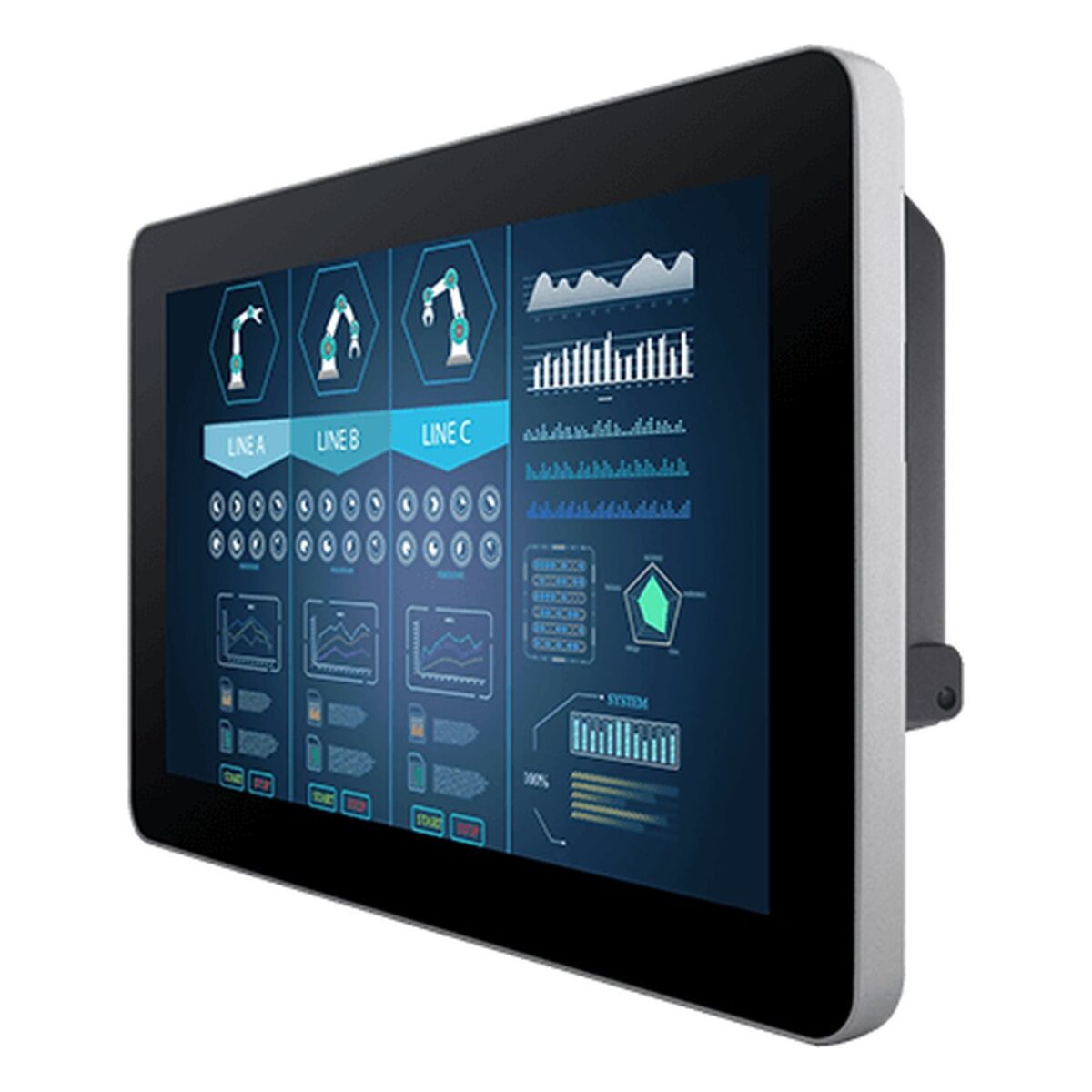

Not every touchscreen needs a computer built in. Where the PC already sits in a cabinet, under a counter or in a control room, a standalone display keeps screen and computer on separate replacement cycles. The W10L100-PCH2 is Winmate’s 10.1 inch chassis touch monitor for that set-up: a 10.1″ 1280 x 800 WXGA projected capacitive display in an aluminum housing, sealed to IP65 at the front.

The 1280 x 800 panel runs at 350 nits with 800:1 contrast and 170 degree viewing angles. The widescreen 1280 x 800 format suits operator screens and booking or information panels. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass, and an anti-glare coating is optional.

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. A speaker is optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W10L100-PCH2LB adds an RGB LED status light bar for room booking and access control, and the W10L100-EHH2 is the slim panel mount 10.1 inch monitor.

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 10.1 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a standard VESA mount. We supply the W10L100-PCH2 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
