Winmate W12IB3S-VMM9(HB) 12.1″ Widescreen Vehicle Mount Panel PC with Intel Celeron N2930 and Front IP65

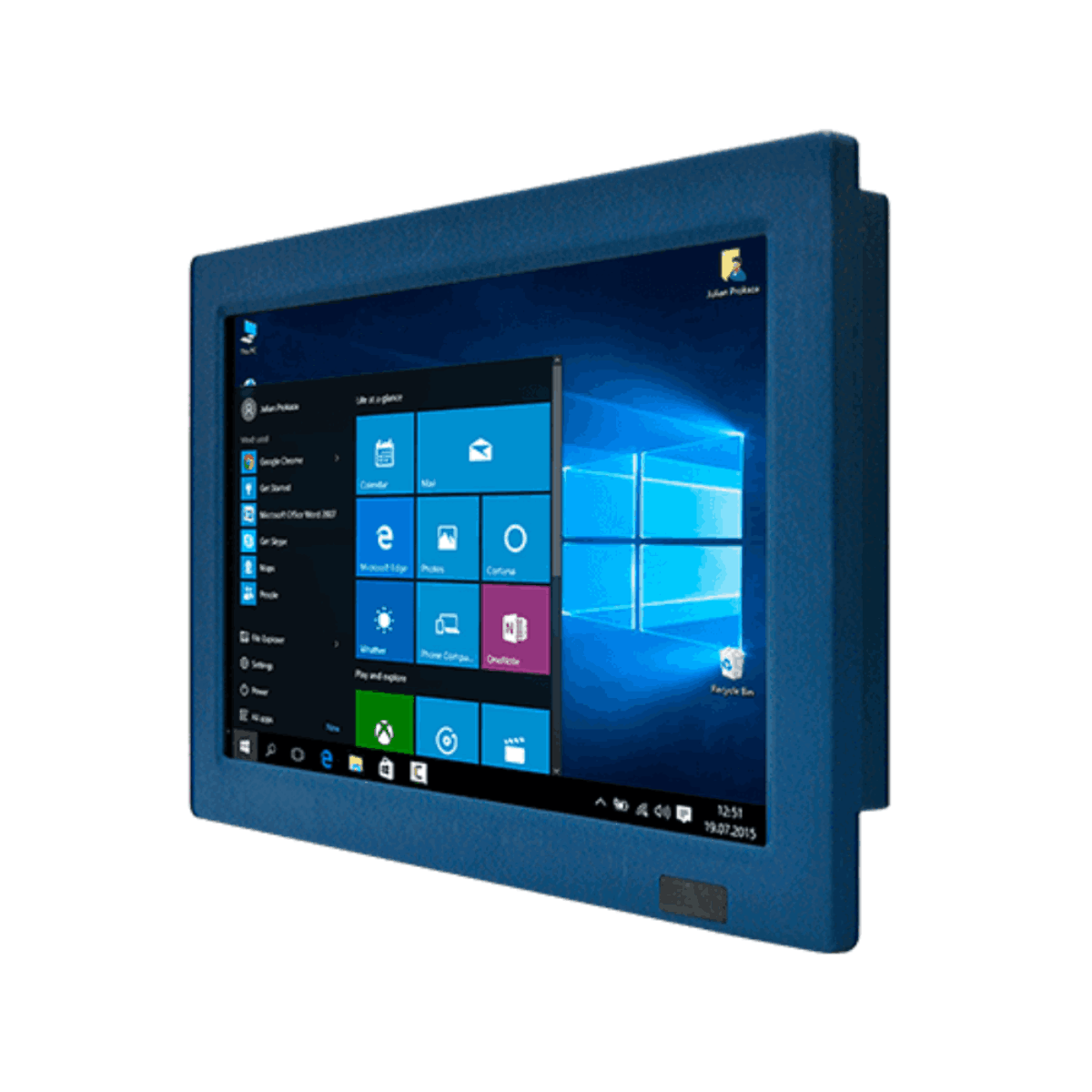

Warehouse and route software increasingly uses wide layouts, and a 4:3 cab terminal wastes screen space on them. The W12IB3S-VMM9(HB) is Winmate’s 12.1 inch G-WIN widescreen vehicle mount panel PC: a fanless Intel Celeron N2930 computer and a 1280 x 800 screen in an anti-corrosion aluminum housing with an IP65 front.

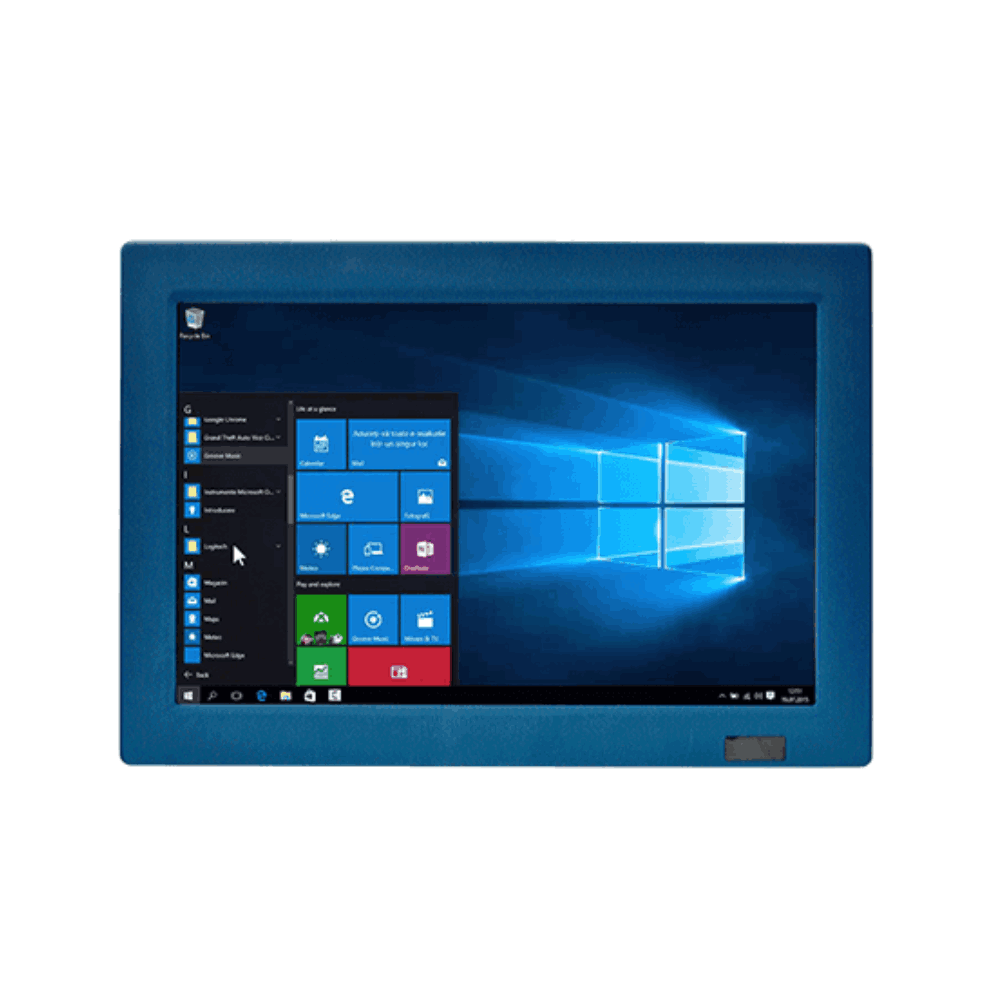

The Intel Celeron N2930 runs at 1.83 GHz with bursts to 2.16 GHz, with one DDR3L-1600 SO-DIMM fitted with 4 GB and an 8 GB option. Storage is a 128 GB mSATA SSD with 256 GB and 512 GB options, and Windows 10 IoT Enterprise or Ubuntu 20.04 can be supplied. The 12.1 inch 1280 x 800 panel runs at 400 nits with 1000:1 contrast and 176° viewing angles, and a high-brightness sunlight-readable panel and resistive touch are options.

Two Gigabit Ethernet ports on Intel controllers sit alongside one USB 3.2 Gen 1 and one USB 2.0 port, one RS-232/422/485 and one RS-232 port and an optional HDMI 1.4 output. A Mini-PCIe slot takes a Wi-Fi module with antenna. The R10IB3S-VMT2(HB) is the 10.4 inch 4:3 vehicle mount model, and the R15IB3S-VMC3(HB) is the 15 inch model with DIO or CAN bus.

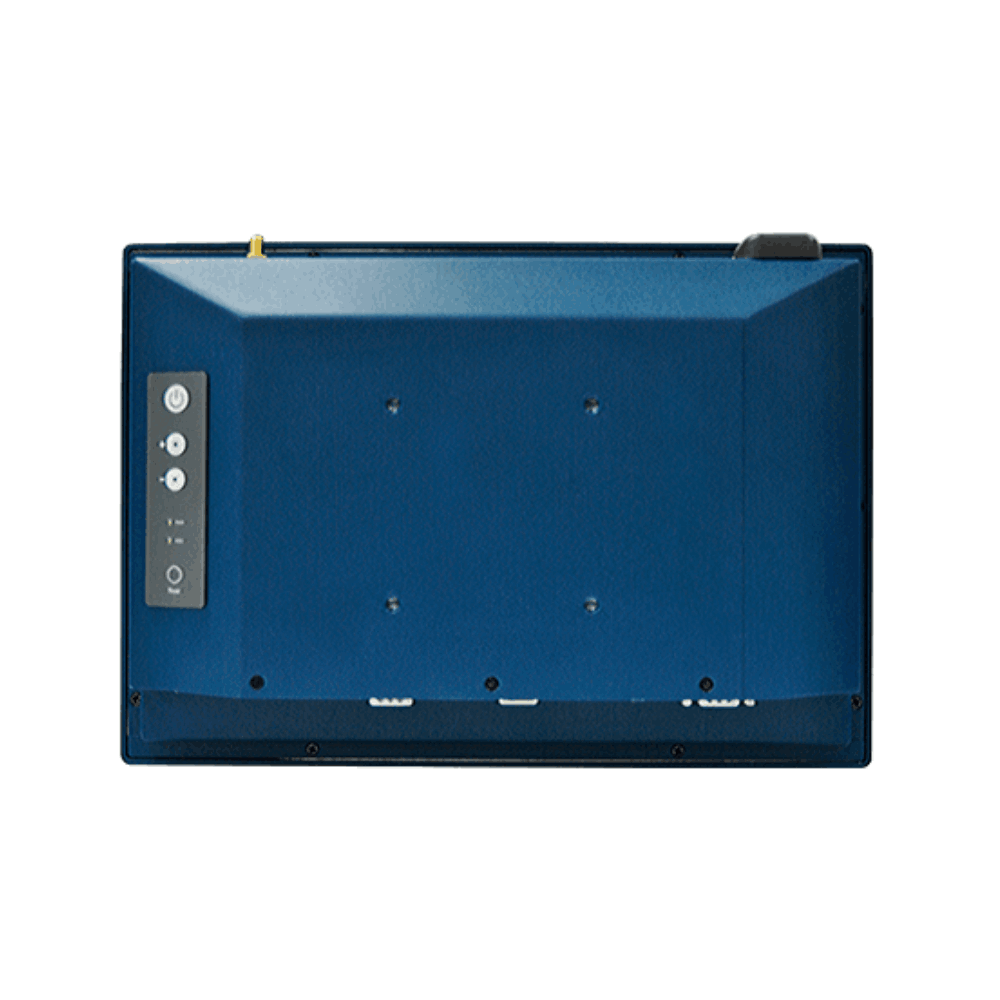

Power is an isolated 10 to 60 V DC input on a 3-pin terminal block, with ignition on/off control as an option. The W12IB3S-VMM9(HB) is fanless, operates from -10 °C to 55 °C and is designed to meet EN 50155, with vibration tested to MIL-STD-810G Method 514.6. It carries CE and FCC marks, measures 310 x 215 x 52.7 mm, weighs 2.8 kg and mounts on 75 x 75 mm VESA, with panel mounting available on request.
