Winmate W12IE3S-GSB1 12.3″ Full IP65 Rugged Panel PC with Intel Elkhart Lake Celeron N6211 and MIL-STD-810H

Machines that move or work outdoors, such as mobile machines on a manufacturing site and outdoor kiosks, need a computer that is sealed all round, runs from a wide DC supply and can talk to the machine’s own buses. The W12IE3S-GSB1 is Winmate’s 12.3″ G-WIN GS panel PC for those jobs: an Intel Celeron N6211 behind a wide 12.3 inch PCAP touchscreen, sealed to full IP65 with M12 waterproof connectors and cooled without a fan.

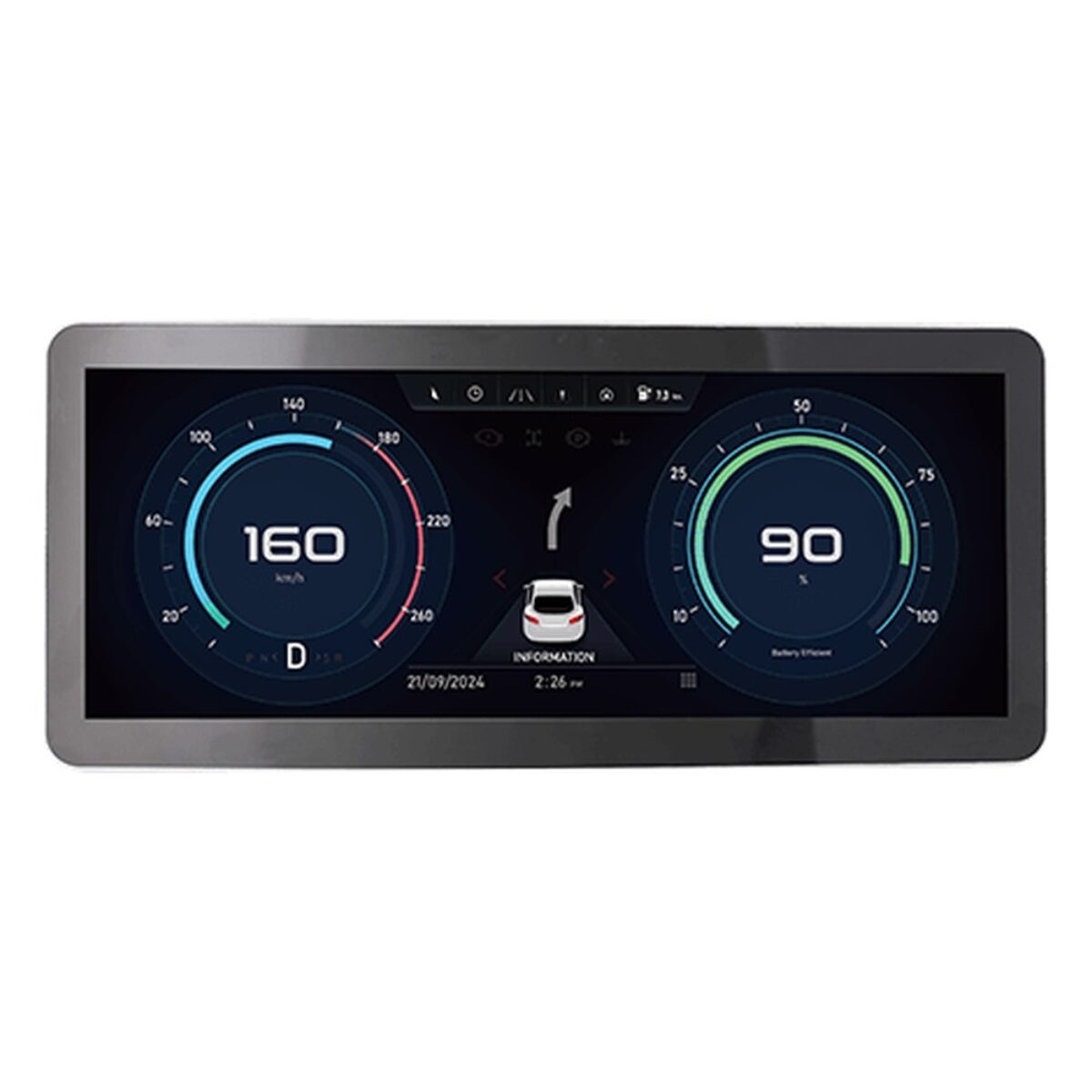

The Celeron N6211 runs at 1.2 GHz with bursts up to 3.0 GHz, with 4 GB of memory as standard and 8 GB or 16 GB options, a 128 GB M.2 2242 SSD, a Micro SD card slot and TPM 2.0. Windows or Linux Ubuntu 20.04 can be installed. The display is a stretched 1920 x 720 panel at 1000 nits with 1000:1 contrast and 176 degree viewing angles, suited to bright and outdoor positions.

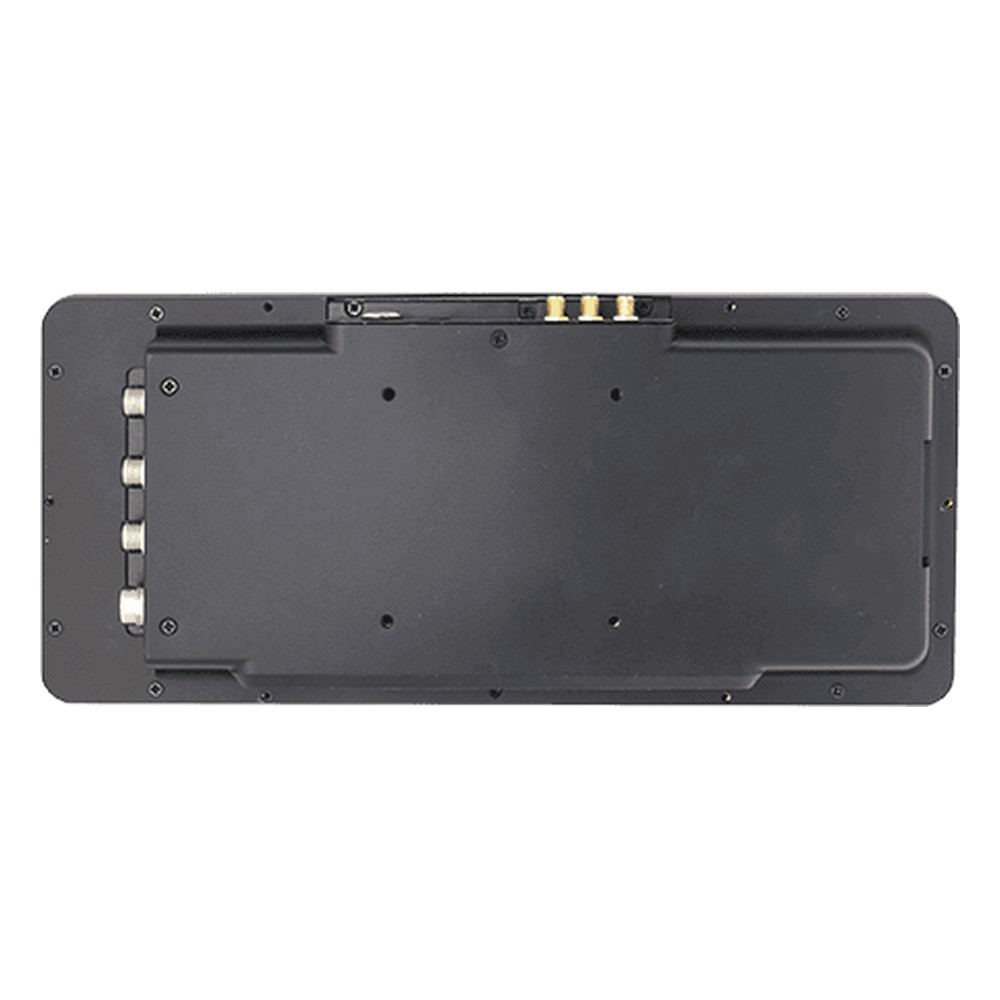

Standard I/O is one Gigabit LAN port and one USB 2.0 port on M12 connectors, plus one Micro USB host port. Options include an RS-232/422/485 port, six digital inputs and two CANbus ports on M12, Wi-Fi, Bluetooth, 4G LTE with a SIM slot, and GPS/GLONASS, each with the matching cables or antennas. The W12MG3S-GSB1 is the same 12.3 inch GS design with an Arm-based MediaTek Genio 510, and the W12IE3S-GCB1 is the front IP65 GC model with two LAN ports and a 12 V DC input.

Power is a 10 to 60 V DC input with ignition control, and Winmate supplies M12 power and USB/LAN cables. The W12IE3S-GSB1 operates from -20 °C to 60 °C at 5 to 95% humidity, stores from -30 °C to 70 °C, and is tested to MIL-STD-810H Method 516.8 Procedure I for shock and Method 514.8 Procedure I for vibration. It mounts on VESA and carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
