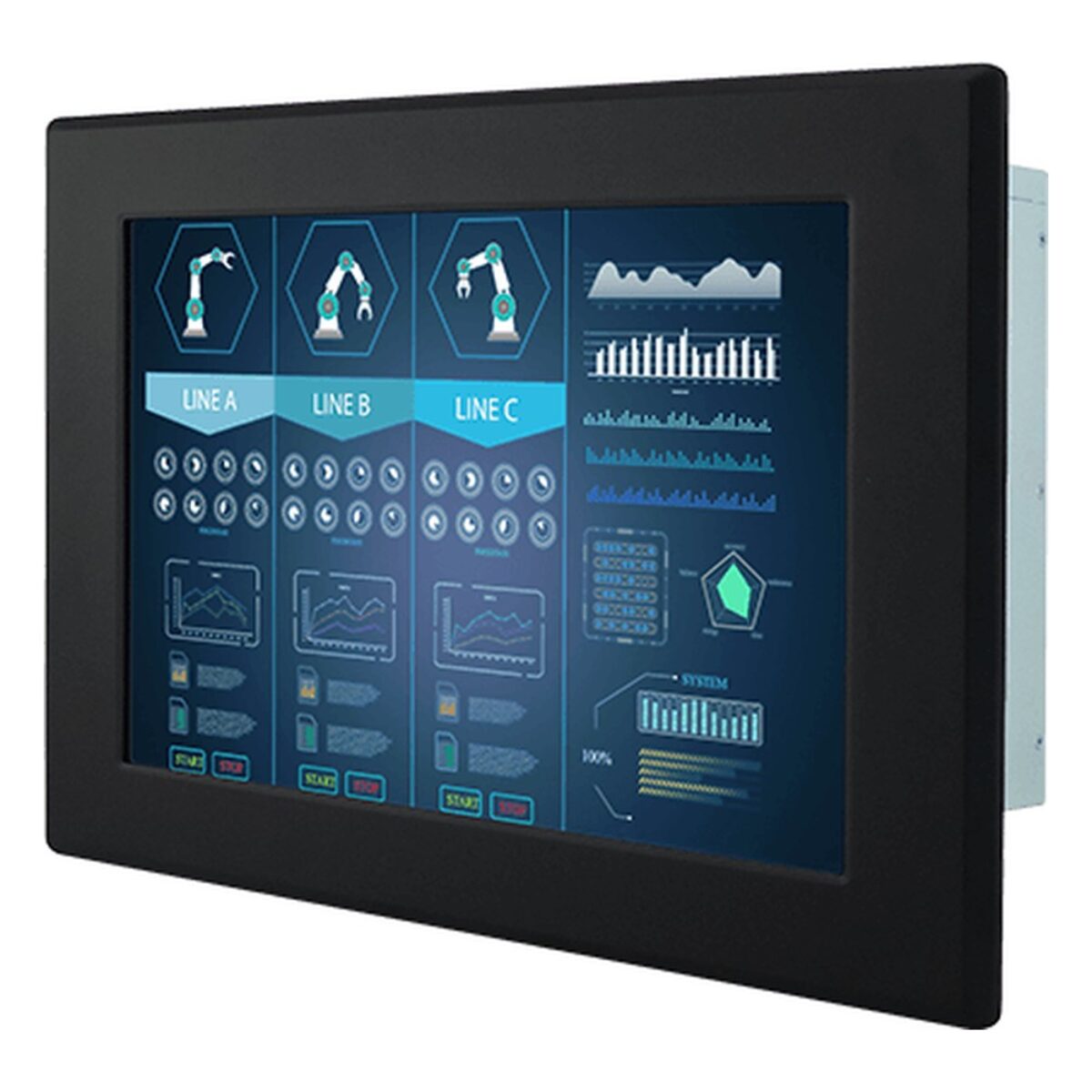

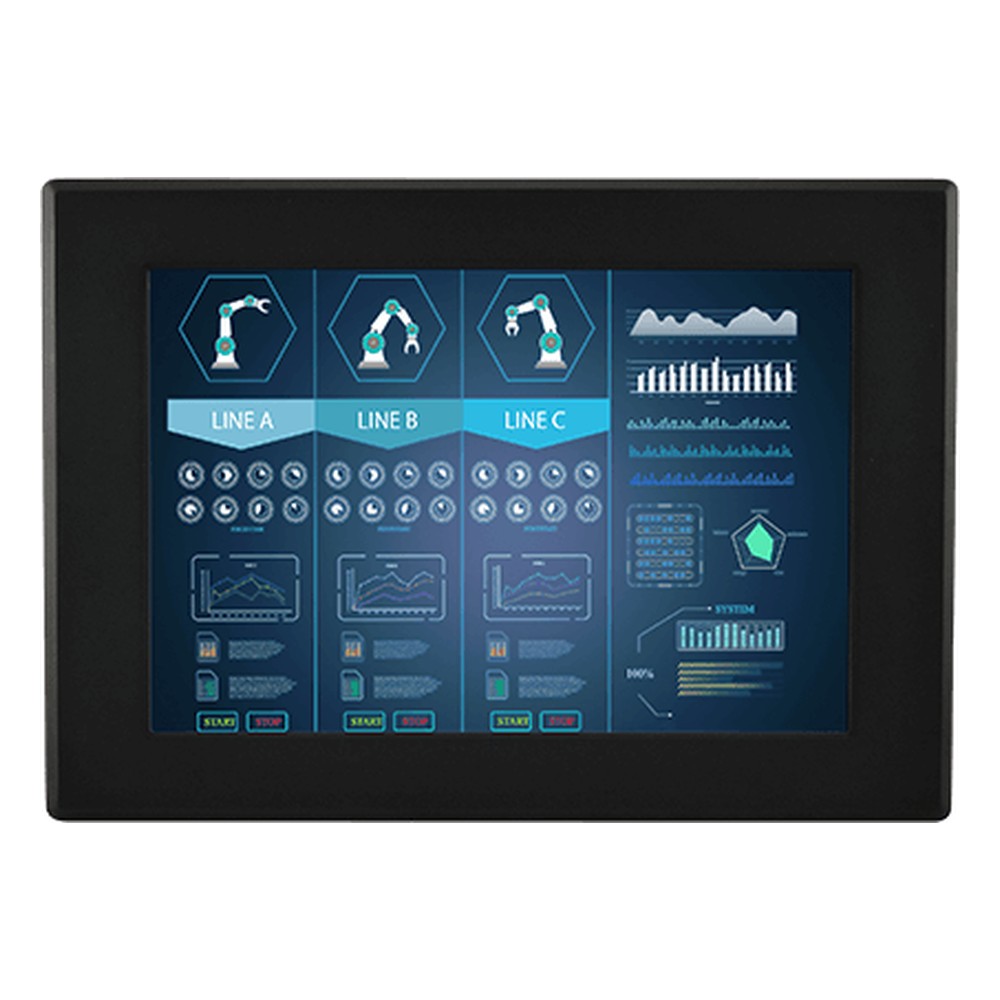

Winmate W15L100-PMA2HB 15.6″ Panel Mount Monitor with 1300 Nit HD Display and Resistive Touch

An operator screen near windows, skylights or bright overhead lighting can wash out on a standard panel, even indoors. The W15L100-PMA2HB is Winmate’s 15.6 inch high brightness panel mount monitor for those stations, with a 15.6″ HD panel at 1300 nits, which is sunlight readable, and resistive touch with SAW as an option. It connects to the host computer over VGA, with HDMI or DVI as options.

The 15.6″ HD panel runs at 1300 nits with 500:1 contrast, 16.7 million colors and 170 degree horizontal and 160 degree vertical viewing angles, so the picture typically stays readable in direct light. Resistive touch is standard over one USB port, with SAW touch or protection glass without touch as options.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the W15L100-PMA2HB pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the W15L100-OFA2HB is the open frame version with a 1300 nit LCD and touch options, and the W15L100-CHL1OD is the 1000 nit Full HD chassis model rated from -10 °C to 60 °C.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from 0 to 50 °C and stores from -10 °C to 60 °C, at 10 to 90% humidity, non-condensing, which suits indoor cabinets and control rooms. It takes VESA or panel mounting, and it carries CE and FCC marks. We supply the W15L100-PMA2HB configured and tested before dispatch.
