Winmate W15L100-OFA2HB 15.6″ High Brightness Open Frame Monitor with 1300 Nit LCD and Touch Options
Resistive
High Bright
Fanless
CE
FCCW15L100-OFA2HB Overview

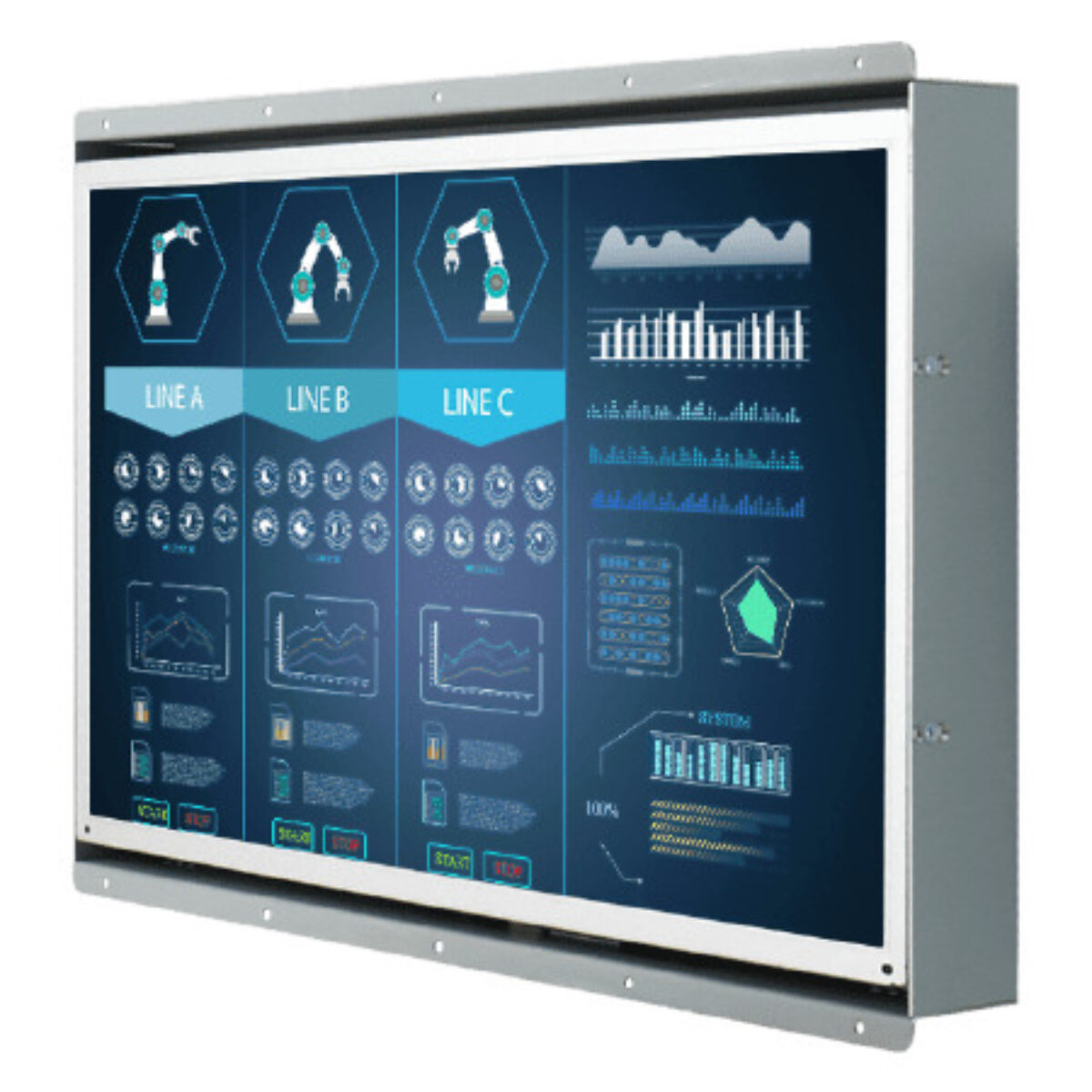

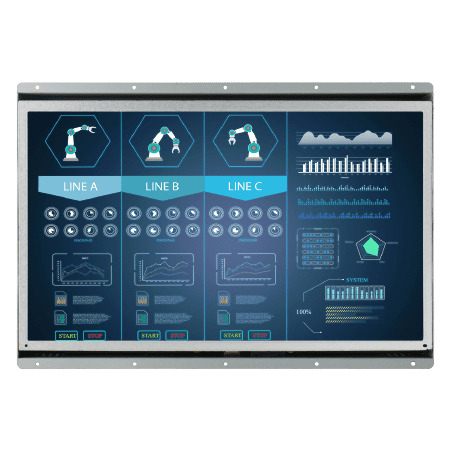

Kiosks and information screens placed behind glass or near entrances compete with daylight, and a standard panel can look washed out. The W15L100-OFA2HB is Winmate’s 15.6 inch high brightness open frame monitor for those sites: a 1300 nit 1366 x 768 LCD in a fanless open metal frame, with resistive touch, SAW touch or protection glass as options.
The panel has a 500:1 contrast ratio, 16.7 million colors and viewing angles of 170° horizontally and 160° vertically, and at 1300 nits it keeps content readable in strong ambient light. Resistive touch works by pressure, so it responds to gloved fingers and a stylus, and SAW touch is offered as the alternative. Either option connects over USB. The active area measures 344.232 x 195.536 mm.

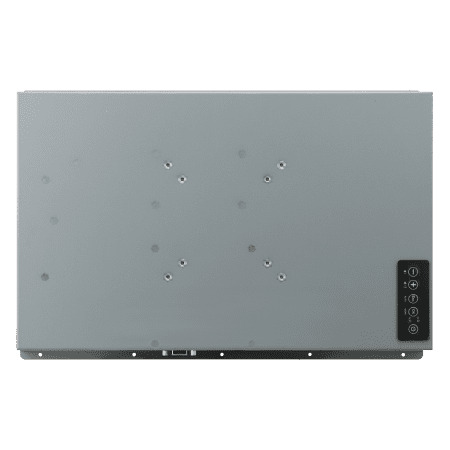

Video comes in on a VGA input, and HDMI or DVI can be specified as options, along with a 3.5 mm audio line-in with two speakers. A five-key on-screen display menu sits on the rear. For indoor lighting the W15L100-OFA2 is the 400 nit version of this frame, and the W18L100-OFA2HB offers a 1000 nit open frame at 18.5 inches.
The W15L100-OFA2HB runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -10 °C to 60 °C. The frame measures 366.3 x 248 x 40 mm and fixes by 75 x 75 or 100 x 100 mm VESA holes or panel mounting, and the monitor carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W15L100-OFA2HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W15L100-OFA2HB |
| Features | Fanless Industrial |
| Display | |
| Display | 15.6"[8:5, 1366 x 768, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 1,300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 500:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
- W15L100-OFA2HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W15L100-OFA2HB configured for USA kiosk and retail projects. Within the Winmate range the W12L100-OFM9HB offers a 1000 nit open frame at 12.1 inches, and the W18L100-OFA3HB pairs 1000 nits with a 1920 x 1080 panel at 18.5 inches.
With a 1300 nit panel the W15L100-OFA2HB sits among our high brightness displays, our SAW touch monitors and our 15 inch industrial monitors. Where a built-in widescreen faces daylight through glass or an open entrance, and the touch type varies by site, this is the model to specify.
