Winmate W18L100-OFA2HB 18.5″ High Brightness Open Frame Resistive Touch Monitor with 1000 Nit LCD
Resistive
High Bright
Fanless
CE
FCCW18L100-OFA2HB Overview

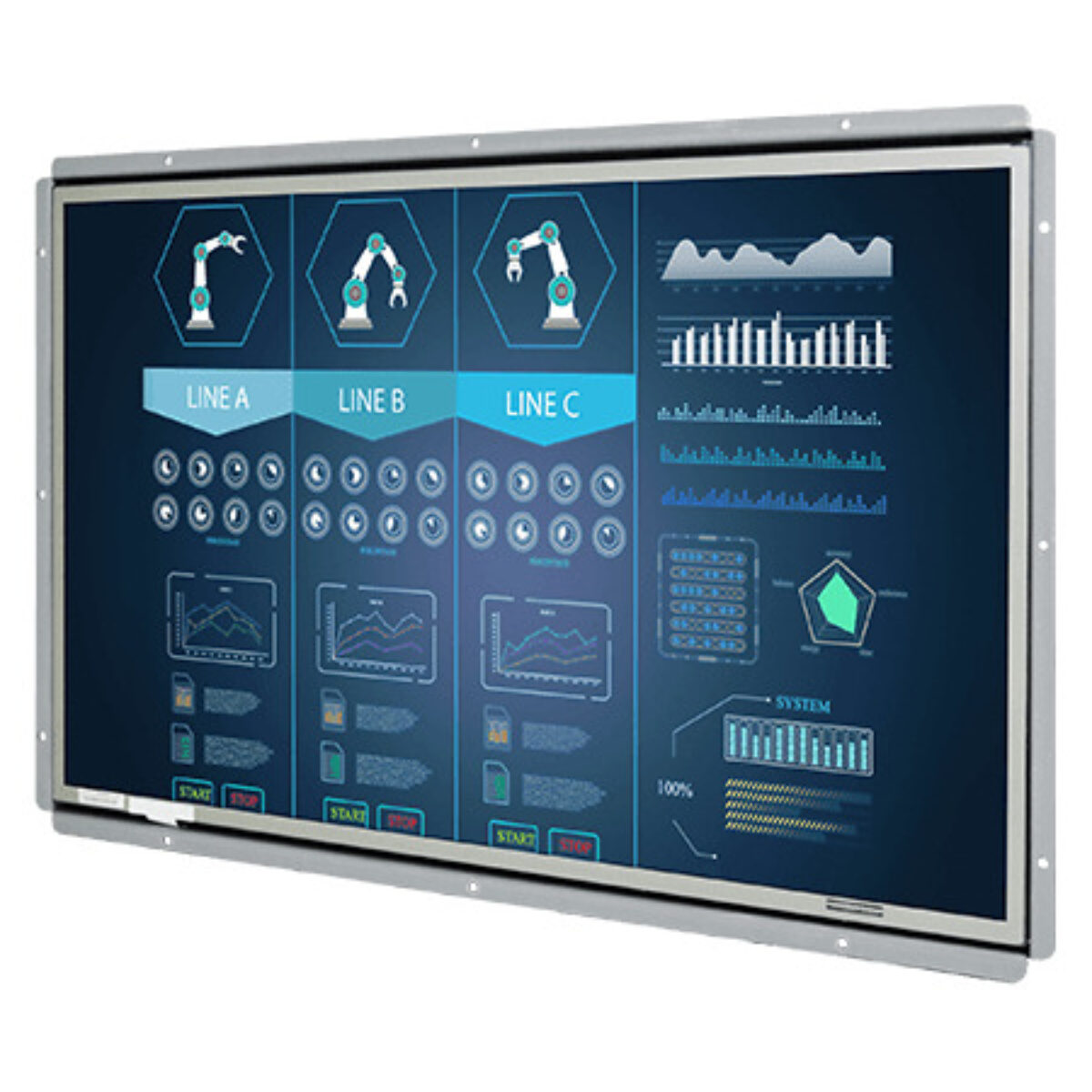

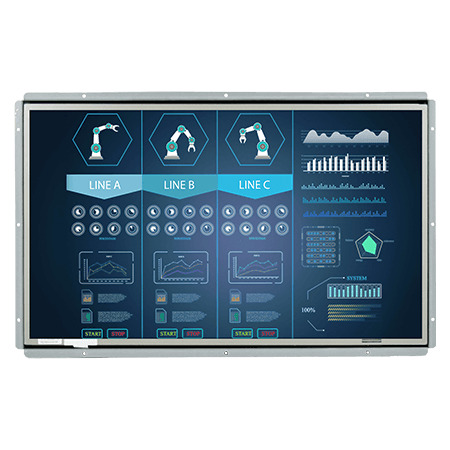

Large kiosks and consoles in bright halls or near glazing need a screen that stays readable and responds to gloved or stylus input. The W18L100-OFA2HB is Winmate’s 18.5 inch high brightness open frame monitor for that job: a 1000 nit 1366 x 768 LCD with a resistive touch screen in a fanless open metal frame.
The panel has a 1000:1 contrast ratio, 16.7 million colors and viewing angles of 170° horizontally and 160° vertically, and at 1000 nits it keeps content legible in strong ambient light. Winmate’s datasheet lists the resistive touch screen as standard, with protection glass without touch as the alternative. Resistive touch works by pressure, so gloves and a stylus both work, and it connects over USB.

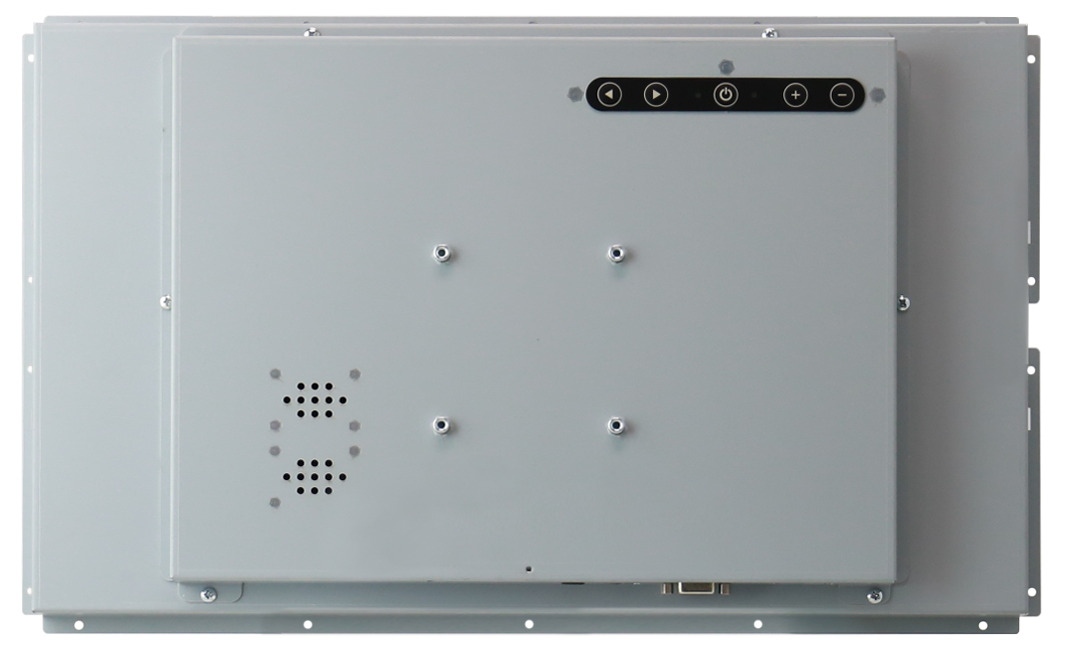

Video comes in on a VGA input, and HDMI or DVI can be specified as options, along with a 3.5 mm audio line-in with two speakers. A five-key on-screen display menu sits on the rear. The W18L100-OFA3HB steps up to a 1920 x 1080 panel at the same brightness, and the W18L100-OFA2 is the 450 nit version with SAW as a further touch option.
The W18L100-OFA2HB runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -10 °C to 60 °C. The frame measures 451.4 x 278 x 48 mm and fixes by 75 x 75 mm VESA holes or panel mounting, and the monitor carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W18L100-OFA2HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W18L100-OFA2HB |
| Features | Fanless Industrial |
| Display | |
| Display | 18.5"[8:5, 1366 x 768, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 451mm x 278mm x 48mm (17.76" x 10.94" x 1.89") |
- W18L100-OFA2HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W18L100-OFA2HB configured for USA kiosk and machine building projects. Within the Winmate range the W18L100-OFA3HB offers 1920 x 1080 at 1000 nits in the same frame size, and the W15L100-OFA2HB is a 1300 nit open frame at 15.6 inches.
With a 1000 nit panel the W18L100-OFA2HB sits among our high brightness screens, our resistive touchscreen monitors and our 19 inch class industrial monitors. Where a large built-in screen faces strong light and gloved hands, this is the model to specify.
