Winmate W18L100-OFA2 18.5″ Open Frame Monitor with 1366 x 768 LCD and Resistive or SAW Touch Options
Resistive
Fanless
CE
FCCW18L100-OFA2 Overview

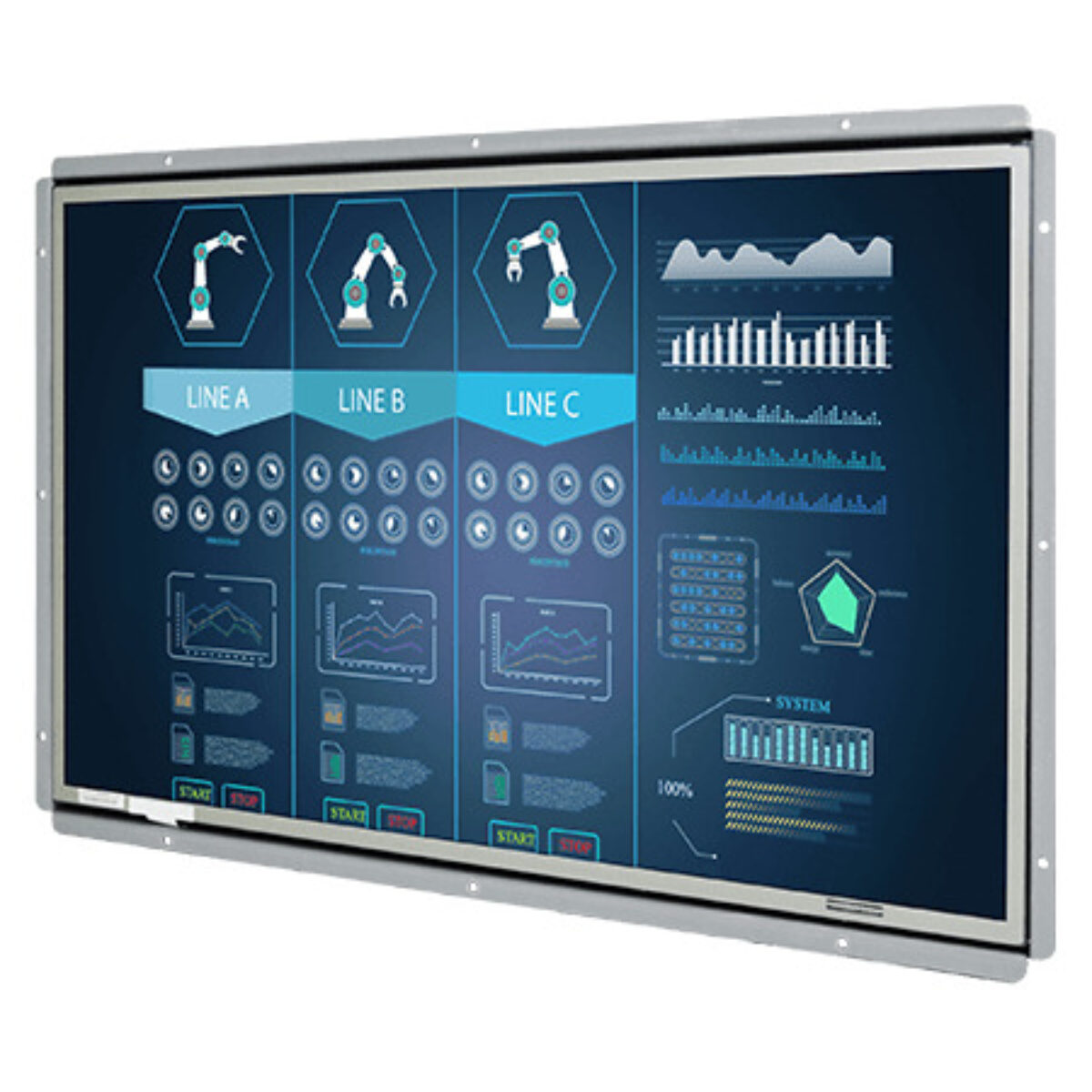

Larger kiosks and machine consoles need a bigger built-in screen without a bezel that fights the enclosure design. The W18L100-OFA2 is Winmate’s 18.5 inch open frame monitor for that: a 1366 x 768 LCD in a fanless open metal frame, with resistive touch, surface acoustic wave touch or protection glass available as options.
The panel runs at 450 nits with a 1000:1 contrast ratio, 16.7 million colors and viewing angles of 170° horizontally and 160° vertically. Resistive touch works by pressure, so it responds to gloved fingers and a stylus, and SAW touch is offered as the alternative, with either option connecting over USB. Without touch, the protection glass option shields the panel. The active area measures 409.8 x 230.4 mm.
Video comes in on a VGA input, and HDMI or DVI can be specified as options, along with a 3.5 mm audio line-in and two speakers. A five-key on-screen display menu sits on the rear. For brighter sites the W18L100-OFA2HB is the 1000 nit version, and the W18L100-OFA3HB pairs 1000 nits with a 1920 x 1080 panel.
The W18L100-OFA2 runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -10 °C to 60 °C. The frame measures 451 x 278 x 48 mm, weighs 4 kg and fixes by rear mounting or 75 x 75 mm VESA holes, and the monitor carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W18L100-OFA2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W18L100-OFA2 |
| Features | Fanless Industrial |
| Display | |
| Display | 18.5"[8:5, 1366 x 768, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 450 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 451mm x 278mm x 48mm (17.76" x 10.94" x 1.89") |
- W18L100-OFA2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W18L100-OFA2 configured for USA kiosk and signage projects. Within the Winmate range the W18L100-OFA3HB offers a 1920 x 1080 1000 nit panel in the same size, and the W15L100-OFA2 is the 15.6 inch open frame with the same touch options.
With a choice of touch the W18L100-OFA2 sits among our open frame LCD monitors, our surface acoustic wave monitors and our 18.5 and 19 inch monitors. Where a large built-in screen must cover several touch builds, this is the model to specify.
