Winmate W15L100-OFA2 15.6″ Open Frame Monitor with 1366 x 768 LCD and Resistive or SAW Touch Options
Resistive
Fanless
CE
FCCW15L100-OFA2 Overview

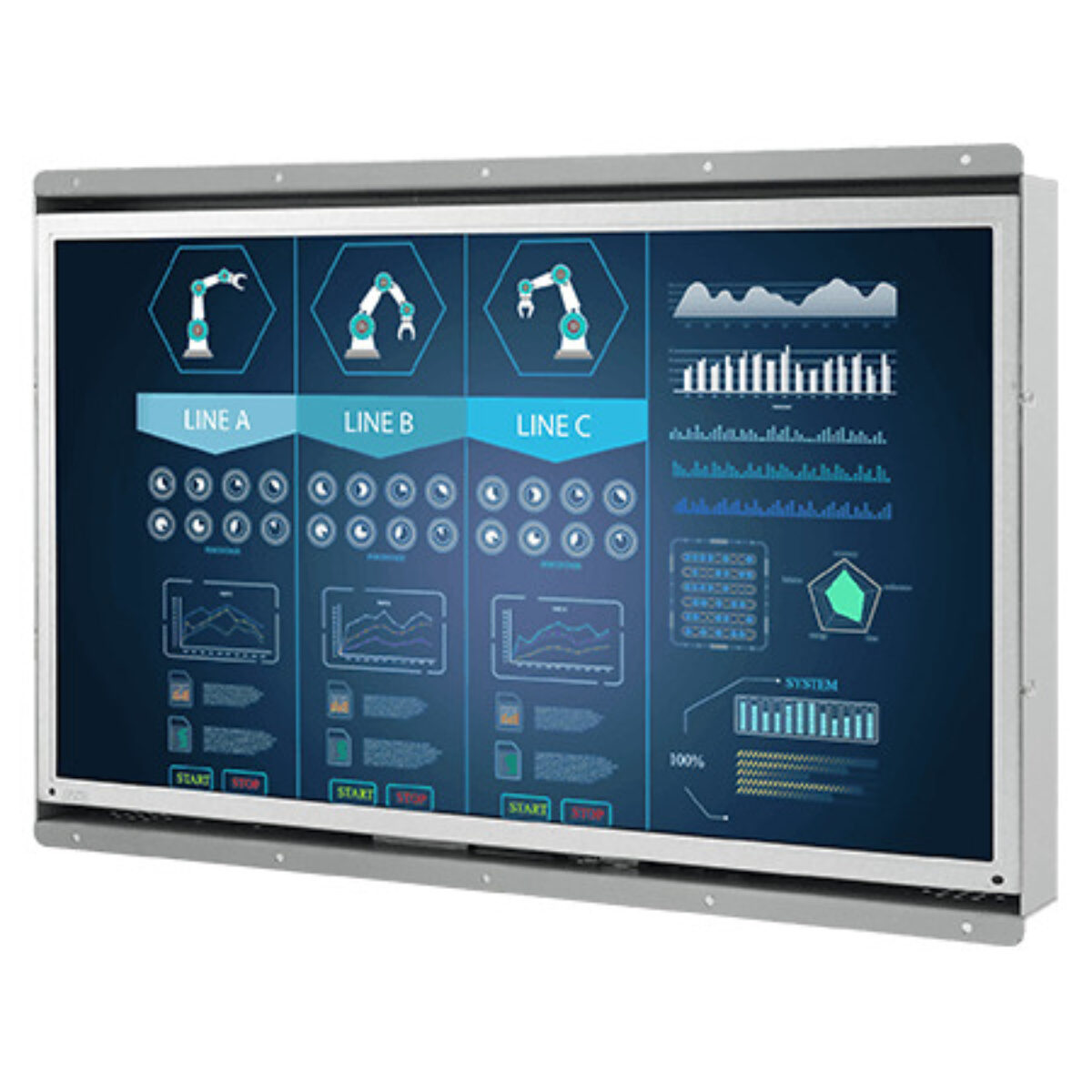

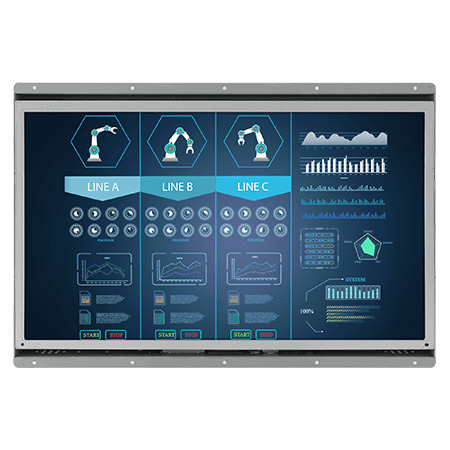

A 15.6 inch widescreen gives kiosks and machine panels room for menus and status side by side, and builders want the frame to accept whichever touch the job needs. The W15L100-OFA2 is Winmate’s 15.6 inch open frame monitor for that: a 1366 x 768 LCD in an open metal frame, with resistive touch, surface acoustic wave touch or protection glass as options.
The panel runs at 400 nits with a 500:1 contrast ratio, 16.7 million colors and viewing angles of 170° horizontally and 160° vertically. Resistive touch works by pressure, so it responds to gloved fingers and a stylus, and SAW touch is offered as the alternative, with either option connecting over USB. Without touch, the protection glass option shields the panel. The active area measures 344.232 x 195.536 mm.
Video comes in on a VGA input, and HDMI or DVI can be specified as options, along with a 3.5 mm audio line-in and two speakers. A five-key on-screen display menu sits on the rear. For brighter sites the W15L100-OFA2HB is the 1300 nit version of this frame, and the W18L100-OFA2 takes the design to 18.5 inches.
The W15L100-OFA2 runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -10 °C to 60 °C. Winmate’s drawing shows a frame of 366.3 x 248 x 40 mm with 75 x 75 and 100 x 100 mm VESA holes, and the monitor carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W15L100-OFA2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W15L100-OFA2 |
| Features | Fanless Industrial |
| Display | |
| Display | 15.6"[8:5, 1366 x 768, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 500:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
- W15L100-OFA2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W15L100-OFA2 configured for USA kiosk and signage projects. Within the Winmate range the W15L100-OFA2HB offers the same frame at 1300 nits, and the W12L100-OFM9 is the 12.1 inch open frame with the same touch options.
With a choice of touch the W15L100-OFA2 sits among our open frame monitors, our resistive touch monitors and our 15 inch industrial monitors. Where a built-in widescreen must cover several touch builds, this is the model to specify.
