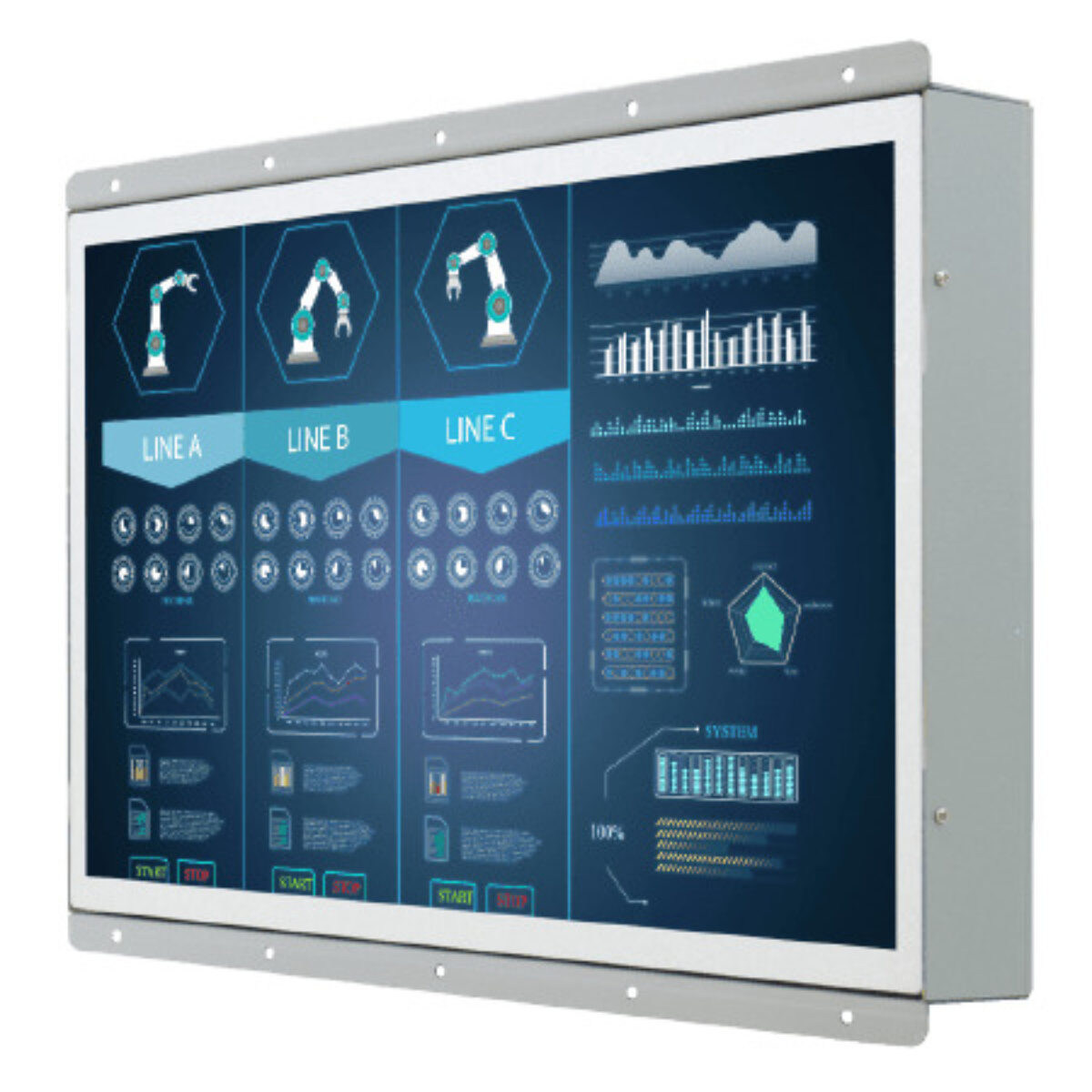

Winmate W12L100-OFM9 12.1″ Open Frame Monitor with WXGA LCD and Resistive or SAW Touch Options
Resistive
Fanless
CE

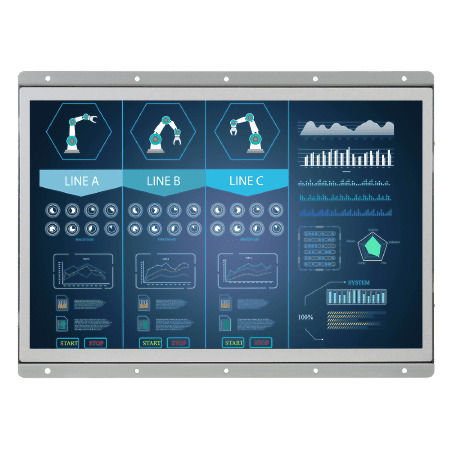

FCCW12L100-OFM9 Overview
Machine and kiosk builders do not all want the same touch technology, and some want none. The W12L100-OFM9 is Winmate’s 12.1 inch open frame monitor built around that choice: a 1280 x 800 LCD in an open metal frame, with resistive touch, surface acoustic wave touch or plain protection glass available as options.
The WXGA panel runs at 400 nits with a 1000:1 contrast ratio, 16.2 million colors and viewing angles of 176° horizontally and vertically. Resistive touch works by pressure, so it responds to gloved fingers and a stylus, and SAW touch is offered as the alternative. Either option connects over USB, and the protection glass option shields the panel on display-only builds. The active area measures 261.12 x 163.2 mm.
Video comes in on a VGA input, and HDMI or DVI can be specified as options, along with a 3.5 mm audio line-in and two speakers. A five-key on-screen display menu sits on the rear. For installs in brighter light, the W12L100-OFM9HB is the 1000 nit version of this frame, and the W10L100-OFH2 is the 10.1 inch open frame with a resistive option.

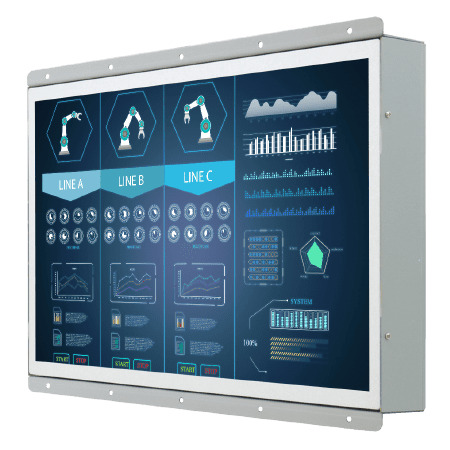

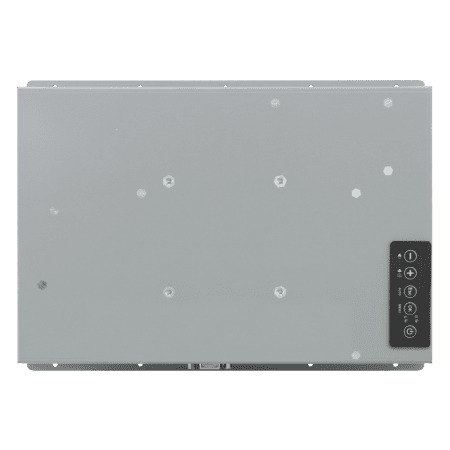

The W12L100-OFM9 runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -10 °C to 60 °C. Winmate’s drawing shows a frame of 280.5 x 206 x 35 mm with 75 x 75 mm VESA holes on the rear, and the monitor carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W12L100-OFM9 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W12L100-OFM9 |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
