Winmate W12L100-OFM9HB 12.1″ High Brightness Open Frame Monitor with 1000 Nit WXGA LCD and Touch Options
Resistive
High Bright
Fanless
CE
FCCW12L100-OFM9HB Overview

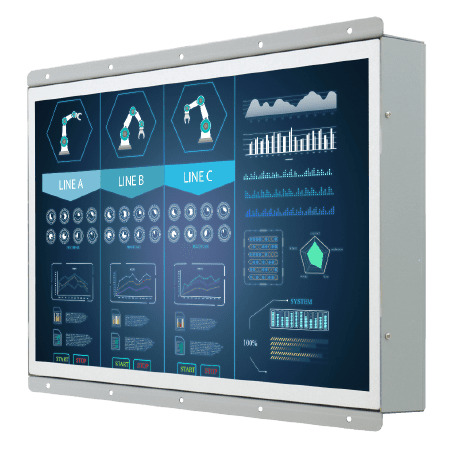

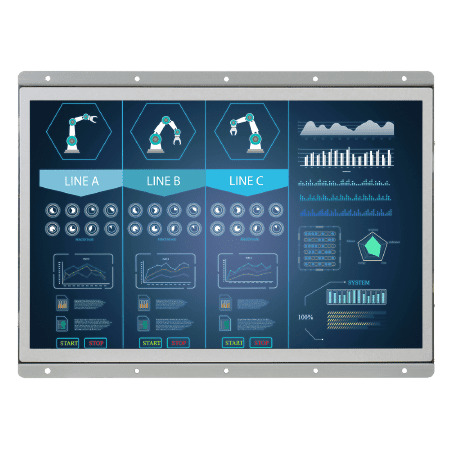

A built-in screen that sits near a window or under bright hall lighting can wash out at the brightness of a standard panel. The W12L100-OFM9HB is Winmate’s 12.1 inch high brightness open frame monitor for those installs: a 1000 nit 1280 x 800 LCD in a fanless open metal frame, with resistive touch, SAW touch or protection glass as options.
The WXGA panel has a 1000:1 contrast ratio, 16.2 million colors and viewing angles of 176° horizontally and vertically, and at 1000 nits it stays legible where a 400 nit screen would struggle. Resistive touch works by pressure, so it responds to gloved fingers and a stylus, and SAW touch is offered as the alternative. Either option connects over USB. The active area measures 261.12 x 163.2 mm.

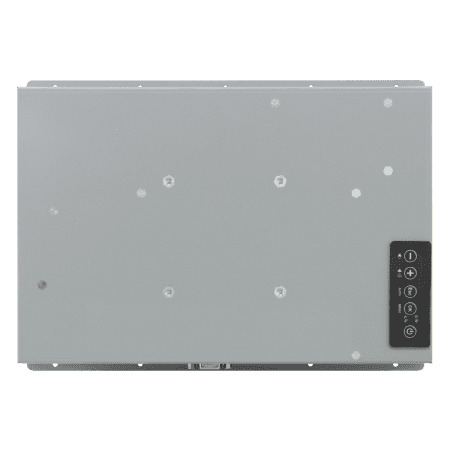

Video comes in on a VGA input, and HDMI or DVI can be specified as options, along with a 3.5 mm audio line-in with two speakers. A five-key on-screen display menu sits on the rear. For indoor lighting the W12L100-OFM9 is the 400 nit version of this frame, and the W15L100-OFA2HB offers 1300 nits at 15.6 inches.

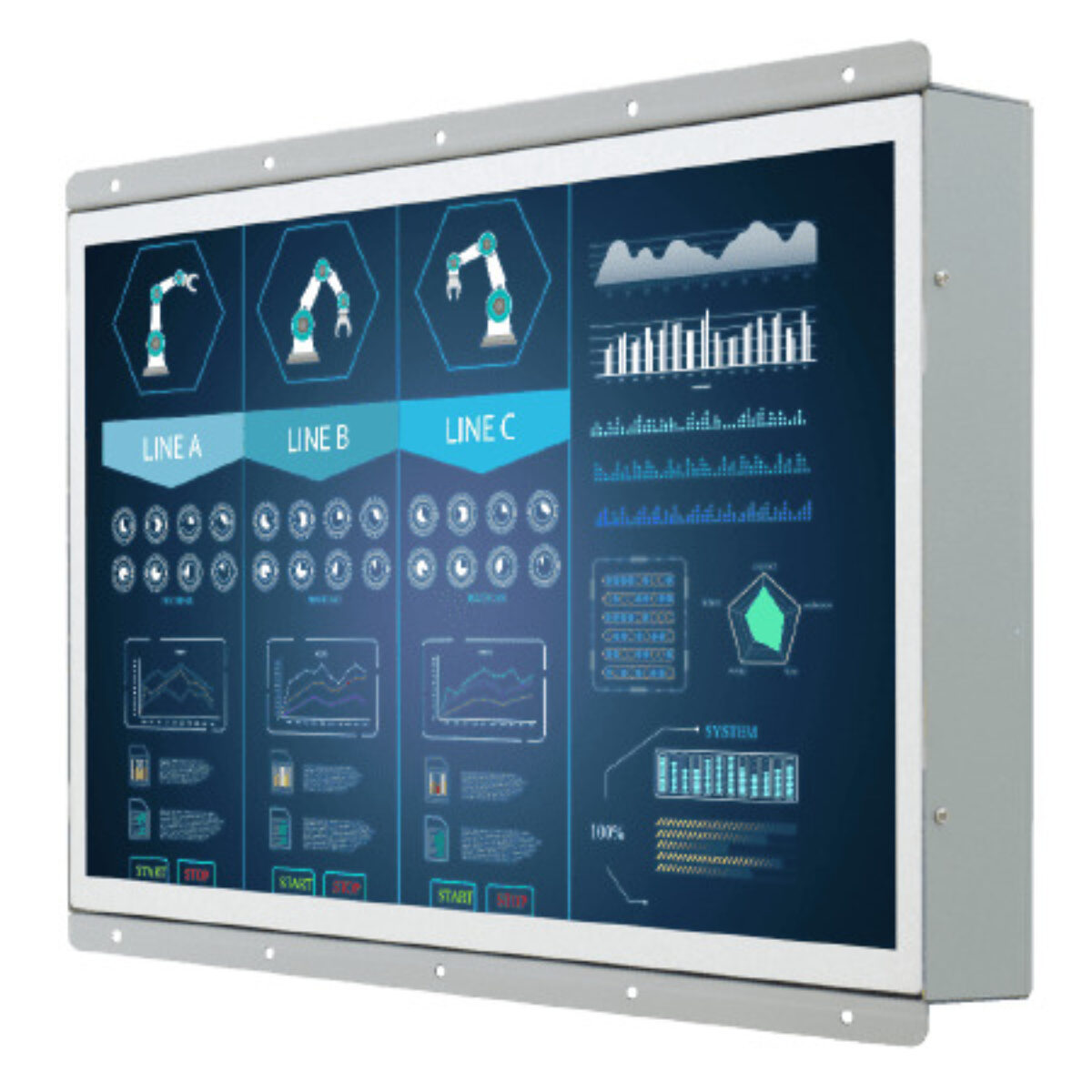

The W12L100-OFM9HB runs on 12 V DC, with a 100 to 240 V AC adapter supplied, and operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with storage from -10 °C to 60 °C. The frame measures 280 x 206 x 35 mm and fixes by 75 x 75 mm VESA holes or panel mounting, and the monitor carries CE and FCC marks. Winmate supplies VGA and HDMI cables, an AC adapter, a power cord and VESA screws with the monitor.
W12L100-OFM9HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W12L100-OFM9HB |
| Features | Fanless Industrial |
| Display | |
| Display | 12.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 280mm x 206mm x 35mm (11.02" x 8.11" x 1.38") |
- W12L100-OFM9HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W12L100-OFM9HB configured for USA kiosk and machine building projects. Within the Winmate range the W15L100-OFA2HB offers a 1300 nit open frame at 15.6 inches, and the W12L100-OFM9 is the 400 nit version for indoor lighting.
With a 1000 nit panel the W12L100-OFM9HB sits among our high brightness monitors, our open frame displays and our resistive touch monitors. Where a built-in 12.1 inch screen faces strong light, this is the model to specify.
