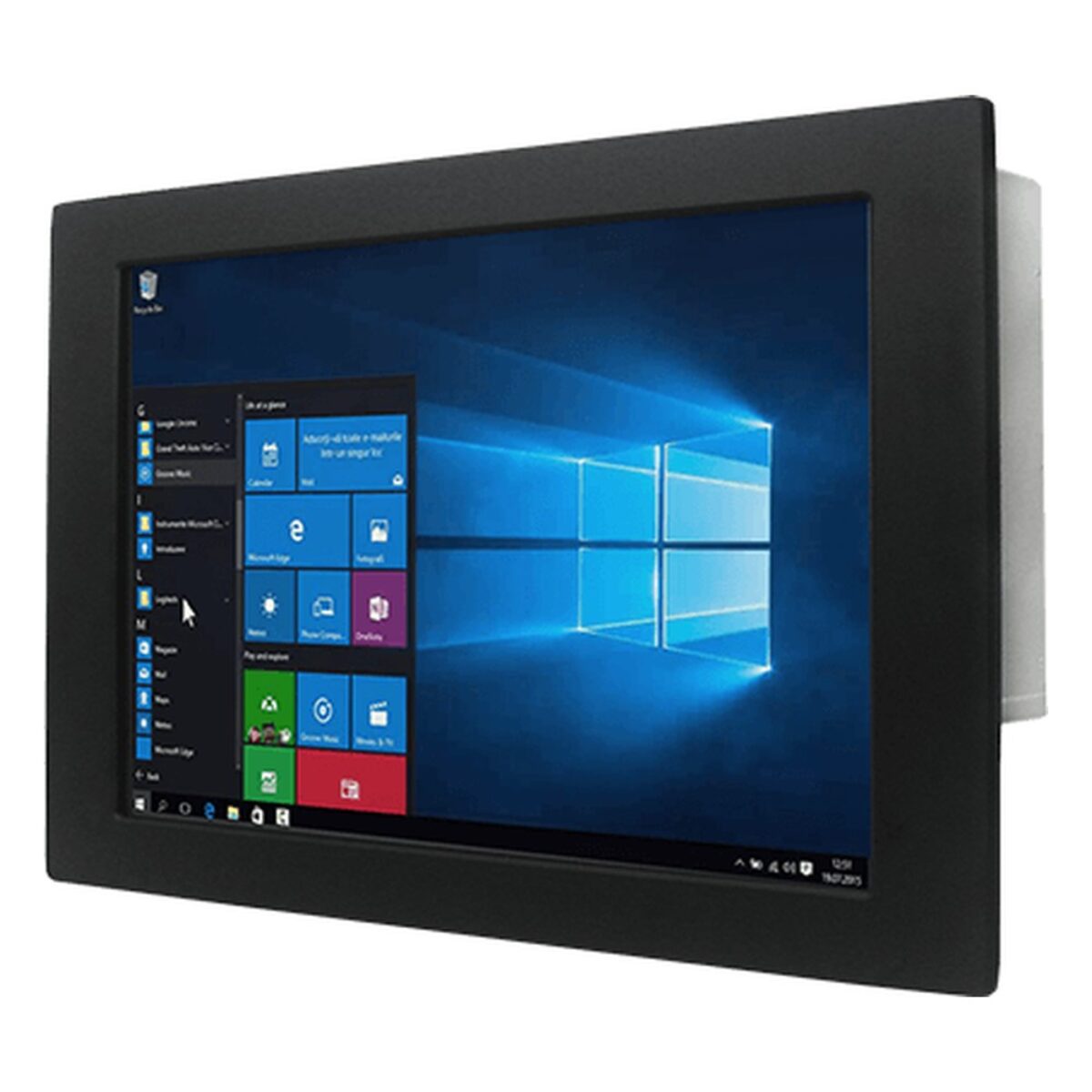

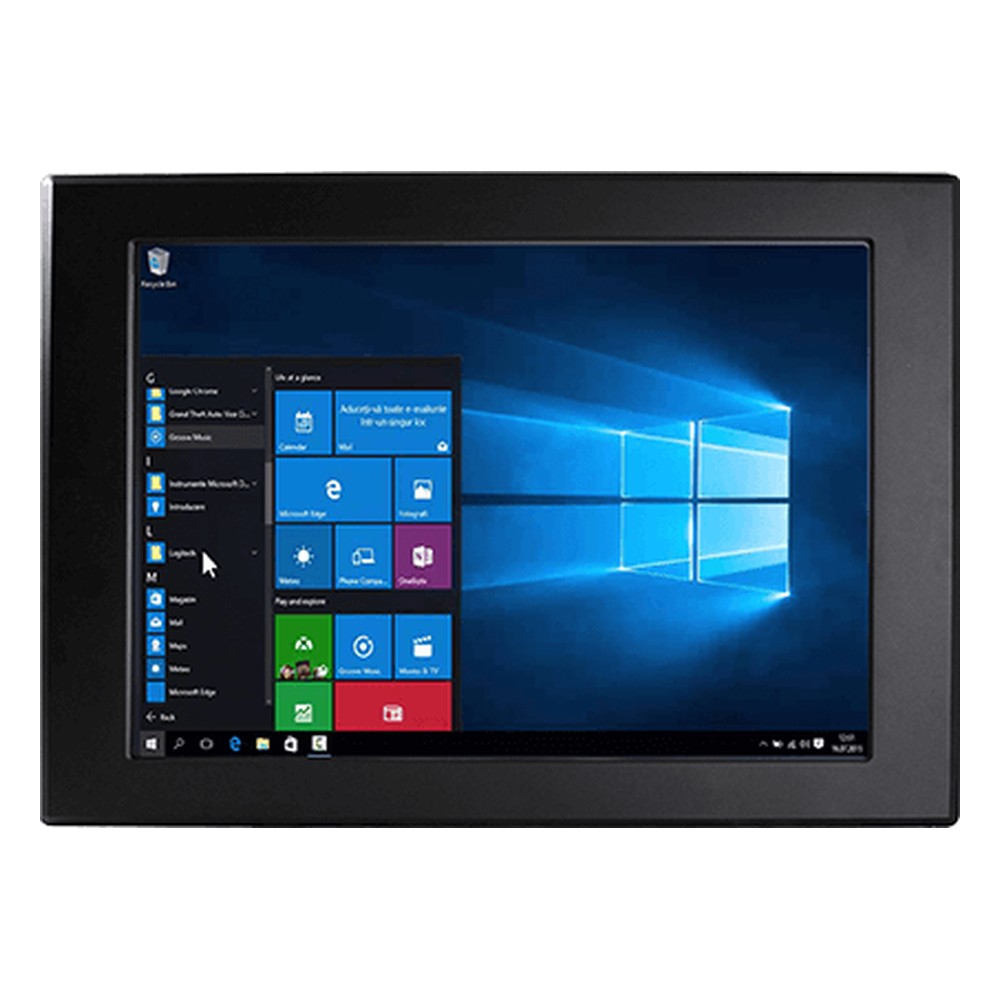

Winmate W18IP7T-PMA2 18.5″ Panel Mount PC with Intel Apollo Lake Pentium N4200 and Resistive Touch

A panel mount PC clamps into a cut-out in a cabinet door or machine console, putting the display at the front and the cabling behind the panel. The W18IP7T-PMA2 is Winmate’s 18.5 inch panel mount PC for cabinet doors and machine consoles, with an Intel Pentium N4200 and a 18.5″ 1366 x 768 display at 450 nits with 1000:1 contrast, in a fanless metal housing. Resistive touch or plain protection glass are options.

The quad-core Intel Pentium N4200 runs at 1.1 GHz with burst to 2.5 GHz and Intel HD Graphics, typically enough for HMI runtimes and SCADA clients without a fan. Two DDR3L-1866 SO-DIMM sockets run in dual channel with up to 16 GB. A 128 GB SSD sits on an M.2 2242 B-key slot, with options to 1 TB, and two optional 2.5″ SATA III bays support RAID 0 or 1. TPM 2.0 is on board, with Windows or Linux Ubuntu 20.04.

Two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports and two DB9 serial ports (one RS-232/422/485, one RS-232) cover networks, peripherals and PLCs. DisplayPort 1.2 drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 1.4 or VGA optional, plus mic-in, line-out and two speakers. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and a PCIe 2.0 x1 slot takes a card. Within the Winmate range the W18IF7T-PMA2 is the 18.5 inch panel mount model with Intel Coffee Lake Core i3 to i7 processors, and the W18IP7T-IPA2 adds a front IP65 rating to the same Pentium N4200 design.

Power is 12 V DC on a DIN 4-pin connector, with an 84 W AC adapter supplied. It runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, for indoor cabinets and control rooms. It panel mounts with the supplied clips, with VESA mounting as an option. It carries CE and FCC marks. We supply the W18IP7T-PMA2 configured, with the OS installed, and tested before dispatch.
