Winmate W18IP7T-IPA2 18.5″ Front IP65 Panel PC with Intel Apollo Lake Pentium N4200 and Resistive Touch

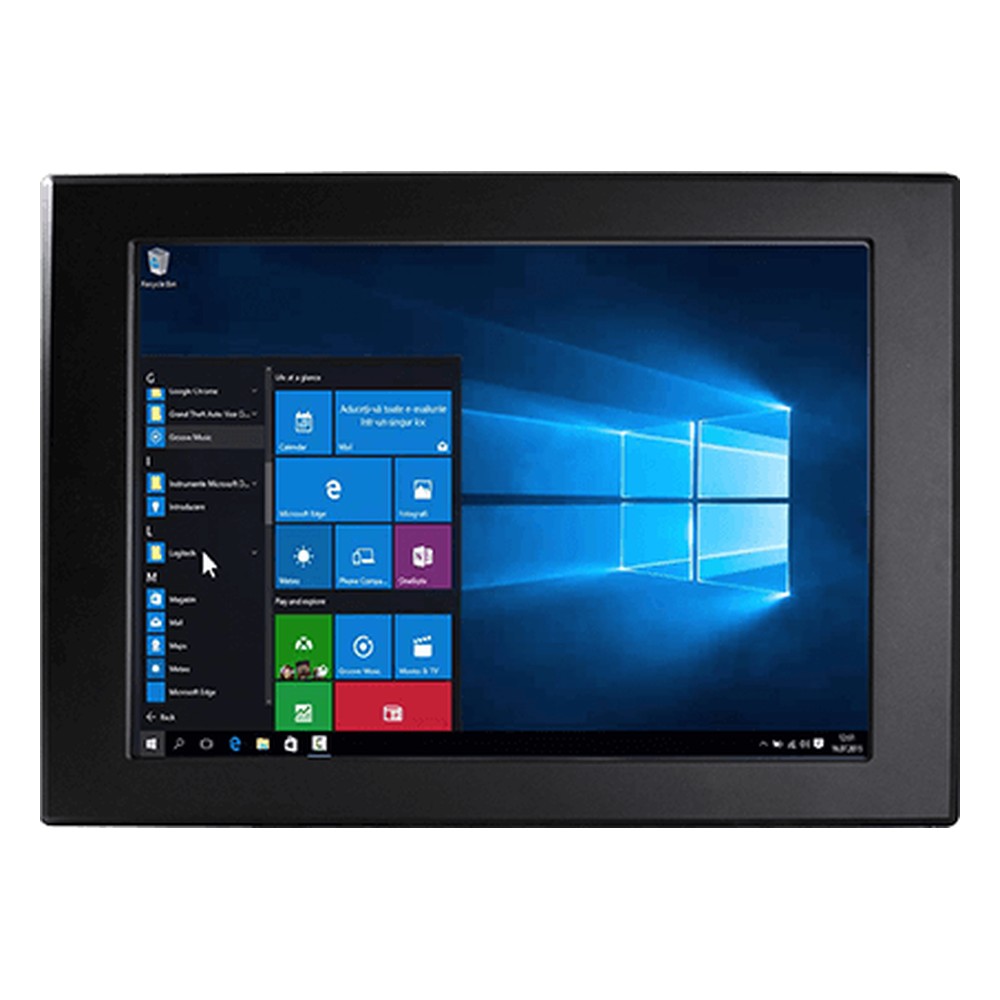

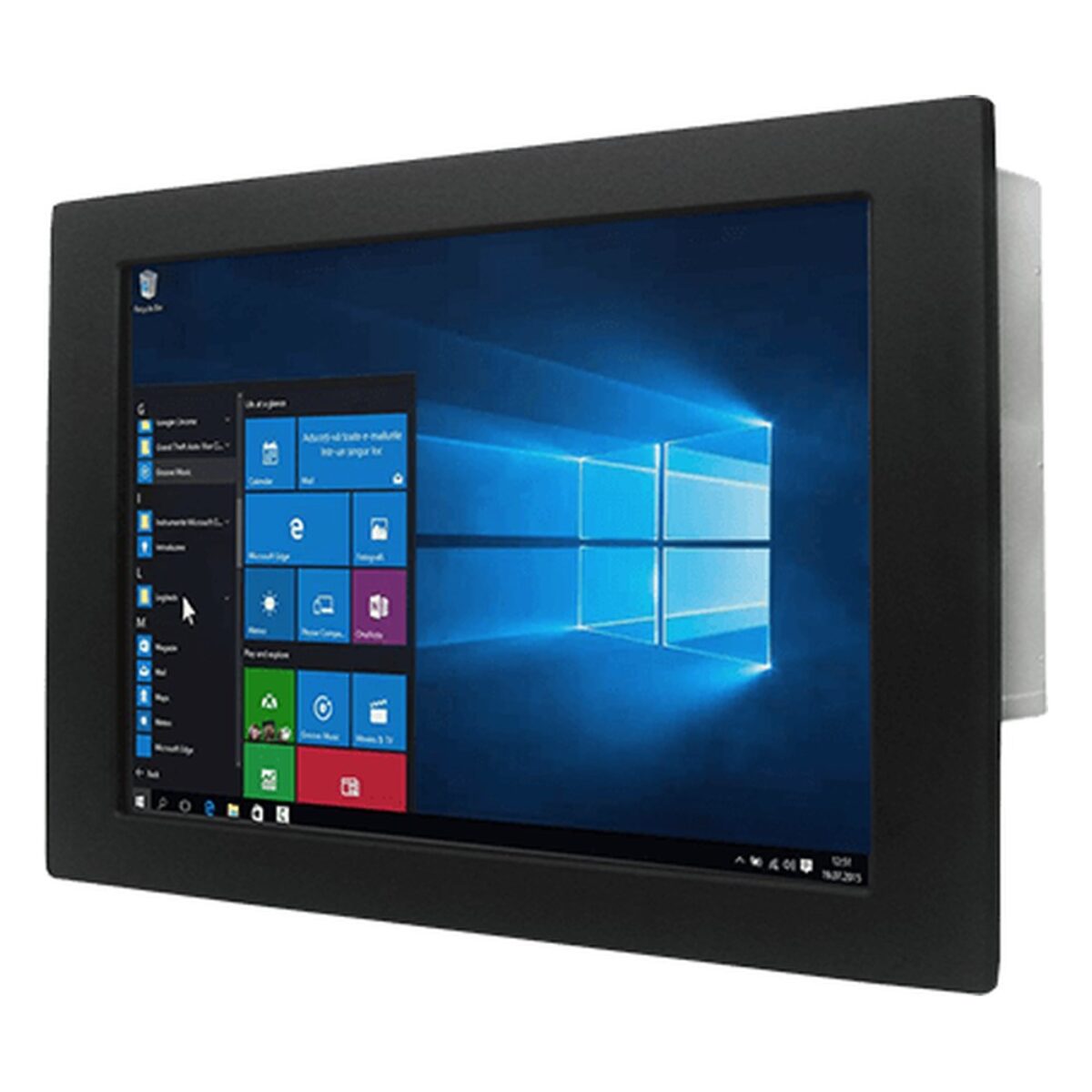

Operator panels on production lines get splashed, dusted and wiped down at the front, while the rear stays dry inside the cabinet. The W18IP7T-IPA2 is Winmate’s 18.5 inch front IP65 panel PC for machine fronts that are cleaned or splashed, with an Intel Pentium N4200 and a 18.5″ 1366 x 768 display at 450 nits with 1000:1 contrast, in a fanless metal housing. Resistive touch or plain protection glass are options.

The quad-core Intel Pentium N4200 runs at 1.1 GHz with burst to 2.5 GHz and Intel HD Graphics, typically enough for HMI runtimes and SCADA clients without a fan. Two DDR3L-1866 SO-DIMM sockets run in dual channel with up to 16 GB. A 128 GB SSD sits on an M.2 2242 B-key slot, with options to 1 TB, and two optional 2.5″ SATA III bays support RAID 0 or 1. TPM 2.0 is on board, with Windows or Linux Ubuntu 20.04.

Two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports and two DB9 serial ports (one RS-232/422/485, one RS-232) cover networks, peripherals and PLCs. DisplayPort 1.2 drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 1.4 or VGA optional, plus mic-in, line-out and two speakers. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and a PCIe 2.0 x1 slot takes a card. Within the Winmate range the W18IT7T-IPA2 is the 18.5 inch front IP65 model with an Intel Core i5-1135G7, and the W18IP7T-PMA2 is the panel mount version for dry cabinets.

The front is rated IP65 against dust and low-pressure water jets. Power is 12 V DC on a DIN 4-pin connector, with an 84 W AC adapter supplied. It runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, for indoor cabinets and control rooms. It panel mounts with the supplied clips, with VESA mounting as an option. It carries CE and FCC marks. We supply the W18IP7T-IPA2 configured, with the OS installed, and tested before dispatch.
