Winmate W18IP7T-CHA2 18.5″ Chassis Panel PC with Intel Pentium N4200 and Resistive Touch
Resistive
Intel
Linux
Windows
USB3
2x M.2
1x PCIe
Wi-Fi
Fanless
CE
FCCW18IP7T-CHA2 Overview

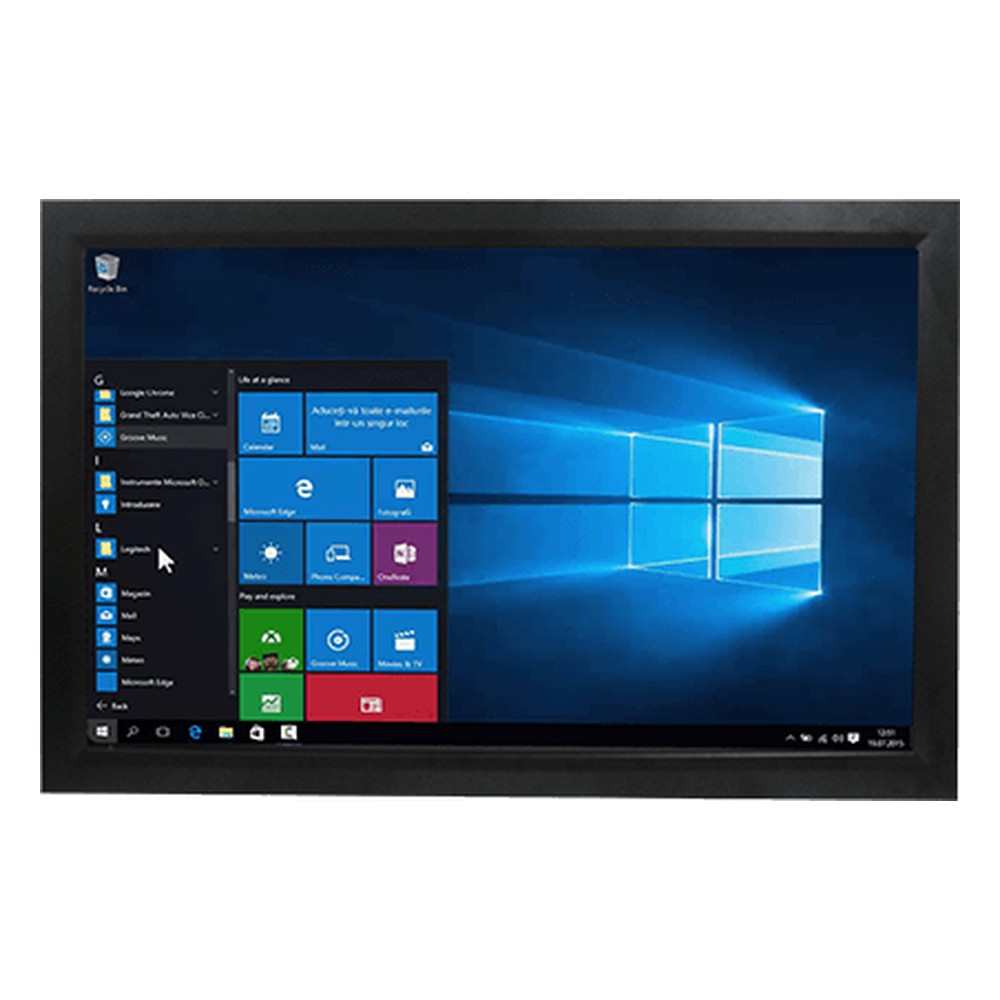

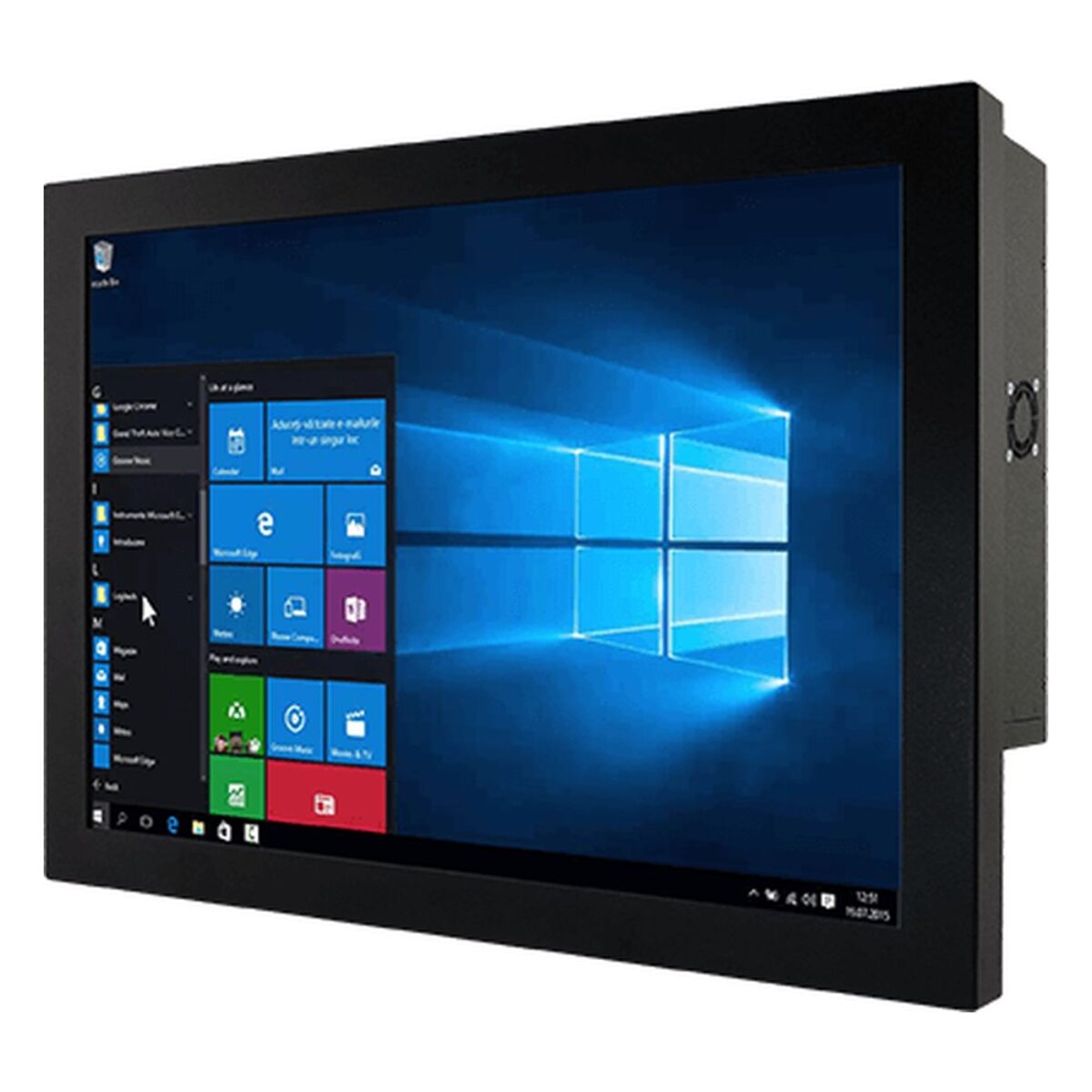

Control rooms, kiosks and factory automation cells often want the screen and computer as one closed unit on a VESA arm or wall bracket. The W18IP7T-CHA2 is Winmate’s 18.5 inch chassis panel PC for VESA arms, desks and wall brackets, with an Intel Pentium N4200 and a 18.5″ 1366 x 768 display at 450 nits with 1000:1 contrast, in a fanless metal housing. Resistive touch or plain protection glass are options.
The quad-core Intel Pentium N4200 runs at 1.1 GHz with burst to 2.5 GHz and Intel HD Graphics, typically enough for HMI runtimes and SCADA clients without a fan. Two DDR3L-1866 SO-DIMM sockets run in dual channel with up to 16 GB. A 128 GB SSD sits on an M.2 2242 B-key slot, with options to 1 TB, and two optional 2.5″ SATA III bays support RAID 0 or 1. TPM 2.0 is on board, with Windows or Linux Ubuntu 20.04.
Two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports and two DB9 serial ports (one RS-232/422/485, one RS-232) cover networks, peripherals and PLCs. DisplayPort 1.2 drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 1.4 or VGA optional, plus mic-in, line-out and two speakers. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and a PCIe 2.0 x1 slot takes a card. Within the Winmate range the W18IT7T-CHA2 is the 18.5 inch chassis model with an Intel Core i5-1135G7, and the W18IP7T-IPA2 is the Pentium N4200 version with a front IP65 rating for panel mounting.
Power is 12 V DC on a DIN 4-pin connector, with an 84 W AC adapter supplied. It runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, for indoor cabinets and control rooms. It fits on VESA, with the screws supplied. It carries CE and FCC marks. We supply the W18IP7T-CHA2 configured, with the OS installed, and tested before dispatch.
W18IP7T-CHA2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W18IP7T-CHA2 |
| Features | Fanless Industrial |
| Display | |
| Display | 18.5"[8:5, 1366 x 768, WXGA] |
| Display Treatment | Protective Glass |
| Touch Controller | Optional Resistive Touch |
| Brightness | 450 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Performance | |
| Processor Series | Intel Pentium N Series Apollo Lake |
| Processor Models | Intel Pentium N4200: 1.1~2.5GHz, 4 Cores, 4 Threads, 2MB Cache, 6W |
| Performance Cores | 4 Cores |
| Memory | 2x DDR3L 1866MHz SO-DIMM Slots, 16GB |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 20.04 Windows 10 |
| Graphics | |
| Integrated GPU | Intel HD Series |
| Display Outputs | 1x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 1 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [SATA] [2242] 1x M.2 E-Key [2230] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x1 Slot] [Gen2] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x 2.5" HDD/SSD |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 12V DC [4-Pin] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 6.6 Kg (14.6 Lbs) |
| Dimensions | 470mm x 293mm x 70mm (18.50" x 11.54" x 2.76") |
- W18IP7T-CHA2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W18IP7T-CHA2 configured, with the OS installed, and tested for USA factory automation and control room projects. Within the Winmate range the W15IP7T-CHA2 is the 15.6 inch chassis model with the same Pentium N4200, and the W18IF7T-OFA2 is the 18.5 inch open frame build with 9th Gen Intel Core i3 to i7 processors.
The W18IP7T-CHA2 sits among our VESA mount chassis panel PCs, our resistive touchscreen panel PCs and our Intel panel PCs. Where a 18.5 inch screen needs to sit on an arm or bracket with a computer built in, this is a sensible model to specify.
