Winmate W22IAD7T-CHA3 21.5″ Chassis Panel PC with 12th/14th Gen Intel Core and Resistive Touch
Resistive
Intel
Linux
Windows
2.5GbE
USB3
2x M.2
Wi-Fi
NVMe SSD
CE
FCCW22IAD7T-CHA3 Overview

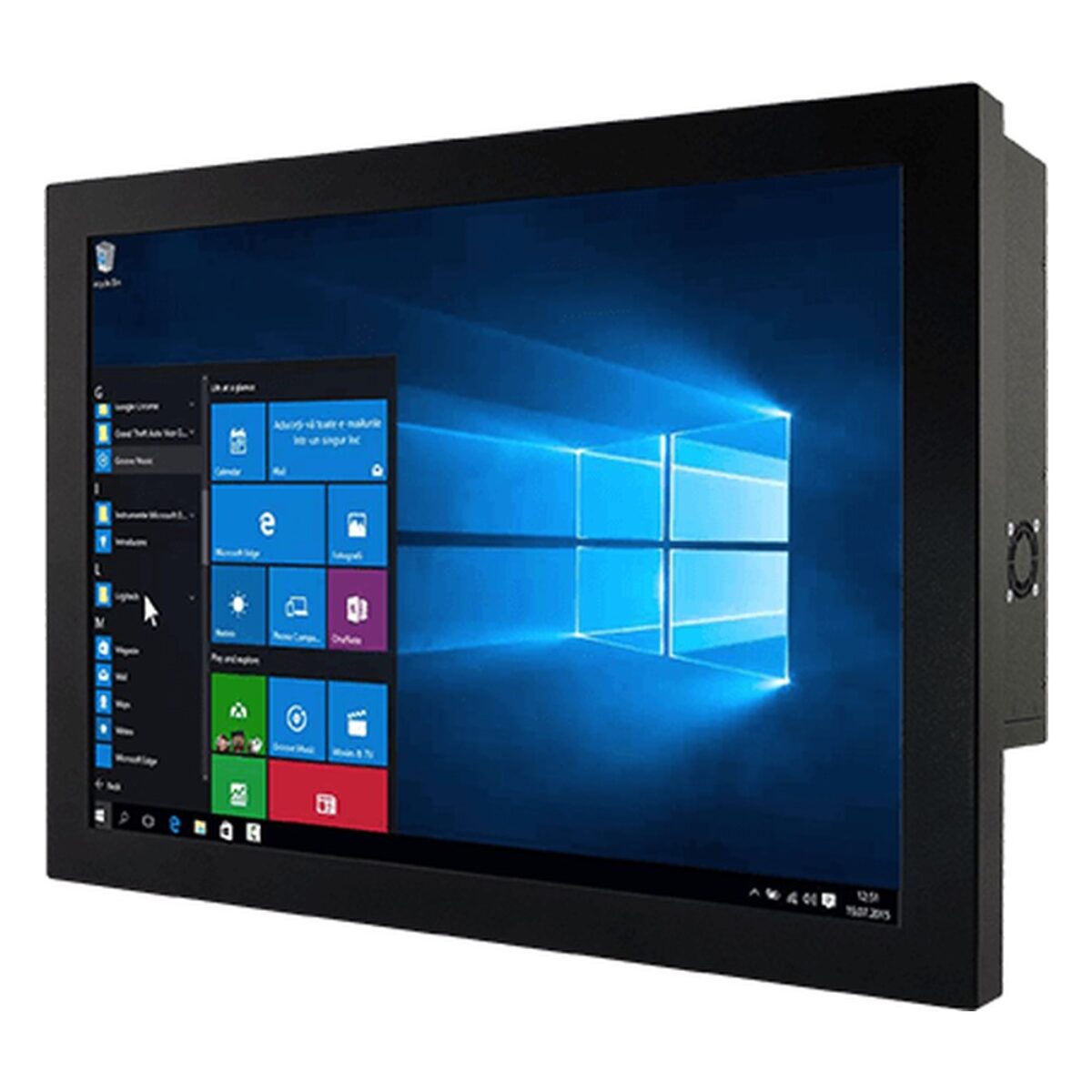

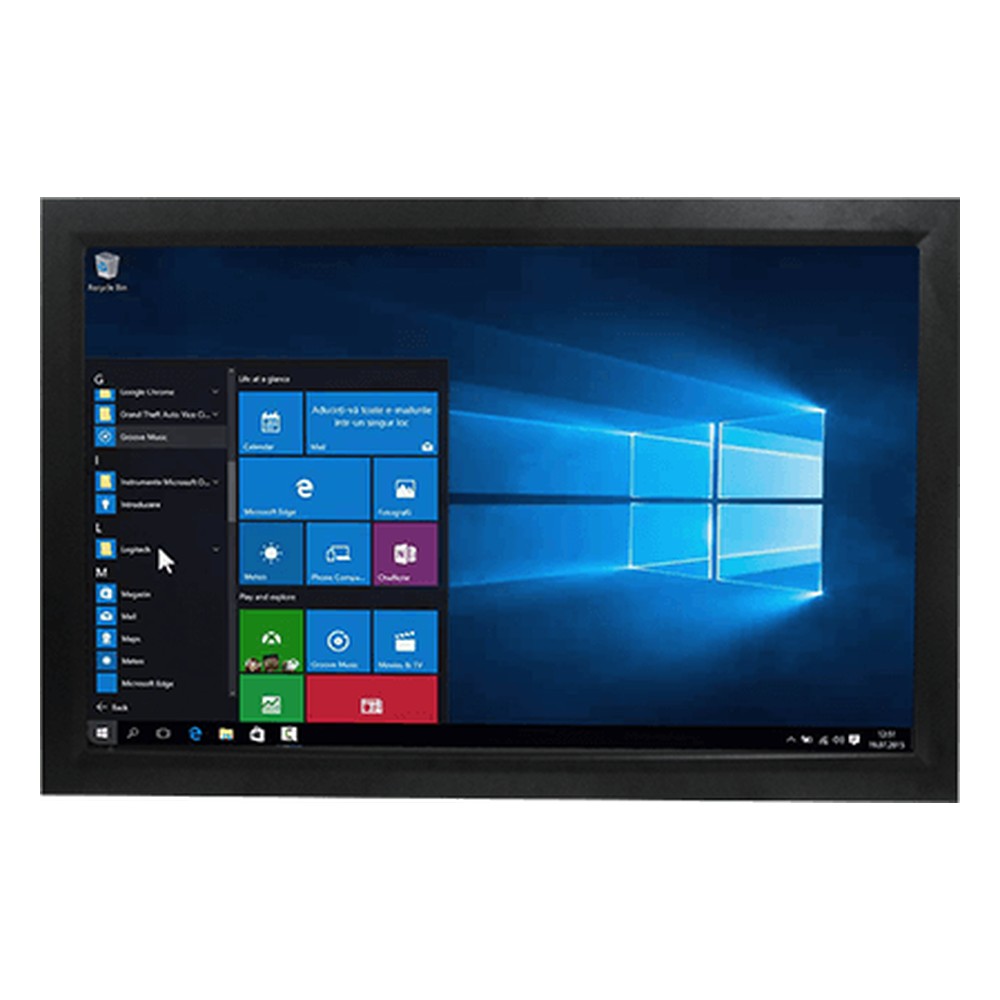

Control rooms, kiosks and factory automation often need more processing than a basic HMI, with no cabinet to hide a separate PC in. The W22IAD7T-CHA3 is Winmate’s 21.5 inch chassis panel PC: a 21.5″ Full HD display and an LGA1700 Intel Core computer in one metal housing, designed to mount on a VESA arm, wall bracket or desk stand.
It takes a choice of 12th Gen Intel Core TE (Alder Lake-S) and 14th Gen Intel Core T (Raptor Lake Refresh) processors on the Intel R680E chipset, from the Core i3-12100TE as standard to the Core i9-14900T, so one design can suit a simple operator screen or heavier visualization. Two DDR5-4800 SO-DIMM sockets take up to 64 GB, and a 128 GB M.2 NVMe SSD can grow to 4 TB, with two optional 2.5″ SATA III bays supporting RAID. The 21.5″ panel is 1920 x 1080 at 250 nits with 3000:1 contrast, with resistive touch or protection glass as options.
Two Intel 2.5GbE ports can separate control and plant networks, and four USB 3.2 Gen 2 Type-A ports at 10 Gbps take scanners and storage. One RS-232/422/485 port and one RS-232 port link PLCs and serial instruments. DisplayPort 1.4a drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 2.0b optional, plus mic-in and line-out. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and TPM 2.0 is on board. The W22IF7T-CHA3 is the earlier 21.5 inch chassis build with an Intel Core i7-9700TE, and the W22IAD7T-IPA3 puts the same computer behind a front IP65 panel mount bezel.
Power is 12 V DC on a four-pin DIN connector, and it comes with a 220 W AC adapter. The W22IAD7T-CHA3 is fan cooled, runs from 0 to 50 °C at 10 to 90% humidity non-condensing and carries CE and FCC marks. It mounts on VESA for arms, walls and desk stands. We supply it configured, with Windows 11 IoT Enterprise, Windows 11 Pro or Ubuntu 22.04 installed, and tested before dispatch.
W22IAD7T-CHA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W22IAD7T-CHA3 |
| Features | Industrial |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Touch Controller | Optional Resistive Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 64GB |
| Chipset | Intel R680E |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Outputs | 1x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe] [2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 2x 2.5" HDD/SSD |
| NVMe | NVMe SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 12V DC [4-Pin] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 7.2 Kg (15.9 Lbs) |
| Dimensions | 507mm x 303mm x 85mm (19.96" x 11.93" x 3.35") |
- W22IAD7T-CHA3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W22IAD7T-CHA3 configured, with the OS installed, and tested for USA control room and automation projects. Within the Winmate range the W22IAD7T-IPA3 is the front IP65 panel mount version, and the W22IAD7T-OFA3 is the open frame version.
On an arm or wall, the W22IAD7T-CHA3 sits among our chassis and VESA mount panel PCs, our 21.5 inch panel PCs and our Intel Alder Lake systems. Where a 21.5 inch screen needs Intel Core i3 to i9 processing on a VESA mount, this is a good model to specify.
