Winmate W22IAD7T-OFA3 21.5″ Open Frame Panel PC with Intel Core i3 to i9 LGA1700 and Resistive Touch

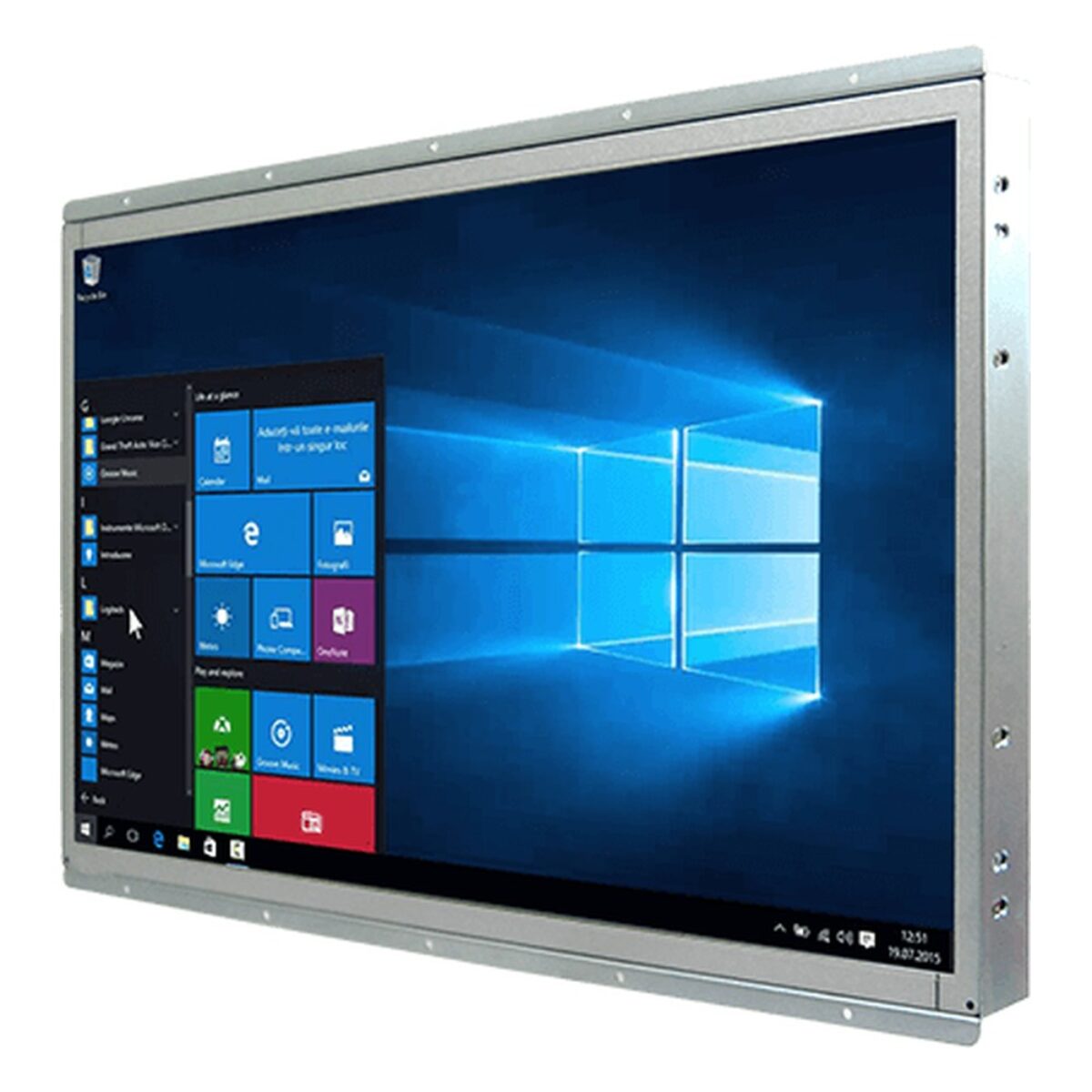

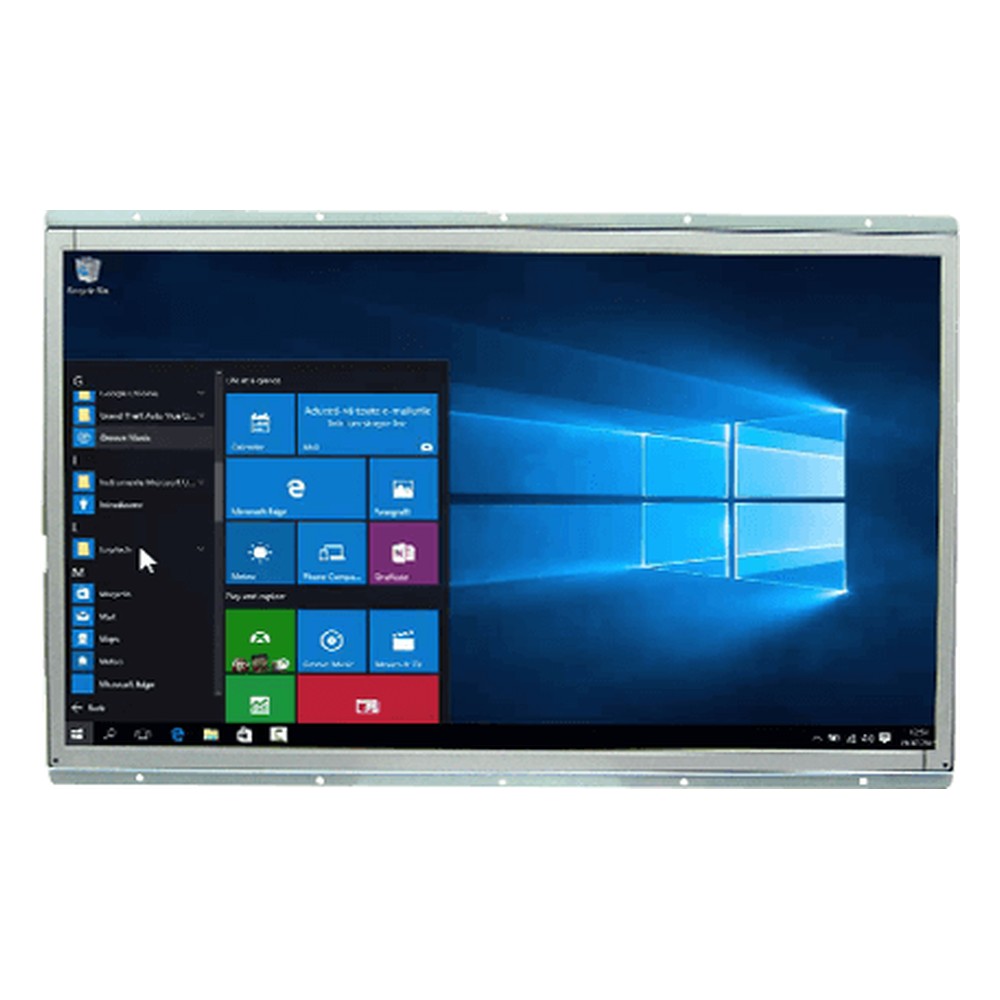

Machine builders and kiosk makers often want the display and computer as one module for their own enclosure. The W22IAD7T-OFA3 is Winmate’s 21.5 inch open frame panel PC: a 21.5″ Full HD display and an LGA1700 Intel Core computer on a metal frame, suited to factory automation, retail and interactive digital signage.

It takes a choice of 12th Gen Intel Core TE (Alder Lake-S) and 14th Gen Intel Core T (Raptor Lake Refresh) processors on the Intel R680E chipset, from the Core i3-12100TE as standard to the Core i9-14900T, so one design can suit a simple operator screen or heavier visualization. Two DDR5-4800 SO-DIMM sockets take up to 64 GB, and a 128 GB M.2 NVMe SSD can grow to 4 TB, with two optional 2.5″ SATA III bays supporting RAID. The 21.5″ panel is 1920 x 1080 at 250 nits with 3000:1 contrast, with resistive touch or protection glass as options.

Two Intel 2.5GbE ports can separate control and plant networks, and four USB 3.2 Gen 2 Type-A ports at 10 Gbps take scanners and storage. One RS-232/422/485 port and one RS-232 port link PLCs and serial instruments. DisplayPort 1.4a drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 2.0b optional, plus mic-in and line-out. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and TPM 2.0 is on board. The W22L100-OFA3 is the 21.5 inch open frame monitor with no computer inside, and the W22IAD7T-PMA3 puts the same computer in a panel mount housing with clips.

Power is 12 V DC on a four-pin DIN connector, and it comes with a 220 W AC adapter. The W22IAD7T-OFA3 is fan cooled, runs from 0 to 50 °C at 10 to 90% humidity non-condensing and carries CE and FCC marks. Open frame mounting is standard, with panel and VESA mounting as options. We supply it configured, with Windows 11 IoT Enterprise, Windows 11 Pro or Ubuntu 22.04 installed, and tested before dispatch.
