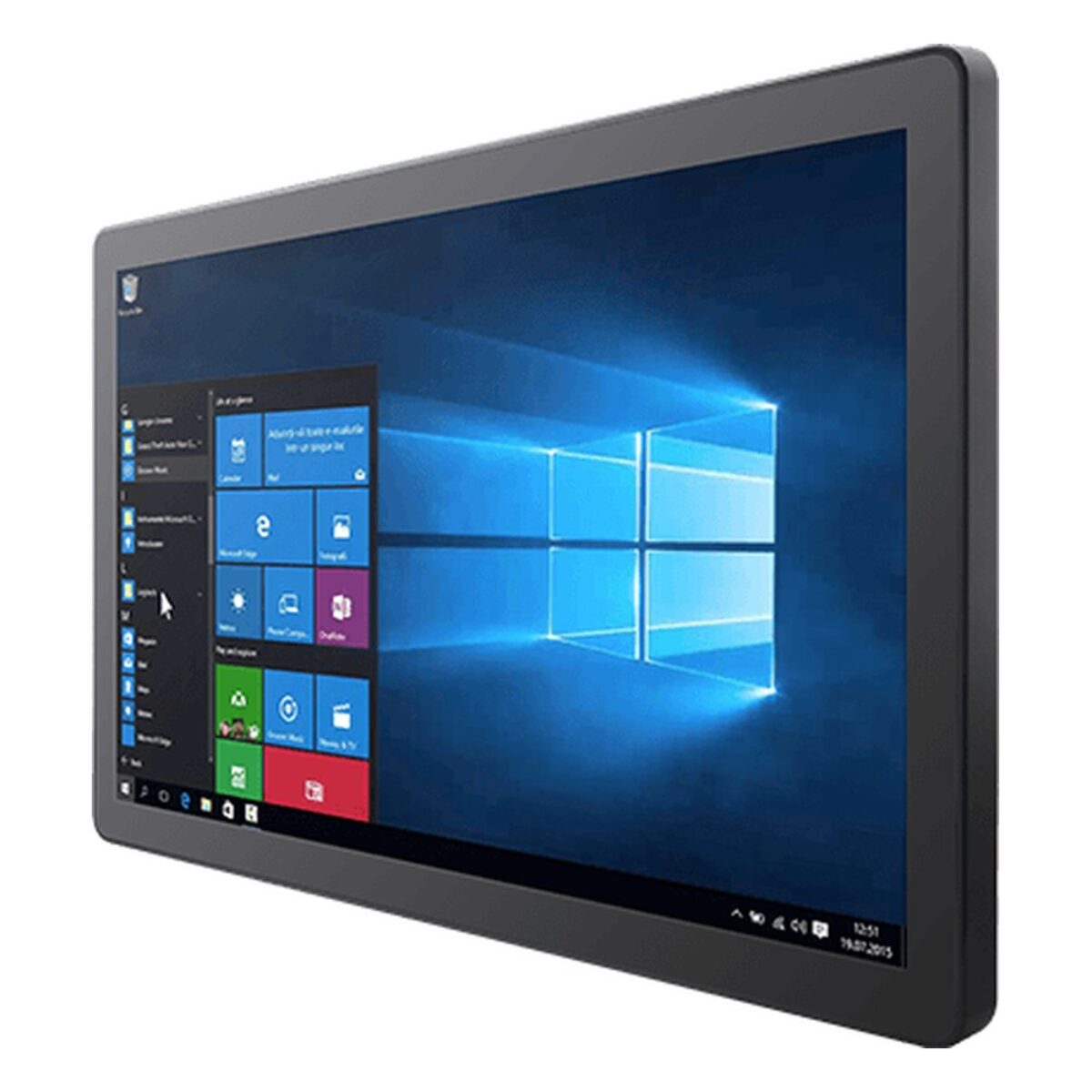

Winmate W22IAD7T-GCA3 21.5″ G-WIN Front IP65 Panel PC with Intel Core i3 to i9 LGA1700 and MIL-STD-810G

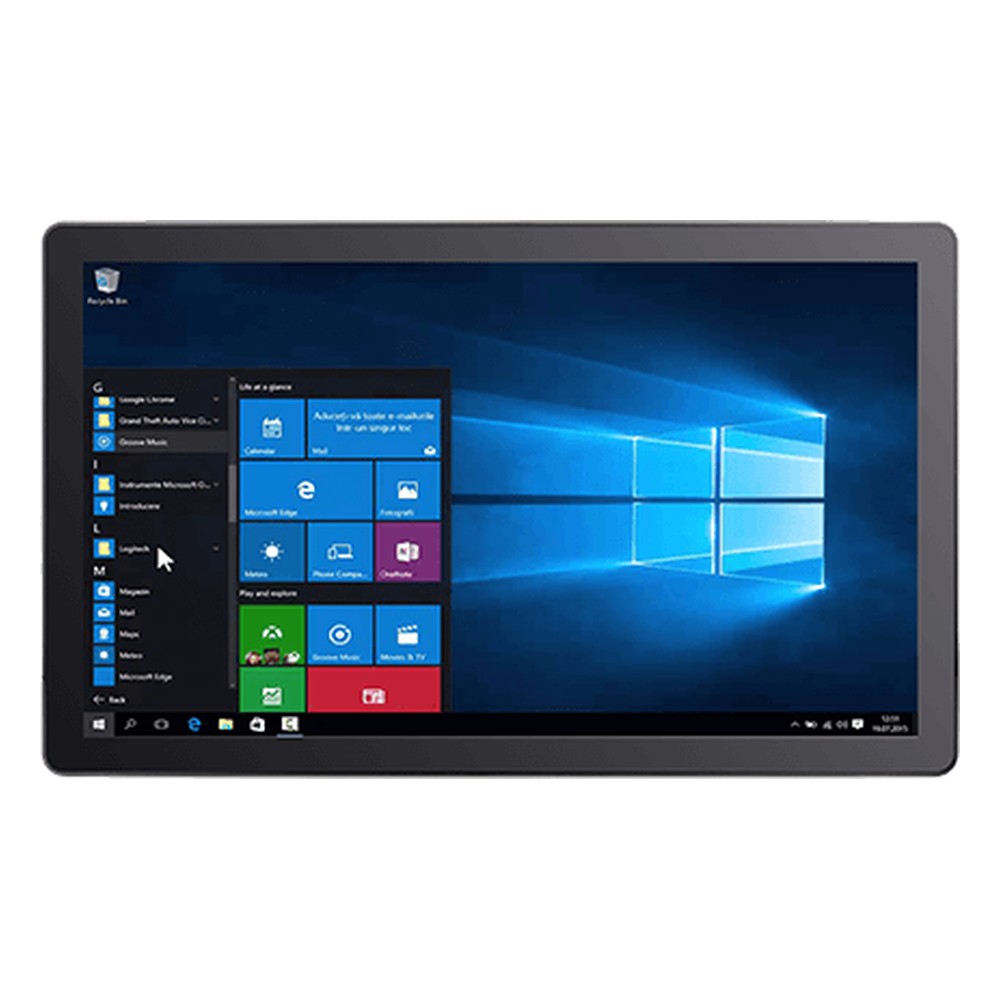

A 21.5 inch touch screen gives operators room for full-size dashboards, trend views and work instructions side by side, and the processor behind it has to keep up. The W22IAD7T-GCA3 is Winmate’s 21.5″ G-WIN GC panel PC for industrial automation, kiosks and control systems, with an LGA1700 socket that takes a choice of 12th Gen Core TE and 14th Gen Core T processors and a front IP65, edge-to-edge PCAP display.

The standard build carries an Intel Core i3-12100TE, with the i5-12500TE, i7-12700TE and i9-12900TE or the 14th Gen i3-14100T, i5-14500T, i7-14700T and i9-14900T as options, on an Intel R680E chipset. Two non-ECC SO-DIMM sockets take up to 64 GB. A 128 GB SSD on an M.2 2280 M-key NVMe socket is standard, with options to 4 TB, and two optional SATA III bays add 2.5 inch drives up to 2 TB with RAID support. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed.

Connections are two 2.5GbE ports on Intel controllers, four USB 3.2 Gen 2 Type-A ports, one RS-232/422/485 and one RS-232 port, DisplayPort 1.4a and an optional HDMI 2.0b output up to 4096 x 2160 at 60 Hz, mic in and two speakers. An M.2 2230 E-key slot takes an optional Wi-Fi module. The W22IAN3S-GCA3 is the same 21.5 inch GC design with a fanless Intel Processor N150, and the W22L100-GCA3 is the matching 21.5 inch touch monitor for sites that already have a computer.

Power is 12 V DC and an AC adapter is supplied. The W22IAD7T-GCA3 is fan cooled and runs from 0 °C to 50 °C, so it suits indoor production areas, control rooms and public spaces. The true-flat front is rated IP65 for wipe-down cleaning, the unit is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration, and it mounts in a panel or on VESA. We supply it configured, with the operating system installed, and tested before dispatch.
