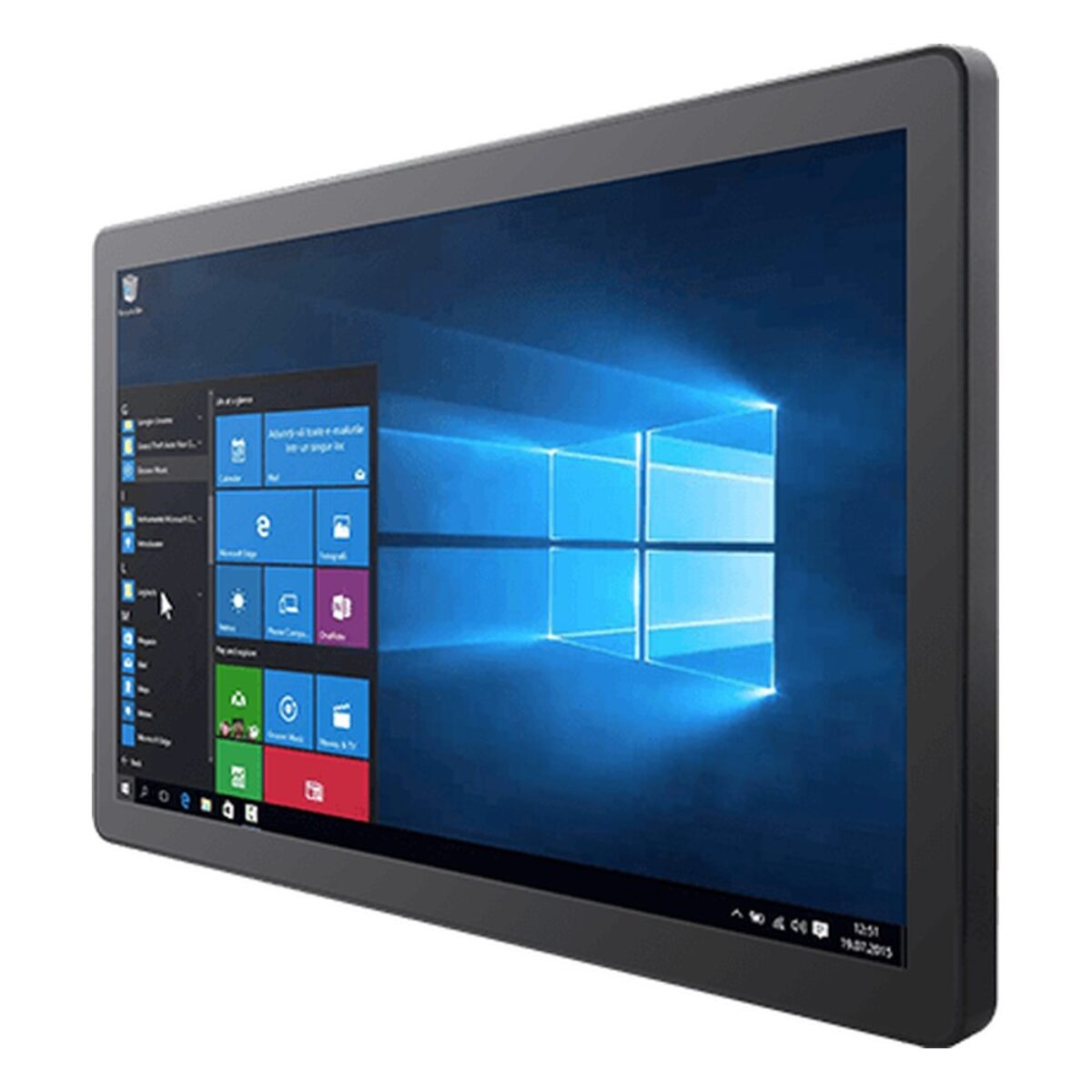

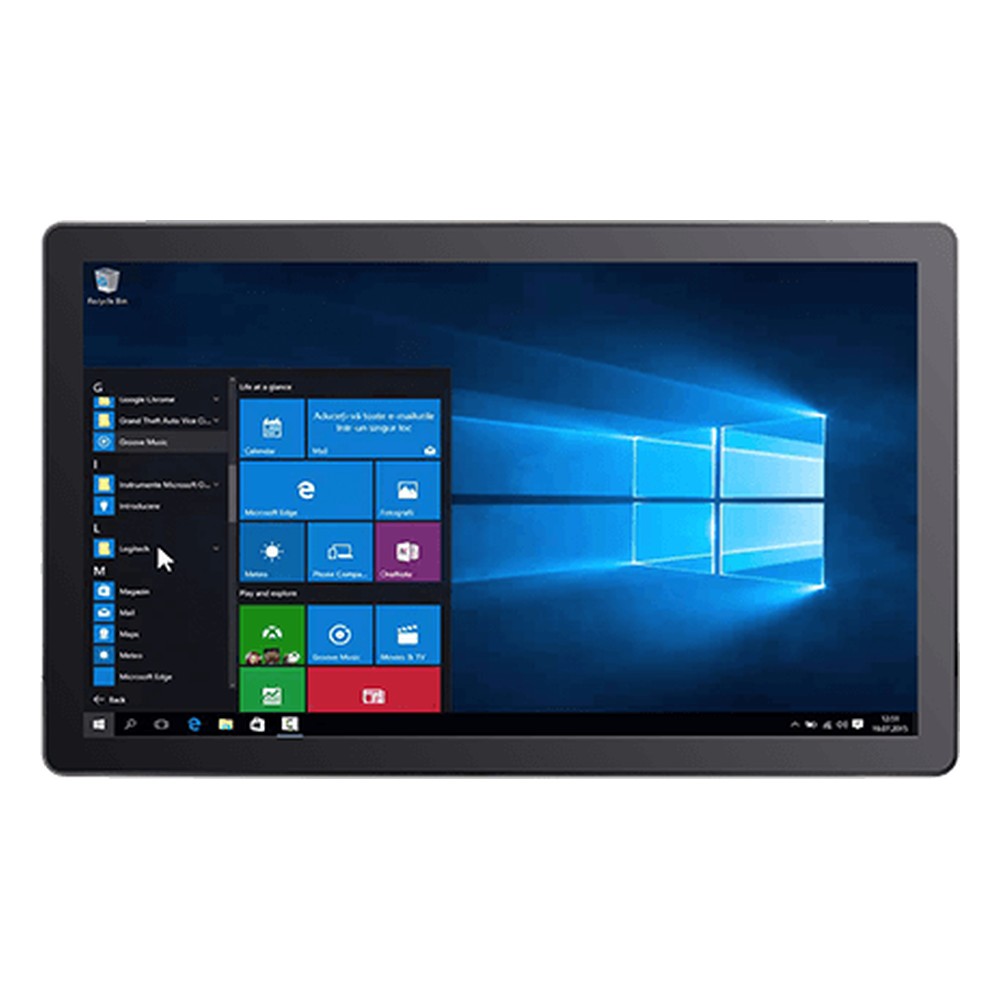

Winmate W22IF7T-GCA3 21.5″ G-WIN Front IP65 Panel PC with 9th Gen Intel Core i3/i5/i7 and MIL-STD-810G

Line overview screens and shared control stations often run several applications at once, and a 21.5 inch Full HD touchscreen gives them room, provided the processor keeps up. The W22IF7T-GCA3 is Winmate’s 21.5″ G-WIN GC panel PC with a 9th Gen Intel Core processor, an edge-to-edge PCAP touchscreen and a true-flat front sealed to IP65, in a metal housing with a cooling fan.

The default processor is an Intel Core i7-9700TE, an eight-core 9th Gen Coffee Lake chip at up to 3.8 GHz, with a six-core Core i5-9500TE or four-core Core i3-9100TE as options, all 35 W parts on an Intel Q370 chipset. Two non-ECC SO-DIMM slots take up to 64 GB, storage is a 128 GB SSD with options up to 2 TB, and two optional SATA III bays for 2.5″ drives support RAID 0 and 1. TPM 2.0 is on board, and Windows or Linux Ubuntu 20.04 can be installed.

The 21.5 inch display is 1920 x 1080 at 250 nits with 3000:1 contrast and 178 degree viewing angles, which keeps it readable across a work area. I/O includes two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 2 Type-A ports, one RS-232/422/485 port, one RS-232 port, a DisplayPort 1.2 output and an optional HDMI 1.4 output, plus mic-in, line-out and two speakers. Wi-Fi, Bluetooth and a PCIe x16 slot are optional. The W22IAD7T-GCA3 is the same 21.5 inch GC design with a choice of 12th Gen Core TE or 14th Gen Core T processors, and the W22IE3S-GCA3 is the fanless version with an Intel Celeron N6211.

Power is 12 V DC, and an AC adapter comes in the box. The W22IF7T-GCA3 operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -20 °C to 60 °C, and is tested to MIL-STD-810G Method 516.6 Procedure I for shock and Method 514.6 Procedure I for vibration. It mounts on VESA or in a panel and carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
