Winmate W22L100-GCB1OD 21.5″ Sunlight Readable PCAP Chassis Monitor with 1000 Nit FHD Display
PCAP
High Bright
Extended Temp
Front IP65
CE
FCCW22L100-GCB1OD Overview

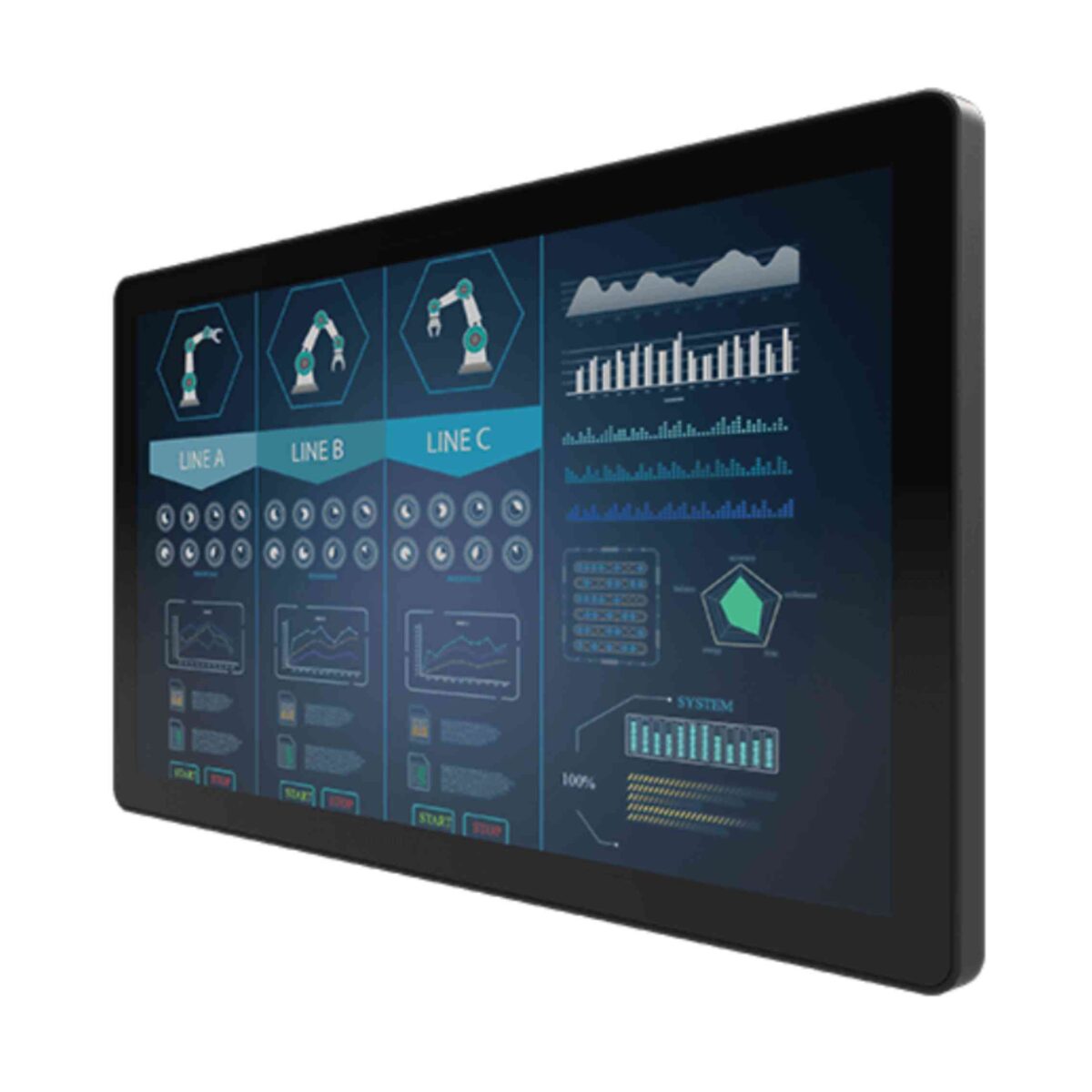

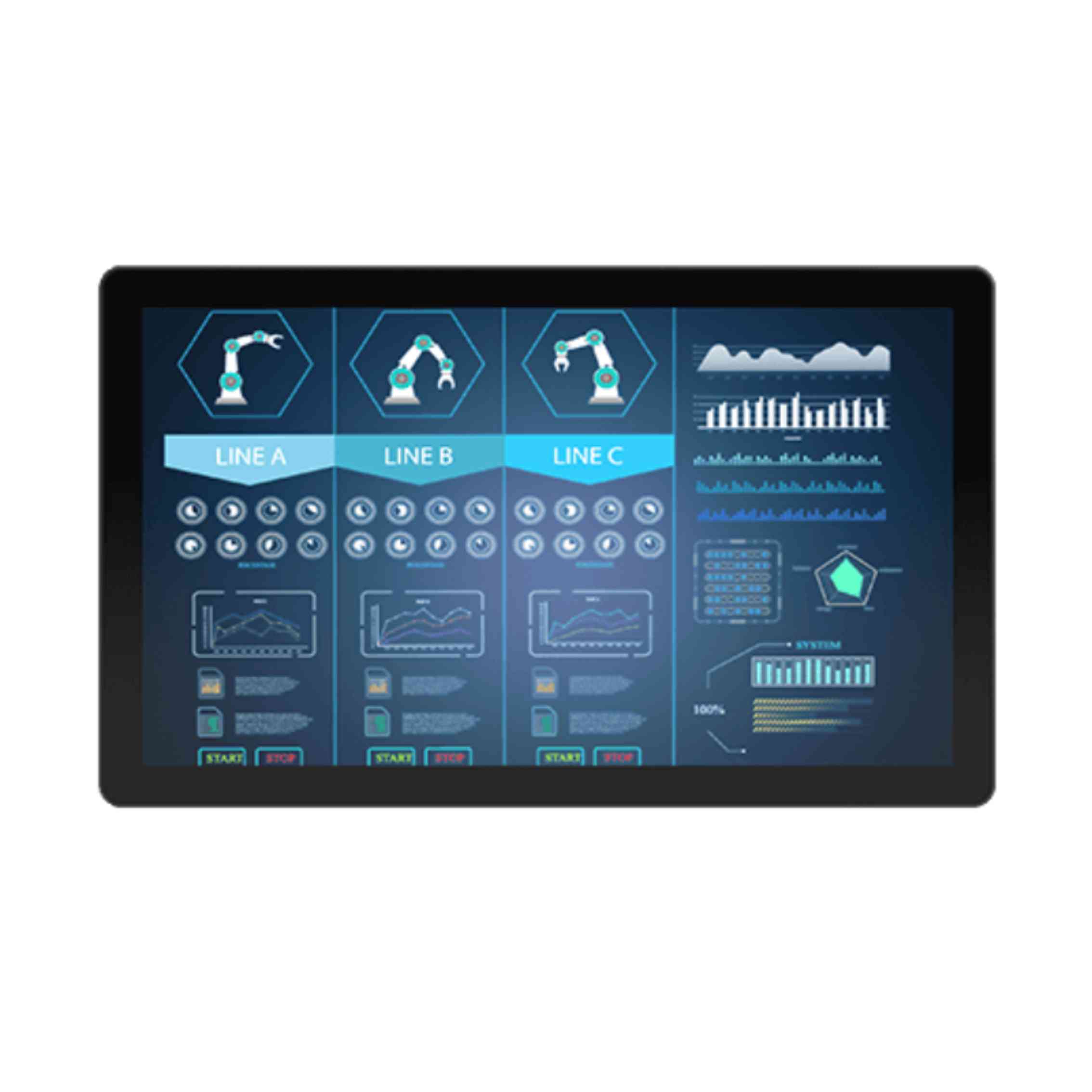

Kiosks, gate terminals and machine screens set near glazing often lose the picture to glare in the afternoon. The W22L100-GCB1OD is Winmate’s 21.5 inch chassis monitor for that job: a PCAP touch display with a 1000 nit panel in a slim housing that mounts on a VESA arm or bracket.
The 1920 x 1080 panel runs at 1000 nits with a 1000:1 contrast ratio, 16.7 million colors and viewing angles of 90° in each direction. Projected capacitive multi-touch connects to the host over USB, so it works with gesture-based HMI and kiosk software. A UV film option protects the panel from solar radiation where the screen faces direct sunlight. That combination suits wall-mounted terminals and ticketing screens that need to be read at a glance.

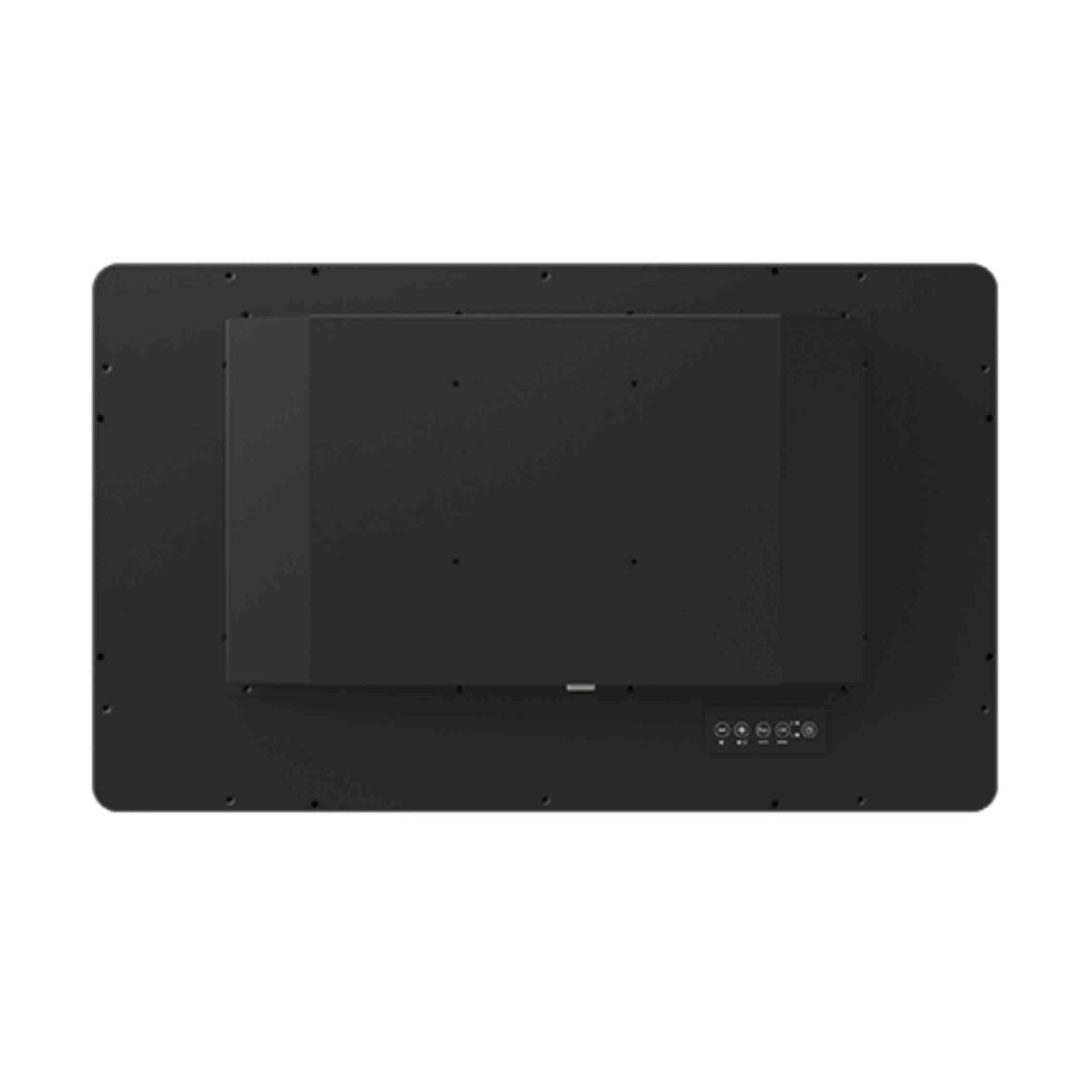

Video enters over VGA as standard, with HDMI and DVI inputs offered as options, and a five-key OSD panel on the back handles setup. For a cut-out install with a metal housing and aluminum bezel, the W22L100-EHB1OD uses the same 1000 nit PCAP panel, and the W24L100-GCC1OD is the 23.8 inch version of this chassis monitor.
Power is 12 V DC as standard or 24 V DC as an option, and a 100 to 240 V AC adapter is supplied. The fanless unit measures 530 x 322 x 51 mm and mounts on 100 x 100 mm VESA holes, with panel mounting also listed. It operates from -10 °C to 60 °C, or from -25 °C with the heater option, at 10 to 90% humidity, and carries CE and FCC marks. An optional remote controller is listed for adjustment once the monitor is on its arm.
W22L100-GCB1OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W22L100-GCB1OD |
| Features | Fanless Industrial |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 180° Horizontal, 180° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 530mm x 322mm x 51mm (20.87" x 12.68" x 2.01") |
- W22L100-GCB1OD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W22L100-GCB1OD configured for USA kiosk and industrial HMI projects. Within the Winmate range the W24L100-GCC1OD is the 23.8 inch version of this chassis build, and the W22L100-EHB1OD is the panel mount version in metal.
With a 1000 nit PCAP panel the W22L100-GCB1OD sits among our sunlight readable monitors, our chassis monitors and our 21.5 inch monitors. Where a VESA-mounted touch screen has to cope with daylight, this is the model to specify.
