Winmate W22L100-PPA3HB 21.5″ PCAP Panel Mount Monitor with 1000 Nit FHD Display and 5000:1 Contrast

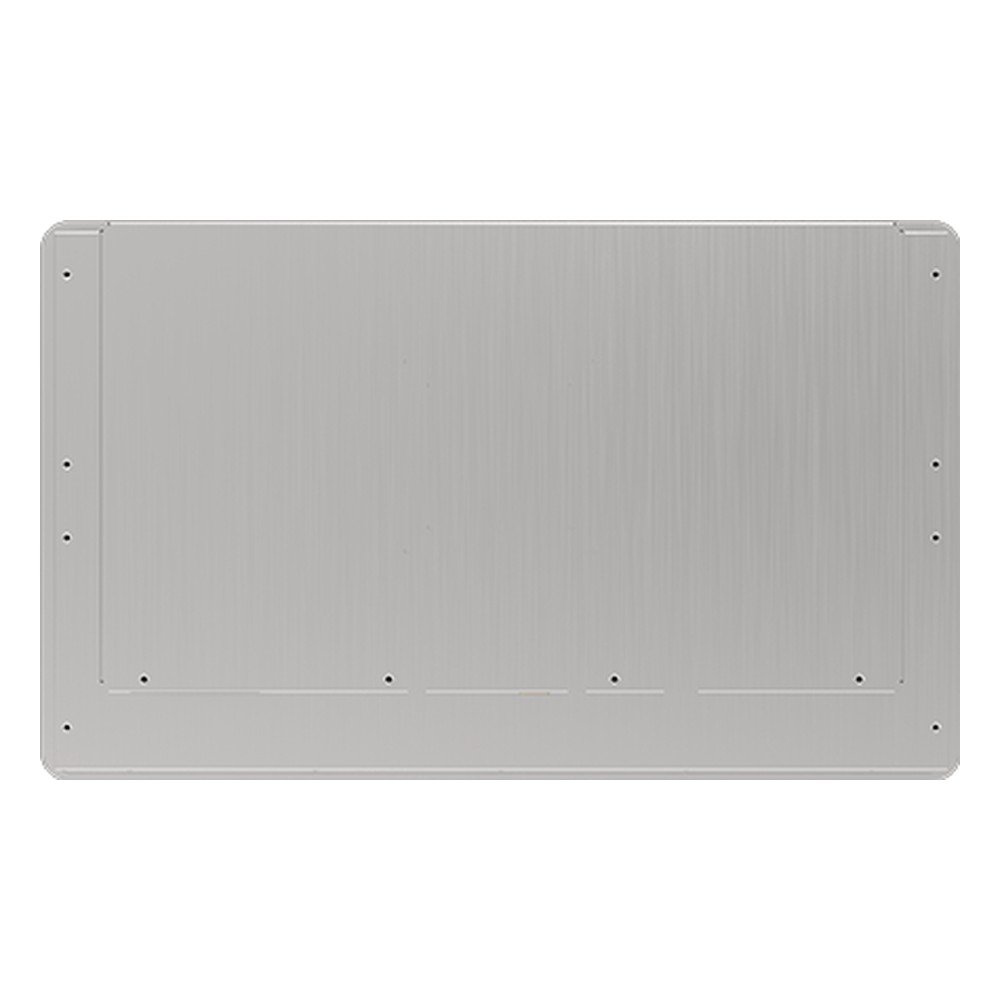

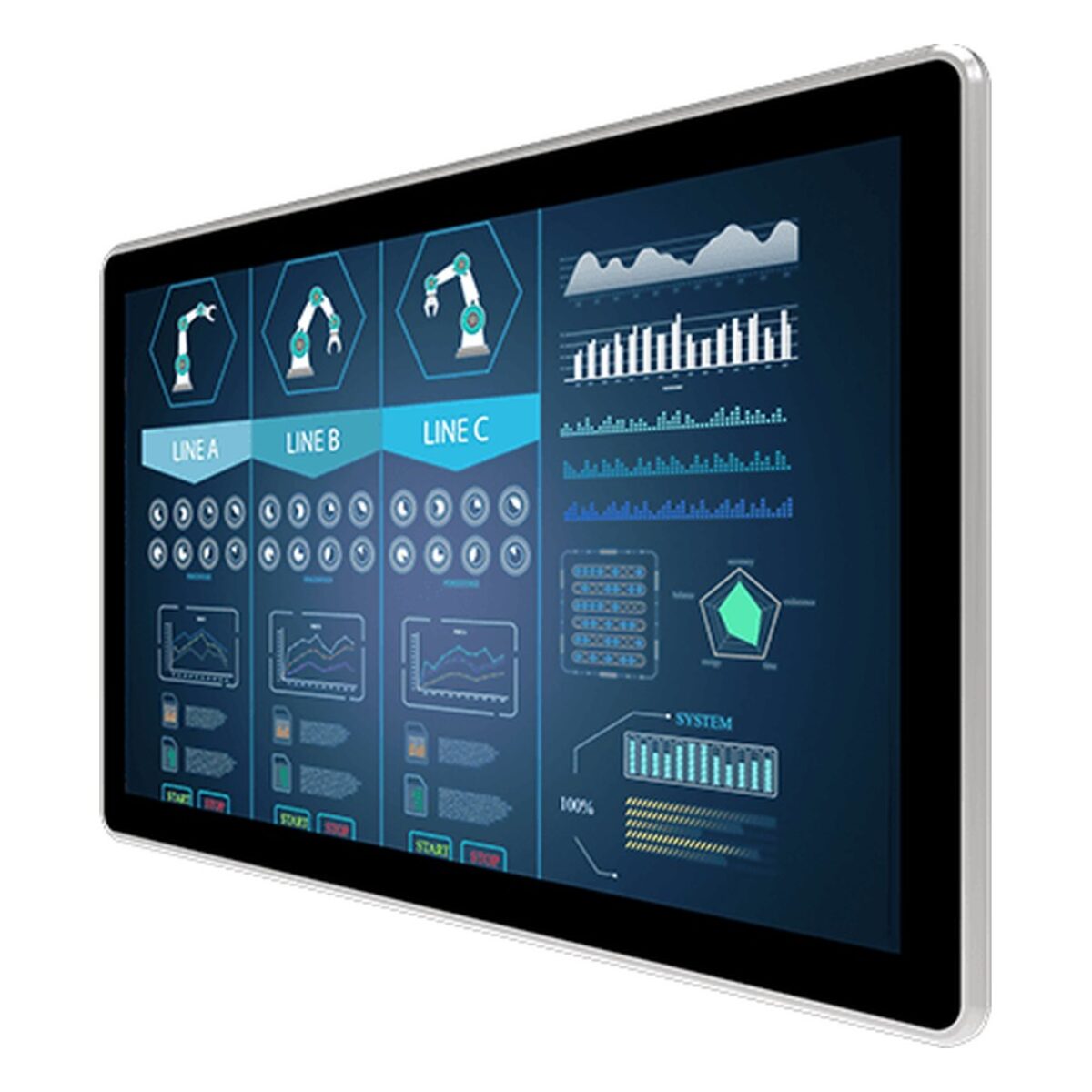

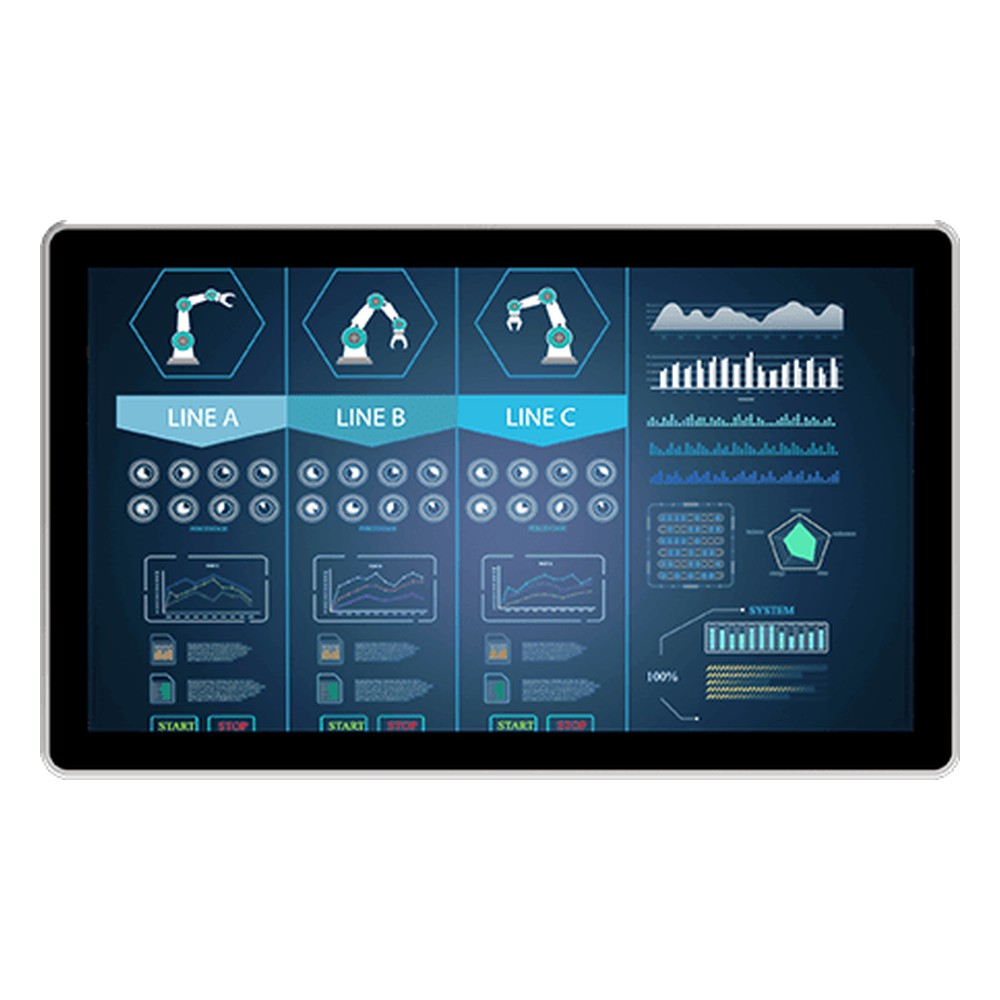

On an automation panel or a kiosk front, the display usually has to fit a cut-out, cope with splashes at the front and connect to a separate industrial PC or controller. The W22L100-PPA3HB is Winmate’s 21.5 inch panel mount touch monitor for that installation: a 21.5″ 1920 x 1080 FHD projected capacitive touchscreen in a metal housing with an aluminum bezel, sealed to IP65 at the front.

The 1920 x 1080 panel runs at 1000 nits with 5000:1 contrast and 178 degree viewing angles. At 1000 nits the panel is sunlight readable, so it typically stays legible near windows and under strong lighting. Full HD gives current HMI, dashboard and web-based software a native canvas. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.

Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W22L100-PPA3 is the 250 nit version with 3000:1 contrast, and the W22L100-EHA3 is the slim panel mount 21.5 inch monitor.

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 21.5 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a panel cut-out or a VESA mount. We supply the W22L100-PPA3HB configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
