Winmate W22L100-SDA3 21.5″ SDI Chassis Monitor with FHD Display, SDI Loop-Out and Composite Inputs
Legacy model. See current SDI Monitors.
PCAP
CE
FCCW22L100-SDA3 Overview

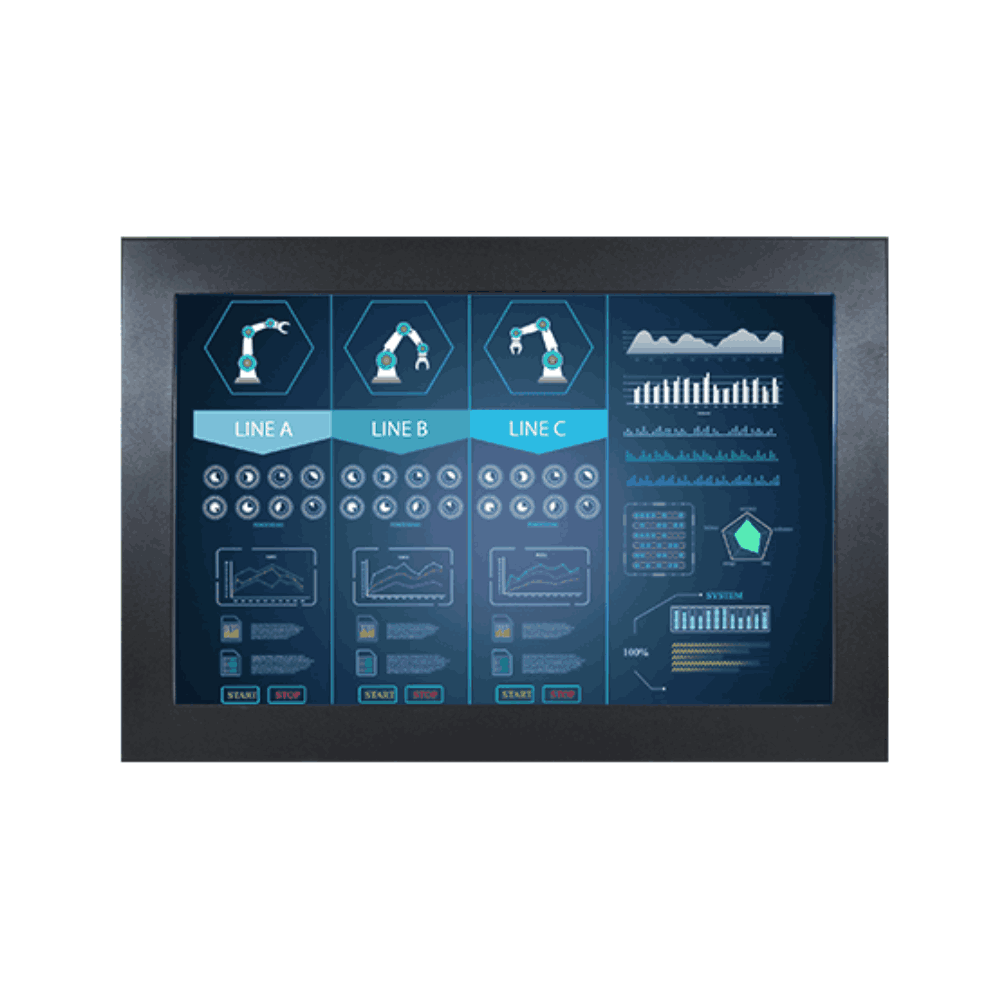

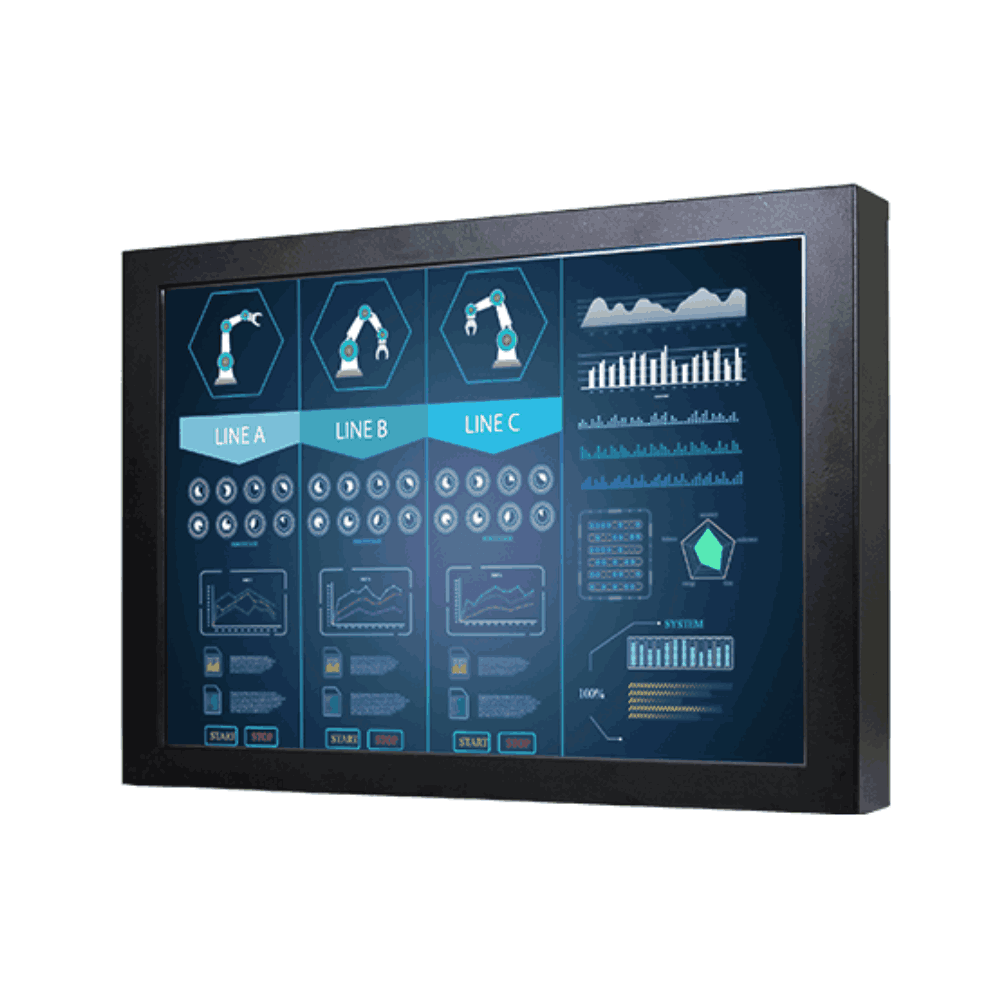

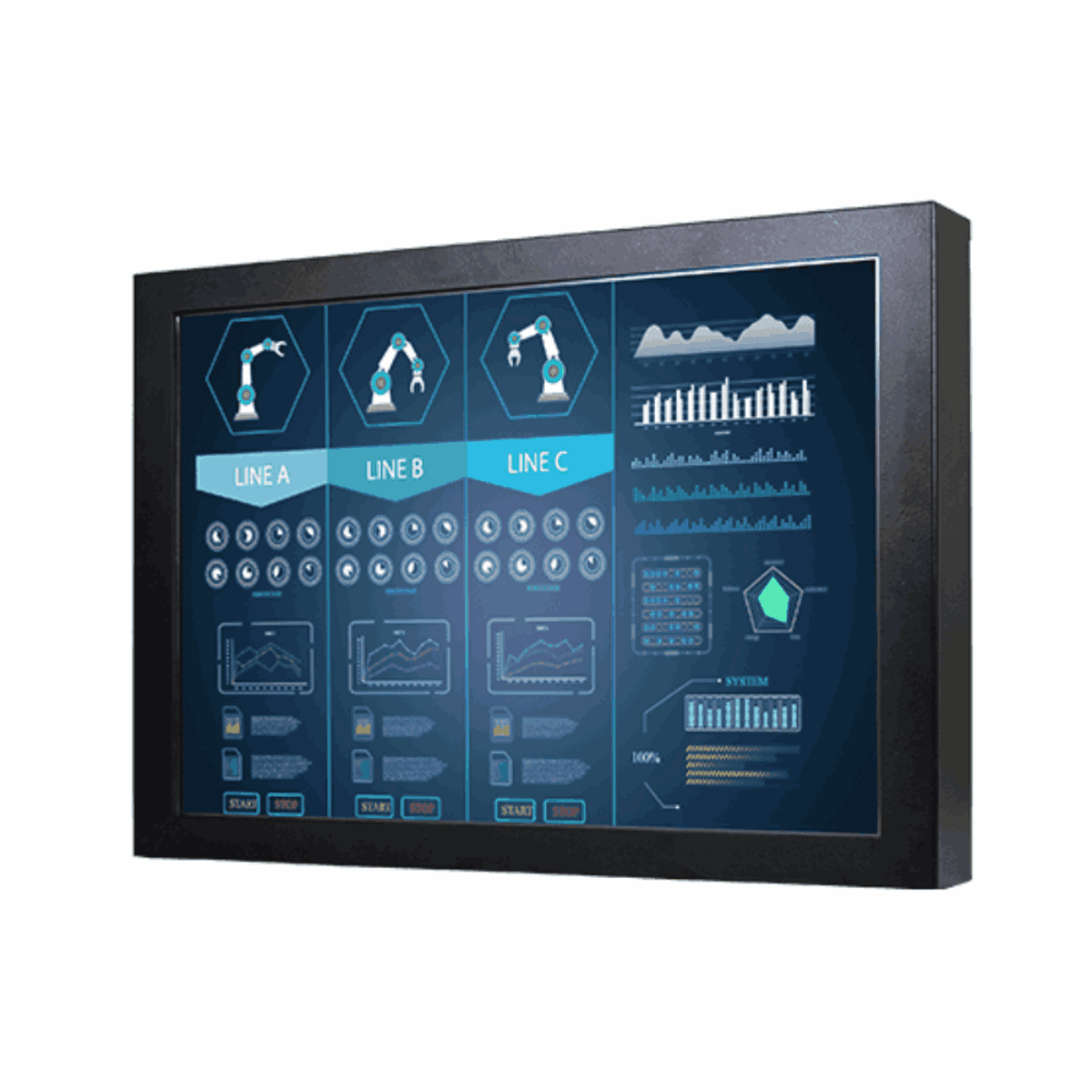

Camera and broadcast positions often need to watch an SDI feed and pass it on without adding a separate distribution amplifier. The W22L100-SDA3 is Winmate’s 21.5 inch SDI chassis monitor, with an SDI input and loop-out alongside composite and VGA inputs, in a slim metal chassis for VESA mounting. It is a good fit for camera, broadcast and security desks that already run SDI cabling.
The panel is 1920 x 1080 with 16.7 million colors and 178° viewing angles. Winmate’s key features describe the SDI pair as SDI in and 3G-SDI out. Brightness and contrast figures for this model are confirmed with Winmate at quotation, as the current datasheet table needs correcting.
Inputs are SDI with an SDI loop-out, VGA and two CVBS composite inputs on BNC, with HDMI as an option, and a USB port is provided for a touch link. Two speakers are available as an option, and an eight-key OSD panel on the rear handles setup. For touch-led HMI work at the same size, the W22L100-GCA3 is a front IP65 PCAP monitor, and the W22L100-POA3 is an open frame PCAP touch monitor.
Power is 12 V DC as standard or 24 V DC as an option, with a 110 to 240 V AC adapter supplied along with VGA, HDMI, SDI and composite cables. The fanless unit measures 518.1 x 314 x 38.5 mm and mounts on 100 x 100 mm VESA holes. It operates from 0 °C to 50 °C at 10 to 90% humidity and carries CE and FCC marks. Winmate names industrial visualization, control rooms and equipment monitoring among the target uses.
W22L100-SDA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W22L100-SDA3 |
| Features | Fanless Industrial |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 4x Display Ports |
| Video Inputs | 1 x SDI Input 1x VGA Input 2x CVBS [BNC] |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 518mm x 314mm x 39mm (20.39" x 12.36" x 1.54") |
- W22L100-SDA3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W22L100-SDA3 configured for USA broadcast, security and control room projects. Within the Winmate range the W22L100-GCA3 is a front IP65 PCAP monitor at the same size, and the W22L100-POA3 is an open frame touch monitor.
With SDI video the W22L100-SDA3 sits among our SDI monitors, our chassis monitors and our 21.5 inch industrial monitors. Where a desk needs to watch and pass on an SDI camera feed, this is the model to specify.
