Winmate W24IT3S-MLA2FP 23.8″ Defense Panel PC with Intel Core i5-1135G7, MIL-STD-810H and MIL-STD-461

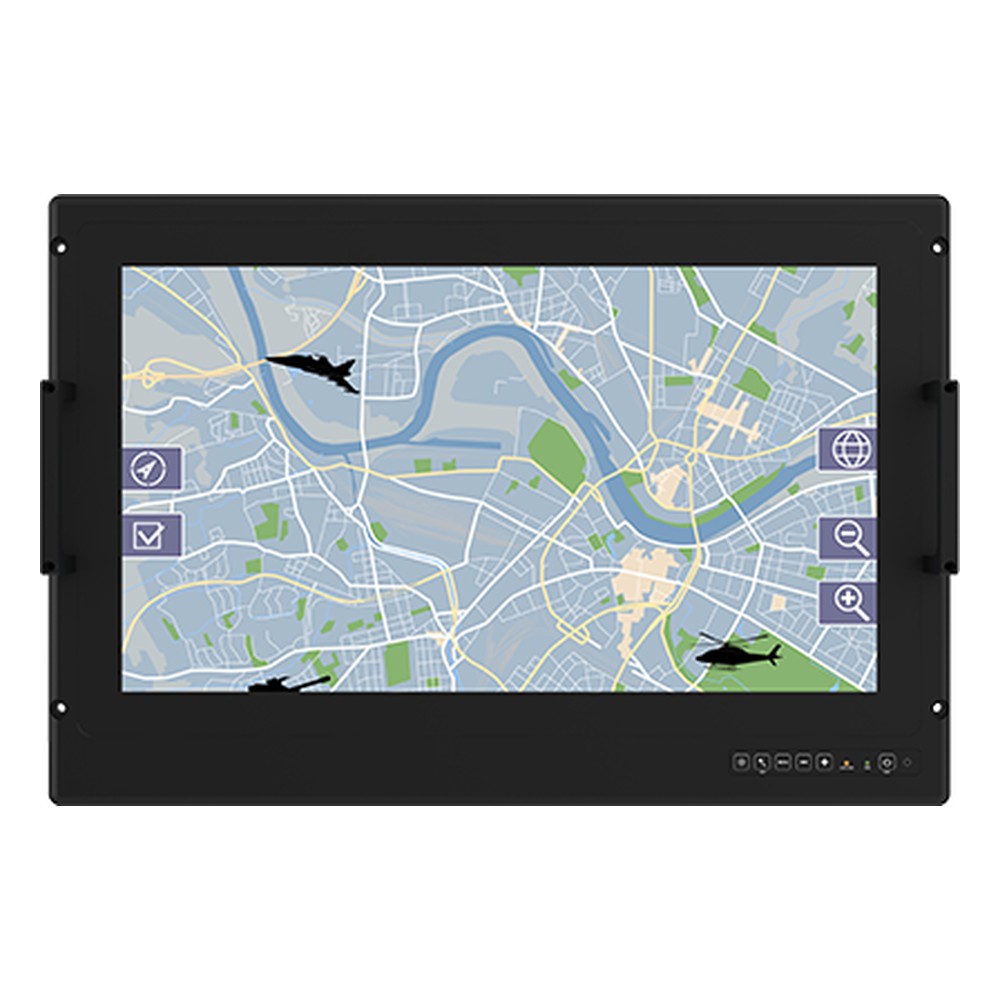

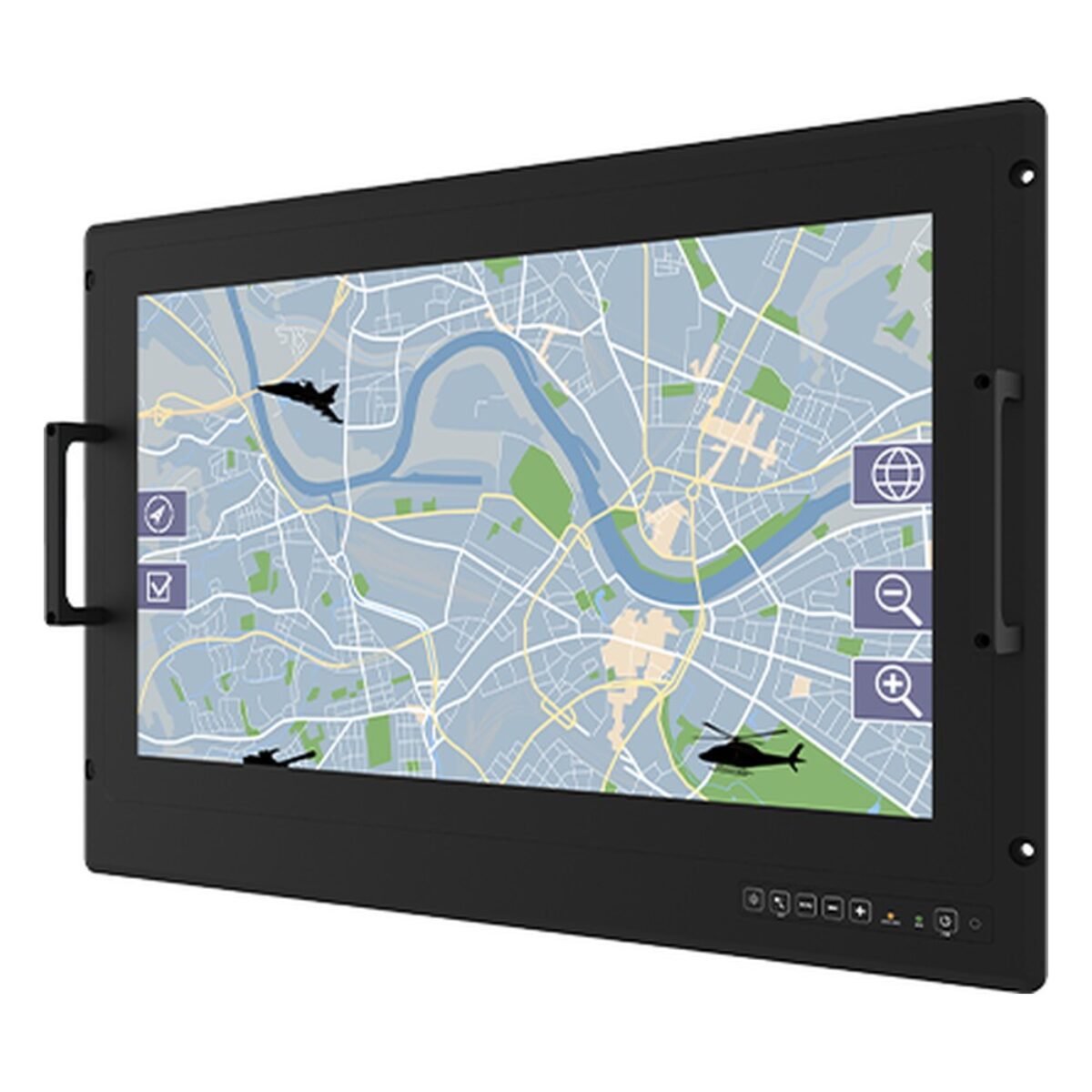

Larger console screens let operators keep maps, video and status pages open side by side without switching views. The W24IT3S-MLA2FP is Winmate’s 23.8 inch defense console panel PC for this, with an Intel Core i5-1135G7 processor, a 1920 x 1080 FHD screen with projected capacitive multi-touch and a fanless anti-corrosion housing for rack or VESA mounting. Winmate builds it for defense operations, field command and mission-critical mobility.

The 11th Gen Core i5-1135G7 runs at 2.4 GHz with turbo up to 4.2 GHz, with an optional Core i5-1145G7 up to 4.4 GHz. One DDR4 SO-DIMM takes 4 GB to 32 GB, and storage starts at 128 GB and goes up to 2 TB across an M.2 SSD and a 2.5″ drive bay. TPM 2.0 is fitted, and Windows 11 IoT Enterprise or Ubuntu 22.04 can be supplied. The 23.8″ panel shows 1920 x 1080 at 250 nits with 3000:1 contrast and 178° viewing angles. Projected capacitive multi-touch covers the screen, so operators can use familiar touch gestures.

Connections are two RJ45 LAN ports on Intel Ethernet controllers, two USB 3.2 Gen 1 ports and an RS-232/422/485 port on a DB9 connector, with an HDMI output as an option. The W24IAD3S-MLA2FP is the same housing with a 12th Gen Intel Core i5-1235U, and the W24L100-MLA2FP is the 23.8 inch PCAP rack mount defense monitor without a built-in computer.

Power is 100 to 240 V AC as standard, with an isolated 9 to 36 V DC input as an option, and the power cord uses a MIL-DTL-38999/1 connector. Winmate lists MIL-STD-810H testing for vibration (Method 514.8), humidity (Method 507.6) and transit drop (Method 516.8), plus MIL-STD-461G. The W24IT3S-MLA2FP operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 95% humidity, and it carries CE and FCC marks. We supply it configured, with the OS installed, and tested for your console.
