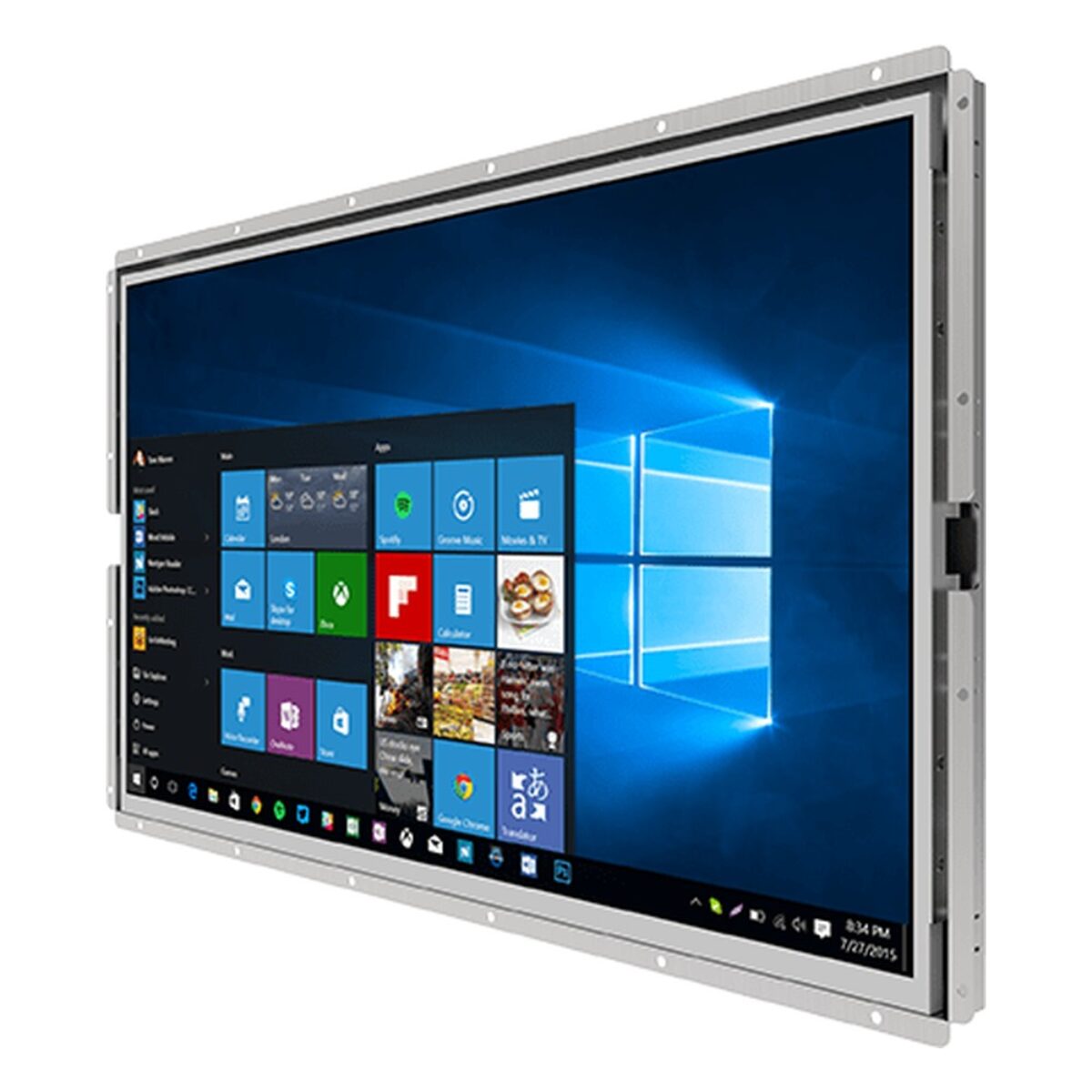

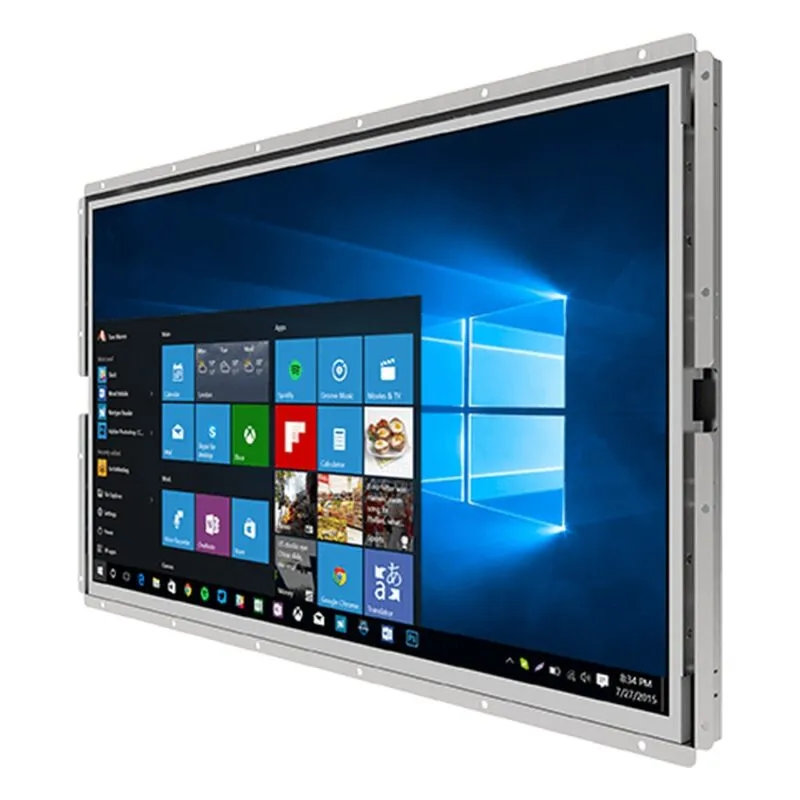

Winmate W24IT3S-OFA2 23.8″ Open Frame Panel PC with 11th Gen Intel Core i5 and Resistive Touch

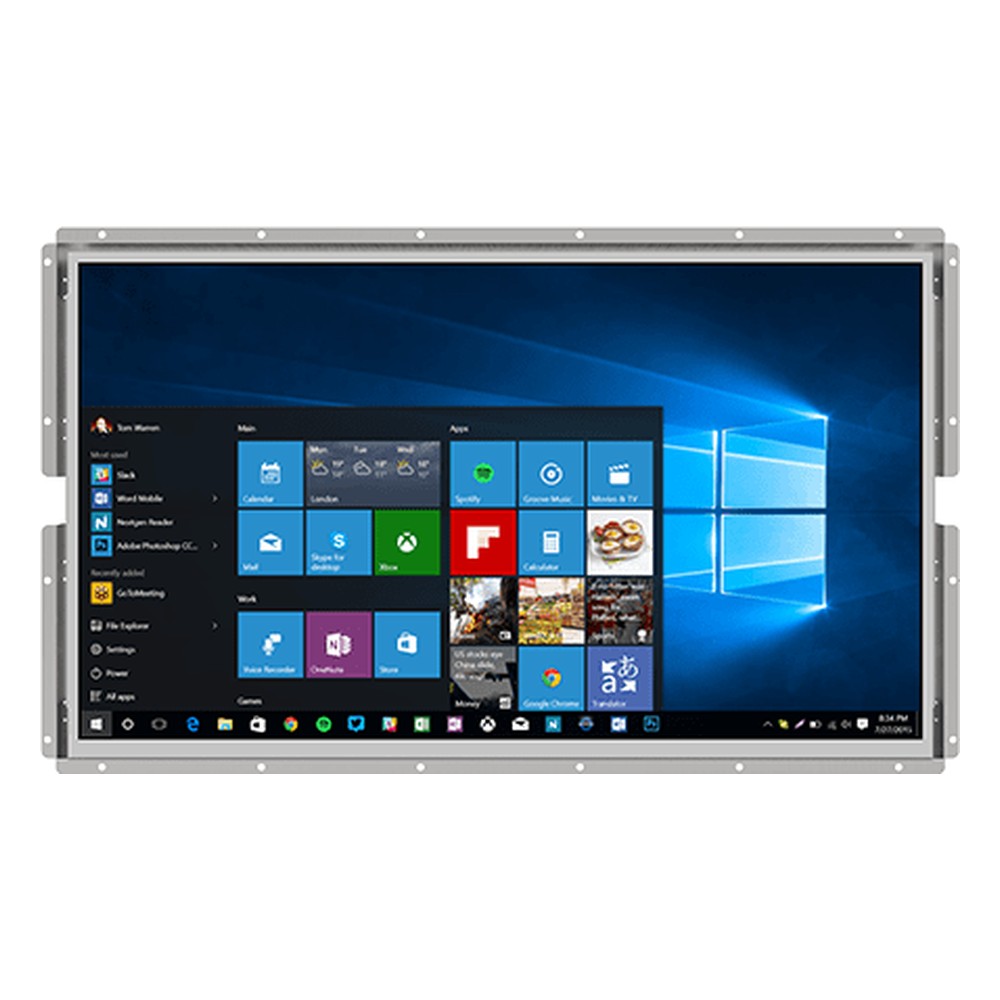

When the enclosure is part of the machine design, the touch computer inside it is best supplied as an open frame that the builder fixes in place. The W24IT3S-OFA2 is Winmate’s 23.8 inch open frame panel PC for OEM enclosures and machine fronts, with an 11th Gen Intel Core i5-1135G7 and a 23.8″ 1920 x 1080 display at 250 nits with 3000:1 contrast, in a fanless metal housing. Resistive touch or plain protection glass are options.

The 11th Gen Intel Core i5-1135G7 has four cores and eight threads at up to 4.2 GHz with Iris Xe graphics, typically leaving headroom for HMI software and SCADA clients without a fan. One DDR4-3200 SO-DIMM holds 4 GB, with options to 32 GB, and a 128 GB NVMe SSD on an M.2 2280 M-key slot can grow to 4 TB, with an optional 2.5″ SATA III drive up to 2 TB. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.

Two 2.5GbE ports on Intel controllers can separate control and plant networks, and two USB 3.2 Gen 2×1 Type-A ports take scanners and storage. Two DB9 serial ports (one RS-232/422/485, one RS-232) connect PLCs and serial instruments. HDMI 2.0 is optional, two speakers are built in, and an M.2 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the W24IAD7T-OFA2 is the 23.8 inch open frame model with LGA1700 Intel Core i3 to i9 processors, and the W24IT3S-CHA2 is the chassis version with the same Core i5-1135G7 for VESA mounting.

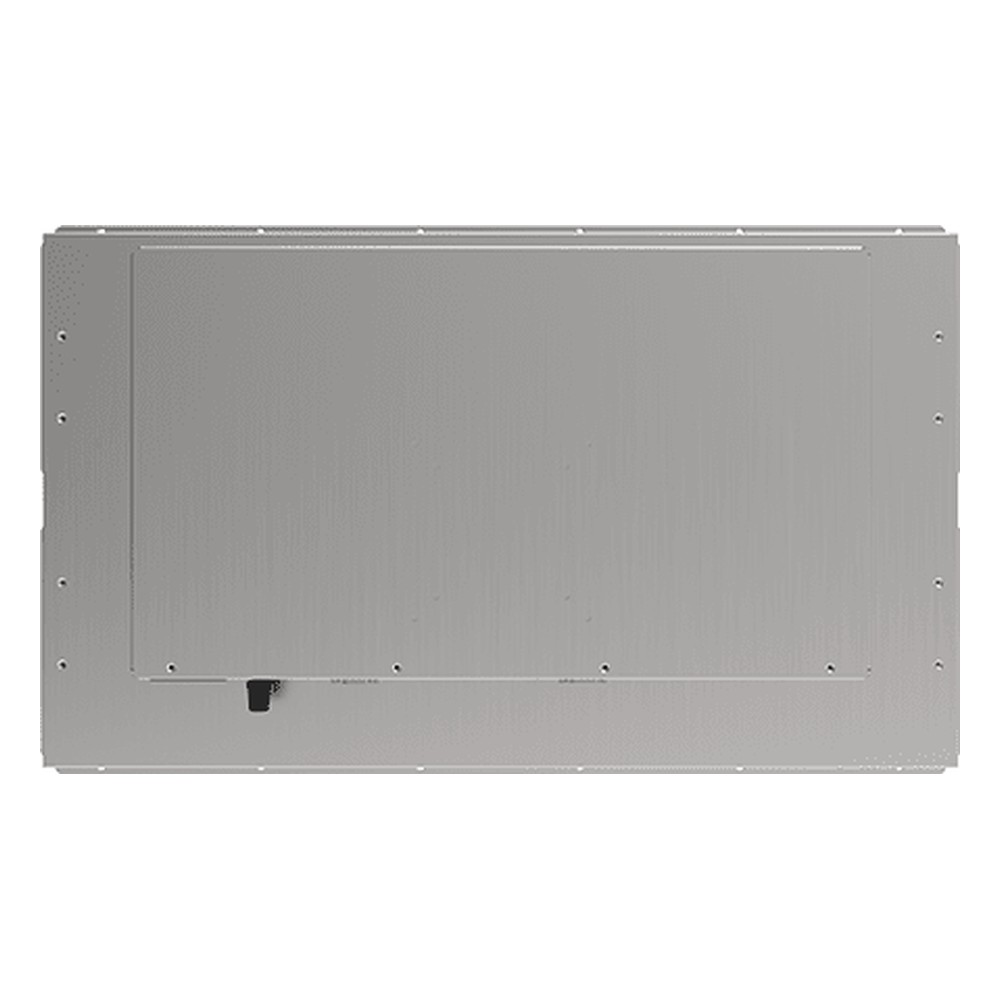

Power is 12 V DC on a barrel DC jack, with a 120 W AC adapter supplied. It runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, for indoor cabinets and control rooms. It mounts as an open frame by default, with panel and VESA mounting as options. It carries CE and FCC marks. We supply the W24IT3S-OFA2 configured, with the OS installed, and tested before dispatch.
